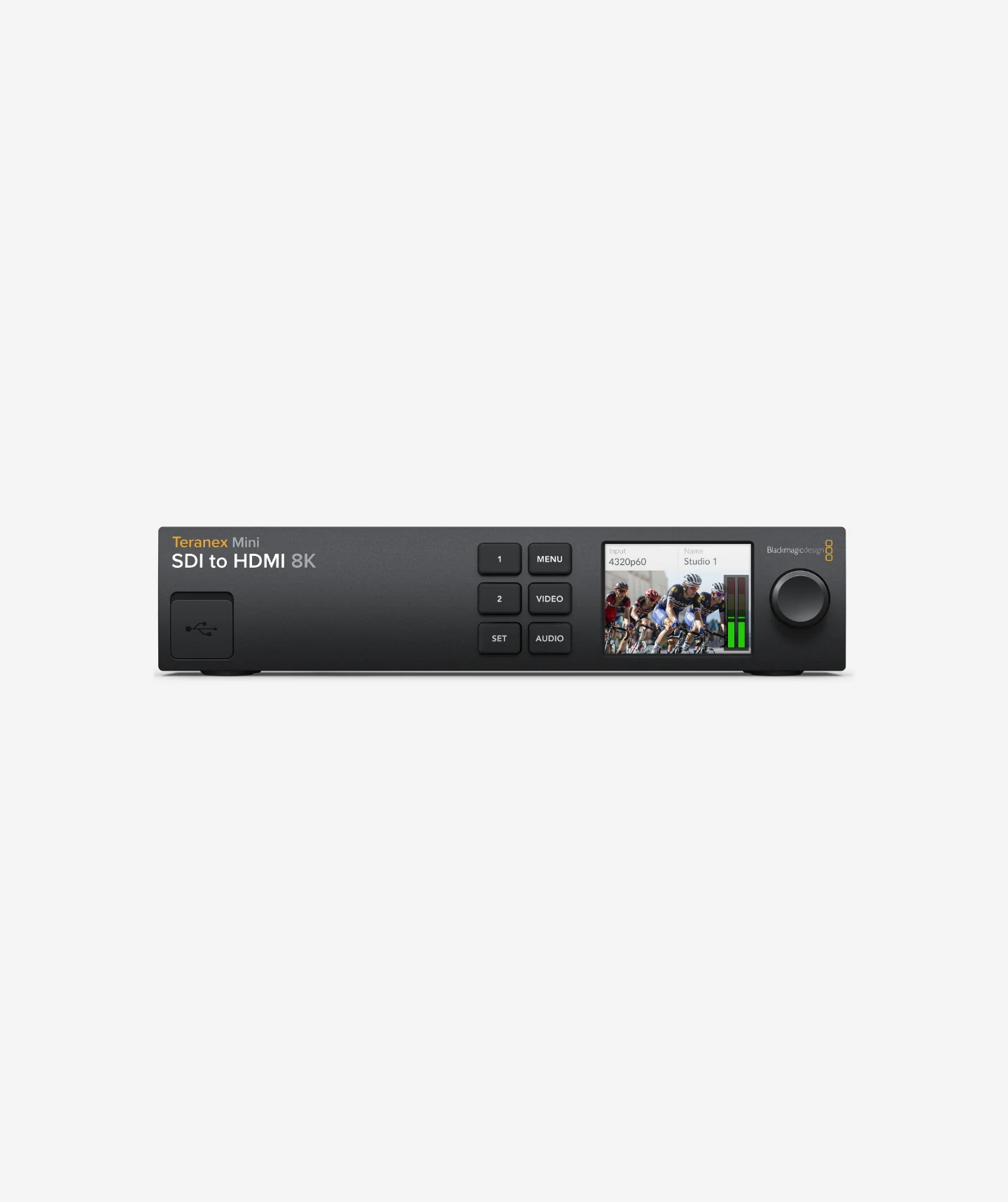

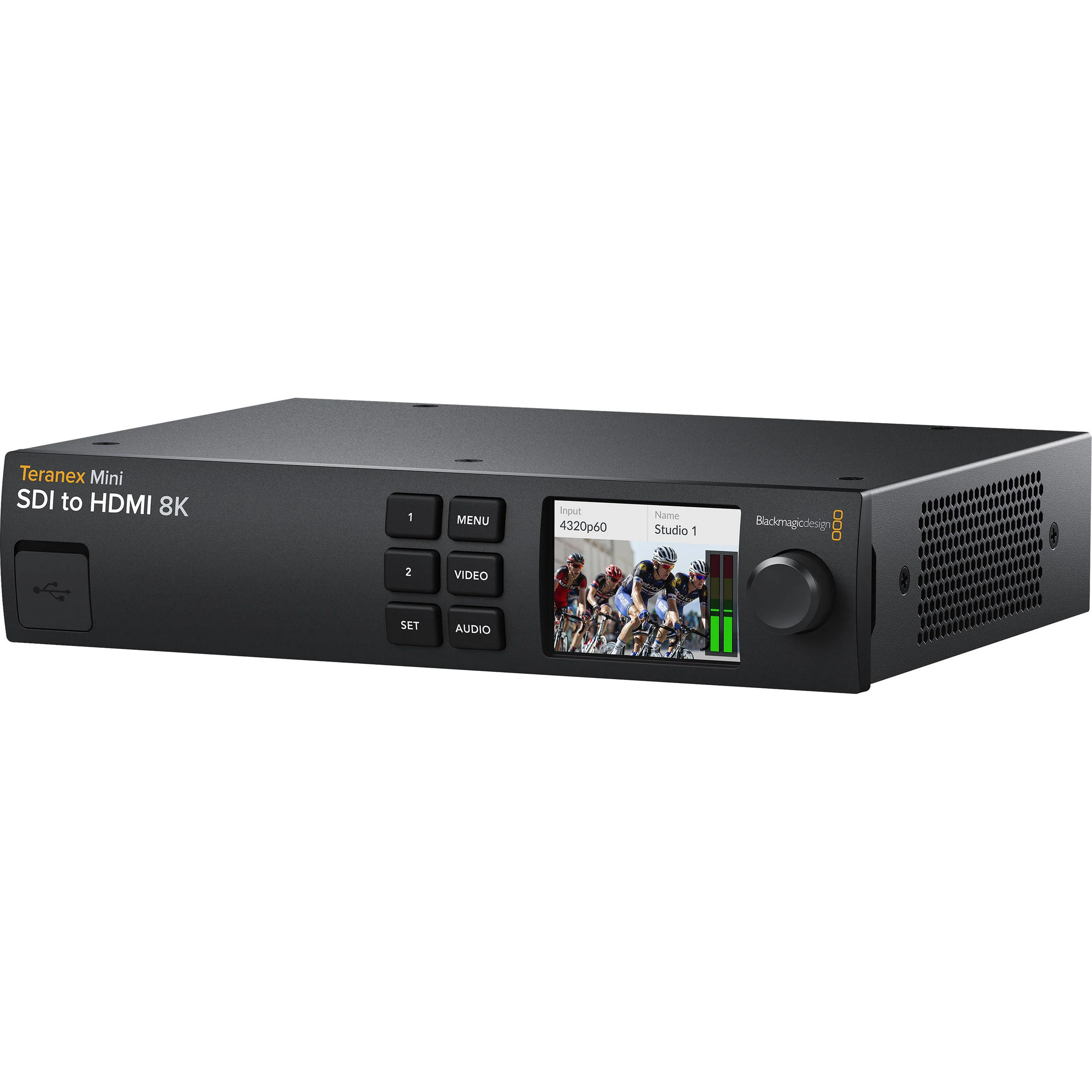

Blackmagic Teranex Mini SDI to HDMI 8K HDR

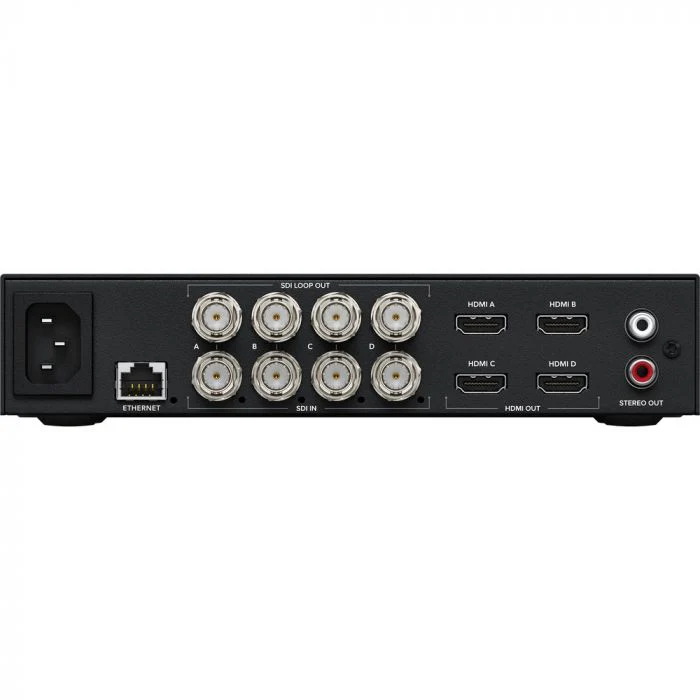

Video Input Connectors

4 x BNC (12G-SDI)

Input Video Format

SDI (4:4:4/4:2:2 RGB, YUV)

DCI 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 2KPsF: 23.98/24/25/29.97/30 fps

1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080PsF: 23.98/24/25/29.97/30 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

Embedded Audio Input

SDI: 16-Channel (per Input)

Video Output Connectors

4 x BNC (12G-SDI) (Loop Output)

Output Video Format

SDI (4:4:4/4:2:2 RGB, YUV)

DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps

8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

DCI 2KPsF: 23.98/24/25/29.97/30 fps

HDMI (4:4:4/4:2:2 RGB, YUV)

8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

Audio Output Connectors

2 x RCA

Embedded Audio Output

SDI: 16-Channel

HDMI: 8-Channel

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Other I/O

1 x RJ45 PoE

1 x USB Type-C

Display Size

2.2"

OS Compatibility

Windows 8.1

Windows 10

macOS 10.13

macOS 10.14 or Later

Power Connector

1 x IEC C14 Input

Power Consumption

Device: 100 to 240 VAC (25 W)

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

Dimensions

8.27 x 1.73 x 6.93" / 21.01 x 4.39 x 17.6 cm

Weight

2.6 lb / 1.18 kg
