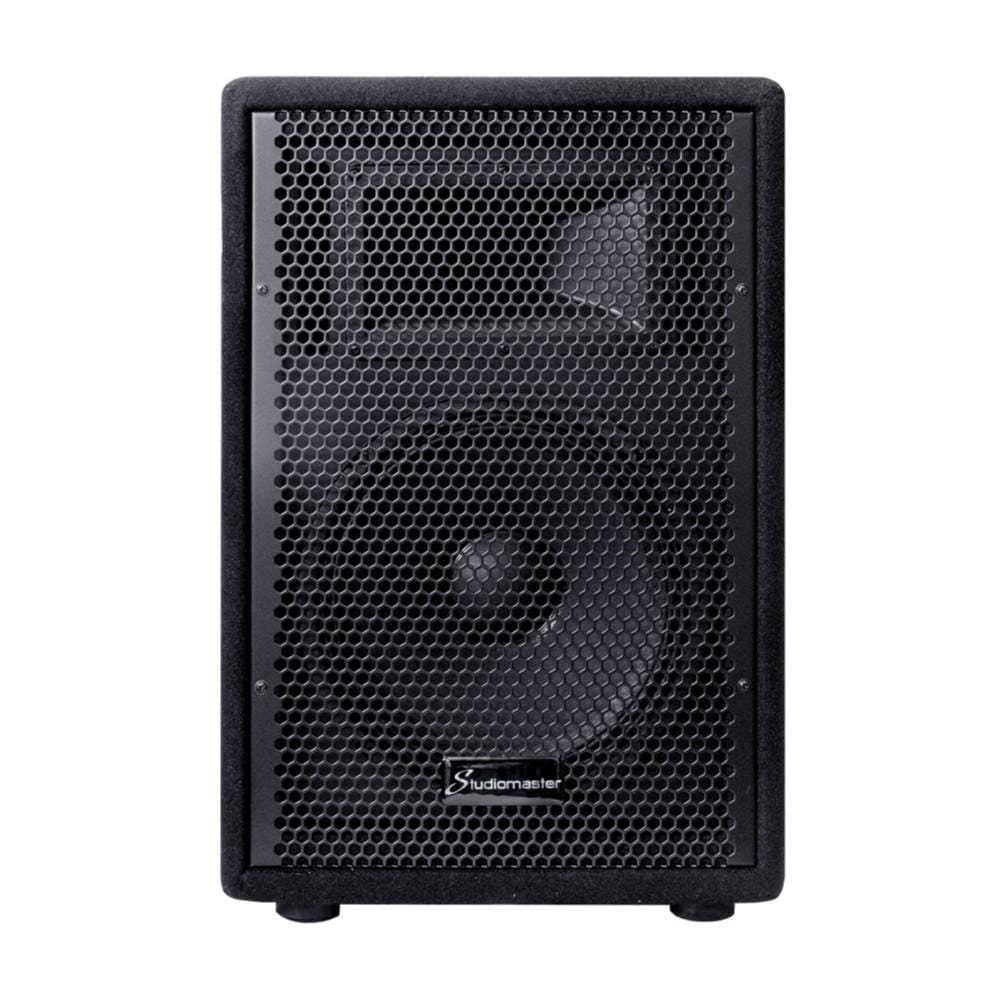

Studio Master TRX10 10Inch Passive Speaker Cabinet

Studio Master TRX10 10Inch Passive Speaker Cabinet Overview:

The TRX series is a range of high performance, versatile enclo- sures with a massive 15 models to choose from, with both passive and active models in the range.

All models feature cast aluminium chassis heavy duty bass transducers with large 1” throat compression drivers, packaged in a rugged hard wearing paint finish. TRX10, 12, 15 and 15M passive and active models have multiple M10 hanging points, and the TRX10, 12 and 15 also feature 35mm pole sockets.

All models have large recessed side handles, and for total ease the larger 2×15” TRX215 comes with rear mounted castors.

Specifications:

• Type: 10″ 2 way passive speaker

• Frequency response (-10dB): 60Hz–20KHz

• Sensitivity 1w @ 1m: 94dB

• Rated impedance: 8Ω

• Power handling: 200W(Cont)800W(Peak)

• Crossover frequency: 2.0KHz

• LF: 10″ /50mm voice coil

• HF: 34mm comp driver/1″ throat

• Coverage (HxV): 80°x60°

• Max SPL (@1m): 124dB

• Input mode: 2×4-pole ind std sockets

• Hanging system: 12*M10 hanging points

• Dimensions (WxHxD): 354×555×426 (mm)

• Weight: 19Kg
