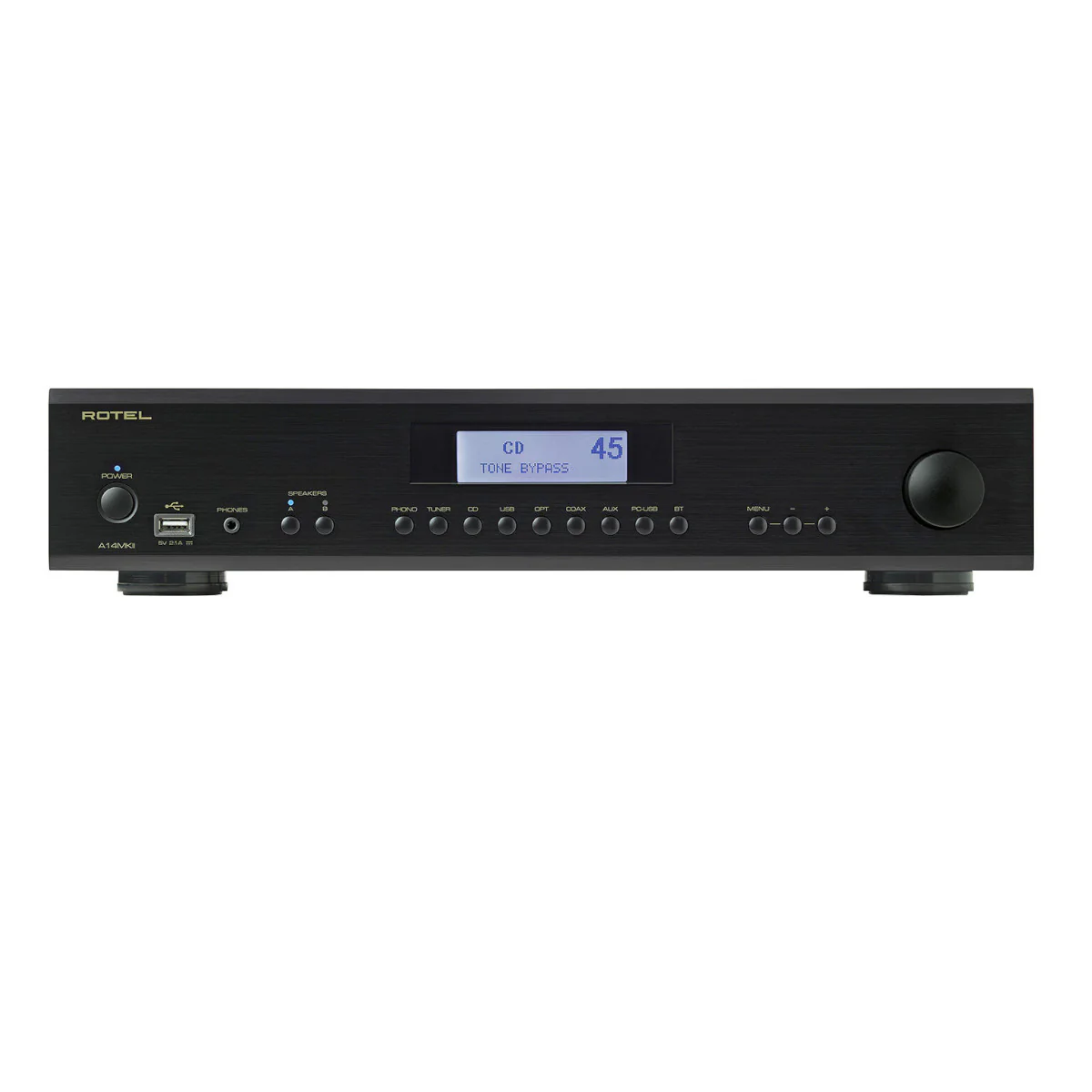

Rotel A14 MKII Integrated Amplifier

Did you check out the power-packed Rotel A14 MKII Integrated Amplifier? The A14 MKII Integrated Amplifier delivers 80 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM, and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC, and amplifier circuits make sure that the A14MKII will pack a punch with countless hours of entertainment. The A14MKII is the flagship model in the 14 Series family of Rotel products providing 80 Watts of Class AB amplification into 8-ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high-efficiency slit-foil bulk storage capacitors rendering an effortless acoustic performance.



Warranty

2-year manufacturer's warranty



Key Features



• 2 × 150 Watts of robust power
• Class AB amplifier design
• Supports MQA and MQA Studio
• Wireless aptX™ and AAC Bluetooth
• Moving magnet phono input for turntable connection

• Integrated Bluetooth aptX
• Certified Roon Tested




Benefits of Rotel A14 MKII Stereo Integrated Amplifier





Packs a Punch with an Effortless Acoustic Performance

The A14 MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance. A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.



Flexible Audio Component for Countless Entertainment Hours

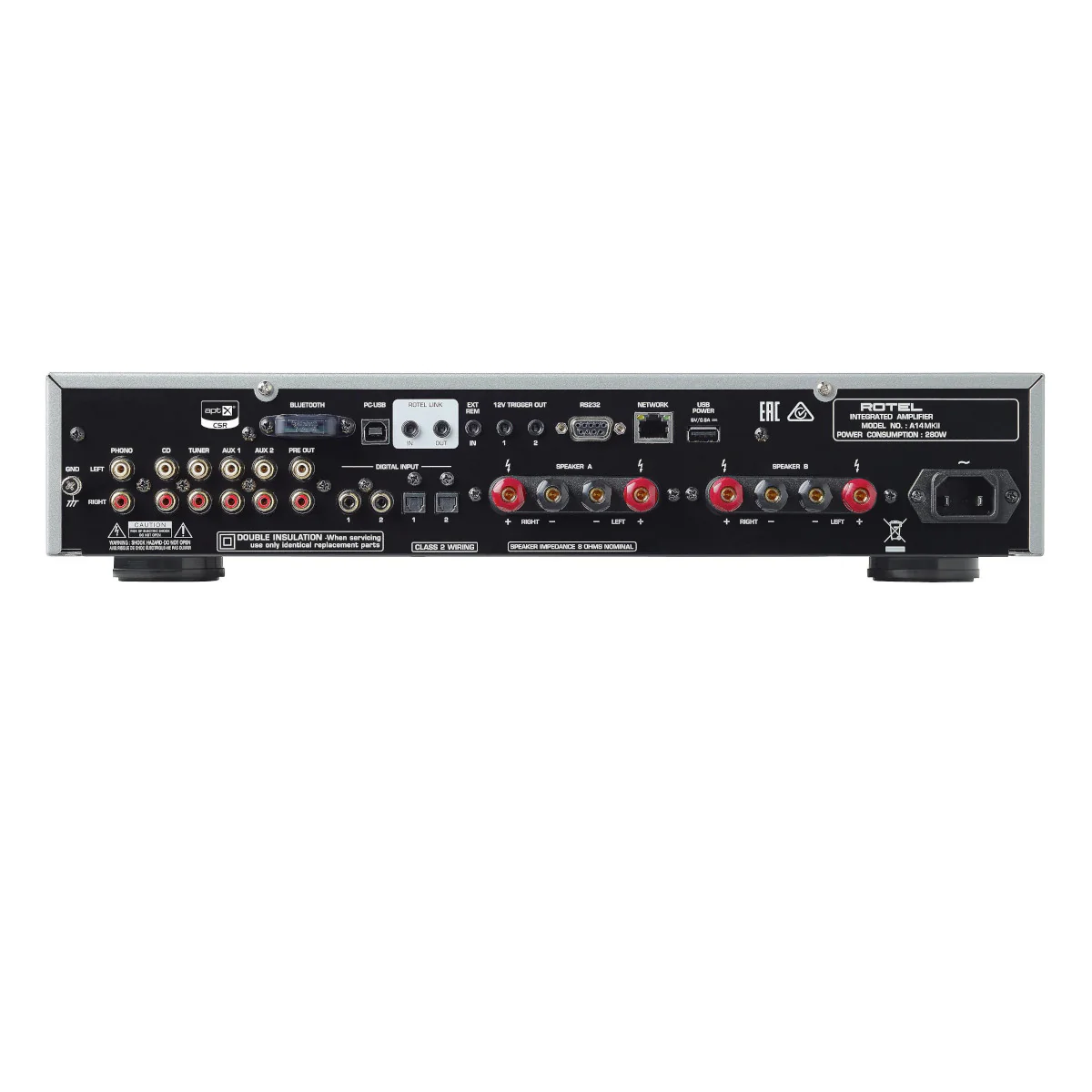

Tone controls provide treble and bass adjustments in 1dB step up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion. The A14MKII supports your favourite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans. The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections. Dual 5-way speaker binding posts allow Zone 2 installations with a relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information. The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Where to buy?

Buy the Rotel A14 MKII Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

Technical Specifications of Rotel A14 MKII Integrated Amplifier

Brand & Model #	Rotel A14 MKII
Maximum Power Output	150W/Ch (4Ω)
Continuous Power Output	80W/Ch (8Ω)
Total Harmonic Distortion	<0.018%
Frequency Response	Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2.0dB, MaxPhono Input: 20Hz - 15kHz, ±0.5dB
S/N Ratio (IHF "A" Weighted)	Line Level Inputs: 100dB Digital Inputs: 103dB Phono Input: 90dB
Intermodulation Distortion (60Hz:7kHz, 4:1)	<0.03%
Input Sensitivity	Line Level Inputs: 230mV Digital Inputs: 0dBfs Phono Input (MM): 3.4mV
Input Impedance	Line Level Inputs: 24kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ
Input Overload	Line Level Inputs: 4V Phono Input: 50mV
Damping Factor	220
Speaker Impedance	4Ω minimum
Preout Level	1.2V
Output Impedance	470Ω
Tone Controls	±10dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals	SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB	USB Audio Class 1 (up to 24-bit/96kHz) USB Audio Class 2 (up to 32-bit/384kHz) *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz ) Roon Tested
Power Requirements	120V, 60Hz
Power Consumption	280W
Standby Power Consumption	<0.5W
BTU Rating (4Ω, 1/8th power)	632 BTU/h
Dimensions (W x H x D)	430 × 93 × 345mm 17" × 3.6" × 13.5"
Front Panel Height	80mm (3.15")
Net Weight	8.94kg (19.71lbs.)
