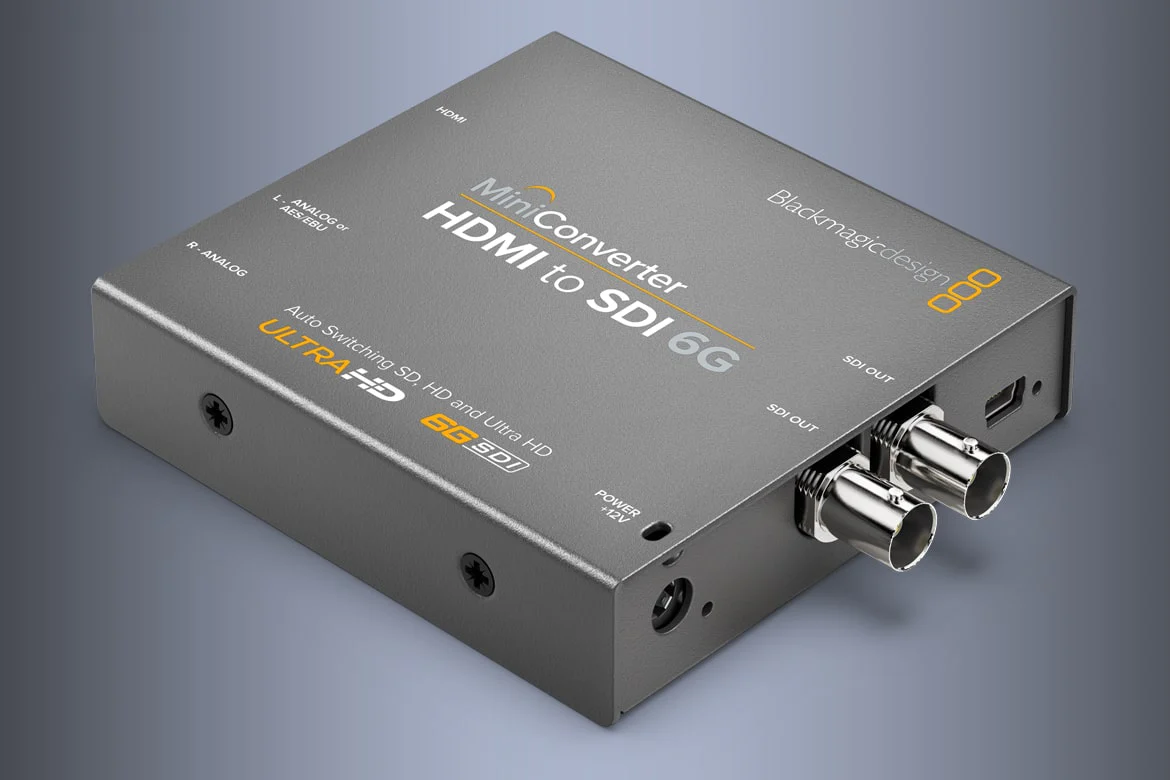

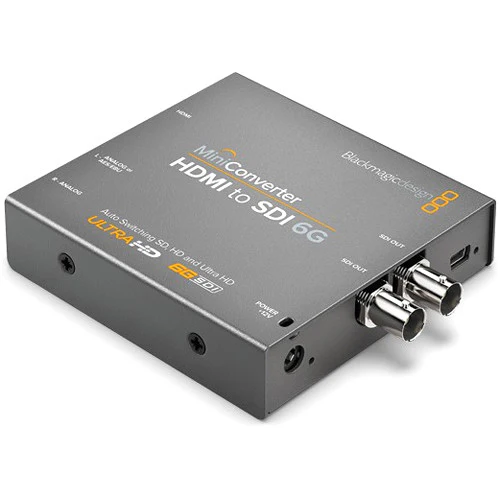

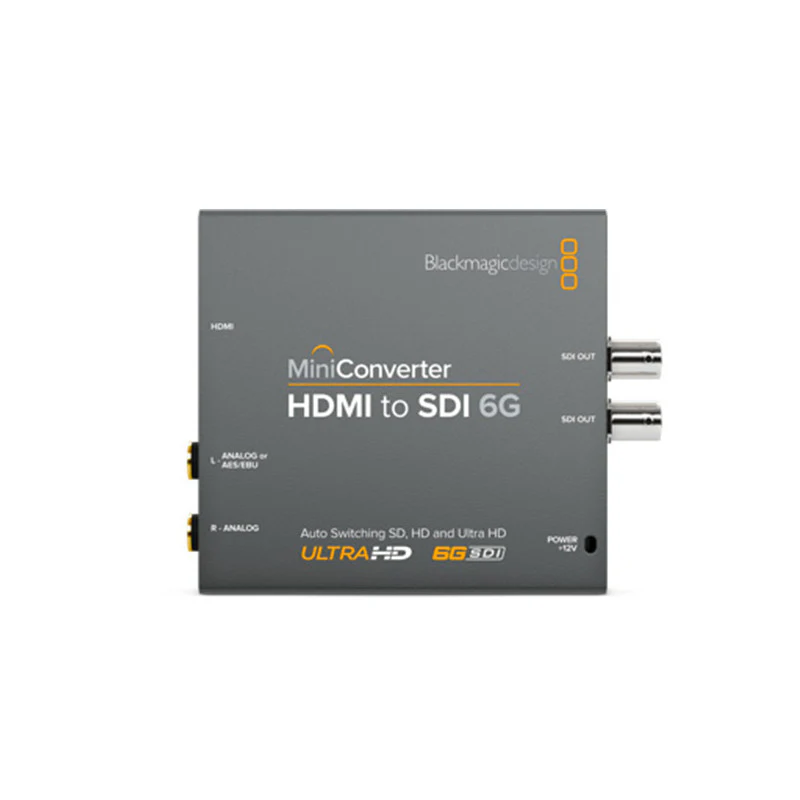

Blackmagic Mini Converter HDMI to SDI 6G
Key Features:
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
Additional Features:
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
Technical Specifications:
|
Video Input |
1 x HDMI, Type A |
|
Video Output |
2 x 6G-SDI |
|
Multi-Rate Support |
Auto detection of SD, HD, 3G, or 6G-SDI signals |
|
Reclocking |
Yes |
|
Audio Input |
Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack |
|
Format Support |
DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
|
SDI Compliance |
SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081 ITU-R BT.656 and ITU-R BT.601 |
|
SDI Video Rates |
Switchable between SD, HD, Ultra HD and DCI 4K |
|
SDI Video Sampling |
4:2:2 |
|
SDI Color Precision |
4:2:2 |
|
SDI Color Space |
YUV |
|
SDI Audio Sampling |
24-bit, 48 kHz |
|
SDI Auto Switching |
Automatically detects SD, HD, or 6G-SDI |
|
HDMI Format Support |
UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
|
HDMI Color Space |
YUV and RGB |
|
HDMI Color Precision |
4:2:2 4:4:4 |
|
HDCP Compliance |
No. HDMI input is unable to capture from copy-protected HDMI sources |
|
Format Conversion |
HD down-conversion |
|
Settings Control |
Mini switches or USB software |
|
Firmware Upgradeable |
Via USB |
|
Power Supply |
12 VDC |
|
Power Consumption |
4.44 W |
|
Operational Voltage Range |
12 to 31 VDC |
|
Operating Temperature |
32 to 104°F / 0 to 40 °C |
|
Storage Temperature |
-4 to 113°F / -20 to 45 °C |
|
Relative Humidity |
0 to 90% non-condensing |
|
Dimensions |
4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm |
|
Weight |
8.6 oz / 243.8 g |
In the Box:
- Blackmagic Design HDMI to SDI 6G Mini Converter
- 12V Power Supply with International Socket Adapters
- Limited 3-Year Warranty
