Temple Sound System 8xWharfedale EVP-X15 Wall Mount Loudspeakers, 2xSubwoofer ,5xAmplifier, Crossover, Monitor, Mics, Stands & Mixer

Temple Sound System 8xWharfedale EVP-X15 Wall Mount Loudspeakers,2xSubwoofer,5xAmplifier,Crossover,Monitor,Mics & Yamaha Mixer

Temple Sound Systems (Passive)
Temple Sound Systems configured by our engineers including EVP X15 speakers, amplifiers, crossover, compatible mixer, vocal microphones, and relevant cables and are ready readymade solution for ideal for an audience size of 200-250 people and a venue size of 5000sq.ft or by speaking to one of our experts as a great starting point for a more detailed customized solution for your audio needs like live performances, bands, choirs, sermons, presentations & speeches.

Budget - Under 7 Lakhs

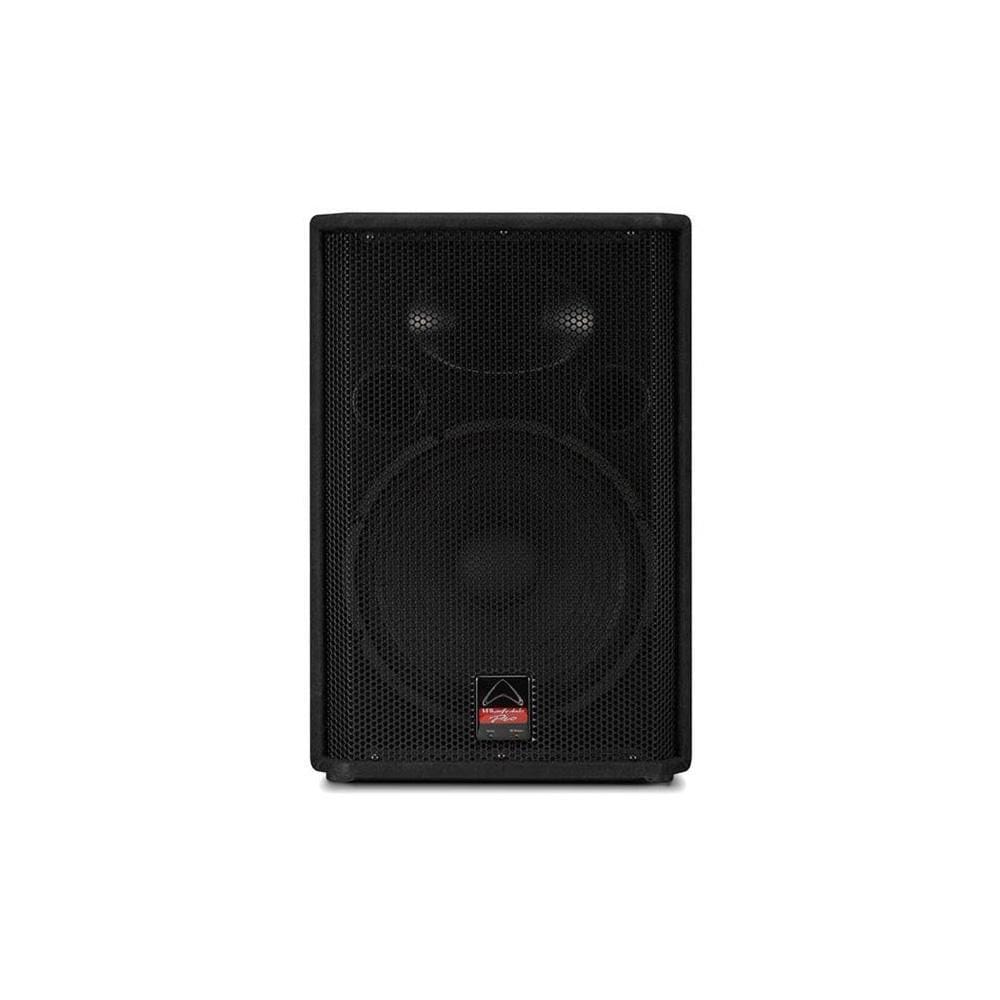

Wharfedale EVP-X15 MKII Loudspeaker

The Evolution of the EVP-X MKII Series

From the EVP, EVP-X and now the EVP-X MKII, we have honed the EVP-X15 MKII, which is part of one of the most well respected and reliable speaker series in the industry. Now in the era of the MKII, you can now put your trust into a demanding yet durable PA sound system, built around Wharfedale Pro's latest acoustic and manufacturing innovations. The new series serves up an extra 20% power handling and an additional 32dB SPL over the original EVP-X.

Features :

• 350W RMS / 700W Program / 1400W Peak
• 130 dB Max SPL
• 45 Hz - 20 kHz frequency response
• 90 x 60 Elliptical Wave Guide Horn
• 15" woofer
&\n<n
• ProTech Driver
n
• 1.75" (44mm) titanium diaphragm drivers
• +3dB HF Frequency boost switch
• Speakon and 6.3mm jack connections
• Signal and Protect LEDs
• Durable black carpet covering
• Dual angle pole mounts
• New four way carry handle design

EVP-X18B MKII Subwoofer

The Evolution of the EVP-X MKII Series

From the EVP, EVP-X and now the EVP-X MKII, we have honed the EVP-X18B MKII, which is part of one of the most well respected and reliable speaker series in the industry. Now in the era of the MKII, you can now put your trust into a demanding yet durable PA sound system, built around Wharfedale Pro's latest acoustic and manufacturing innovations. The new series serves up an extra 20% power handling and an additional 32dB SPL over the original EVP-X.

Key Features :

• 600 RMS / 1200W Program / 2400W Peak
• 130 dB Max SPL
• 35 Hz - 20 kHz frequency response
• 150 Hz crossover frequency
• 18" woofer
n
• ProTech Driver
n
• Speakon and 6.3mm jack connections
n
• Signal and Protect LEDs
n
• Durable black carpet covering
n
• 35mm pole mount insert
n
• New four way carry handle design
n

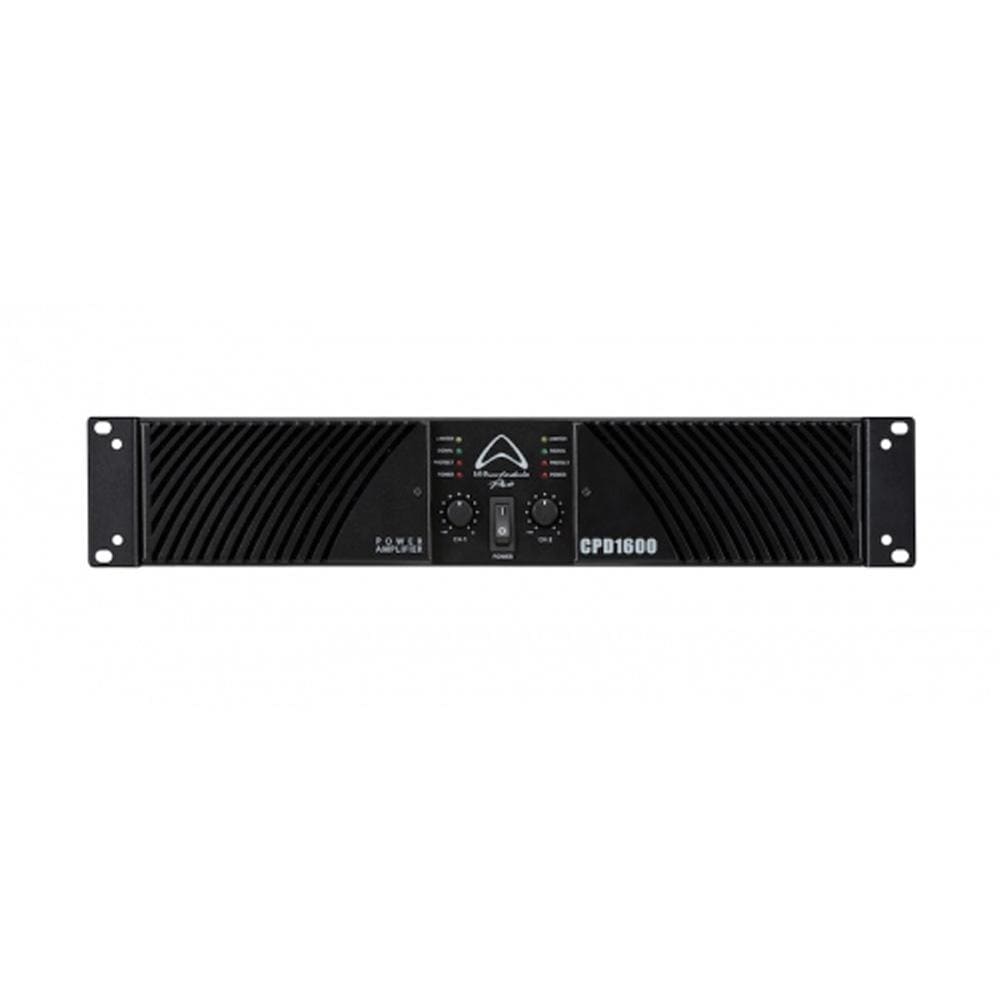

CPD 1600 Power Amplifier

The CPD1600 is part of Wharfedale Pros latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 400W RMS per channel at 8 Ohms and 650W RMS per channel at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1600W RMS, perfect for powering a subwoofer integrated into a larger PA system for example.

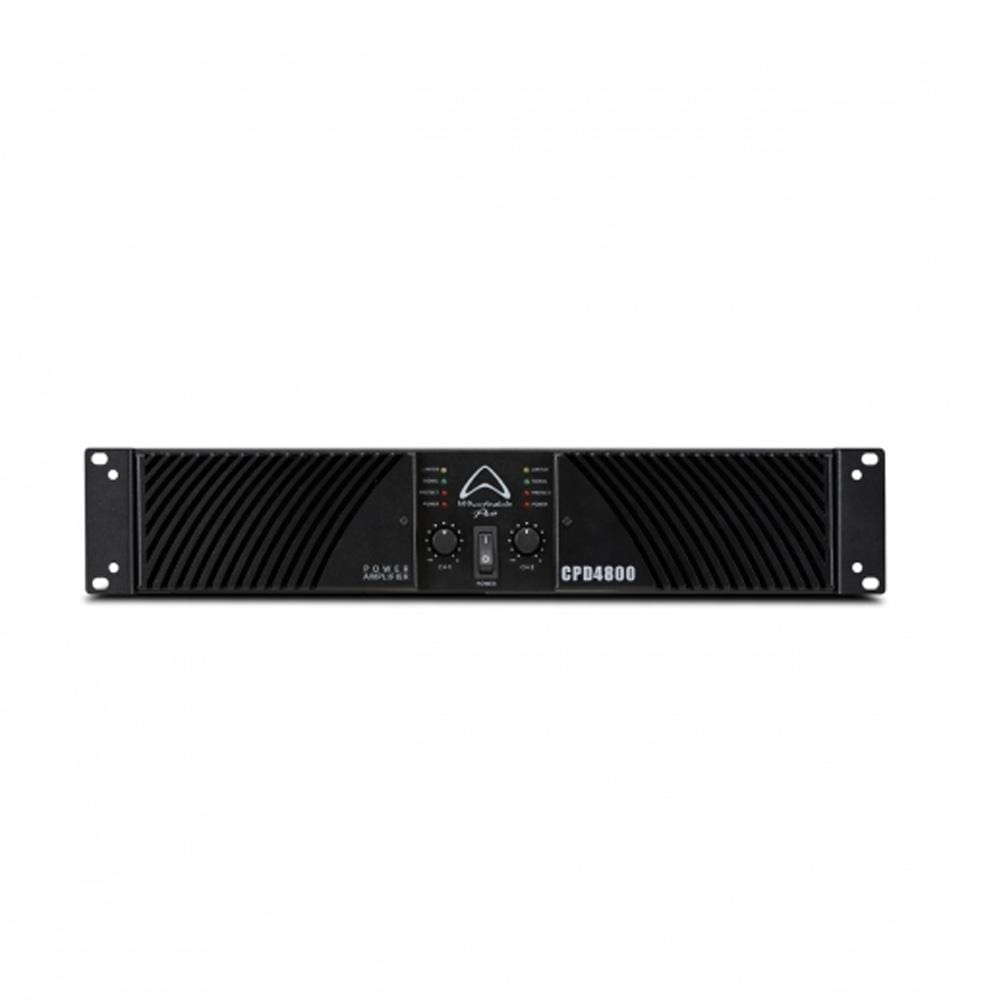

CPD 4800 Power Amplifier

The CPD series of power amplifiers has become a trusted tool for many gigging musicians, tours and installations since its introduction in 2014.

The top-of-the-range CPD4800 delivers breathtaking power. This 2U Class H amp delivers a competitor busting and earth shattering 4800watts when bridged into 4. Weighing in at only 23.5kg the CPD4800 also has the best weight:power ratio in the CPD series

Key Features :

n
• New - 4800watts when bridged into 4
n
• New - 2 * 5-way binding posts
n
• Robust construction
n
• Parallel, Stereo and Bridge modes
n
• Limiter switch
n
• Status and clip LEDs
n
• Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off muting
n

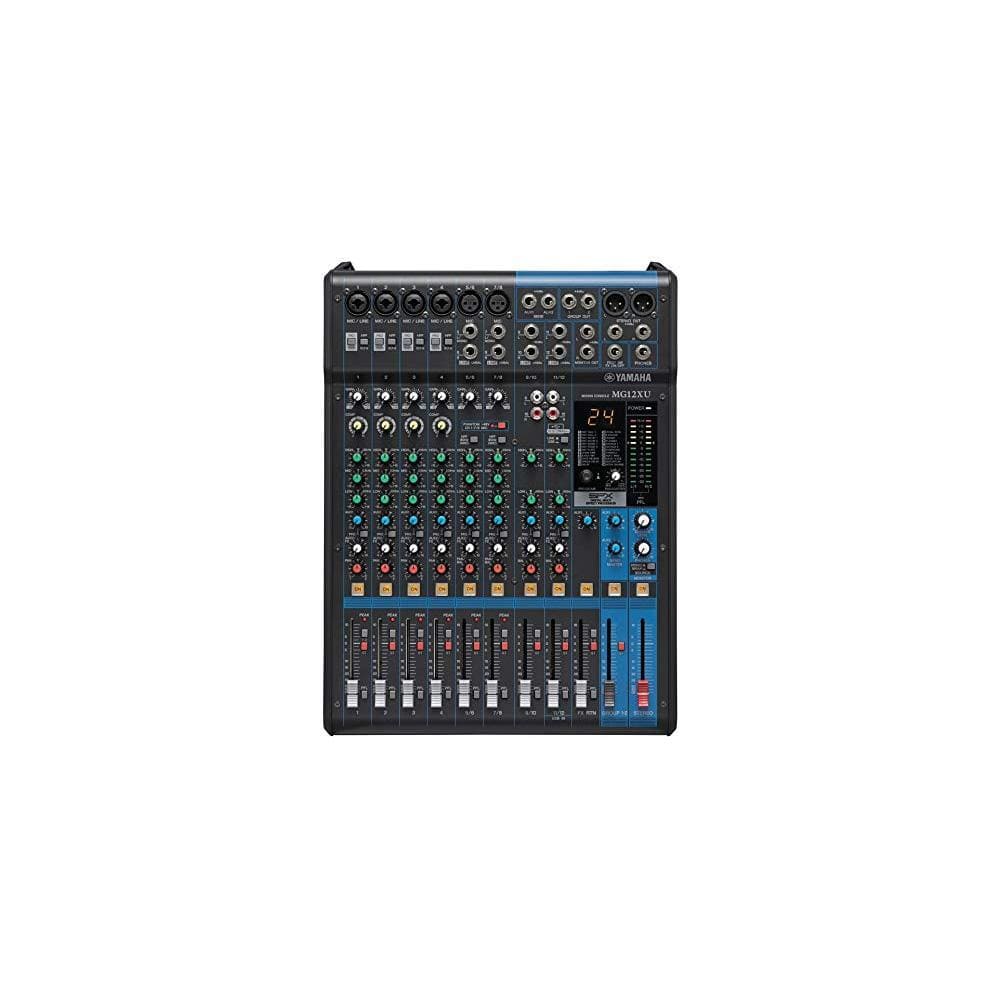

MX 12XU 12-Channel Mixing Console

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)

n
• 12-Channel Mixing Console
n
• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
n
• 2 GROUP Buses + 1 Stereo Bus
n
• 2 AUX (incl. FX)
n
• iD-PREmic preamps with an inverted Darlington circuit
n
• 1-Knob compressors
n
• High-grade effects: SPX with 24 programs
n
• 24-bit / 192kHz 2in / 2out USB Audio functions
n
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
n
• Includes Cubase Al* DAW software download version *This is not bundled in some areas.
n
• PAD switch on mono inputs
n
• +48V phantom power
n
• XLR balanced outputs
n
• Internal universal power supply for world-wide use
n
• Optional Rack Mount Kit RK-MG12 Available
n
• Metal chassis
n
• Dimensions(WxHxD): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
• Net Weight: 4.2 kg (9.3 lbs.)

MX 234xl 4-Way Crossover

MX Stereo 2 / 3 Way, Mono 4 Way Professional Audio Crossover XLR Connectors

MX 234XL Stereo 2/3 Way, Mono 4 Way Professional Audio Crossover with XLR Connectors are great looking, and as you turn the controls something else becomes apparent; these units are extremely well built. The controls exude great precision, and the feel is a solid "click". We know how difficult external power supplies can be to work with and even though it costs a little more we put the high quality power supply right in the unit

FEATURES

• XLR balanced ins and outs (MX 234XL)
• Mode switch for Stereo 2-way / Mono 3-way or Mono 4-way operation
• Low frequency summed (subwoofer) output
• x10 range switch on both channels
• 40 Hz high pass (low cut) filter both channels
• Phase reverse switch on all outputs
• Individual level controls on all outputs
• 24dB per octave filters (the professional standard)
• Stereo/Mono status LEDs indicate the selected mode

Wharfedale DM5.0s Super-Cardoid Microphone

The DM5.0s is made to cut through the mix for detailed live vocal performance. High SPL capabilities combined with a supercardioid pickup pattern means the microphone can produce high gain before feedback and a high signal to noise ratio. The microphone also features an on/off switch which has been specifically designed to ensure silent switching during performance.

Key Features

• Frequency Response 50Hz -12kHz
• Live dynamic microphone
• Supercardioid polar pattern
• 600 Output Impedance
• 135dB Max SPL
• High performance capsule
• Tailored for vocals
• Also suitable for drums, guitar cabs and other high SPL sound sources
• Supplied with XLR to XLR cable
• Rugged cast metal body
• Steel mesh grille
• Internal pop shield
• High SPL capabilities
• Low distortion

MX412 Gooseneck Microphone

Microflex Gooseneck Microphone
The right speech doesnt just inform. It can excite and even transform those who hear it. So, we designed the MX412 to treat spoken audio with the detail and respect it deserves. Because clarity commands attention.

Features :

• 12-inch gooseneck
• 18-inch gooseneck available
• Low-profile design
• Dual-flex gooseneck provides easy mic adjustment
• Versions available with mute button, LED indicator, locking flange and shockmount assemblies
• Can mount on table, lectern, podium or similar surface
• Interchangeable cartridges ensure great audio in any environment

RSM195BK Microphone Stand

Stage Equipment / Metal Systems / Microphone stands
Professional microphone stand with fixed boom.

Professional microphone stand with fixed boom. Featuring complete steel swivel joint with die cast junction. Die cast tripod base with high grade nylon joints. Soft grip nyon construction for clutch system and counterweight. Available in matt black

Specifications :

• Construction materials: Steel - Die-cast aluminium - Soft grip nylon - Nylon
• Base dimension:720 mm
• Minimum height: 975 mm
• Maximum height: 1580 mm
• Weight: 2,2 kg
• Boom length:: 820 mm
• Color: Matt black
• 3/8 end threaded with 5/8 adapter included.

Cables as per requirement
Installation & Commissioning extra.

Made in United Kingdom
