Blackmagic Design Web Presenter HD
Key Features:
- Live Stream SDI Video Source to Internet
- Input 12G/6G/3G-SDI Video up to UHD 4K
- SDI/HDMI Monitor Output up to 1080p60
- Supports H.264/RTMP Streaming Protocol
- Use USB Type-C as Webcam or 5G/4G Tether
- SDI Loop Output, 10/100/1000 Ethernet
- Redundant AC and DC Power Inputs
- Mac, Win, Linux & Chromebook Compatible
- Works with ATEM Streaming Bridge Option
Technical Specifications:
|
IP Video |
H.264: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
|
Transport Protocols |
RTMP |
|
Simultaneous Streams |
1 Streams |
|
Compatible Services |
Facebook Live, Livestream, Skype, Twitch, YouTube Live |
|

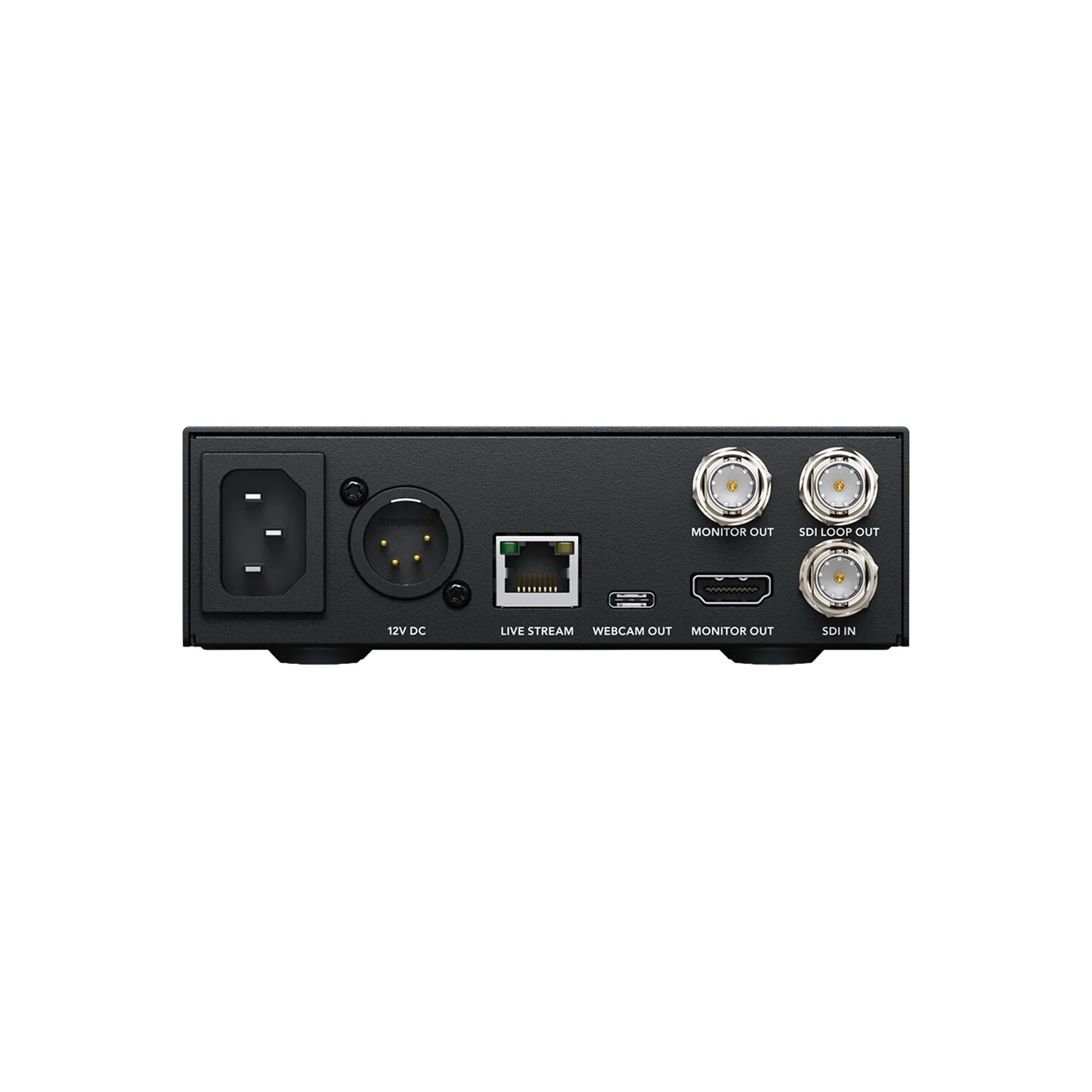

Video Connectors |
1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1 x HDMI Output |
|
Other I/O |
1 x RJ45 10/100/1000 Ethernet Input/Output 1 x USB Type-C Input |
|
Embedded Audio |
SDI/USB Type-C |
|
Power Supply |
1 x Internal 100 - 240V AC. |
|
12V DC Input |
1 x +12V DC 4‑pin XLR. |
|
Power Usage |
21 W |
|
Operating Temperature |
0° C to 40° C (32° - 104°F) |
|
Operating Humidity |
0% to 90% non-condensing |
|
Storage Temperature |
-20° to 45° C (-4° to 113° F) |
|

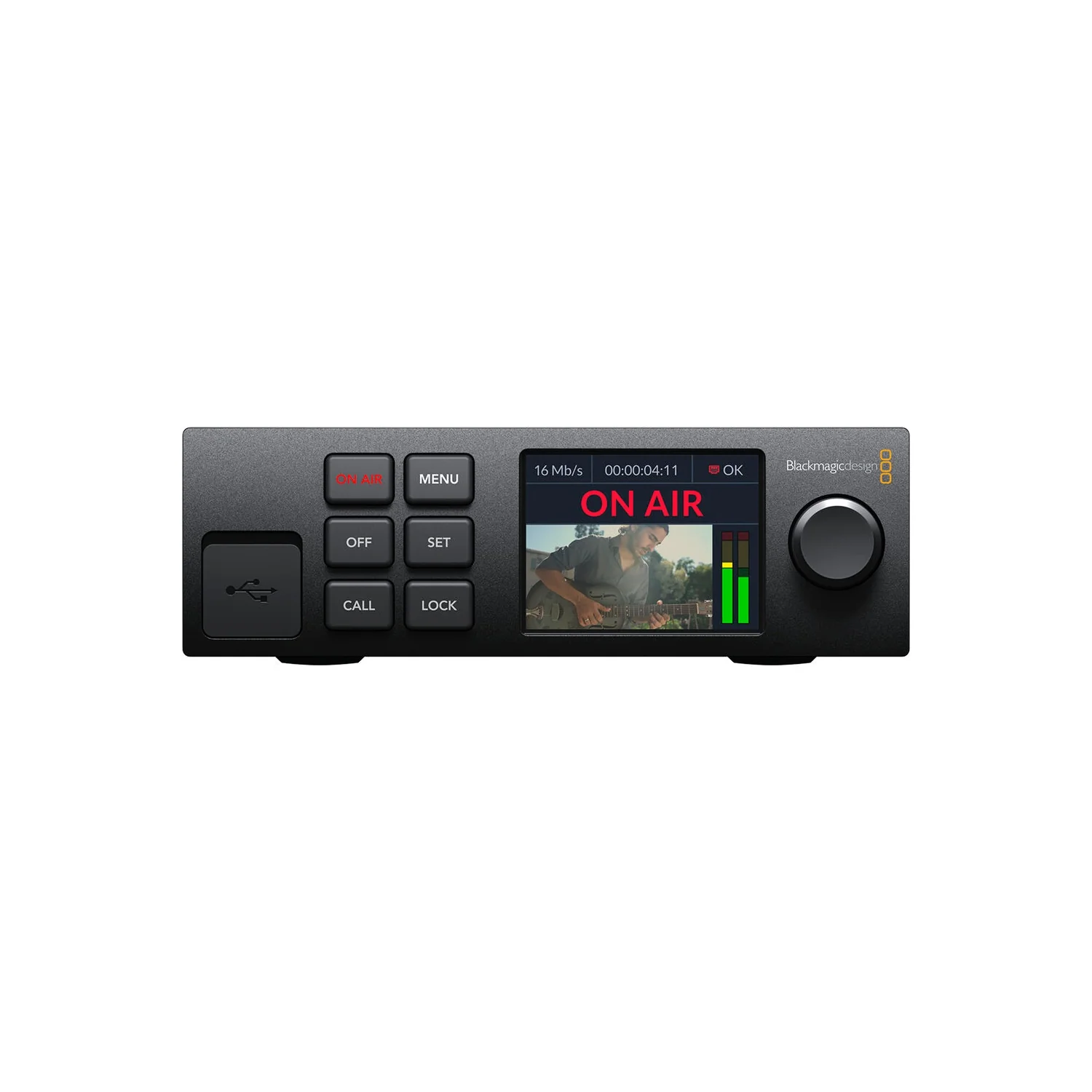

Display |
LCD |
|
Dimensions |
6.9 x 5.51 x 1.75" / 17.5 x 14 x 4.45 cm |
|
Weight |
0.75 kg |
| In the Box |
Blackmagic Web Presenter HD 3 year Limited Manufacturer’s Warranty. |
