Bowers & Wilkins (B&W) CWM7.4 S2 In-wall Speaker





Built for custom cinema environments where visual discretion is as important as sonic precision, the Bowers & Wilkins CWM7.4 S2 In-Wall Speaker is a reference-level architectural speaker designed for premium home theatre installations in India. Unlike conventional in-wall systems, it is engineered as a 2.5-way LCR-capable speaker array, combining Carbon Dome tweeter precision with Continuum cone midrange control and dual Aramid Fibre bass drivers to maintain clarity and impact even in large dedicated media rooms. Its symmetrical driver layout allows flexible orientation for left, center, or right channel placement, making it a core component in high-performance cinematic setups across luxury residences in Mumbai, Delhi, and Bangalore. For users evaluating a high-end in-wall speaker for home theatre, a discreet Dolby Atmos-compatible LCR solution, or a premium architectural audio system for custom home cinema design, the CWM7.4 S2 delivers controlled dynamics, stable imaging, and consistent tonal balance without compromising interior aesthetics.

Warranty

1-year manufacturer's warranty

Key Features:

• Carbon Dome tweeter
• Continuum midrange
• Aramid Fibre/Paper bass cones



Benefits of Bowers & Wilkins (B&W) CWM7.4 S2 In-wall Speaker:



Enjoy an Entertainment Experience Where You See Nothing, Hear Everything

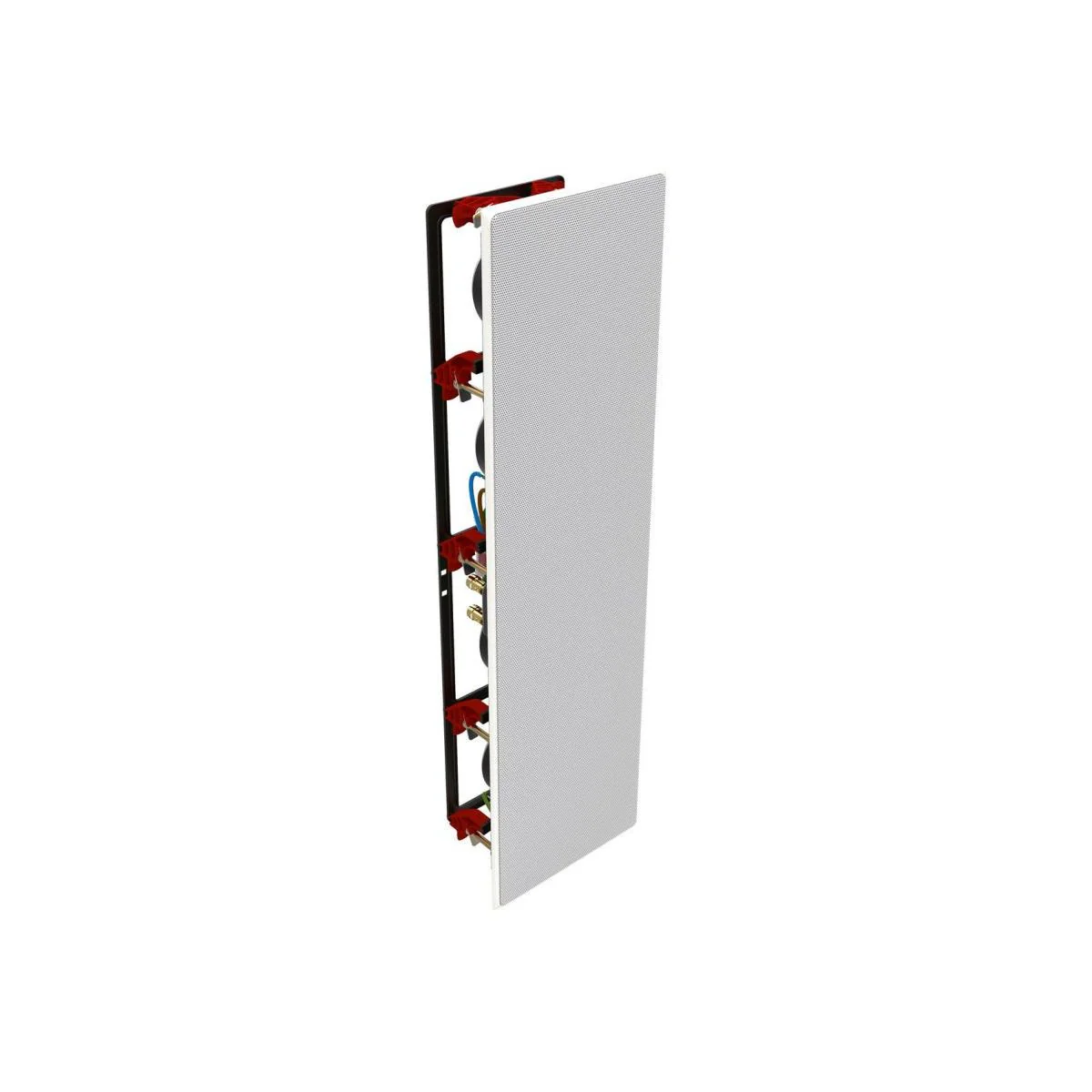

Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen, ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple, requiring no tools. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones.

Technical Specifications of Bowers & Wilkins (B&W) CWM7.4 S2 In-wall Speaker:



Brand & Model #	B&W CWM7.4 S2
Description	2½-way in-wall system
Drive Units	1x ø25mm (1 in) Carbon Dome high-frequency 2x ø100mm (4 in) Continuum cone mid/bass 2x ø100mm (4 in) Aramid Fibre/Paper profile bass
Frequency Range (-6dB)	-6dB at 43Hz - 33kHz
Frequency Range (-3dB)	45Hz - 28kHz ±3dB
Sensitivity	86dB spl (2.83Vrms, 1m)
Harmonic Distortion	2nd and 3rd harmonics (90dB, 1m) <1% 80Hz - 33kHz <0.5% 120Hz - 33kHz
Nominal Impedance	8Ω (minimum 4.9Ω)
Recommended Amp Power	25W - 150W into 8Ω on unclipped programme
Frame height	625mm (24.6in)
Frame width	175mm (6.9in)
Depth (behind surface)	92.5mm (3.64in)
Cut-out height	597mm (23.5in)
Cut-out width	147mm (5.8in)
Protrusion	8mm (0.3in)
PMK	PMK CWMC7
Net weight	6.2kg (13.73 lb)
