Focusrite Clarett OctoPre 8-Channel Mic Pre & AD/DA Converter

8-IN, 8-OUT. OVER ADAT
Clarett OctoPre gives you eight Clarett mic pres renowned for their transparency, and eight outputs too. You can use these to extend the capabilities of your Clarett audio interface or any other interface fitted with ADAT optical inputs and outputs.

EIGHT CLARETT MIC PRES WITH EXTRA AIR
The eight mic pres have been designed specifically for the Clarett range, with plenty of gain, yet low noise and distortion – and great sound quality. They are Air-enabled, so can reproduce the input impedance, clarity and frequency response curve of our original ISA mic preamp.

MIC, LINE AND INSTRUMENT INPUTS

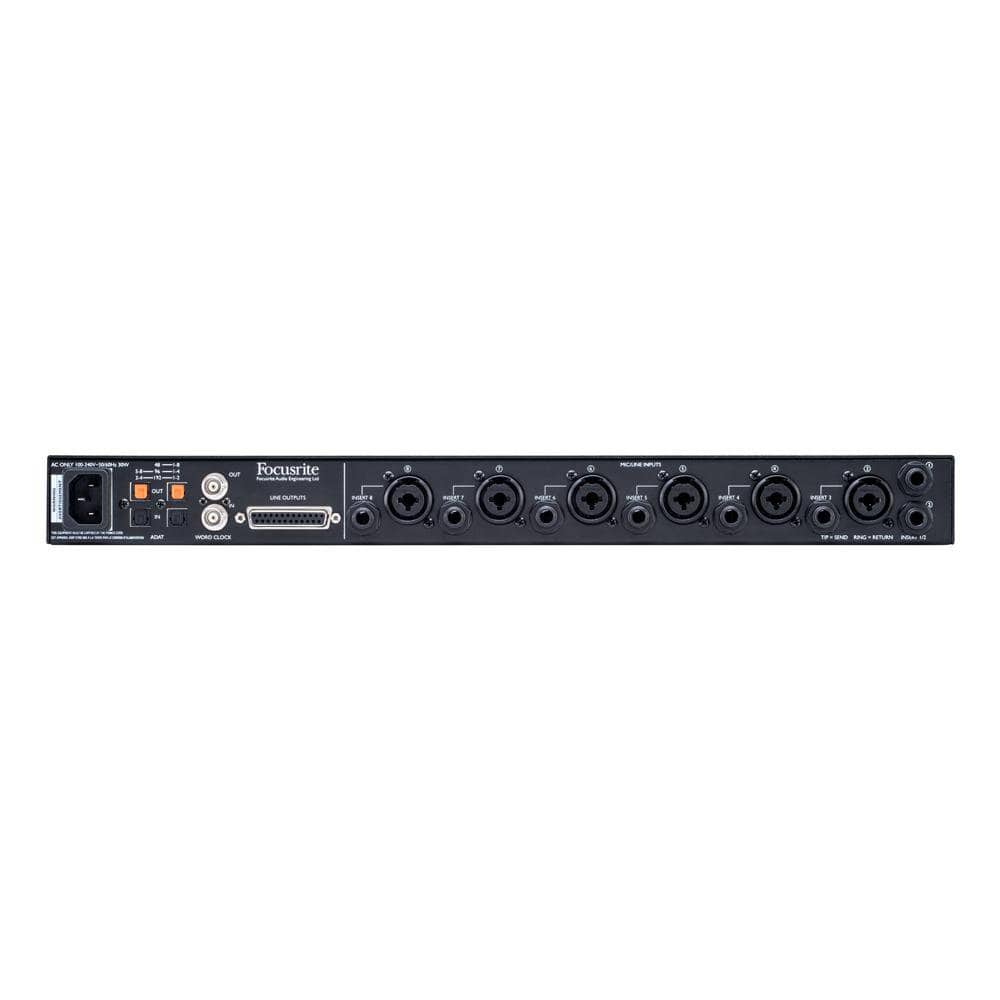

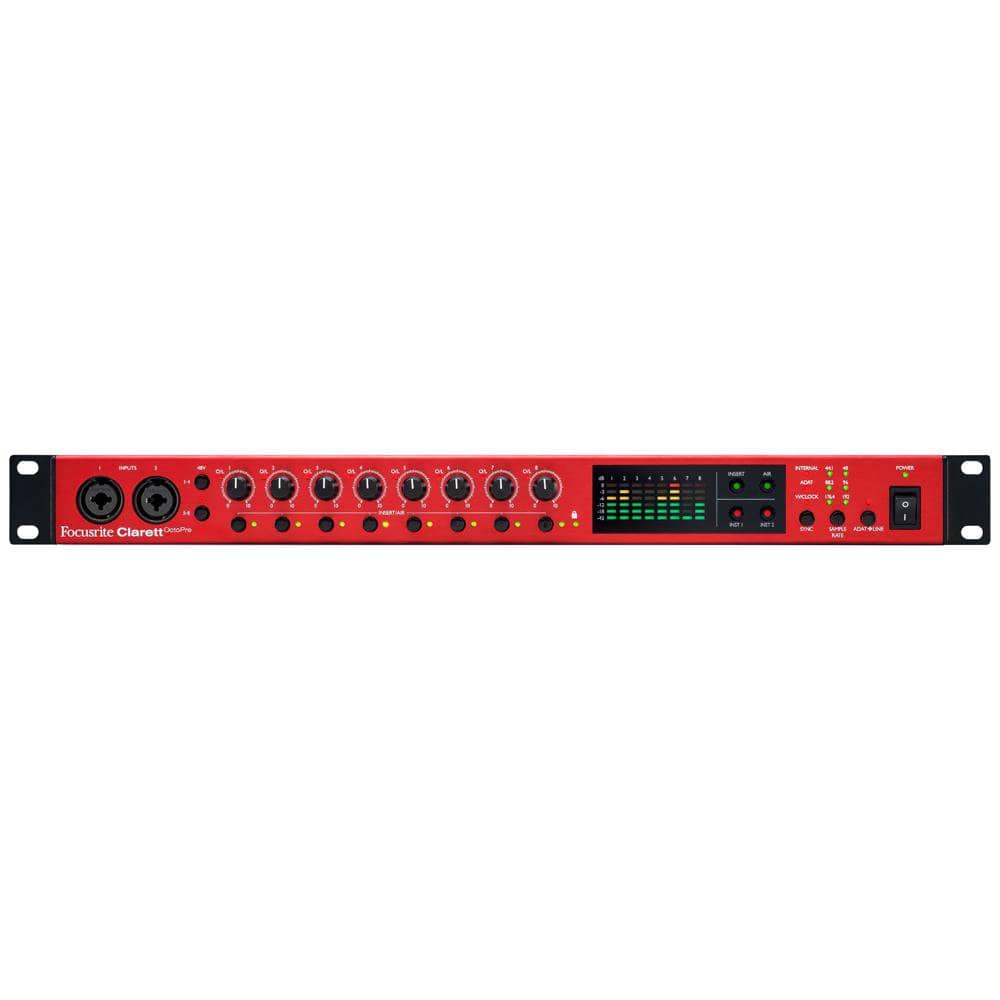

The front panel includes dual instrument inputs featuring extra headroom to handle the loudest pickup, while the rear panel includes universal XLR/jack connectors for the remaining auto-switching mic/line inputs.

INSERT POINTS
Each input has its own switched insert point for single-cable connection of compression, equalisation and other outboard analogue processing – with hardwired relay bypass so you can leave outboard gear or a patchbay connected ready to access at the press of a button.

EIGHT OUTPUTS
The Clarett OctoPre offers up to eight ADAT digital channels feeding 25-pin DSUB rear-panel analogue outputs, making it useful for mixing as well as tracking. The line outputs can optionally provide feeds from the mic pres – useful for feeding a live console while recording the digital outputs.

PRECISION DIGITAL CONVERSION
The Clarett OctoPre's precision 24-bit converters operate at standard sample rates all the way up to 192kHz – ideal for hi-res audio – with up to 118dB (A-D)/119dB (D-A) dynamic range. Hear your recordings sound better than you've ever heard them sound before.

Focusrite Clarett OctoPre Features:

• 8-channel mic/line expansion with ADAT I/O
• 8 Clarett mic pres with Air transformer emulation
• 8 line outputs fed from D/A or mic preamps
• 24-bit/192kHz AD/DA for high-resolution audio
• Dual-port ADAT I/O (8 channels at up to 96kHz, 4 channels at 176.4/192kHz)
• Switched inserts with true bypass on all channels
• Mic pres and front-panel instrument inputs engineered with generous headroom
• 6-segment LED metering and channel clip indicators
• 48-volt phantom power available across all inputs (switchable: 1-4, 5-8)
• Word clock I/O; JetPLL jitter elimination
• Includes Focusrite Red 2 & 3 plug-in suite and Softube Time & Tone bundle

SPECIFICATIONS:

SUPPORTED SAMPLE RATES
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

MICROPHONE INPUTS

• Frequency Response: 20 Hz - 35 kHz ±0.1 dB
• Dynamic Range (Without Insert): 118 dB (A-weighted)
• Dynamic Range (With Insert): 115 dB (A-Weighted)
• THD+N: 0.001%
• Noise EIN: –128 dBu (A-Weighted)
• Maximum input level: +18 dBu ±0.5 dB
• Gain Range: 57dB

LINE INPUTS

• Frequency Response: 20 Hz - 35 kHz ±0.1 dB
• Dynamic Range (Without Insert): 117 dB (A-weighted)
• Dynamic Range (With Insert): 115 dB (A-Weighted)
• THD+N: 0.001%
• Maximum input level: +26 dBU ±0.5 dB
• Gain Range: 57dB

INSTRUMENT INPUTS

• Frequency Response: 20 Hz – 35 kHz ± 0.1 dB
• Dynamic Range (Without Insert): 116 dB (A-weighted)
• Dynamic Range (With Insert): 114 dB (A-Weighted)
• THD+N: 0.001%
• Maximum input level: +14dBu ±0.5 dB
• Gain Range: 57dB

LINE OUTPUTS

• Dynamic Range (Line Outputs): 118 dB (A-Weighted)
• Maximum Output Level (0 dBFS): +16 dBu, balanced
• THD+N: 0.0007%

Made in China
