Loom Solar 5kW Grid Connected Solar System, 3 Phase
Loom Solar introduces the best 5kW grid connected solar system for homes. A 5 kW solar system generates 20-25 units every day from morning 8 am to 5 pm which is sufficient to run multiple air conditioners along with Refrigerator, Television, Fans, and lights during the day in a big house.
Product Overview
|
Solar Panel |

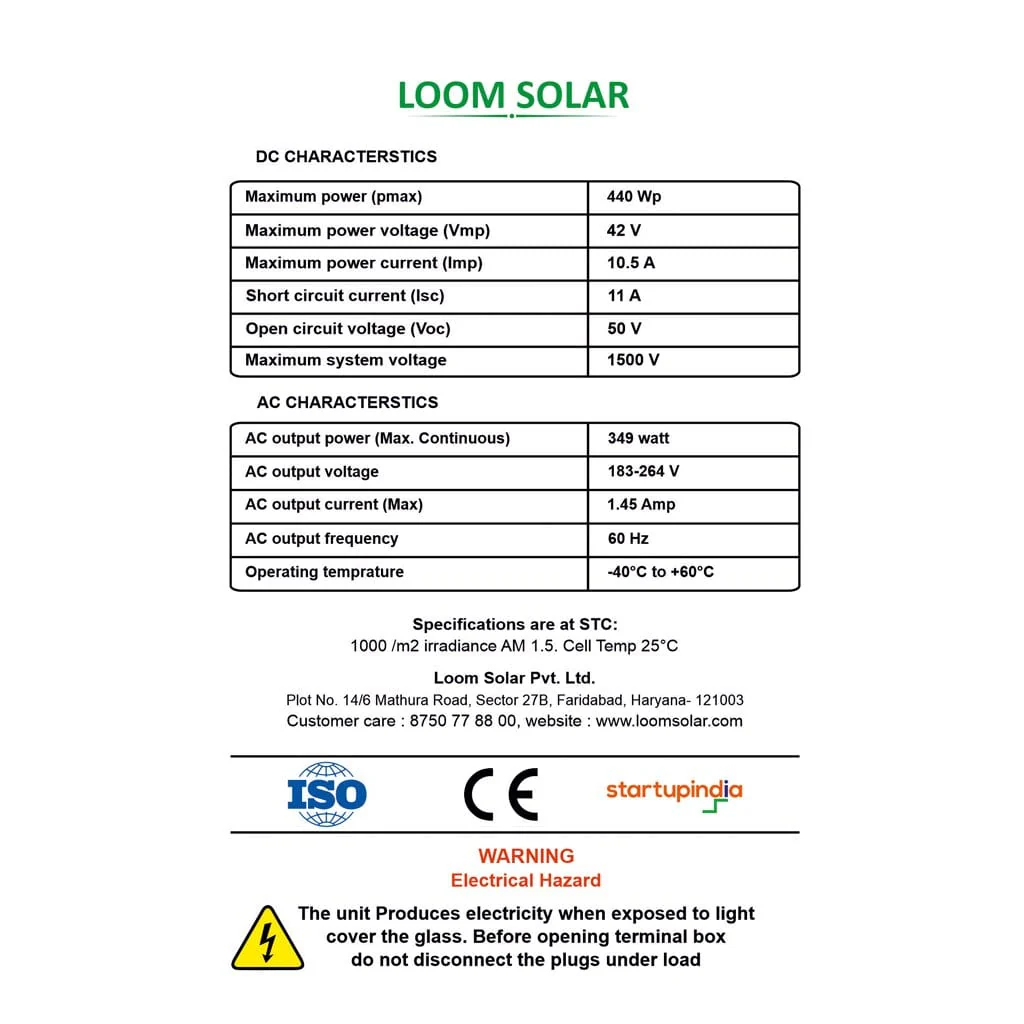

SHARK 440 (440 watt Mono-PERC Solar Panel) |
|
Space required |
350 sq. ft. |
|
1 Panel dimension |
Length – 6.9 ft, width – 3.9 ft |
|
1-panel weight |
25 kg |
|
Solar Inverter |
FUSION 51 |
This system is best suited for reducing your electricity bill. It will help you to cut-down your monthly bill from 60 to 100% depending upon the generation & usability.
Send generated power back to the grid during the day & ustilize the same after returning home at evening. It is best suited for homes getting Rs.7000/- or above electricity bill monthly.
Eligibility - For 5kW or above sanctioned grid connections only
Customer Review
Package components

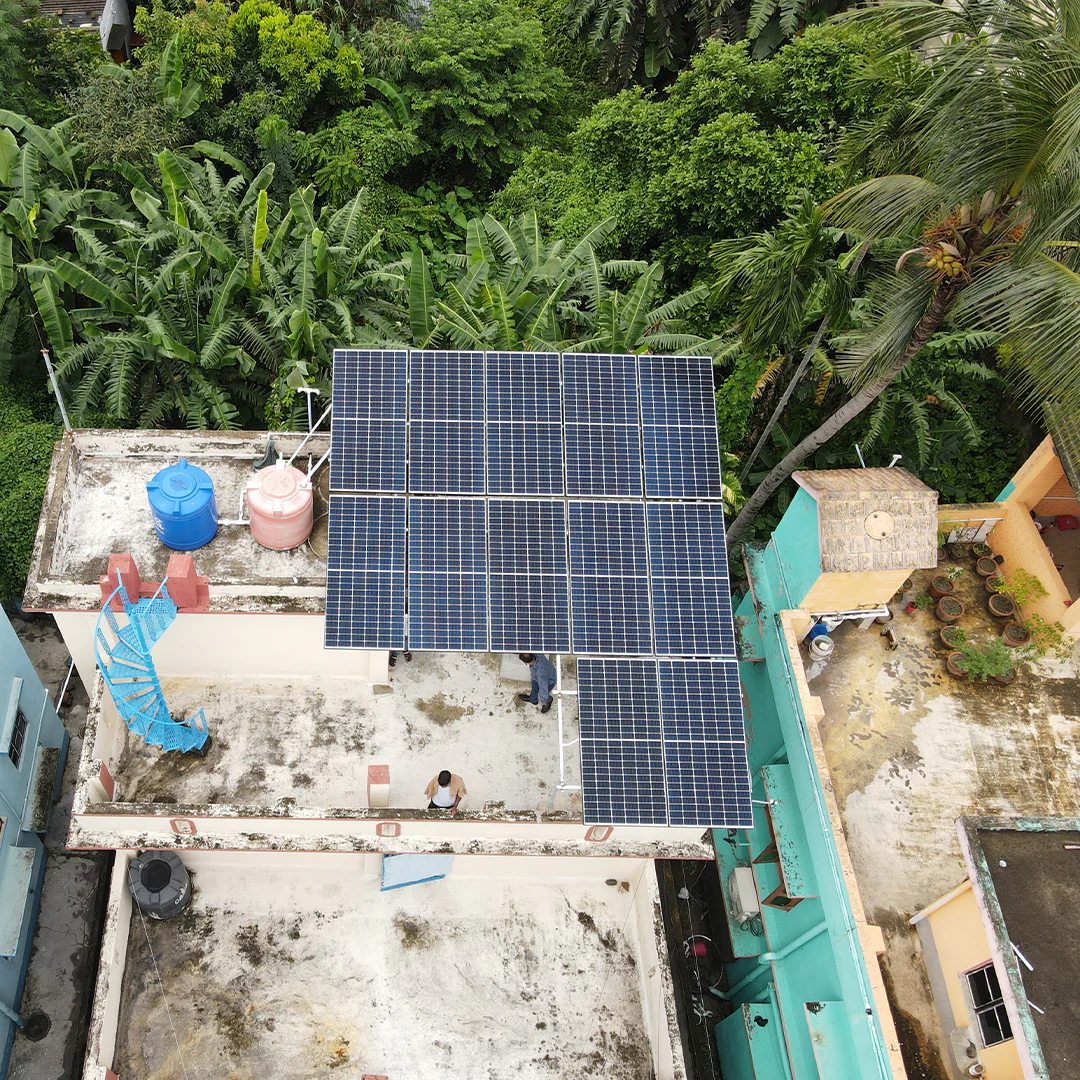

| Solar Panel | Loom Solar Panel SHARK 440 |

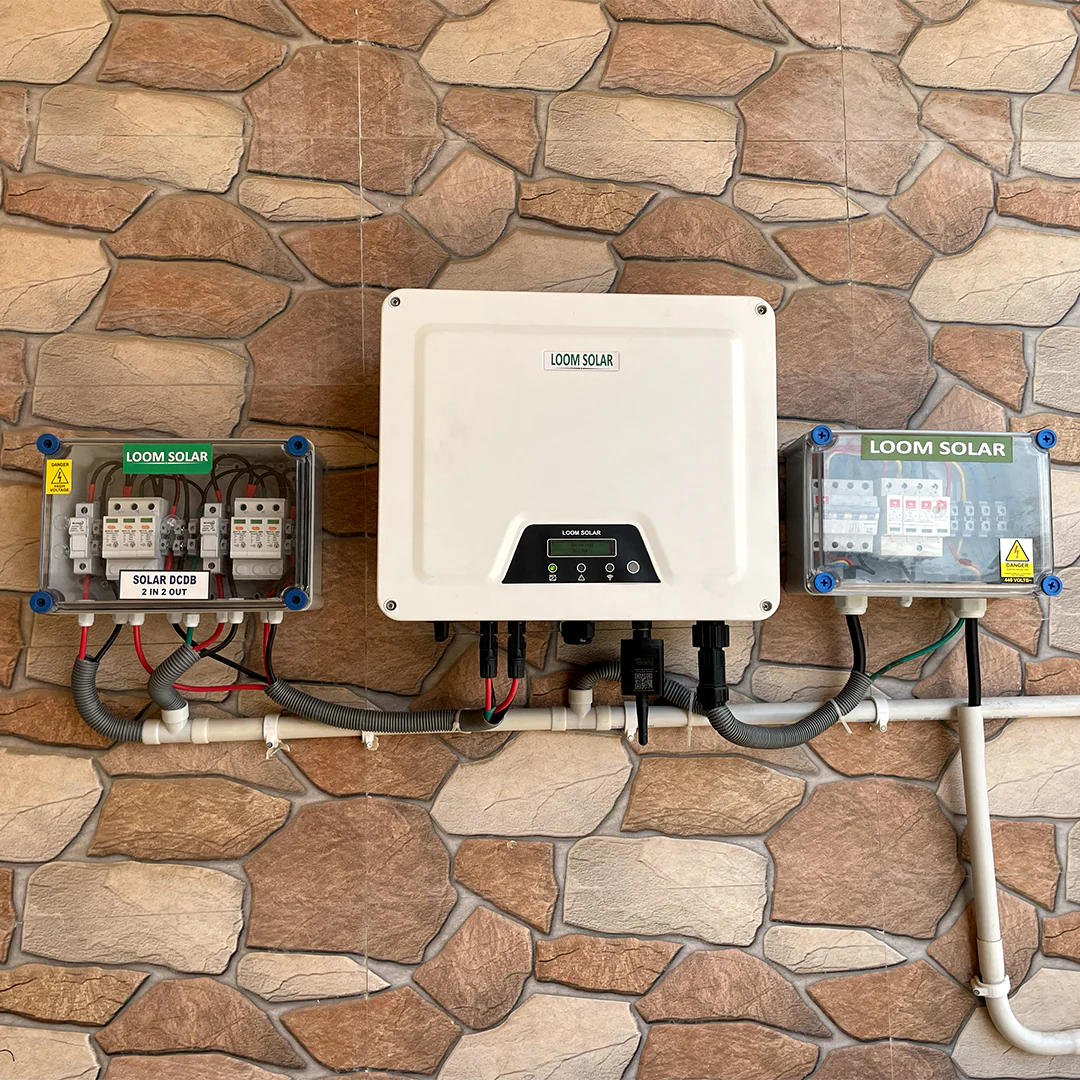

| Solar Inverter | 5kw Single Phase On-grid Inverter, FUSION 51 |
| Solar Structure | Solar Structure (A/c to rooftop space) |
| Connector Type | MC4 connector 1in 1 out |
| Connecting wires | Loom Solar DC Wire 4sqmm Pair / AC Wire 4sqmm 2core |
| Protection & Safety Devices | DCDB 2IN 2OUT / ACDB Single Phase / Lightning Arrester(LA) / GI Earthing electrode with Chemical Bag / Single Core AC wire for Earthing |
*Installation Included

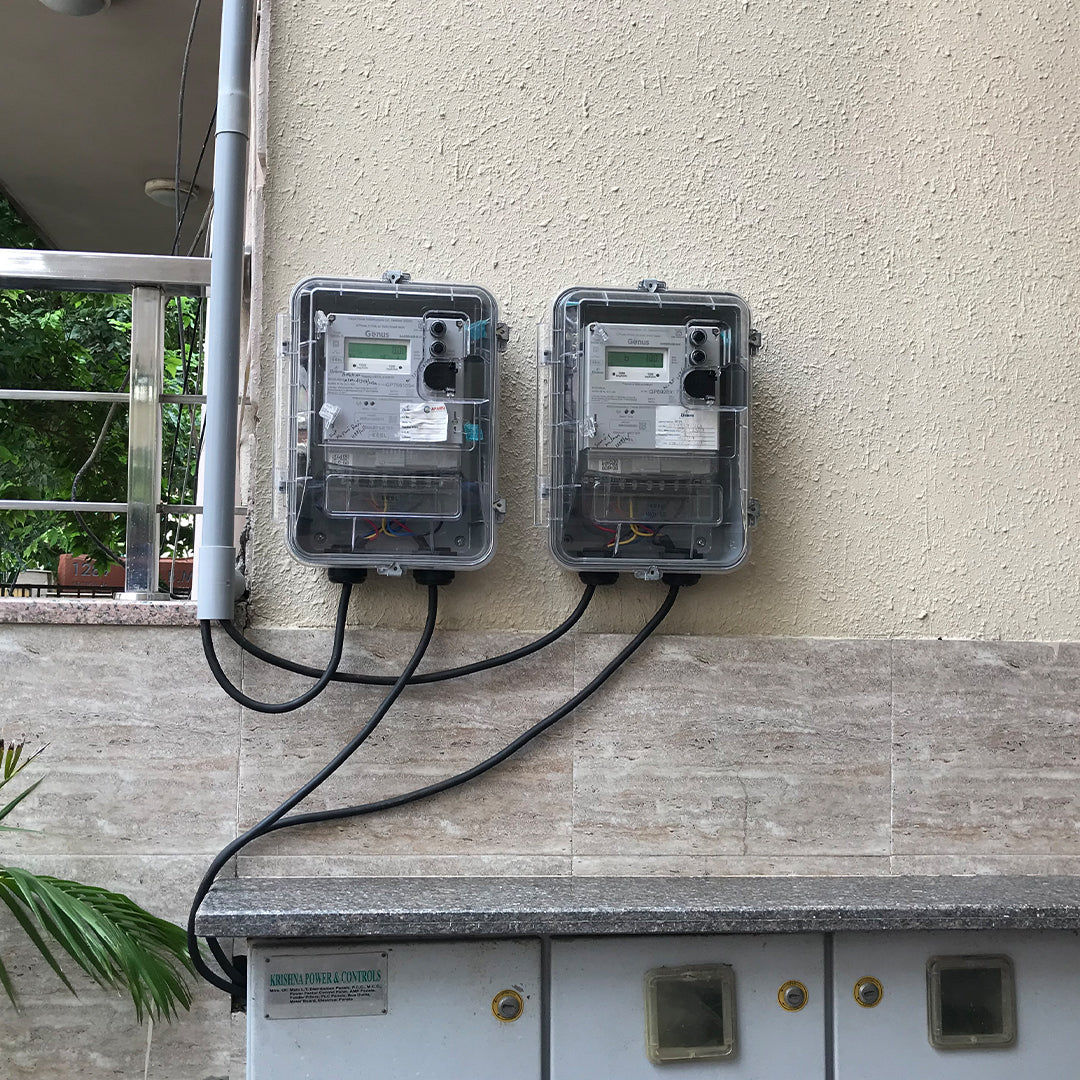

**Net-metering extra as per actual (on-demand basis)
disclaimer: In case, you want to go for a net meter, it has to be applied by the homeowner itself. read the document to apply for a net meter.

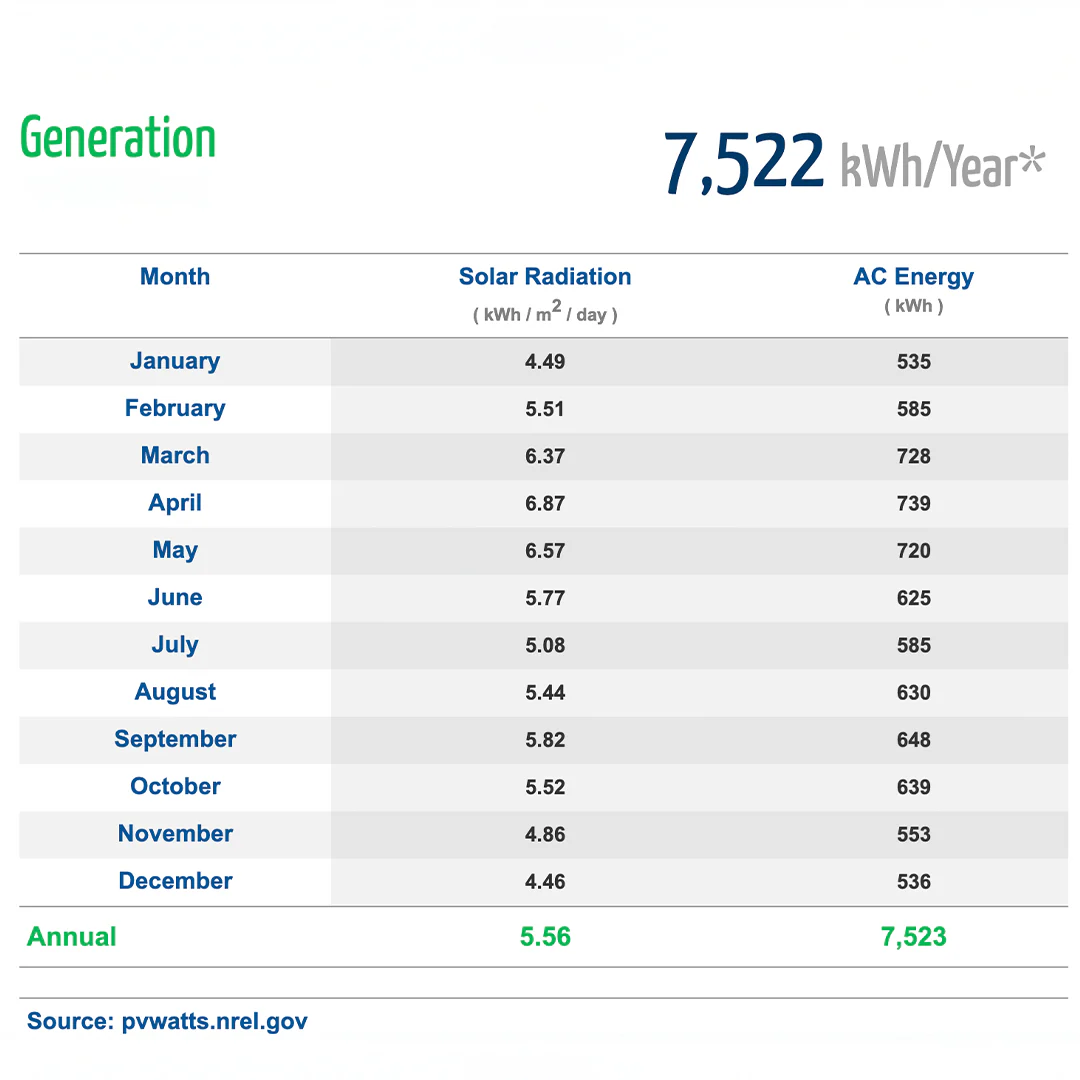

Generation
The average generation of 5kW grid connected solar systems is 22 kWh (Daily), 550 kWh (Monthly) and 6,600 kWh (Yearly). It depends on grid location in the installation area, product and installation quality, distance between solar panels and grid connected solar inverter, etc. Below is the monthly generation of this system:
| Month |
Solar Generation (kWh/day) |
Total Energy (kWh/month) |
| January | 4.49 | 535 |
| Febrauary | 5.51 | 585 |
| March | 6.37 | 728 |
| April | 6.87 | 739 |
| May | 6.57 | 720 |
| June | 5.77 | 625 |
| July | 5.08 | 585 |
| August | 5.44 | 630 |
| September | 5.82 | 648 |
| October | 5.52 | 639 |
| November | 4.86 | 553 |
| December | 4.46 | 536 |
Installation Process
Don't know how to install a 5kW grid connected solar system? Don’t worry, we are here for you. You are just 3 steps away:
Step 1: Book Site Survey
Step 2: Get Solar Quotes
Step 3: Install the solar system within 15 working days.
Your Electricity Bill = Solar EMI, How?
Are you thinking about solar system costs? Now Solar Loans are made Easy. Now, you can install your rooftop solar at a low interest rate with an easy EMI /loan. You can calculate your monthly EMI here.
People also ask:
1. How much space is required to install a 5kw solar system?
A: 250 to 300 sq. ft. shadow free area is required to install a 5kw solar system.
2. What can I run on a 5kw solar system?
A: In case of grid connected solar system, you can run everything, such as ACs, Induction, Geyser, Electric Car Charging, Water Pump, Fans, Lights, TV, Refrigerator, etc.
3. Are 5kW solar systems expandable?
A: Yes, you can expand your system with 30% extra solar inverter capacity.
4. How much power does a 5kw solar system produce per day?
A: A 5kW system produces 20 to 23 units per day.
5. How many panels come with a 5kW system?
A: 10 to 12 solar panels come with a 5kW system.
6. Is maintaining a 5kW solar system expensive?
A: You will incur approximately 2% of solar system cost for maintaining a 5kW solar system.
7. How much does a 5kW solar system cost in India?
A: A 5kW system will cost you approximately Rs.3,00,000 to Rs.4,00,000 in India.
Buying Guide
Download product Installation diagram.
