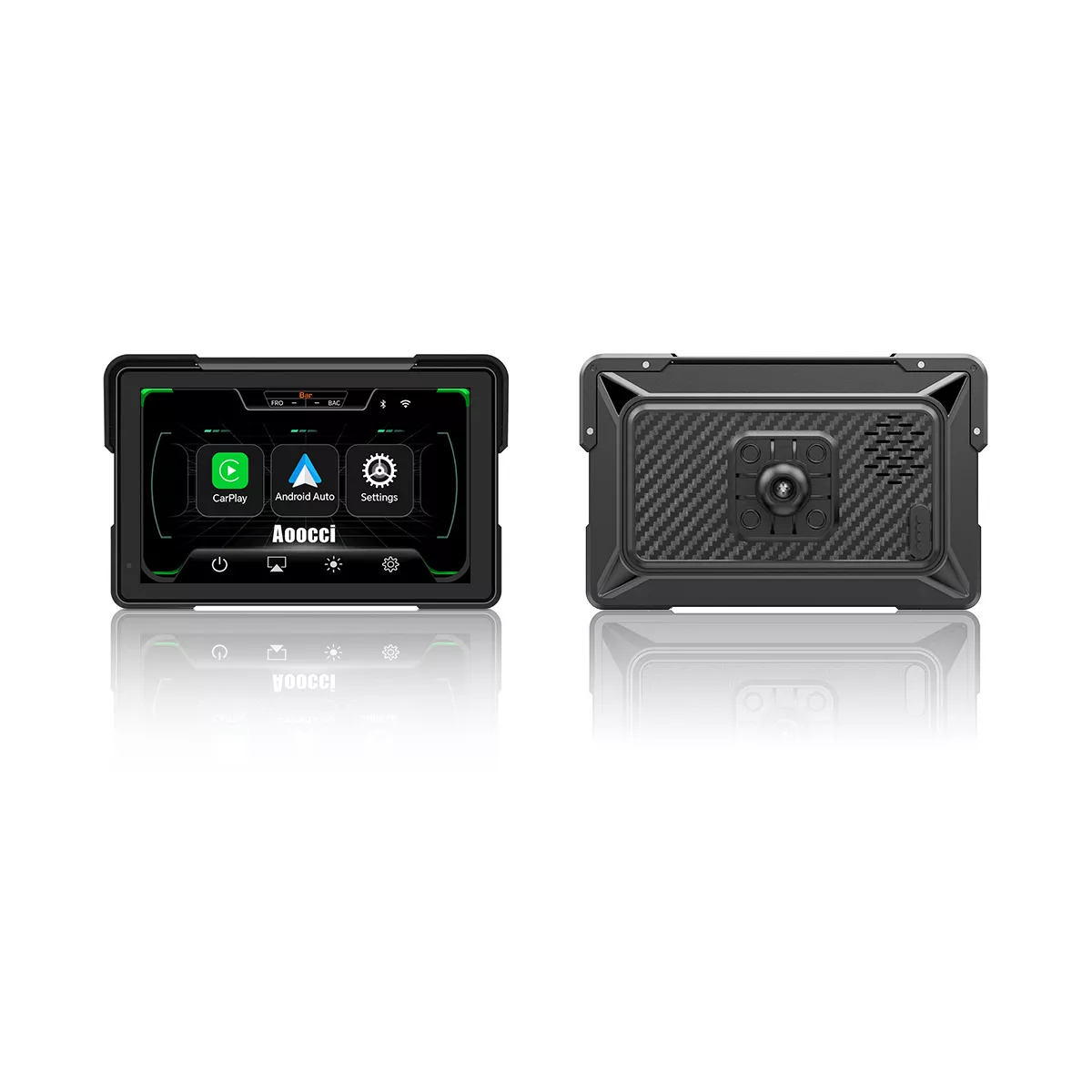

C7 7-inch HD Screen for Motorcycle CarPlay & Android Auto
7-Inch Command Visual Frontier
C7: THE SEAMLESS SMARTPHONE LINK
7.0" HD
IPS Panel
700 NITS
Brightness
IP67
Waterproof
BT 4.0
Connectivity

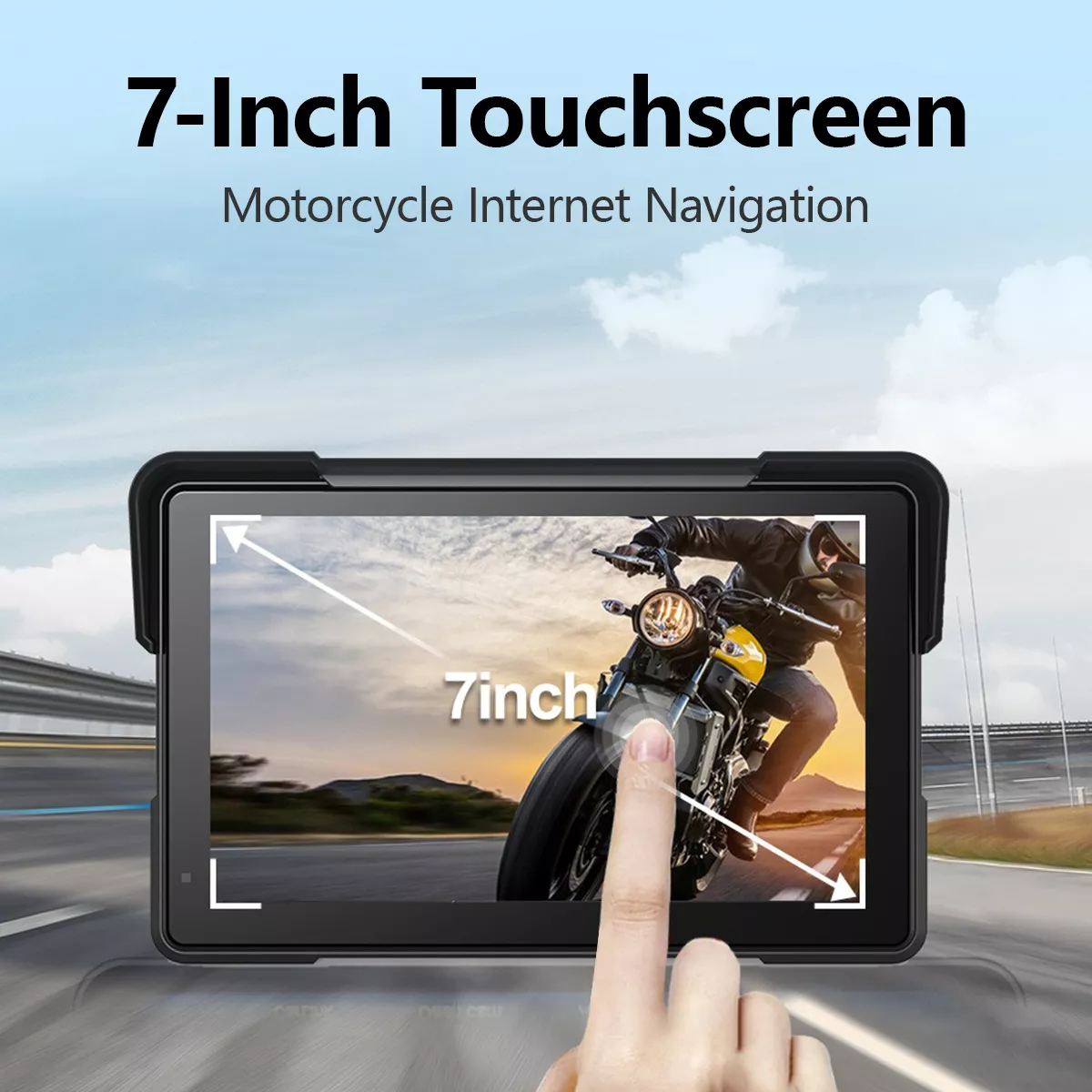

7-INCH CINEMATIC COMMAND CENTER
The C7 features a massive 1024x600 HD IPS panel with a 178° viewing angle. Whether you're leaning through curves or standing on pegs, the display remains sharp and color-accurate. Its 700-nit high-brightness rating ensures crystal-clear navigation even under punishing direct sunlight.
- Capacitive Touch (CTP): 10-point multi-touch optimized for gloved operations.
- Anti-Glare Logic: Reduced reflections for zero-distraction riding.

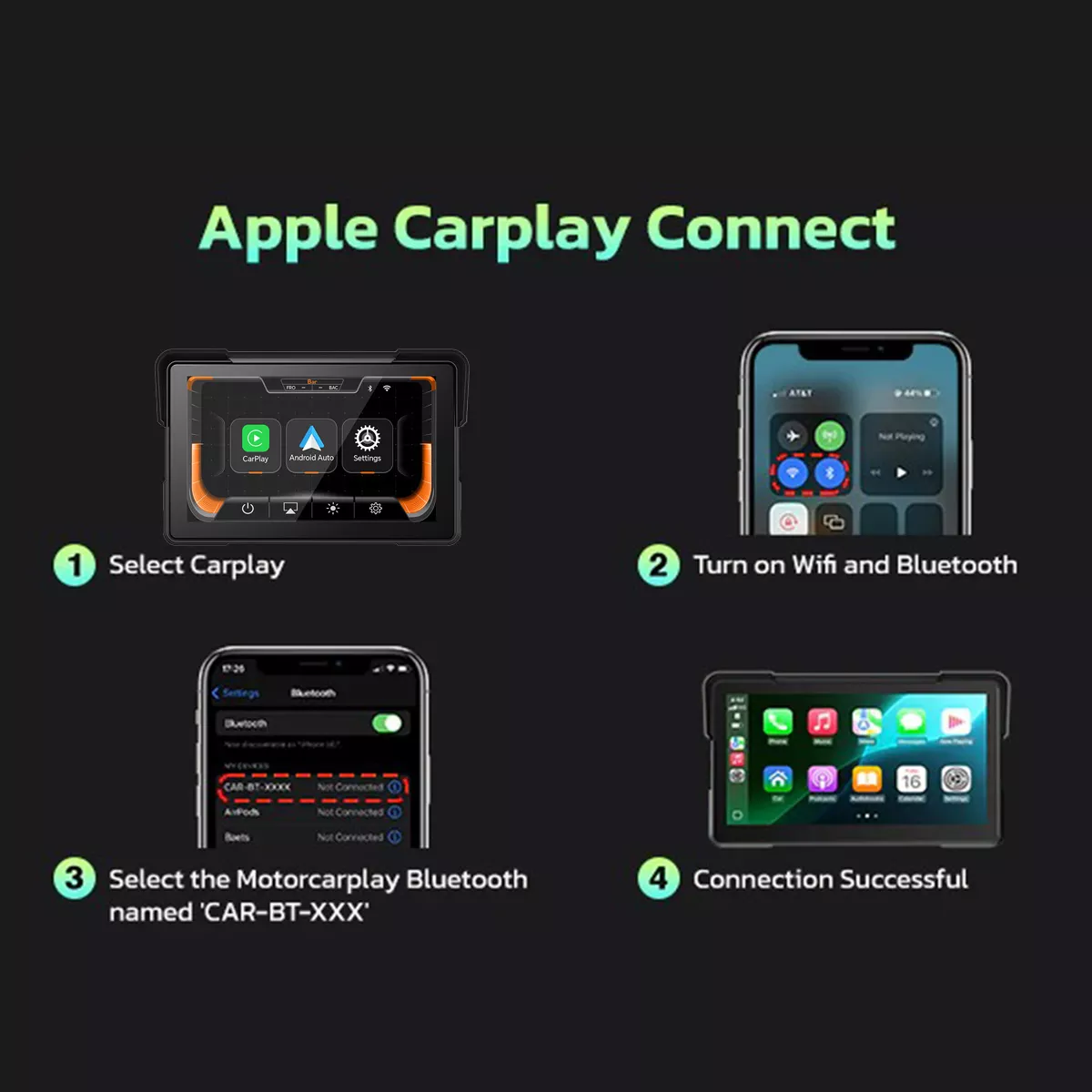

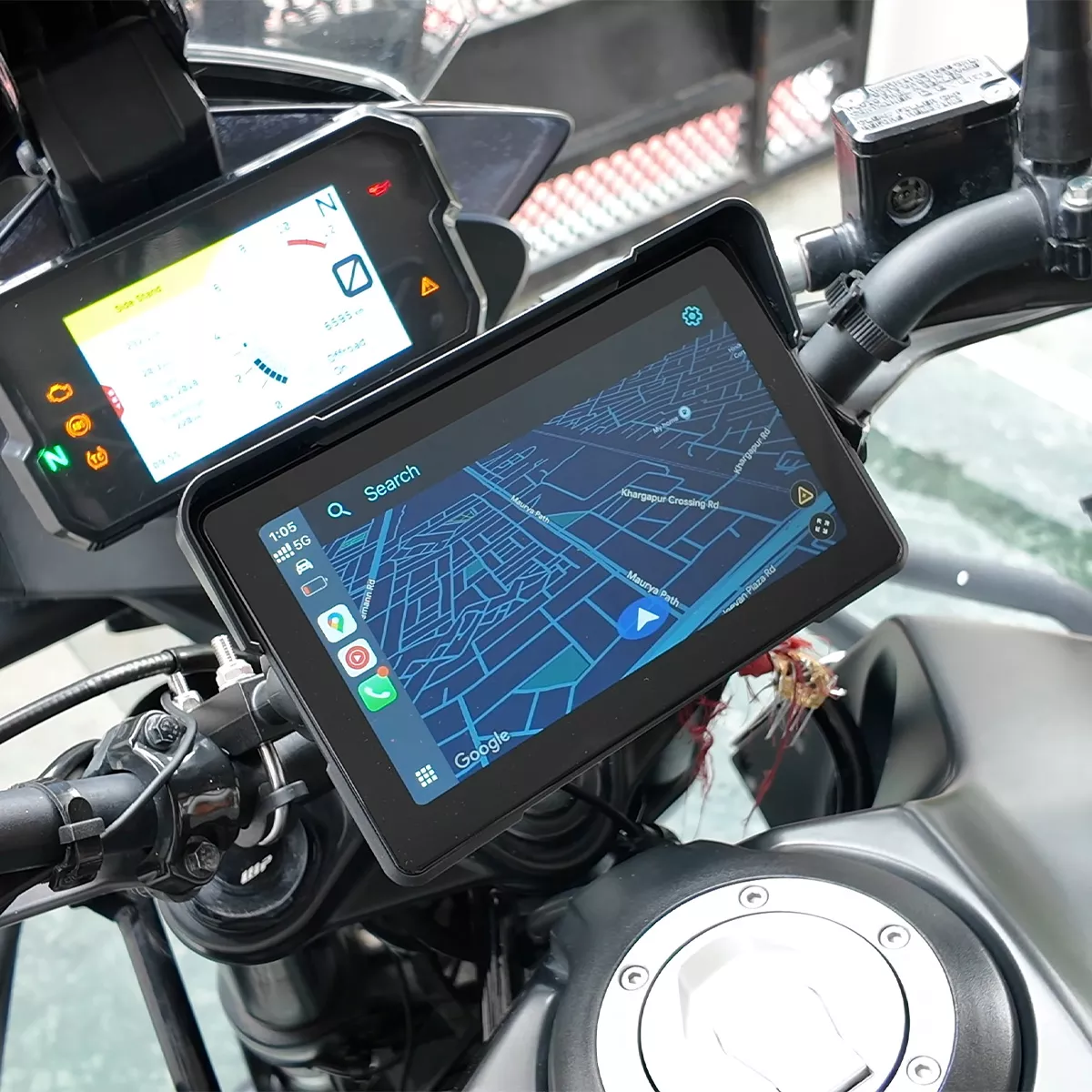

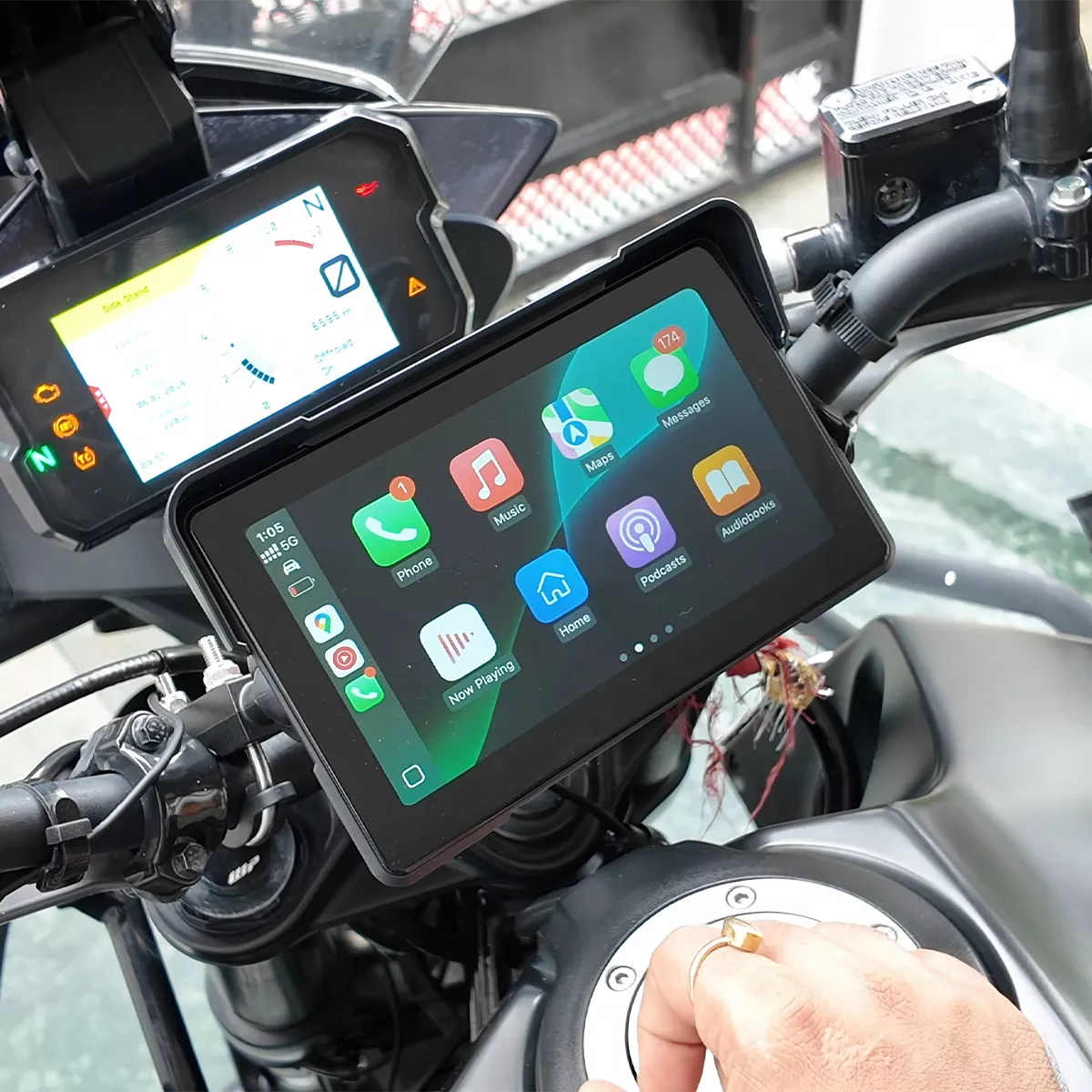

WIRELESS CARPLAY & ANDROID AUTO
No cables, no friction. The C7 connects instantly to your smartphone via dual-band Wi-Fi (2.4/5GHz). Mirror Google Maps, Waze, and Spotify directly to your handlebars. Use Voice Commands with Siri to manage calls and mission-critical navigation without lifting a finger.
INDUSTRIAL-GRADE ALL-WEATHER DURABILITY
Built for the elements. The C7 system is fully sealed with an IP67 rating, offering complete defense against monsoon rains, desert dust, and high-frequency bike vibrations. Operates with rock-solid consistency from -20°C up to 70°C (-4°F to 158°F).

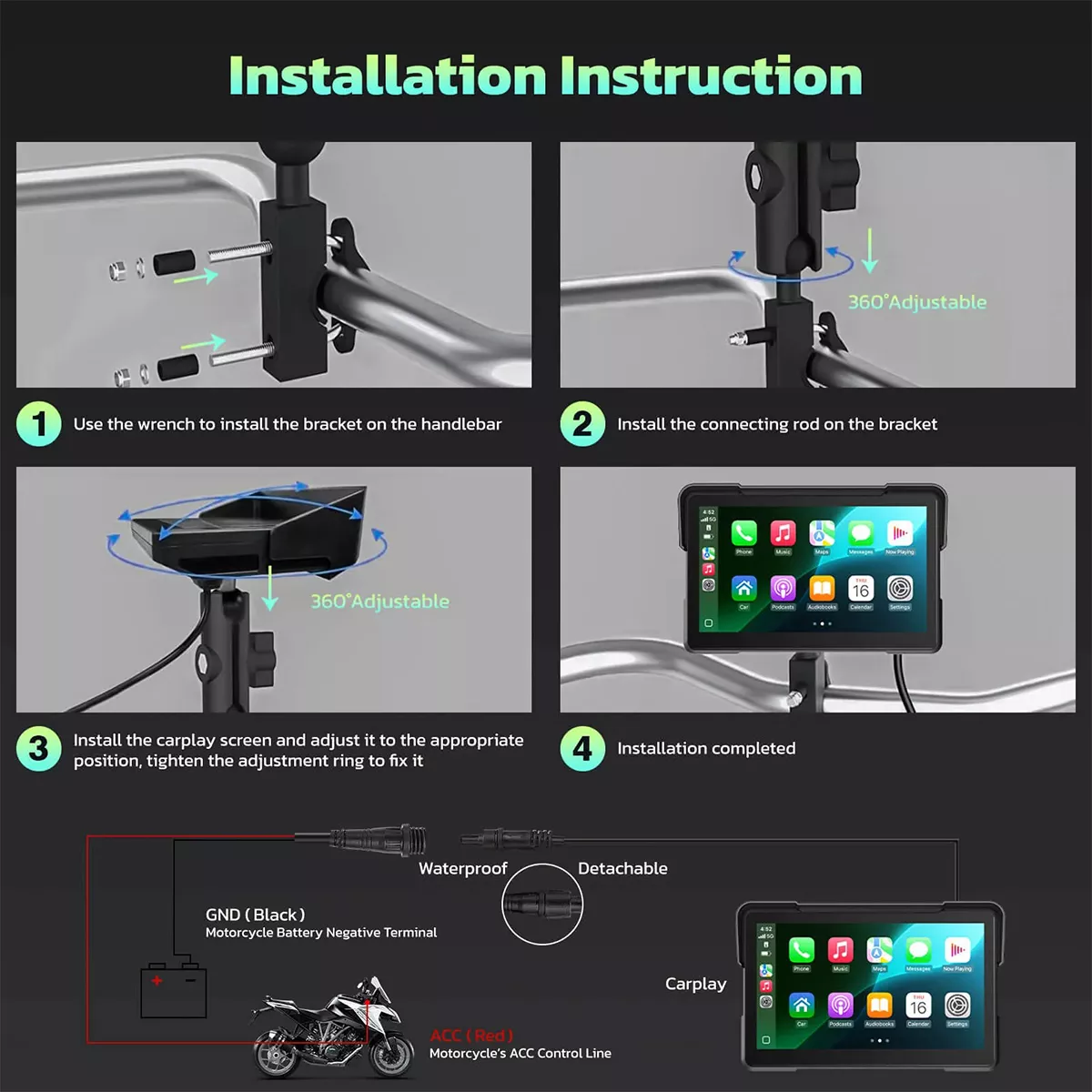

UNIVERSAL BUTTERFLY CLAMP SYSTEM
Tactical installation made easy. The adjustable butterfly clamp bracket supports 22-26mm handlebars. Combined with a low-power 12V direct connection (12V/0.8A), it’s ready for daily motorcycle electrical environments.
Display & Hardware
| Screen Size | 7-inch IPS (178° Diagonal) |
|---|---|
| Resolution | 1024 × 600 (HD Quality) |
| Brightness | 700 nits (Outdoor Visible) |
| Touch Tech | 10-point CTP (Capacitive) |
| Wireless Link | Dual-Band Wi-Fi 2.4/5GHz + BT 4.0 |

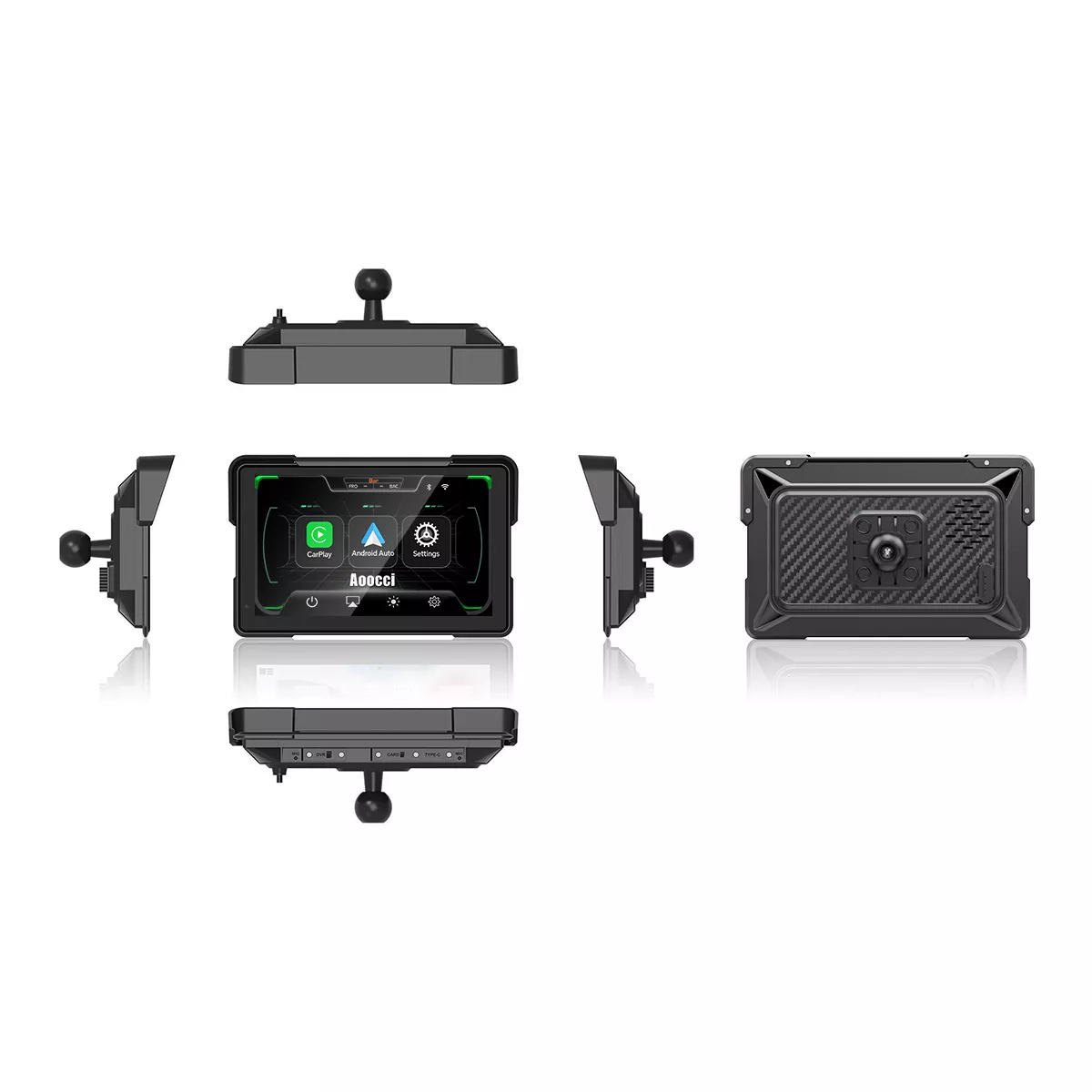

| Dimensions | 117 × 185 × 23 mm |
| Weight | 0.32 kg (0.71 lb) |
Power & Mounting
| Input Power | 12V / 0.8A (Battery Compatible) |
|---|---|
| Mounting | Universal Butterfly Clamp |
| Handlebar Diam. | 22-26 mm (0.87-1.02 in) |
| Waterproof | IP67 Certified |
| Survival Temp | -20°C to 70°C (-4°F to 158°F) |
| OS Support | Wireless CarPlay / Android Auto |
C7 Buyer FAQ
Direct answers for riders who want a larger motorcycle CarPlay and Android Auto display without camera recording.
Does the C7 support wireless CarPlay and Android Auto?
Yes. The C7 supports wireless Apple CarPlay and Android Auto through 2.4/5GHz Wi-Fi, so you can use phone navigation, music, calls, and voice control on the 7-inch screen.
Is the C7 a dash cam?
No. The C7 is a camera-free wireless display. Choose it if you want a larger navigation and phone projection screen without front or rear video recording.
How large is the C7 screen?
The C7 uses a 7-inch IPS display. It has 1024 × 600 resolution and 700-nit brightness for riders who prefer a bigger map view than compact 5-inch screens.
Will the C7 fit my motorcycle handlebar?
Check your handlebar before ordering. The C7 mounting spec supports 22-26 mm handlebars, so bikes outside that range may need a different mounting solution.
How is the C7 powered?
The C7 uses 12V motorcycle power. Its low 12V / 0.8A input is designed for direct motorcycle installation rather than phone-style temporary charging.
Is the C7 waterproof for daily riding?
Yes. The C7 is marketed with IP67 waterproof protection for all-weather motorcycle use. Keep cable connections properly installed and avoid direct high-pressure washing on connectors.
