BX Motorcycle CarPlay with Dashcam & Smart BSD
Professional Safety Ecosystem
BX: THE WORLD'S FIRST RADAR-ARMORED DASH CAM

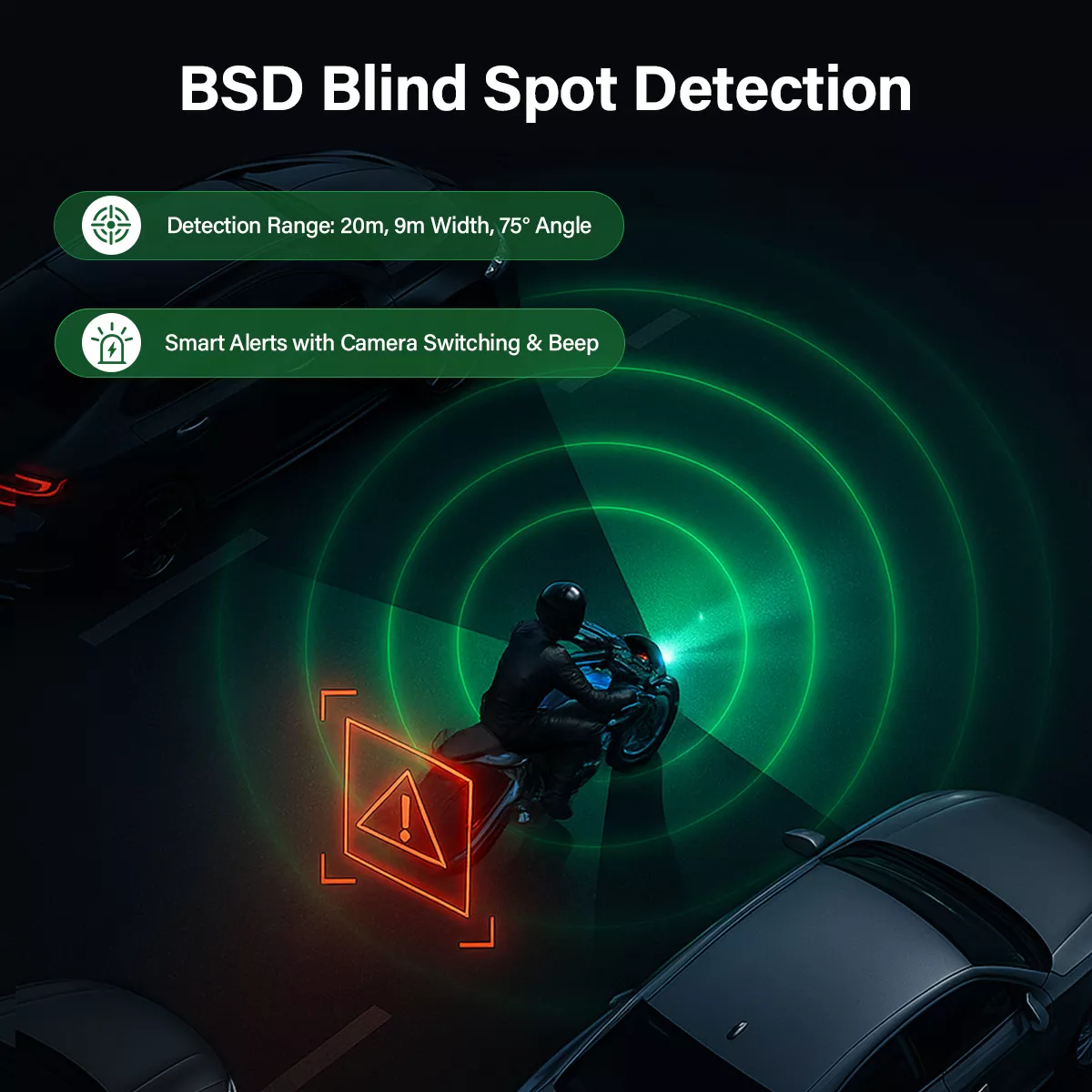

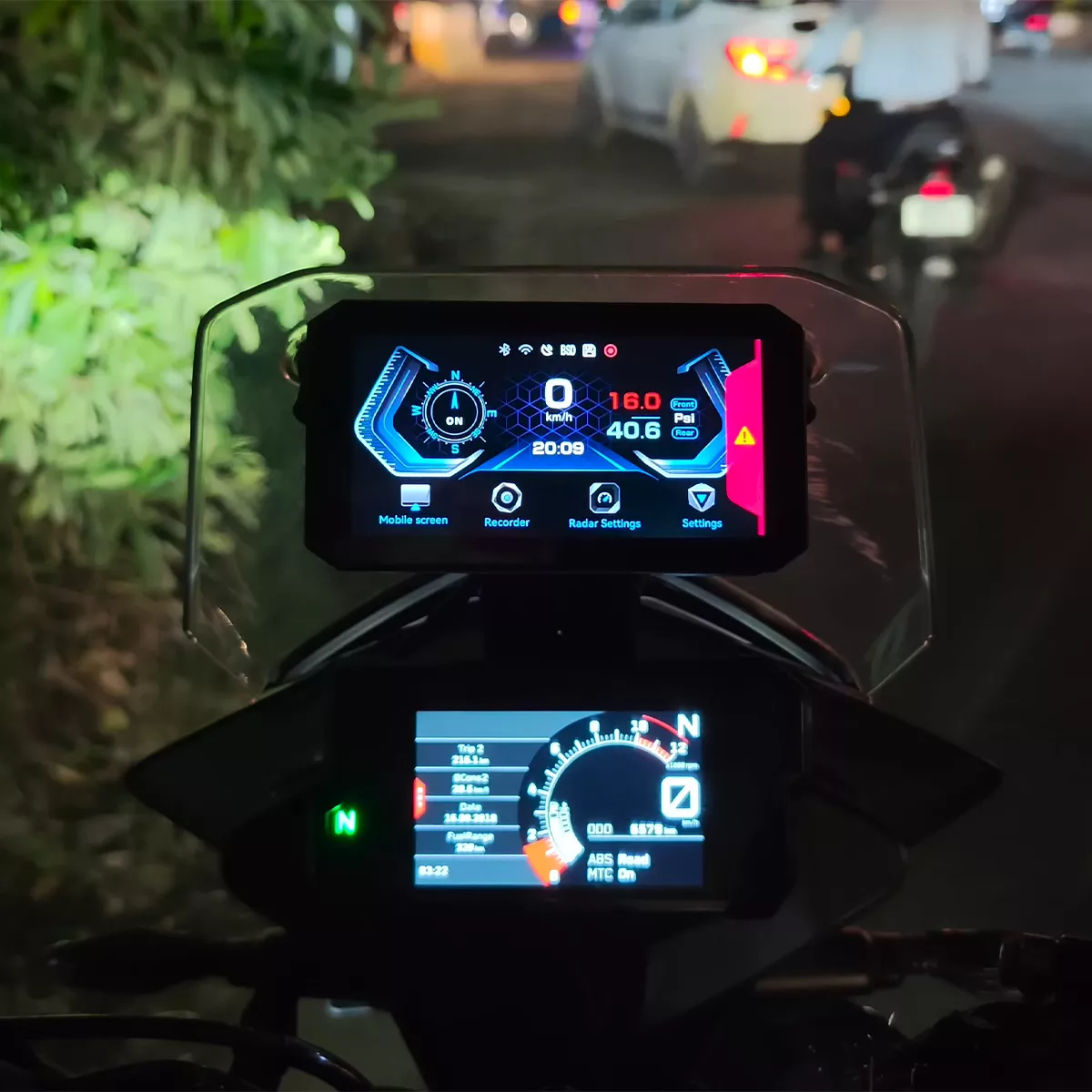

SMART BLIND SPOT DETECTION (BSD)
Powered by 24GHz mmWave radar technology. BX detects vehicles approaching from the left, right, or rear in real-time. Stay alert with multi-layer warnings: audio beeps, on-screen red visual frames, and automatic camera switching.
- BSD Blind Spot Detection
- On-Screen Warning Overlay
- External Alert Hardware Included
CRASH-PROOF EMERGENCY RECORDING
The integrated G-sensor instantly identifies collisions or sudden impacts, locking the current recording into a secure folder. Your critical evidence remains untouched and safe from loop-deletion cycles.

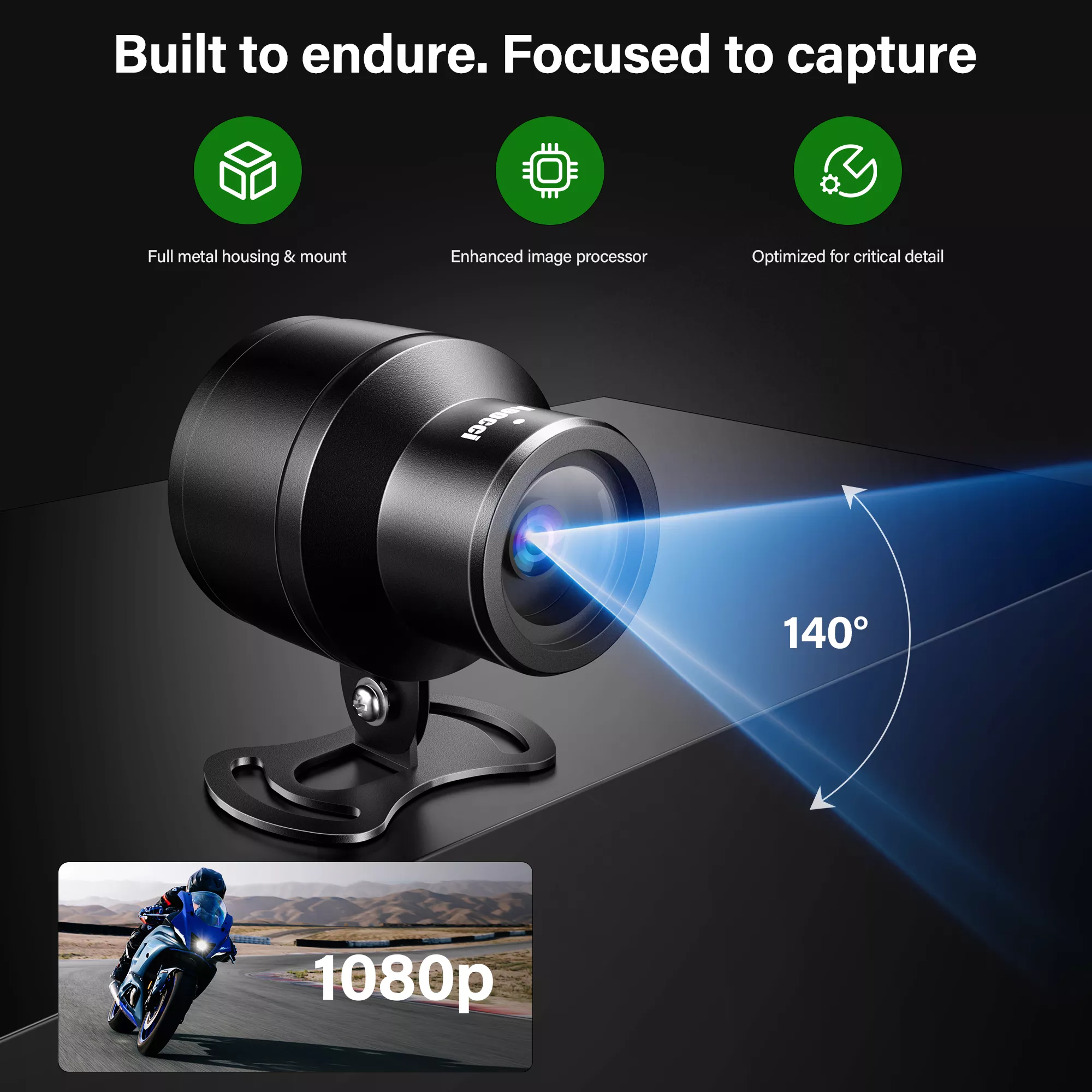

DUAL 1080P + AUDIO HARMONY
Synchronized front and rear 1080P HD recording with ultra-wide 140° glass lenses. Captures high-fidelity ambient sound to provide a complete audiovisual record of road hazards, scenic routes, or legal disputes.
EXTERNAL 5HZ HIGH-ACCURACY GPS
Precision monitoring via a dedicated external module. Unlike built-in GPS that suffers from signal interference, the BX external unit refreshes at 5Hz (5 times per second) for lag-free, dead-accurate speed and route tracking.

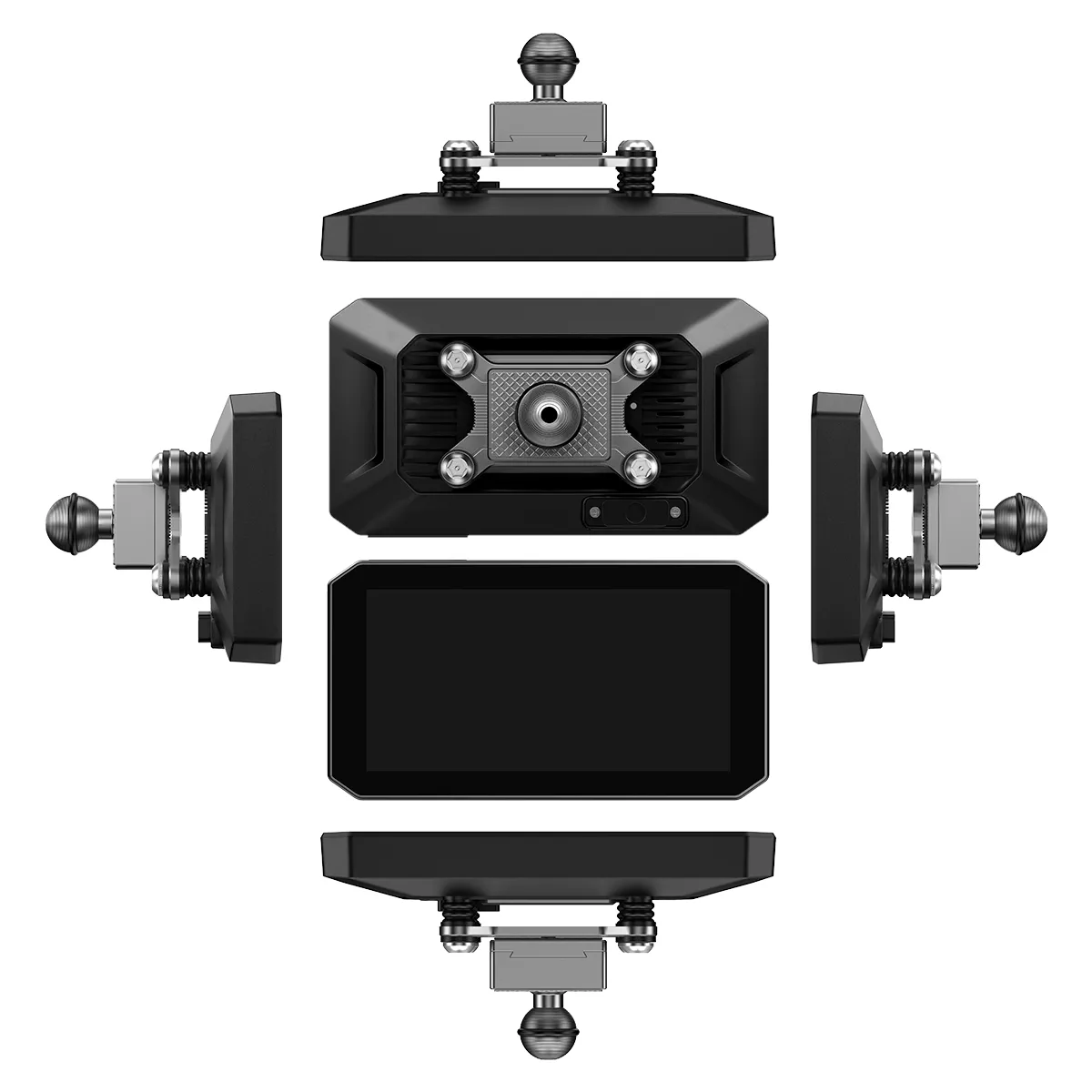

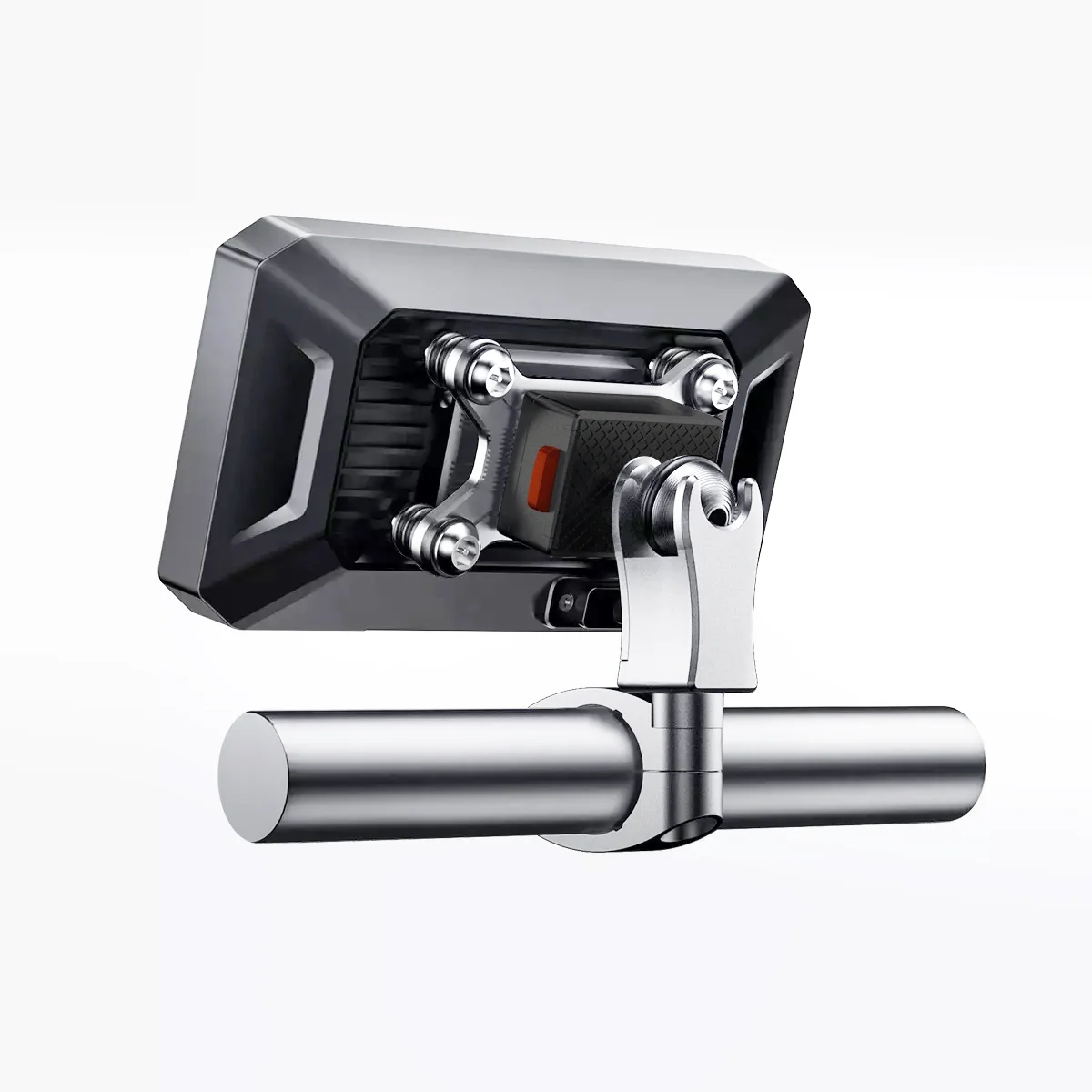

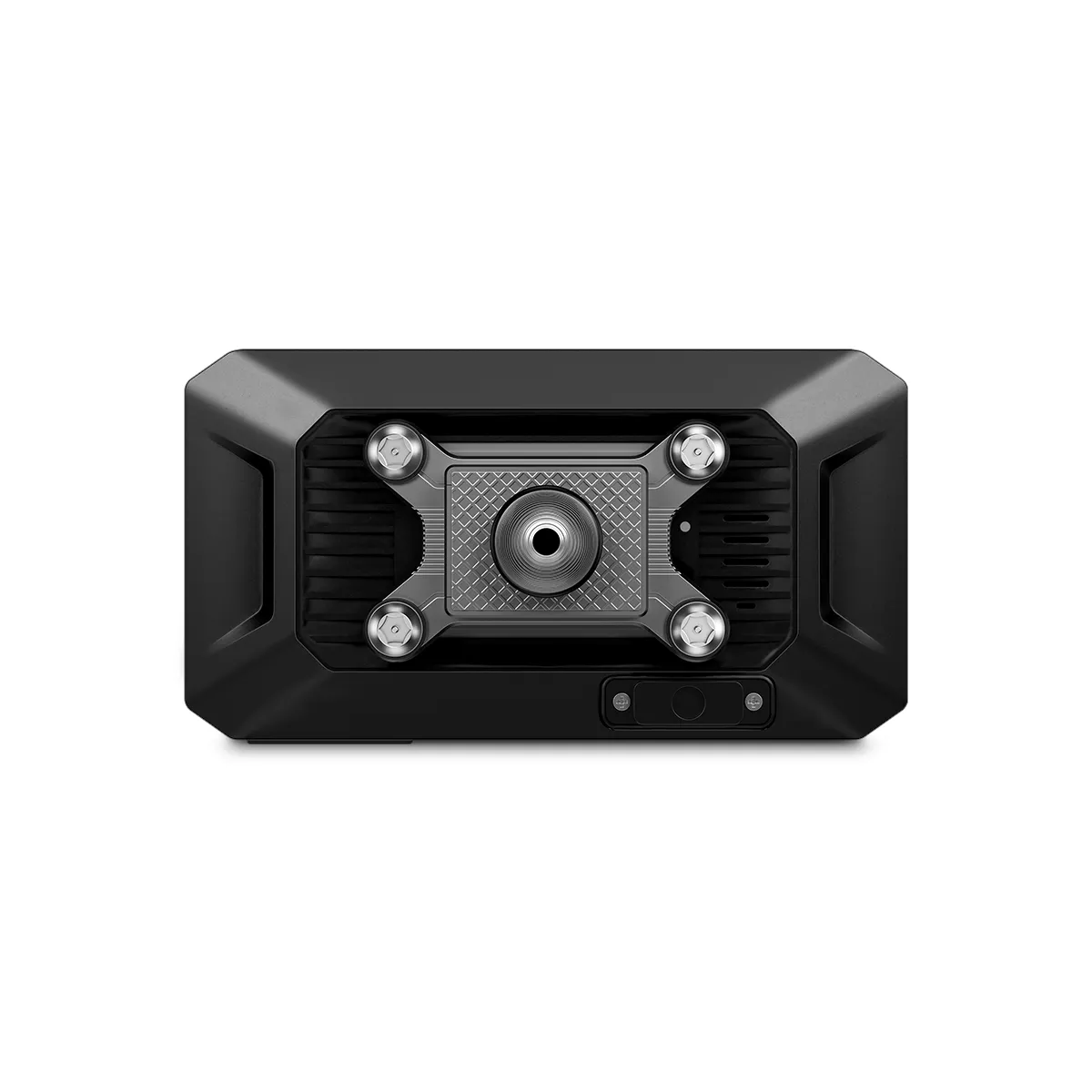

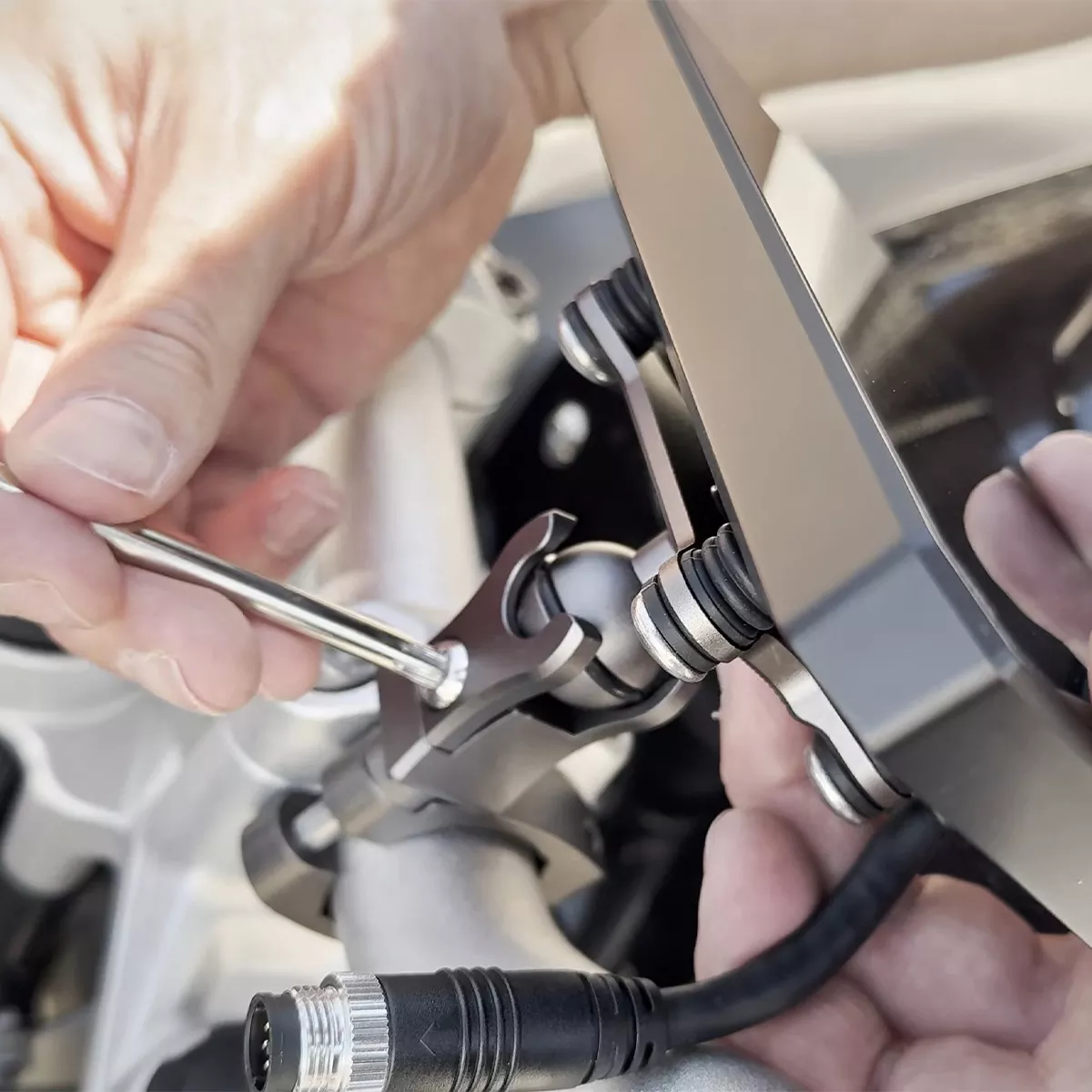

1-SECOND QUICK-RELEASE SYSTEM
Safety shouldn't be a chore. Snap the main unit off in seconds when parking. The heavy-duty aluminum bracket features hidden anti-theft hex screws, ensuring the base remains permanently part of your bike.

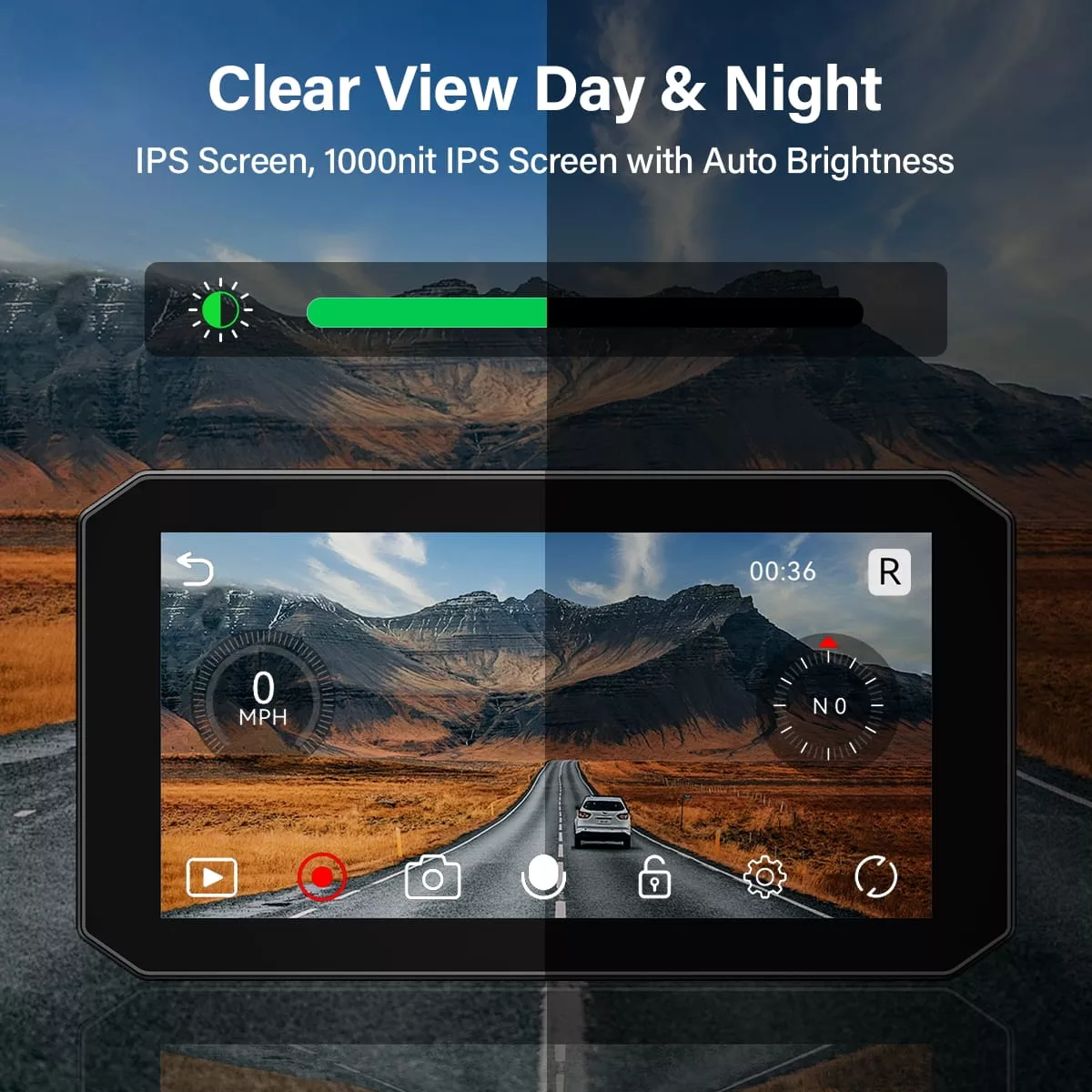

5.5" ULTRA-BRIGHT AUTO-DISPLAY
The 1000-nit IPS panel fights glare with raw power. Integrated light sensors monitor the environment, automatically dimming at night and boosting to peak brightness under midday desert sun.
ACTIVE TIRE PRESSURE (TPMS)
Protect your tires and fuel economy. BX displays real-time pressure and temperature for both wheels. Customizable high/low pressure thresholds ensure you're alerted long before a flat becomes a crisis.
PARKING GUARD + VOLTAGE WATCH
Your bike's silent sentry. Detected bumps trigger automatic recording while parked. Integrated voltage monitoring ensures the system shuts off at 11.8V, preserving your battery for the next morning's start.

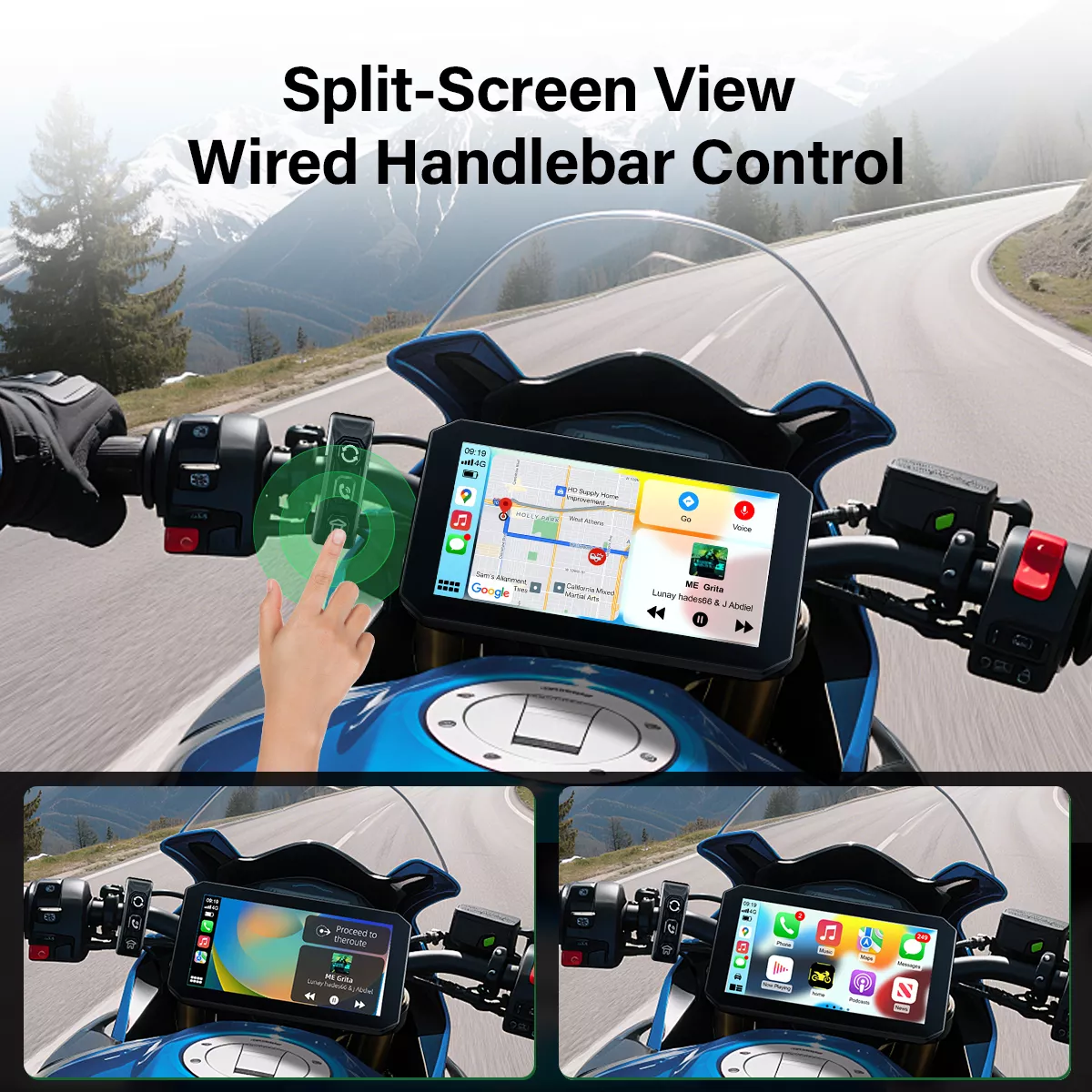

HANDS-ON-GRIP REMOTE CONTROL
Answer calls, fire the shutter, or switch view modes without letting go of the handlebar. Tactical buttons provide feedback through riding gloves, ensuring safe control in all environments.

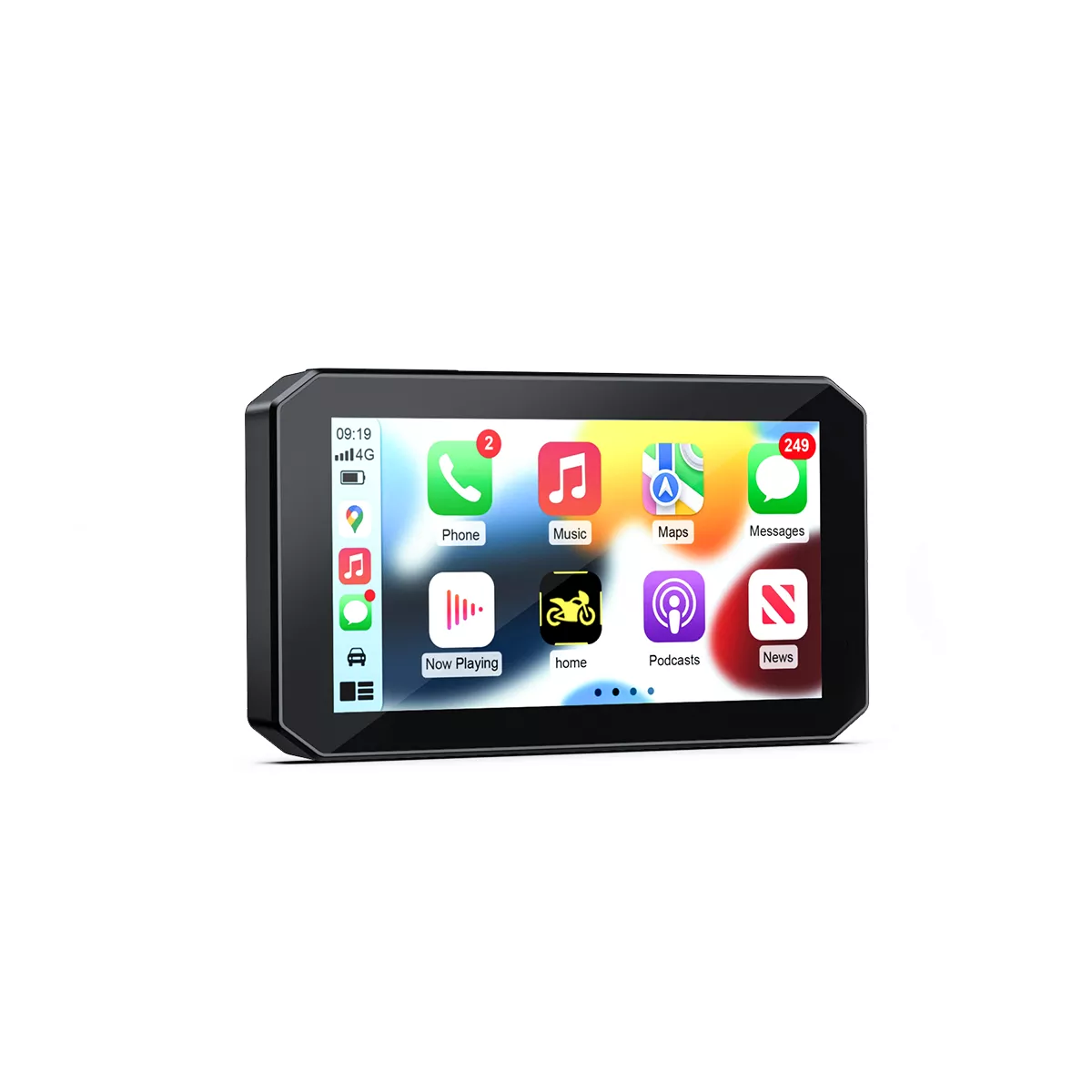

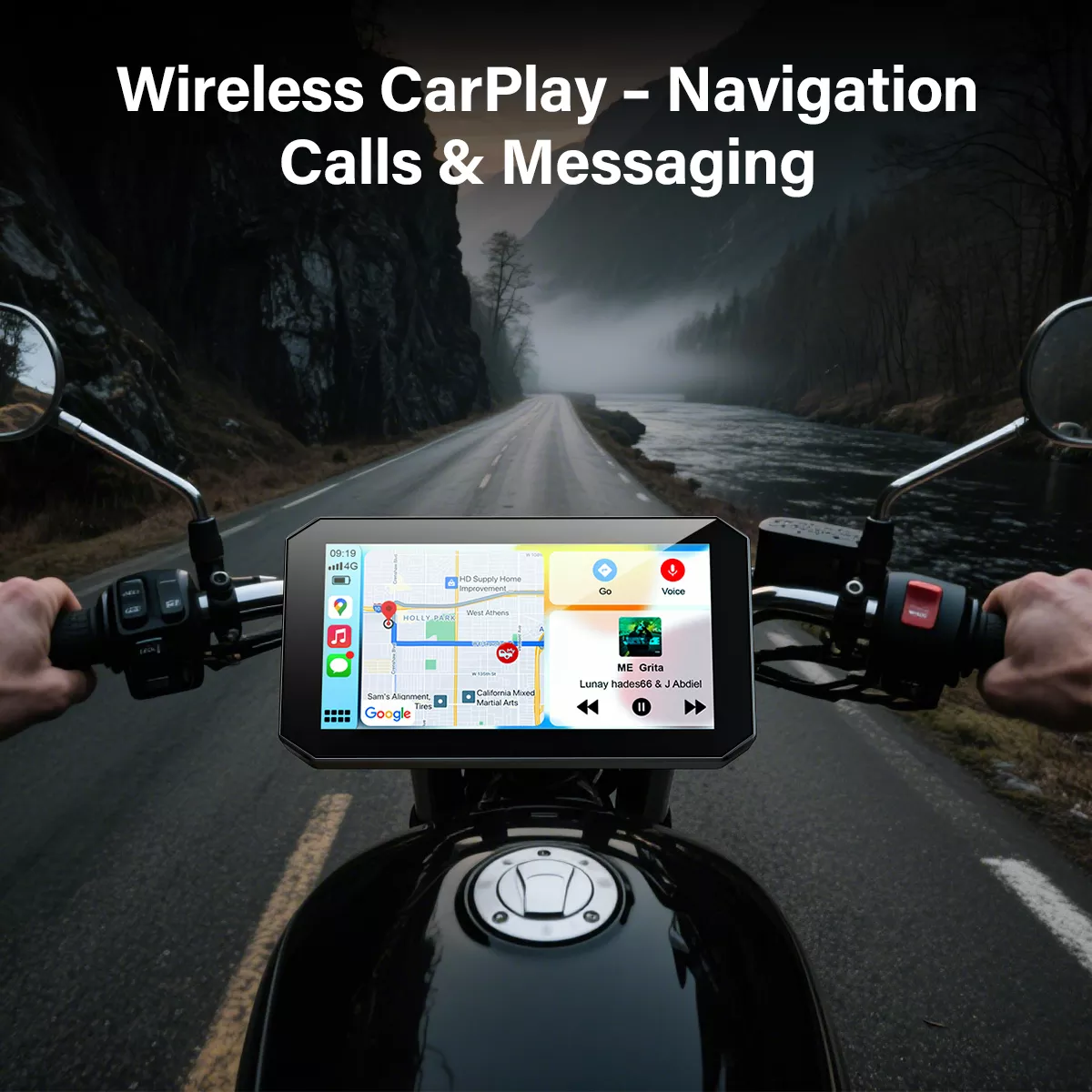

TRIPLE-ECOSYSTEM CONNECTIVITY
Full support for Apple CarPlay, Android Auto, and Huawei HiCar. Seamlessly bridge your digital life with your machine. Maps, music, and messages—optimized for the road.
IP67 WEATHERPROOF PROTECTION
BX is built for exposed motorcycle installation with IP67 dust and water resistance. It is designed for rain, spray, and road grime, while high-pressure washing or prolonged immersion should still be avoided.
APP-DRIVEN OTA INTELLIGENCE
Preview, download, and share ride footage through the mobile app, with firmware updates supported through OTA workflows.
EXTREME CLIMATE ENDURANCE
From desert heat to alpine frost. BX is specified for -20°C to 65°C (-4°F to 149°F), helping the system stay reliable across demanding motorcycle environments.

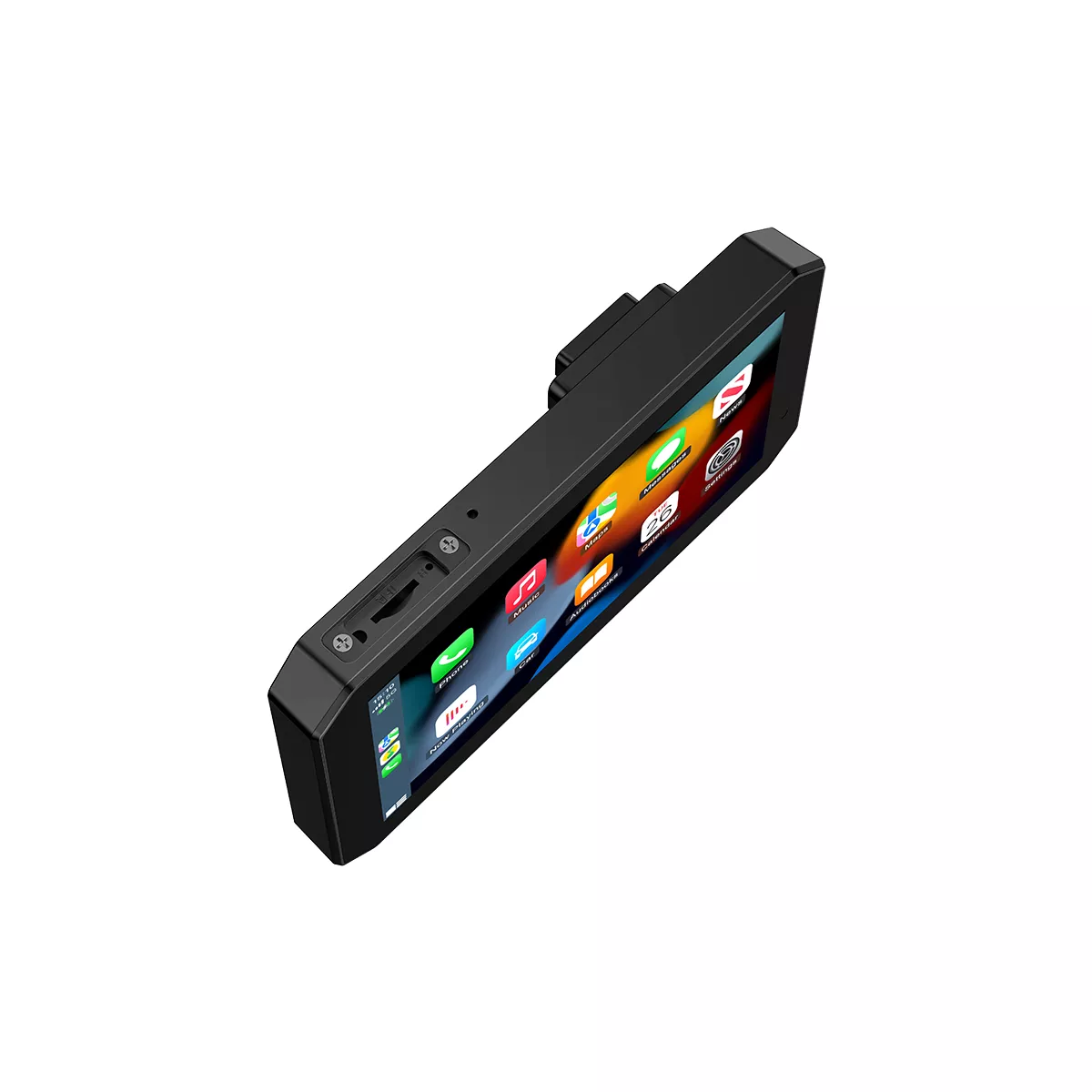

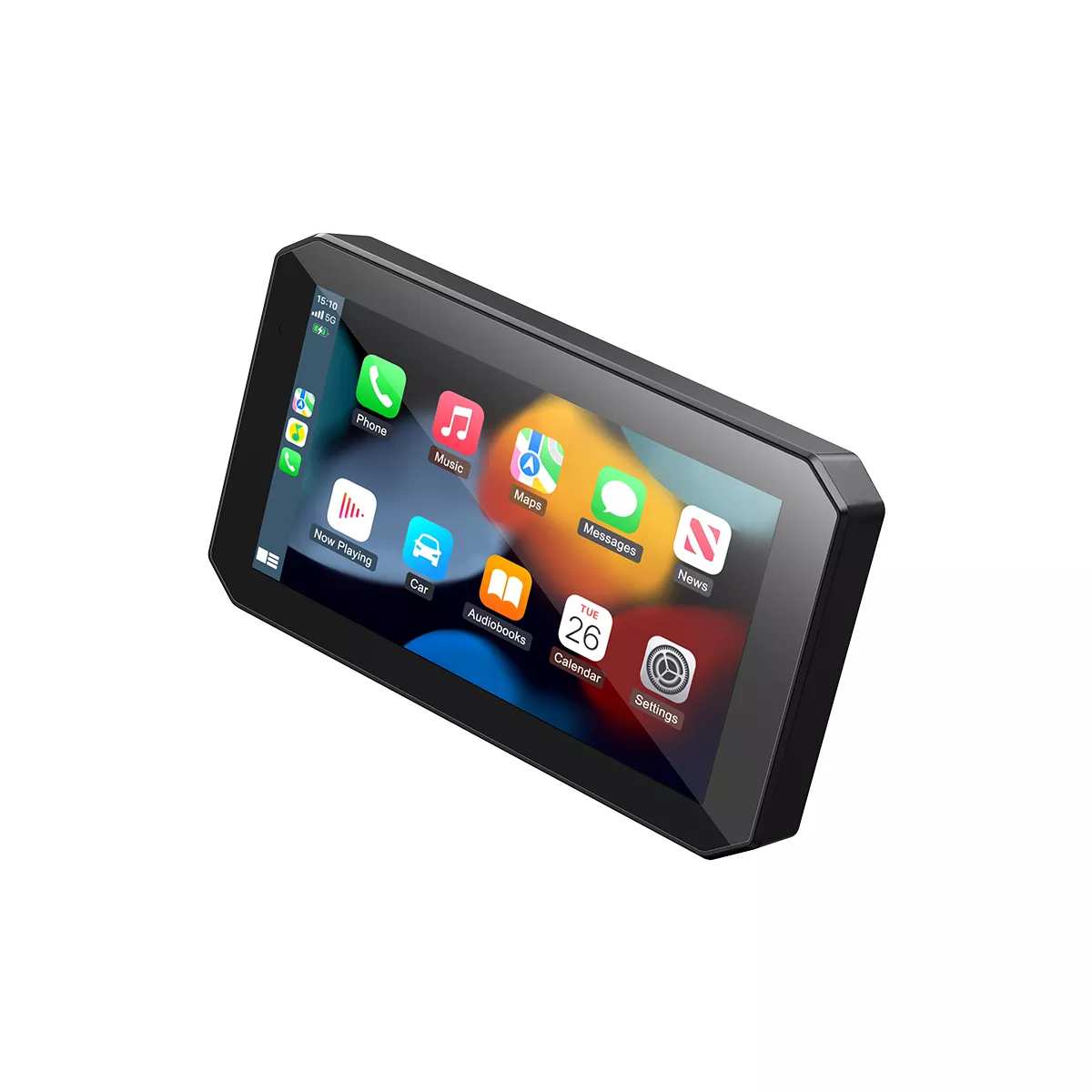

Main Unit & Display
| OS | Embedded Linux System |
|---|---|
| Screen | 5.5" High-Bright IPS Touch |
| Resolution | 1440 × 720p |
| Brightness | 1000 nits marketing / 850 nits actual |
| Dimensions | 151 × 82 × 32 mm |
| Weight | 0.34 kg |
Recording & Security
| BSD | Blind Spot Detection supported |
|---|---|
| Camera Resolution | Dual AHD 1080P front and rear @ 30fps |
| Camera Angle | 110° hardware FOV |
| Video Encoding | H.265 / TS-Stream / MP4 |
| Storage | Up to 128GB MicroSD |
| GPS | External 5Hz module |
Connectivity & Survival
| Phone Interface | Wireless CarPlay / Android Auto / HiCar |
|---|---|
| Wireless | 2.4GHz / 5.0GHz Wi-Fi + Bluetooth 4.2 |
| Waterproof | IP67 |
| Operating Temp | -20°C to 65°C (-4°F to 149°F) |
| TPMS Support | Pressure & temperature monitoring included |
| Power Supply | 12–24V to 5V ACC power cable |
BX Buyer FAQ
Direct answers for riders comparing a BSD motorcycle dash cam, CarPlay screen, TPMS display, and dual-camera recorder.
Does the BX support wireless Apple CarPlay and Android Auto?
Yes. BX supports wireless Apple CarPlay, Android Auto, and HiCar for phone-based maps, calls, music, and riding apps.
Can the BX record front and rear video at the same time?
Yes. BX records with front and rear AHD 1080P cameras at 30fps using H.265 video.
Is the BX waterproof for rain riding?
Yes. BX is specified as IP67 for exposed motorcycle use in rain and dust. Avoid high-pressure washing on connectors.
Does the BX include TPMS tire pressure monitoring?

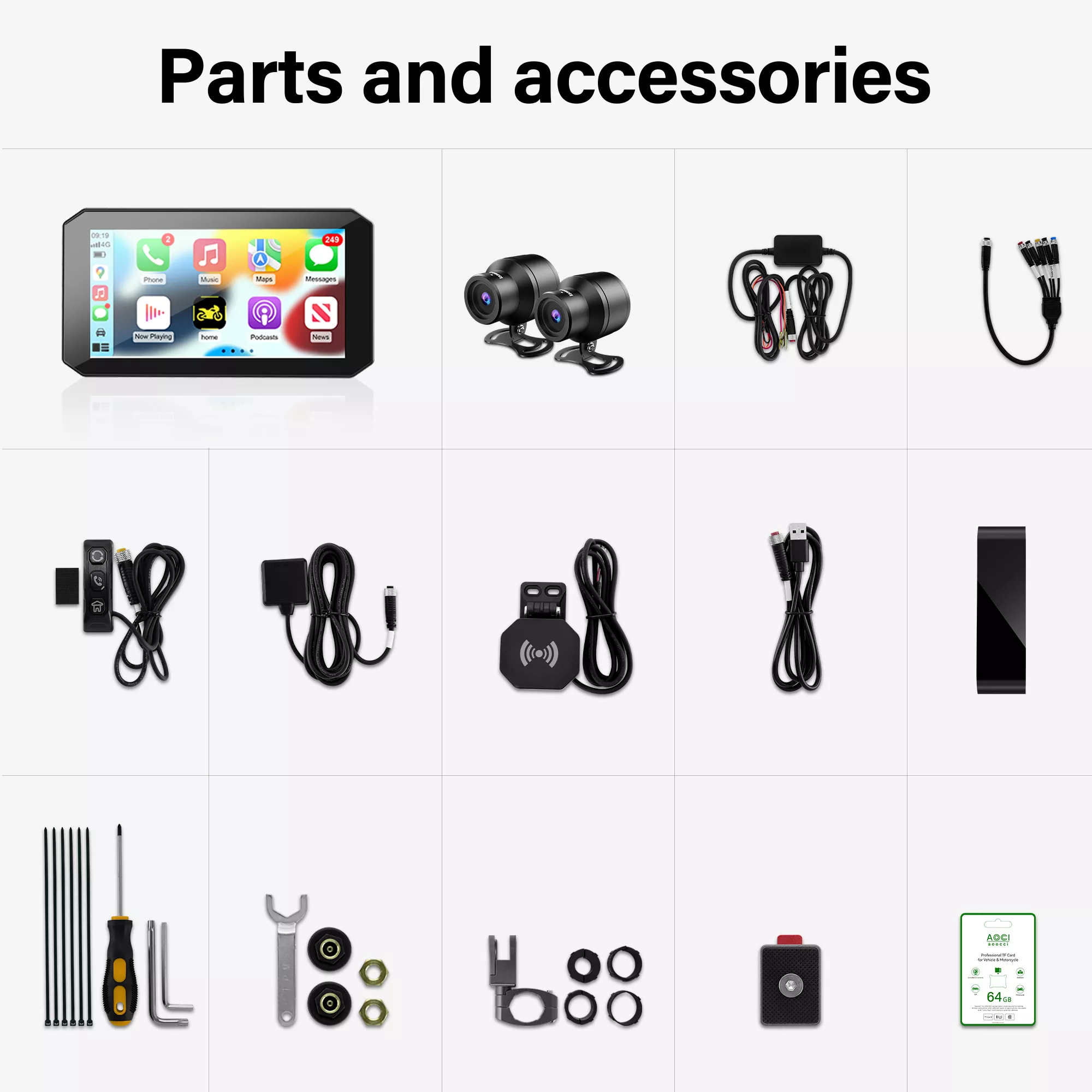

Yes. BX includes TPMS support for tire pressure and temperature monitoring, with tire pressure sensors listed in the package.
How is the BX powered on a motorcycle?
Use the included ACC power cable. The raw spec lists 12–24V to 5V power conversion for motorcycle installation.
What microSD card capacity does the BX support?
BX supports up to 128GB. Use a high-endurance microSD card because front and rear loop recording writes continuously.
Will the BX fit my motorcycle handlebar?
It fits many motorcycle handlebars. The listed mounting range is 14–35 mm, with a metal quick-release bracket and 61 × 36 mm hole pattern.
Does the BX have blind spot detection?
Yes. BX supports BSD blind spot detection. The current raw spec confirms BSD support, but no verified 20m detection distance is listed.
