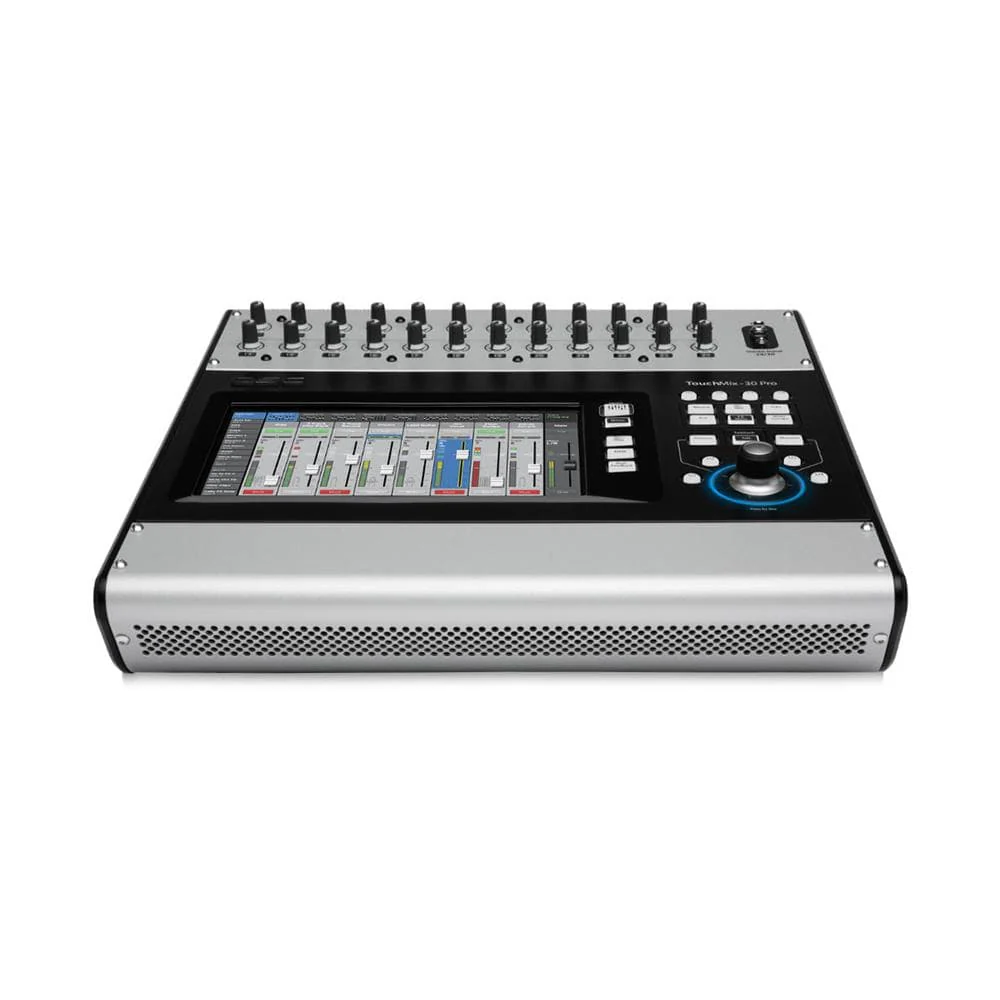

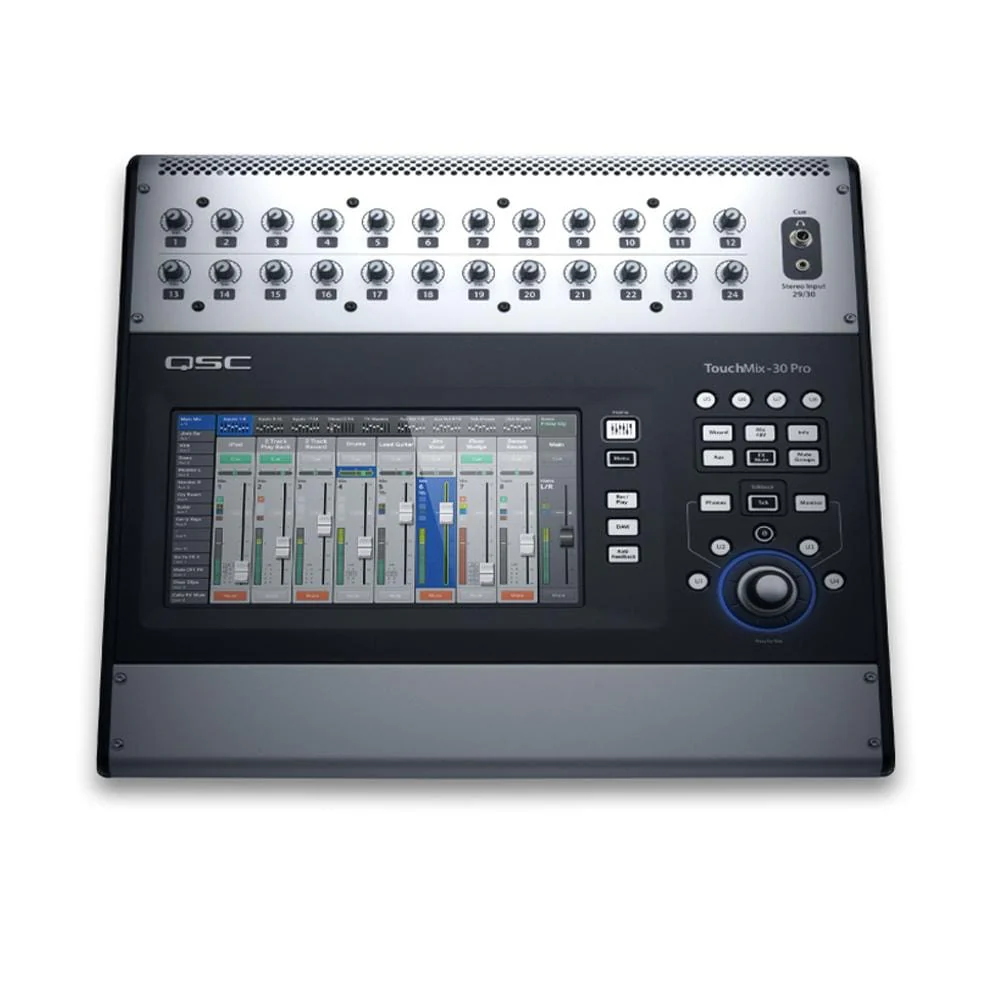

QSC Touchmix 30 Pro 32 Channel Professional Digital Mixer

QSC Touchmix 30 Pro 32 Channel Professional Digital Mixer

TouchMix is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, bands, AV production professionals and small performance venues, the TouchMix-16 goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily.

Its 22 mixing channels (16 Mic/Line, 4 Line, Stereo USB) and 12 outputs offer ample signal management flexibility while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, real-time analyzer (RTA) and 20-channel direct-to-external-drive recording make it equally competent as both a professional live sound or recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to the mixer. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control of mixer functionality.

The TouchMix-16 comes complete with USB Wi-Fi adapter and carrying case.

Key features include:

• *Stated features require Firmware Version 3.0 or greater
• Capacitive touchscreen offers a wealth of on-screen information while also providing confident hands-on control
• 120 presets provide real-world live sound settings for commonly-used instruments and microphones
• Simple and Advanced modes offer either basic or comprehensive controls
• Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
• Real-time analyzer (RTA) provides instantaneous display of channel tonal balance and room response
• 10 Aux mixes provide superior monitor configuration capabilities
• 22-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
• MP3 playback direct from USB
• On-board multi-language user guide
• Download future upgrades directly from the Internet

Specifications :

• Display : 10 Inch (254 mm),Capacitive Multi-touch sensing

Inputs

• input : 32
• Mic/Line : 24
• Line : 6
• Stereo USB : USB/MP3 Playback
• EQ : 4-Band Parametric EQ
• Dynamics : Gate, Compressor
• Delay : ( 100msec Max )
• Outputs : 16
• Aux : 14
• In Ear : 2
• Cue : 2
• Recording : 22 X 22 Track Direct to HD

Groups

• DCA : 8
• Mutes : 8
• Cue : Selectable AFL,PFL
• Effects : 4 Simulatneous, Professional Effects
• Real Time Analyzer
• Preset Memory

Dimensions :7.5 Inch x 16.9Inch x 18.1 Inch

• Weight : 11.4 kg
• Power Req : 85 W, 100-240 VAC, 50-60 Hz
• Sampling Frequency : 44.1KHz or 48 kHz
• Internal Processing : 32-bit floating point
• THD : <0.005%
• Frequency Response : 20 Hz - 20 kHz
• Dynamic Range : 105 dB
• Included Accessories : Power Cable
