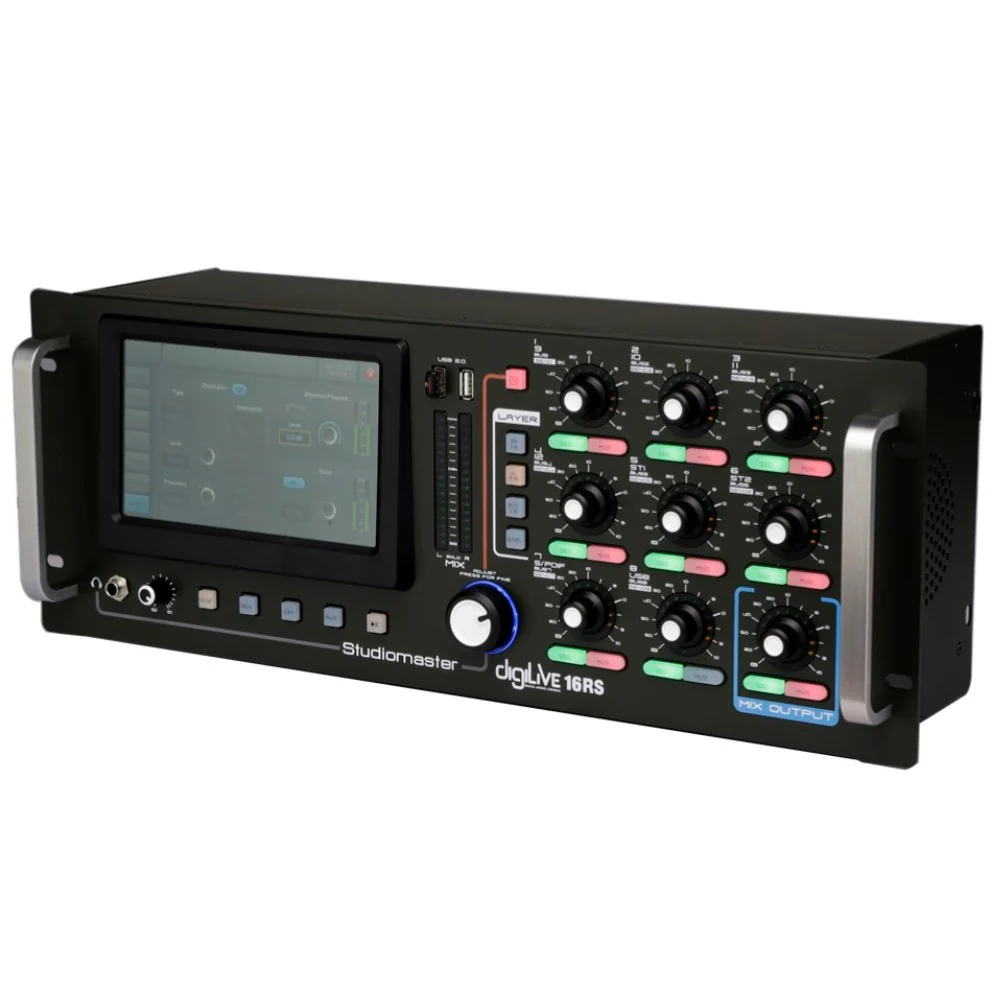

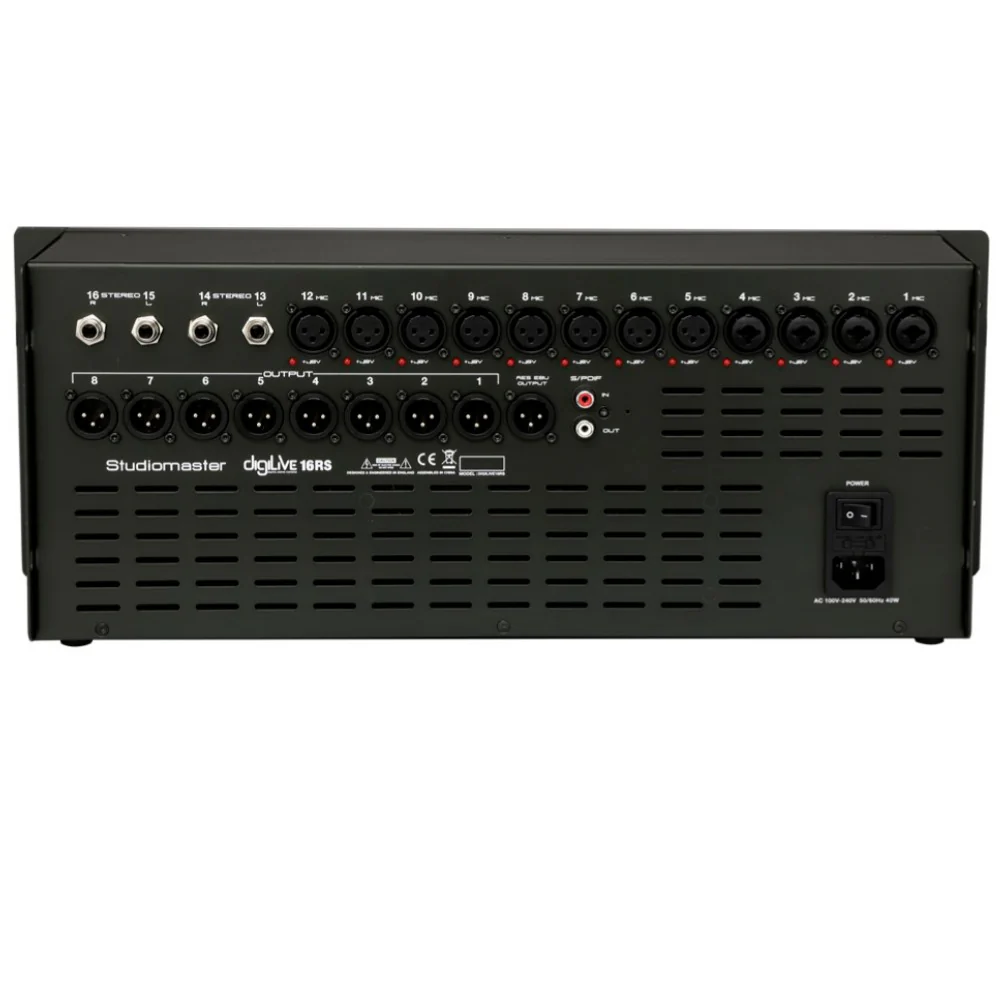

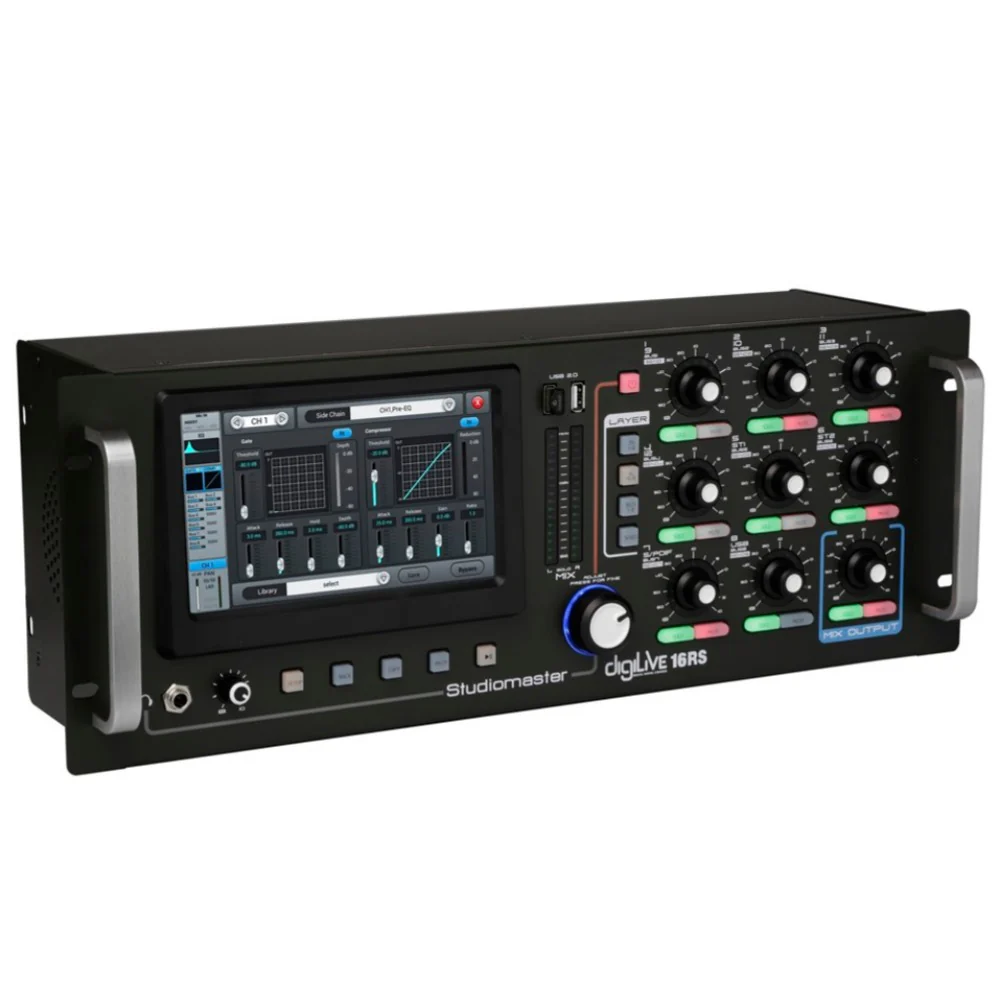

Studio Master DIGILIVE16RS 16CH Rack Digital Console

Studio Master DIGILIVE16RS 16CH Rack Digital Console Overview:

Features:

• 16 input with 16 internal busses

• 12 digital gain mic input channels

• 2 stereo inputs

• 8 configurable smart outputs

• 7″ high resolution touch screen

• Ultra compact unit size

• Advanced hybrid user interface

• Full iOS Tablet control

Specifications:

• Mic Inputs: 12 (8x XLR / 4x Combo XLR)

• Stereo Inputs: 2

• Master Output: 2 (Left/Right balanced XLR)

• Smart Outputs: 6 (assignable balanced XLR)

• Internal busses: 16

• Stage monitor: 1 TRS Jack output

• Headphone: 1 TRS Jack output

• Screen: 7″ high definition touch screen

• Operation system: Android system

• Network: Yes, via included WiFi module

• Remote control: iPad iOS via ‘Digilive Blackbox’ app

• Sample Frequency: 48 KHz

• AD/DA: 192 KHz, 24-bit

• DSP: 40 bit float point, SHARC processor

• Effects: up to 8 assignable effect modules

• AES/EBU: Output XLR

• S/PDIF: Input / Output (RCA Phono)

• USB Interface: 2 for playback/recording, scene/setting storage and system updates

• Power Supply: 90-240V ~ 50/60Hz IEC power supply
