RED DIGITAL CINEMA KOMODO 6K Camera Production Pack
- Super35 KOMODO 6K Camera
- Full-Frame 6K to 40 fps, 4K to 60 fps
- Canon RF Lens & ARRI CFast 2.0 Support
- 2 x REDVOLT BP 6300mAh Batteries
- Mechanical EF Mount Adapter
- EF Mount Adapter with Variable ND Filter
- Expander Module, Outrigger Handle
- Clear Drop-In Filter for Mount Adapter
- Wing Grip, 512GB Card & Card Reader
- D-Tap Power Cable

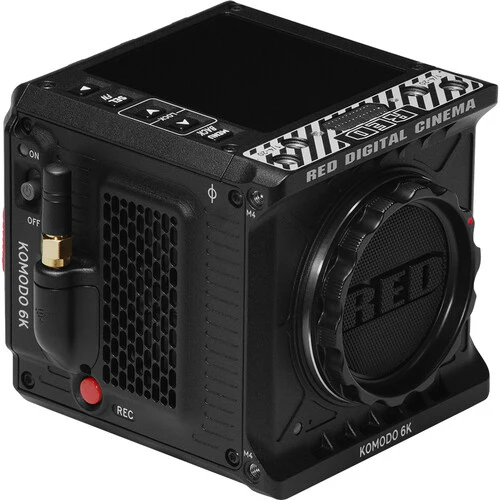

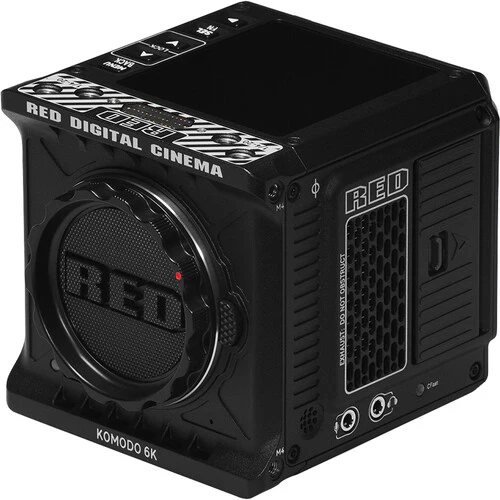

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.
- Fixed playback stuttering at high frame rates, German SLA causing a camera shutdown, and RFB raw metering in 6K full frame
- Improved LCD sync issues in playback with anamorphic formats
- Improved general stability
Camera Technical Specifications:
|

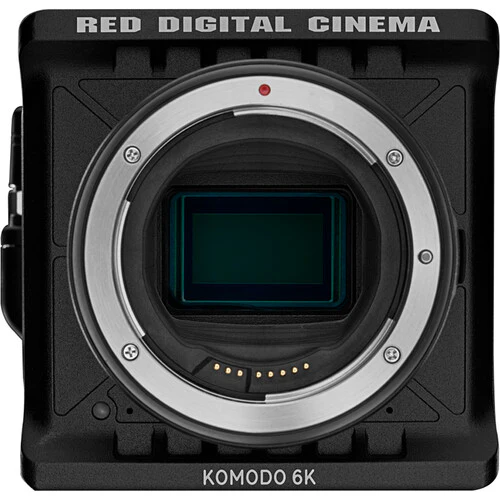

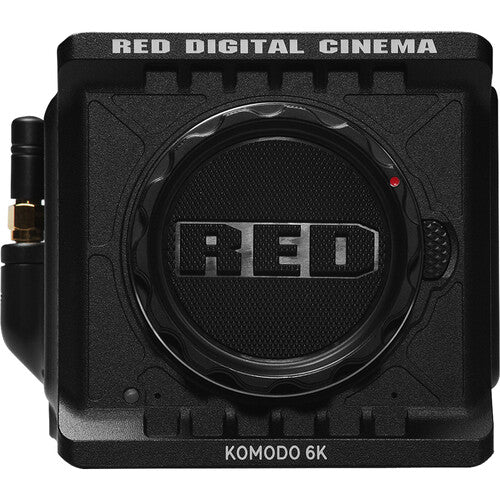

Lens Mount |
Canon RF Canon EF with Included Adapter |
|
Lens Communication |
Yes, with Autofocus Support |
|
Sensor Resolution |
Effective: 19.9 Megapixel (6144 x 3240) |
|
Image Sensor |
27.03 x 14.26 mm (Super35) CMOS |
|
Image Stabilization |
No |
|
Built-In ND Filter |
No |
|
Capture Type |
Stills & Video |
|
Shutter Type |
Electronic Global Shutter |
|
Shutter Type |
Electronic Global Shutter |
|
Shutter Speed |
1/8000 to 1 Second |
|
ISO Sensitivity Range |
250 to 12,800 |
|
Shutter Angle |
0 to 360° |
|
Advertised Dynamic Range |
16 Stops |
|
White Balance |
1700 to 10,000K |
|
Internal Recording Modes |
REDCODE RAW 6144 x 3240 up to 40 fps [280 Mb/s] 5120 x 2700 up to 48.00 fps [280 Mb/s] 4096 x 2160 up to 59.94 fps [280 Mb/s] 2048 x 1080 up to 120 fps [280 Mb/s] ProRes 422/ProRes 422 HQ 4096 x 2160 up to 59.94 fps ProRes 422 2048 x 1080 up to 120 fps |
|
External Recording Modes |
4:2:2 10-Bit via SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps |
|
Recording Sensor Crop |
Crops to Output Resolution in All Recording Modes |
|
Built-In Microphone Type |
Stereo |
|
Audio Recording |
2-Channel 24-Bit 48 kHz |
|
IP Streaming |
No |
|
Aspect Ratio |
16:9 |
|
Media/Memory Card Slot |
Single Slot: CFast (CFast 2.0) |
|
Video I/O |
1x BNC (12G-SDI) Output |
|

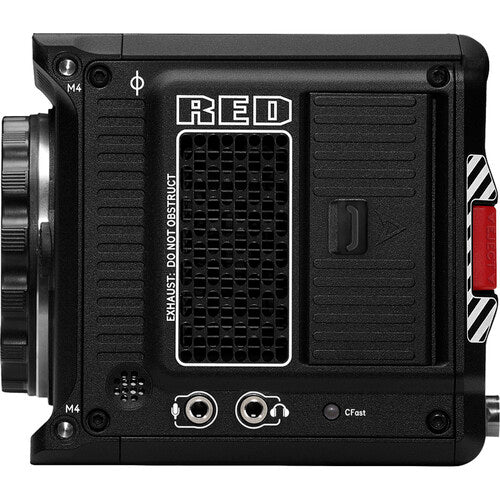

Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
|
Power I/O |
1x LEMO 2-Pin (7 to 17VDC) Input |
|
Other I/O |
1x 9-Pin (Genlock, GPI, RS-232, Timecode) |
|

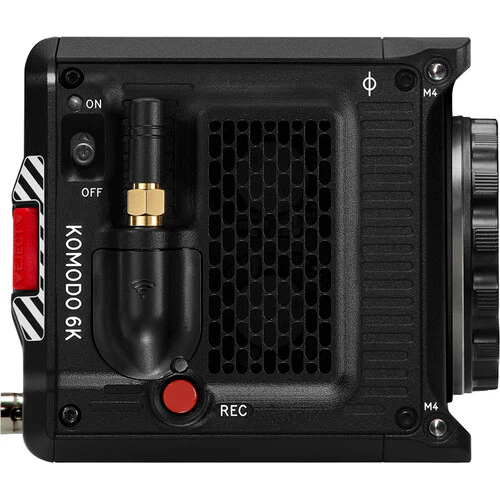

Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
|
Mobile App Compatible |
Yes: Android & iOS App Name: RED Control Functionality: Remote Control |
|
Global Positioning (GPS, GLONASS, etc.) |
No |
|

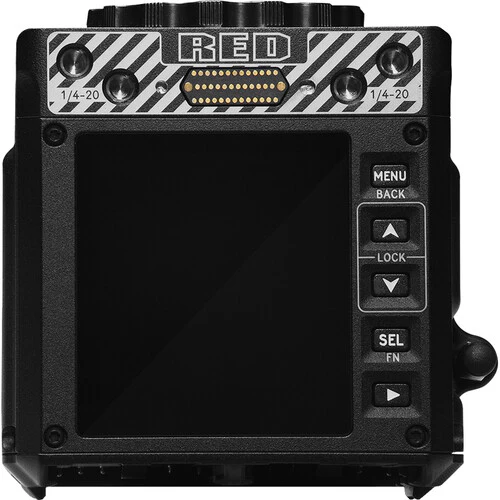

Display Type |
Fixed Touchscreen LCD |
|
Display Size |
2.9" |
|
Resolution |
1440 x 1440 |
|
Type |
Optional, Not Included |
|
Focus Type |
Auto and Manual Focus |
|
Focus Mode |
Automatic, Manual Focus |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 122°F / -20 to 50°C |
|
Storage Humidity |
0 to 85% (Non-Condensing) |
|
Battery Type |
Canon BP-9 Series |
|
Power Consumption |
45 W |
|

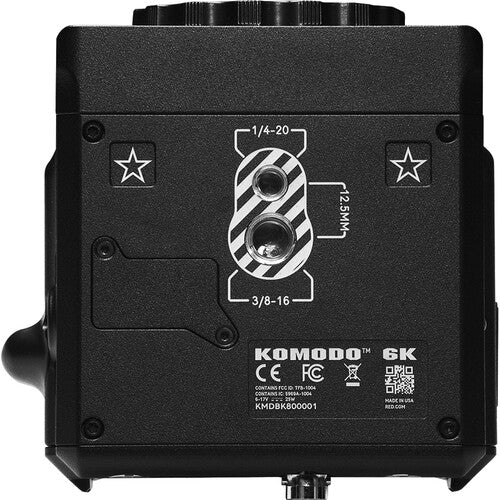

Tripod Mounting Thread |
1/4"-20 Female (Bottom) 3/8"-16 Female (Bottom) |
|
Netflix Approved |
Yes |
|
Material of Construction |
Aluminum |
|
Dimensions (W x H x D) |
4 x 4 x 4" / 10.2 x 10.2 x 10.2 cm |
|
Weight |
2.1 lb / 1 kg |
In The Box:
- 1x KOMODO®️ 6K Camera System
- 1x Canon RF to EF Adapter w/ Variable ND Filter
- 1x Canon Drop-In Clear Filter
- 1x KOMODO®️ Outrigger Handle
- 1x KOMODO®️ Wing Grip
- 1x KOMODO®️ Expander Module

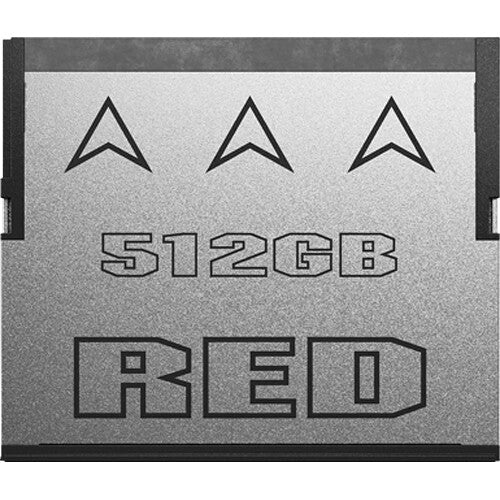

- 1x RED®️ PRO CFast 512GB
- 1x RED®️ CFast 2.0 Card Reader
- 1x RED®️ PTap-to-Power Cable 6'
- 2x REDVOLT®️ BP
- 1-Year Standard Warranty
