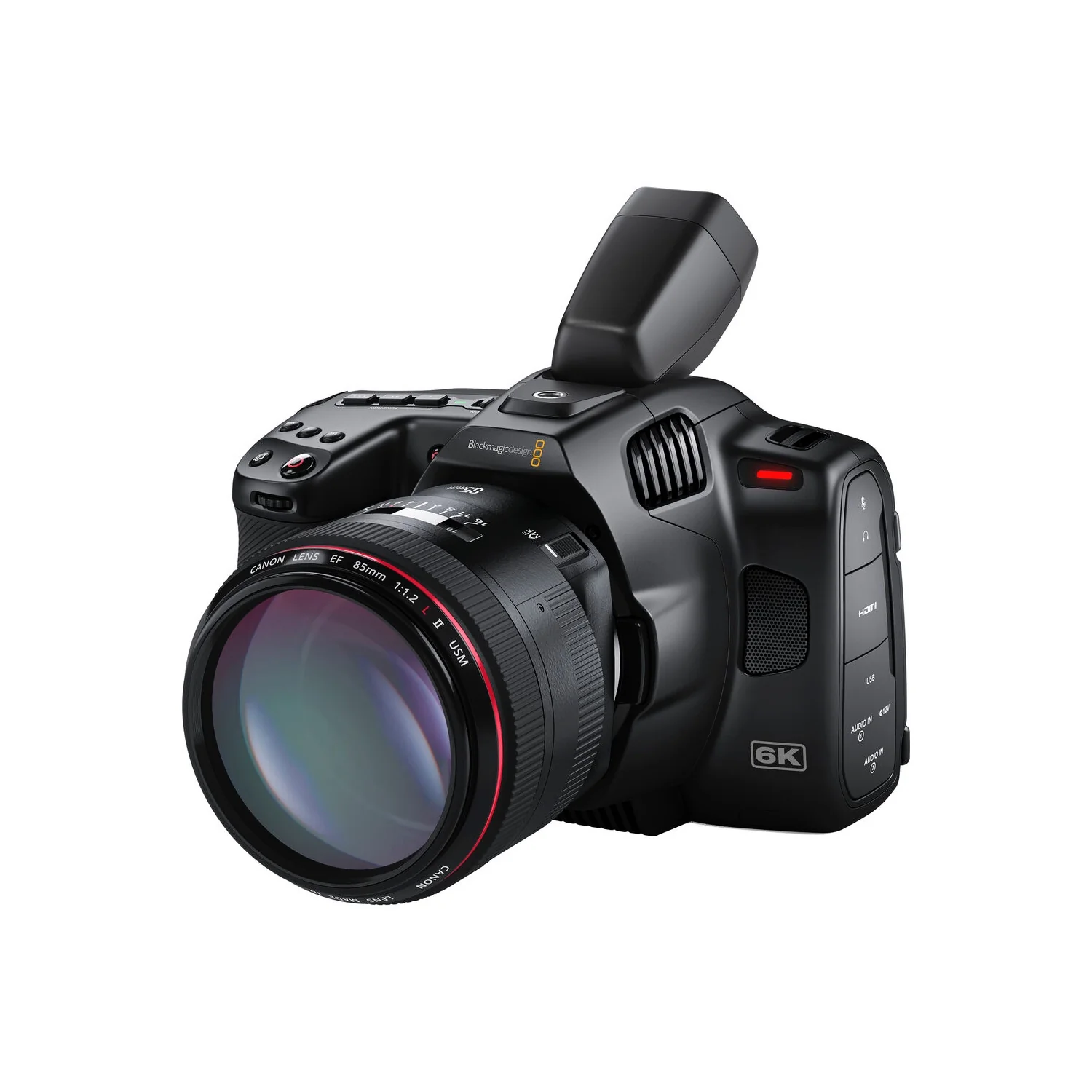

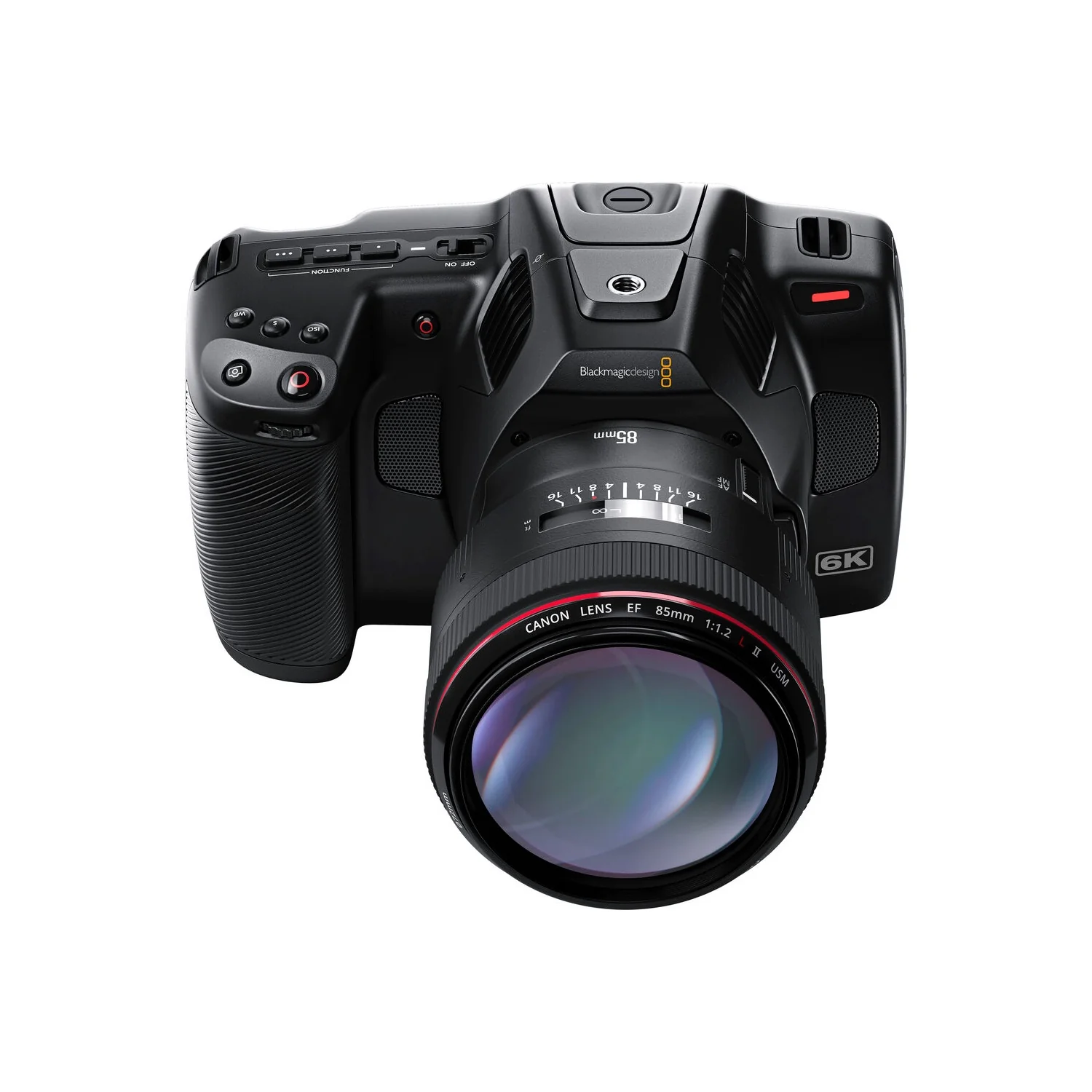

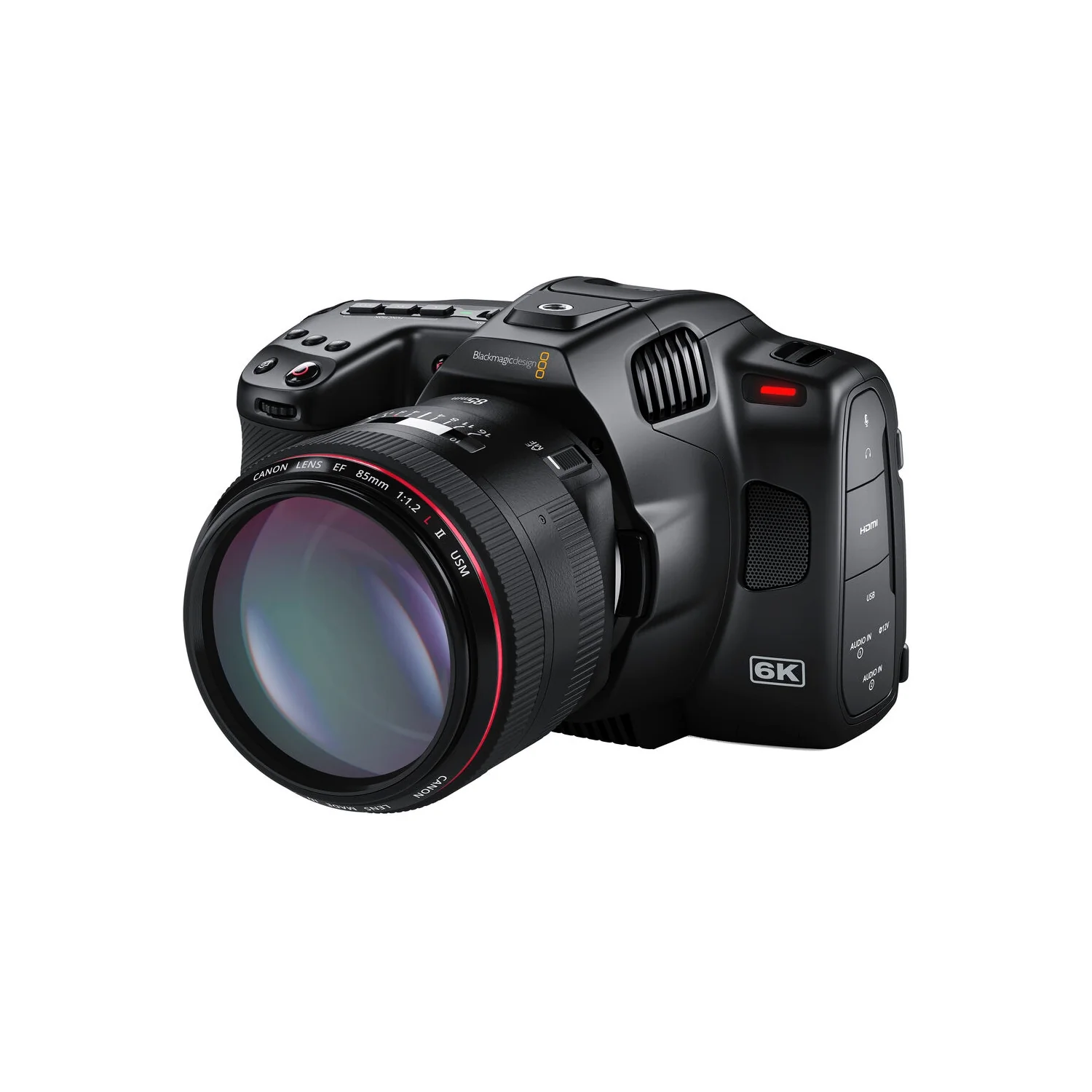

Blackmagic Design Pocket Cinema Camera 6K Pro

Sensor Size

23.1 x 12.99 mm (Super35)

Sensor Type

CMOS

Sensor Resolution

Effective: 21.2 Megapixel (6144 x 3456)

Shutter Type

Rolling Shutter

ISO

100 to 25,600 (Expanded)

Advertised Dynamic Range

13 Stops

Lens Mount

Canon EF

Lens Communication

Yes, with Autofocus Support

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Media/Memory Card Slot

Single Slot: SD/SDHC/SDXC (UHS-II)

Single Slot: CFast

Variable Frame Rates

Up to 120 fps

Raw Recording

Raw:

6144 x 3456 at 23.98/24/25/29.97/30/50 fps (49 to 483 MB/s)

6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps (37 to 359 MB/s)

5744 x 3024 at 23.98/24/25/29.97/50/59.94/60 fps (40 to 395 MB/s)

4096 x 2160 at 23.98/24/25/29.97/30 fps (28 to 163 MB/s)

3728 x 3104 at 23.98/24/25/29.97/30 fps (36 to 265 MB/s)

2868 x 1512 at 23.98/24/25/29.97/30 fps (14 to 101 MB/s)

Recording Modes

ProRes 422HQ:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 to 117.88 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 to 110 Mb/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)

ProRes 422:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (78.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)

ProRes 422LT:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (54.63 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)

ProRes 422 Proxy:

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (24.25 MB/s)

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)

Still Image Support

Not Specified by Manufacturer

Video Output

4:2:2 10-Bit via HDMI:

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Raw Output

USB:

6144 x 3456 at 23.98/24/25/29.97/30/50 fps

6144 x 2560 at 23.98/24/25/29.97/30/50/59.94/60 fps

5744 x 3024 at 23.98/24/25/29.97/30/50/59.94/60 fps

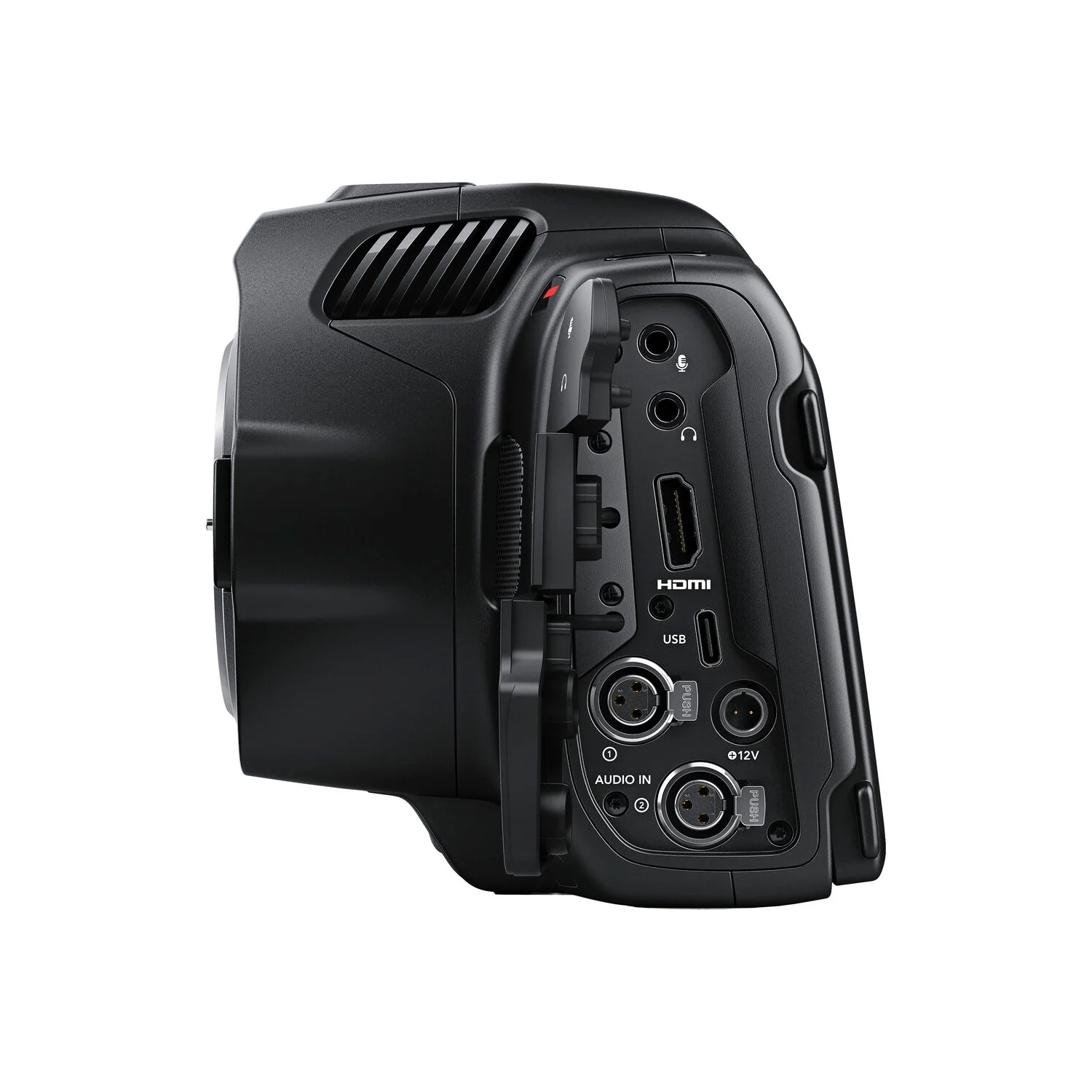

Video Connectors

1 x HDMI Output

Audio Connectors

2 x Mini XLR Mic/Line Level (+48 V Phantom Power) Input

1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input

1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x USB Type-C Control, Video Output

1 x 3.5 mm Timecode Input (Shared with 3.5 mm Mic/Line input)

Wireless Interfaces

Bluetooth Control

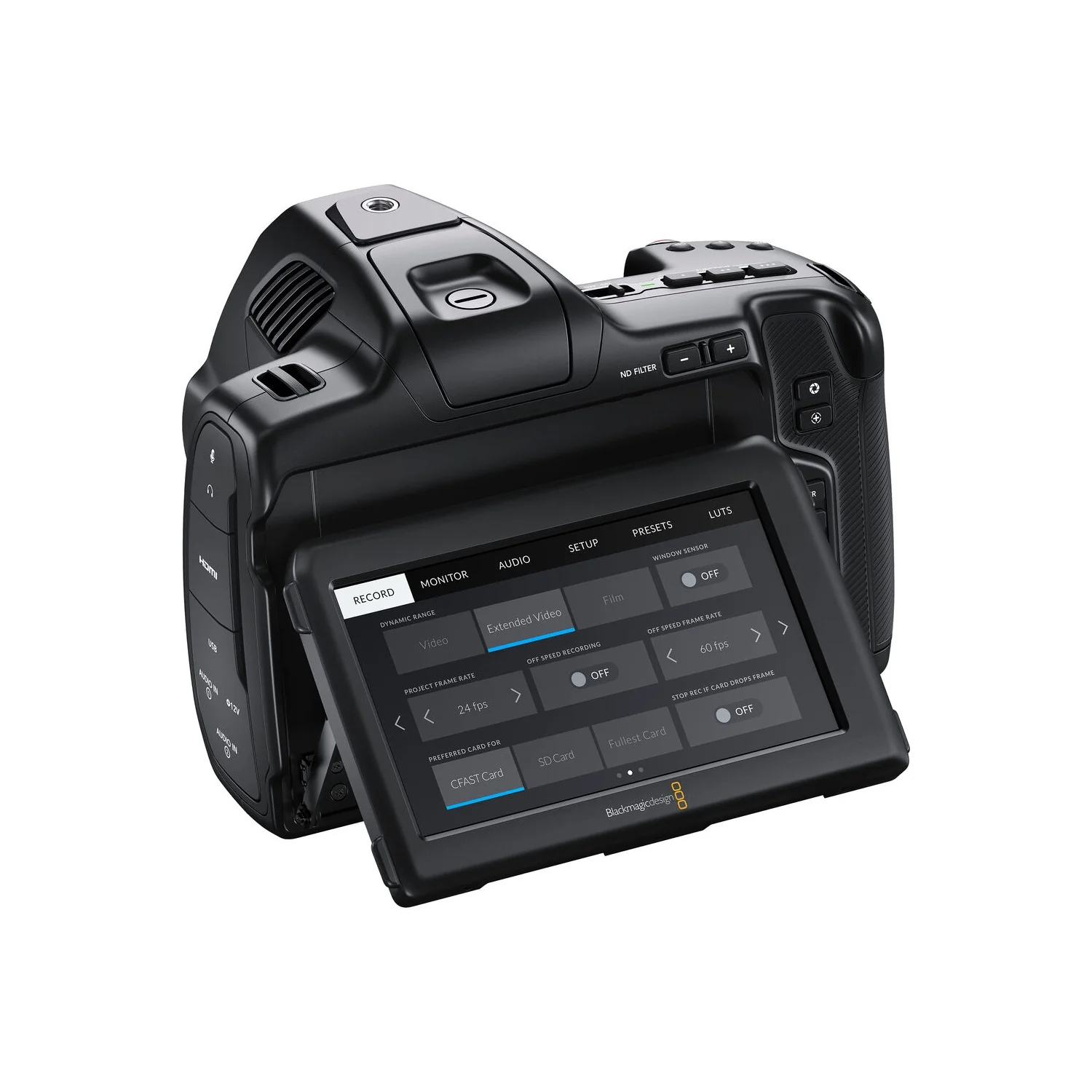

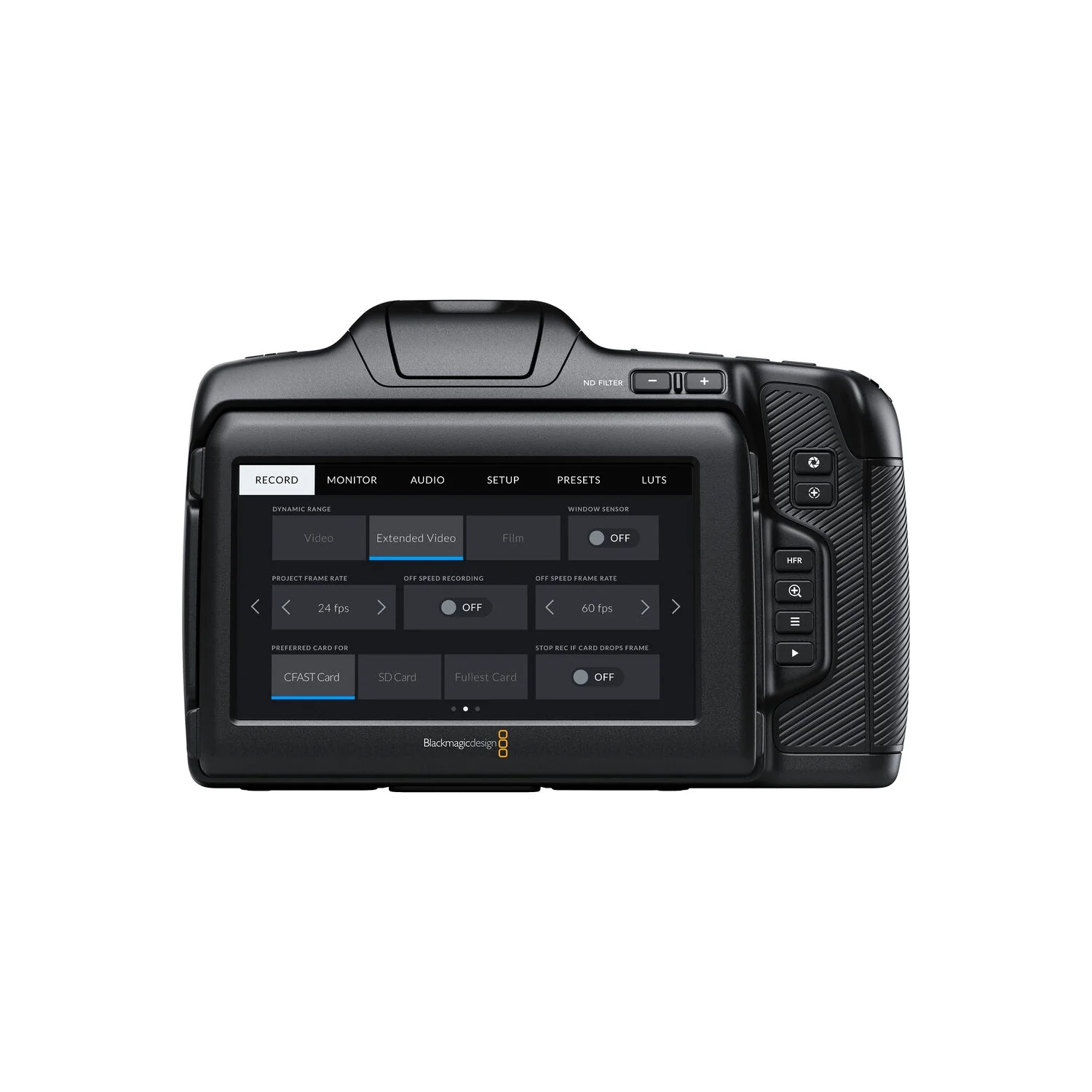

Display Type

Tilting Touchscreen LCD

Size

5"

Resolution

1920 x 1080

EVF

Optional, Not Included

Power Supply

1 x External 12V power supply.

External Power Input

1 x 2‑pin locking connector.

Battery Type

NP-F570

Battery Life

Approximately 60 minutes

(recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)

Power

12V-20V.

Operating Temperature

0°to 40°C (32° to 104°F)

Storage Temperature

-20°to 45°C (-4° to 113°F)

Operating Humidity

0% to 90% non-condensing

Accessory Mount

1 x 1/4"-20 Female

Tripod Mounting Thread

1/4"-20 Female

Material of Construction

Carbon Fiber

Dimensions

7.08 x 4.41 x 4.84" / 179.83 x 112.01 x 122.94 mm

Weight

1238 g/1.23 kg

In the Box

Blackmagic Pocket Cinema Camera 6K Pro

Lens turret dust cap

Camera strap

30W power supply with locking connector and international adapters

NP-F570 battery

Welcome booklet

DaVinci Resolve Studio activation key
