Features
| 8 Self Adaptive Gigabit PoE Ports | |
| Dual Gigabit Uplink Ports | |
| 100m Transmission (Max.) | |
| 150W Output (Max.) | |
| Upto 30W Per Port | |
| High Data Rate | |
| Wide Compatibility | |
| Flexible Mounting | |
| Short Circuit Protection | |
| Voltage Protection | |
| Anti Interference Capability | |
| Lightning Protection | |
| Dual SFP ports |
Specifications

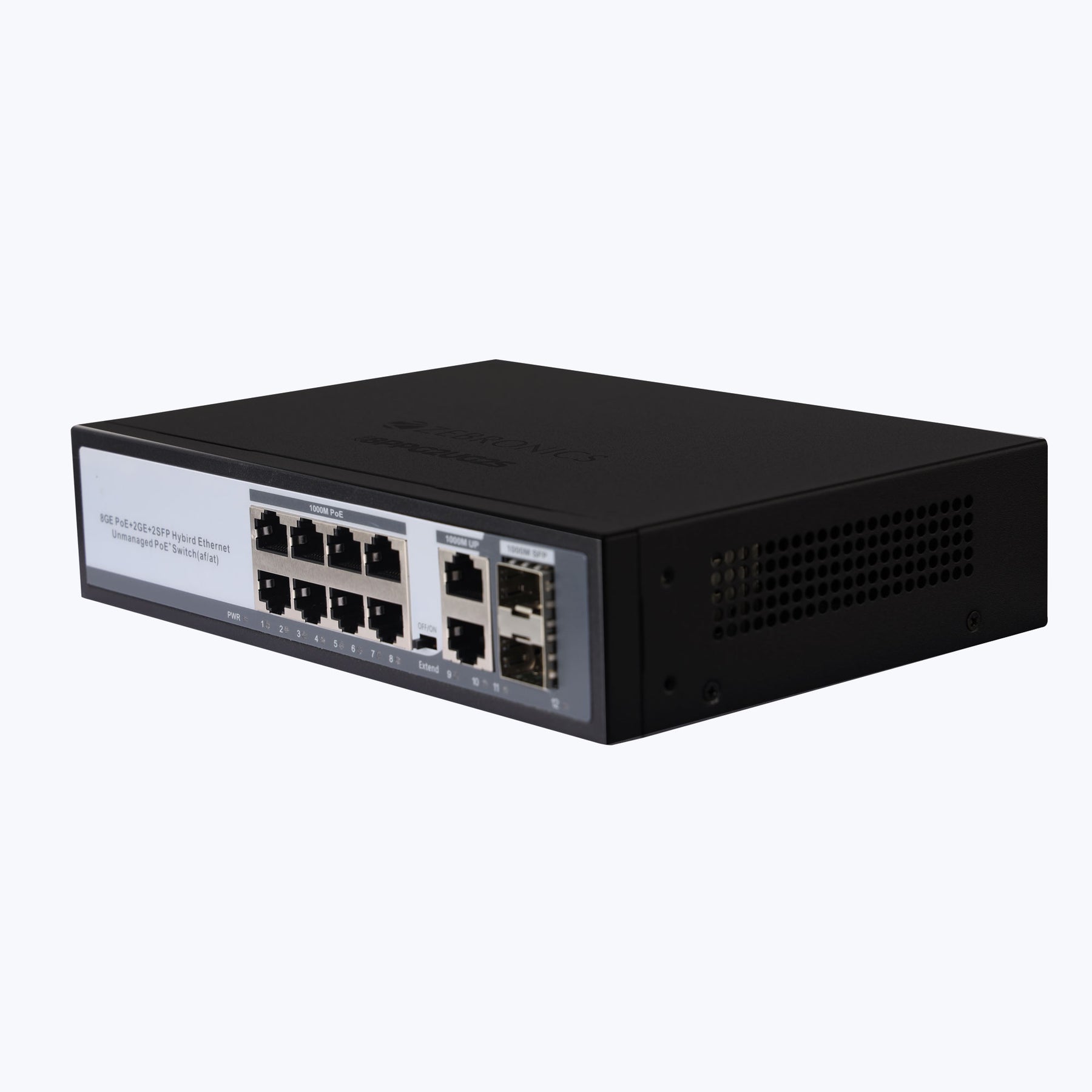

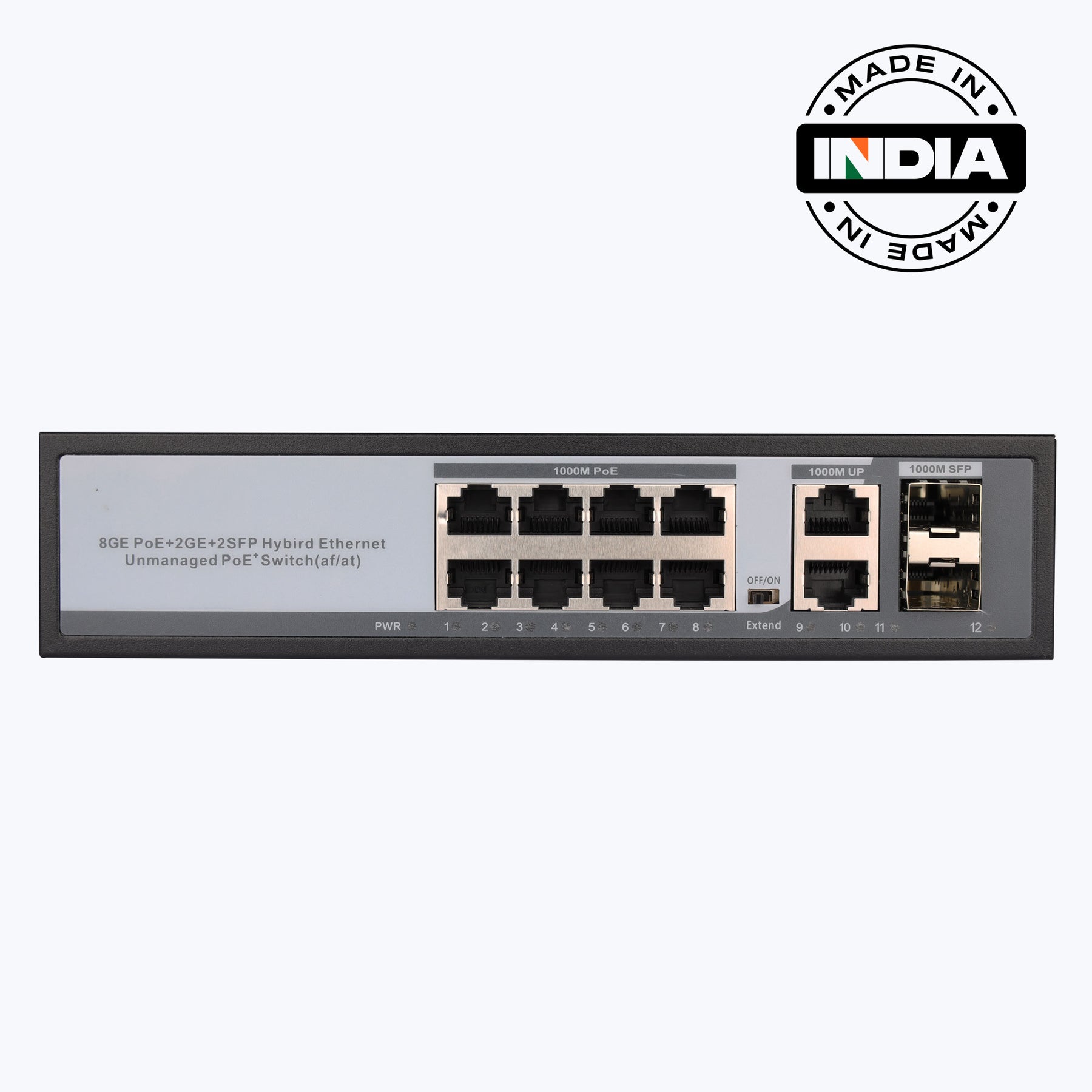

| Connector Type | 8 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 2SFP slot | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| PoE Standard | IEEE802.3af (15.4W) & IEEE802.3at (30W) | |
| PoE Compatibility |
IEEE802.3af/at Self Adaptive | |
| Power Pin Assignment |
MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: <100 meters 100BASE-TX: <100 meters 1000BASE-T: <100 Meters |
|

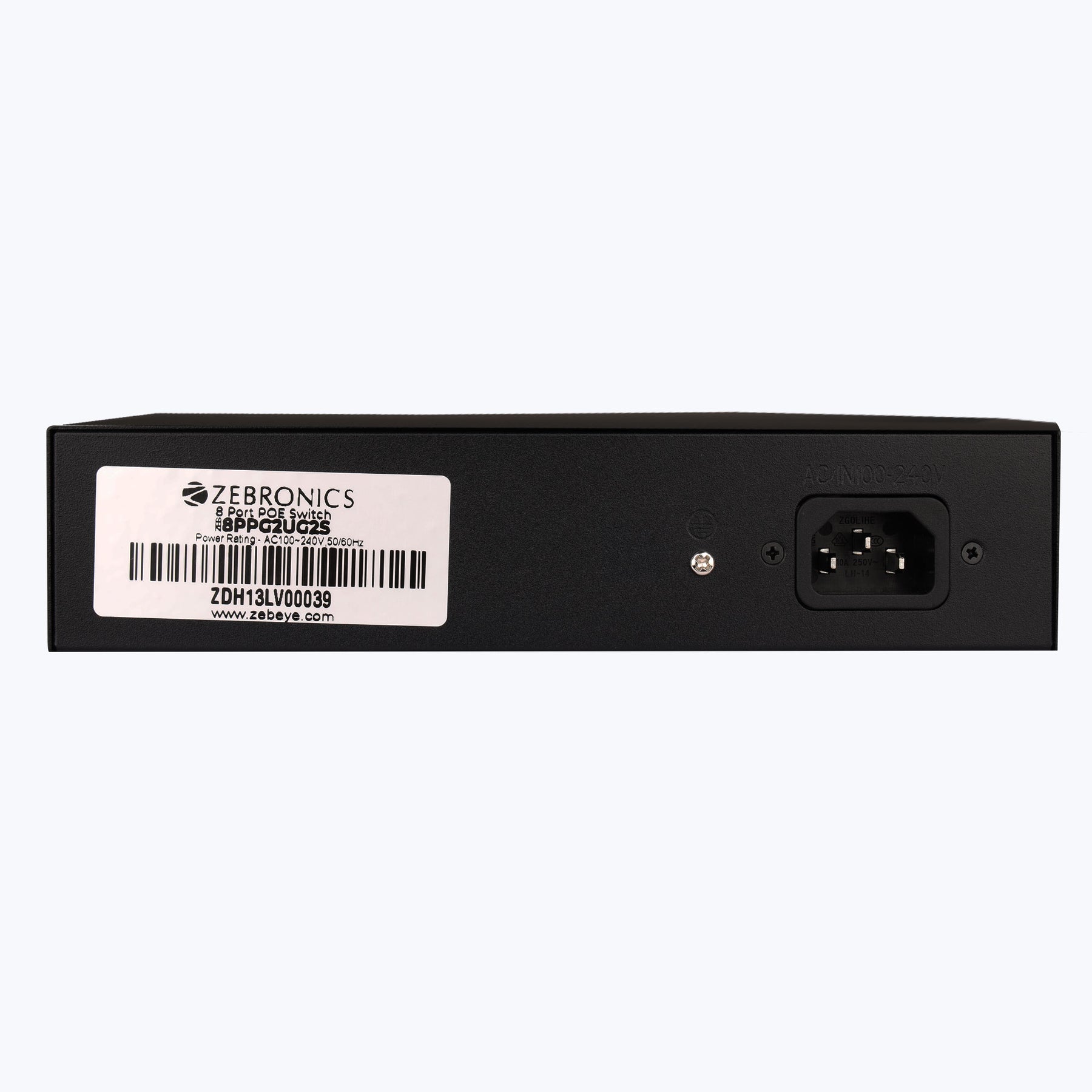

| Power Supply | Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 150W |
|
| Performance Specification | ||
| Bandwidth | 20Gbps | |
| MAC | 2K | |
| Packet Buffer Memory | 1 Mbits | |
| 10M Packet Forwarding Rate | 14880pps/port | |
| 100M Packet Forwarding Rate | 148800pps/port | |
| 1000M Packet Forwarding Rate | 148800pps/port | |
| LED Indicator | ||
| Power (Red) | Lit - Powered, Unlit - No Power | |
| Ethernet |
Flash - Data Transmit, Unlit - Disconnect | |
| Working Environment | ||
| Operating Temperature: | 25°C ~ 50°C | |
| Storage Temperature: | 20°C ~ 70°C | |
| Operating Humidity | Max 25 ~ 90%, Non-Condensing | |
| Storage Humidity | Max 20 ~ 95%, Non-Condensing | |
| Physical Parameter | ||
| Product Dimension (W x D x H) | 20.2 x 14 x 4.5 cm | |
| Package Dimension: (W x D x H) | 23.5 x 20 x 7 cm | |
| Net. Weight | 816 g | |
| Transmission Distance | ||
| Data Transmission Distance | 100 (Max.) | |
| PoE distance | upto 100 meters with 10m via Cat.6 | |
| Switching Capacity | 20Gbps | |
| Port Surge Protection | 4KV | |
| Forwarding Mode |
Store and forward | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch |
1U | |

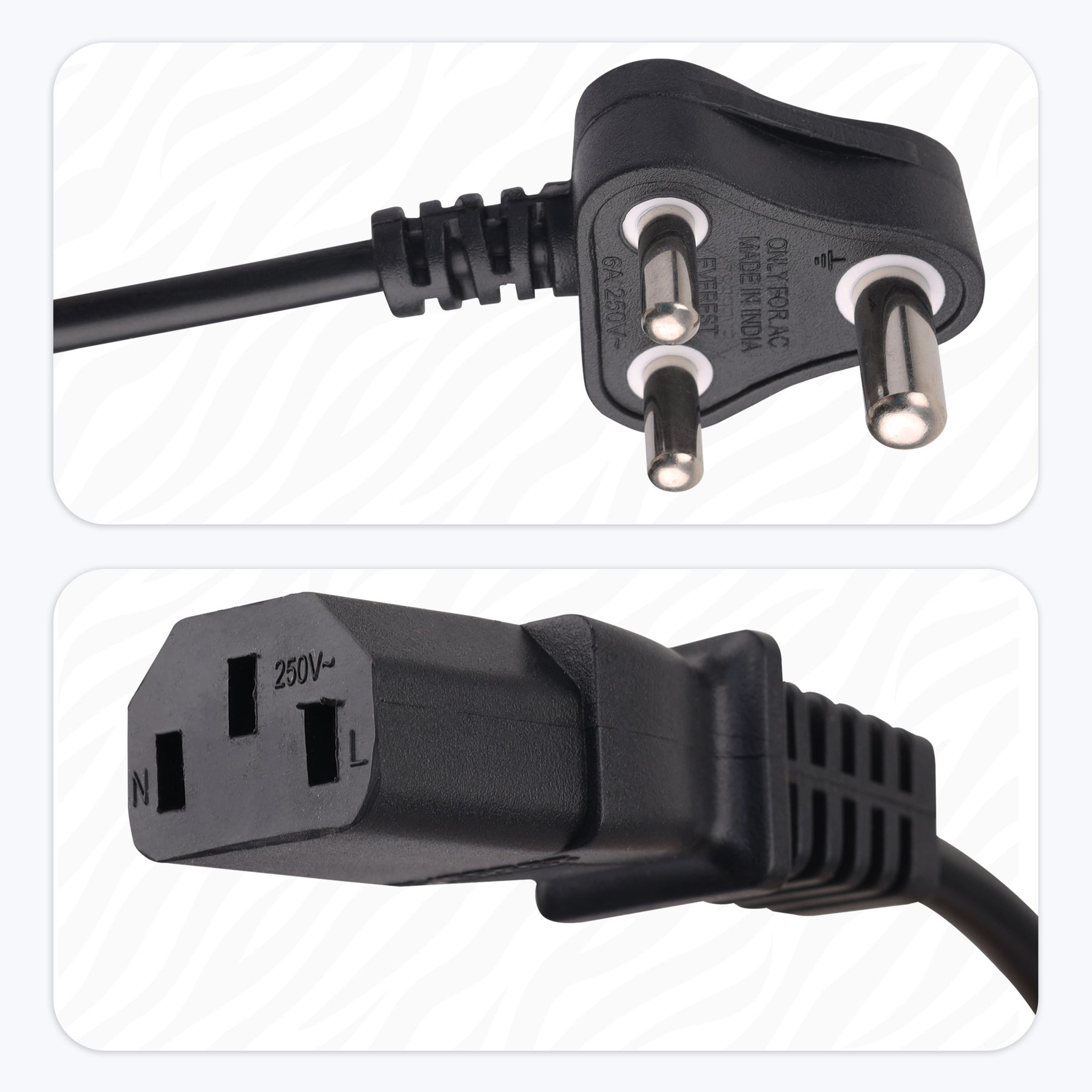

| Power Cord |
1U | |
| QR Code Guide | 1U |
Coupons
FIRST — discount
FIRST10 — discount
FIRSTBUY — discount
FIRSTORDER — discount
FLAT10 — discount
EMAIL10 — discount
Delivery
You may also like

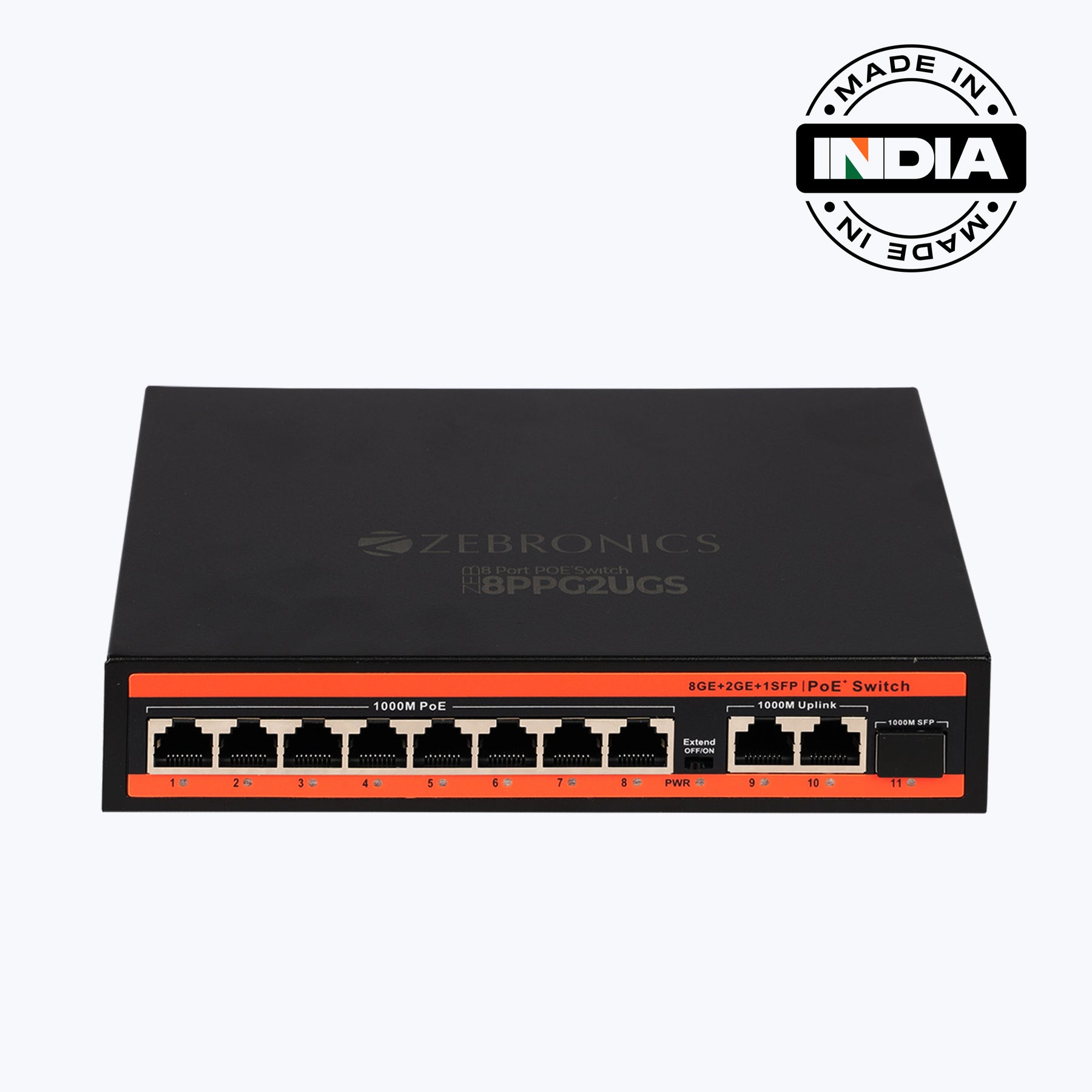

Zeb 8PPG2UGS - 8 Port POE Switch
Zebronics
₹9,999
Zeb 8PPM2UG - 8 Port POE Switch
Zebronics
₹6,799

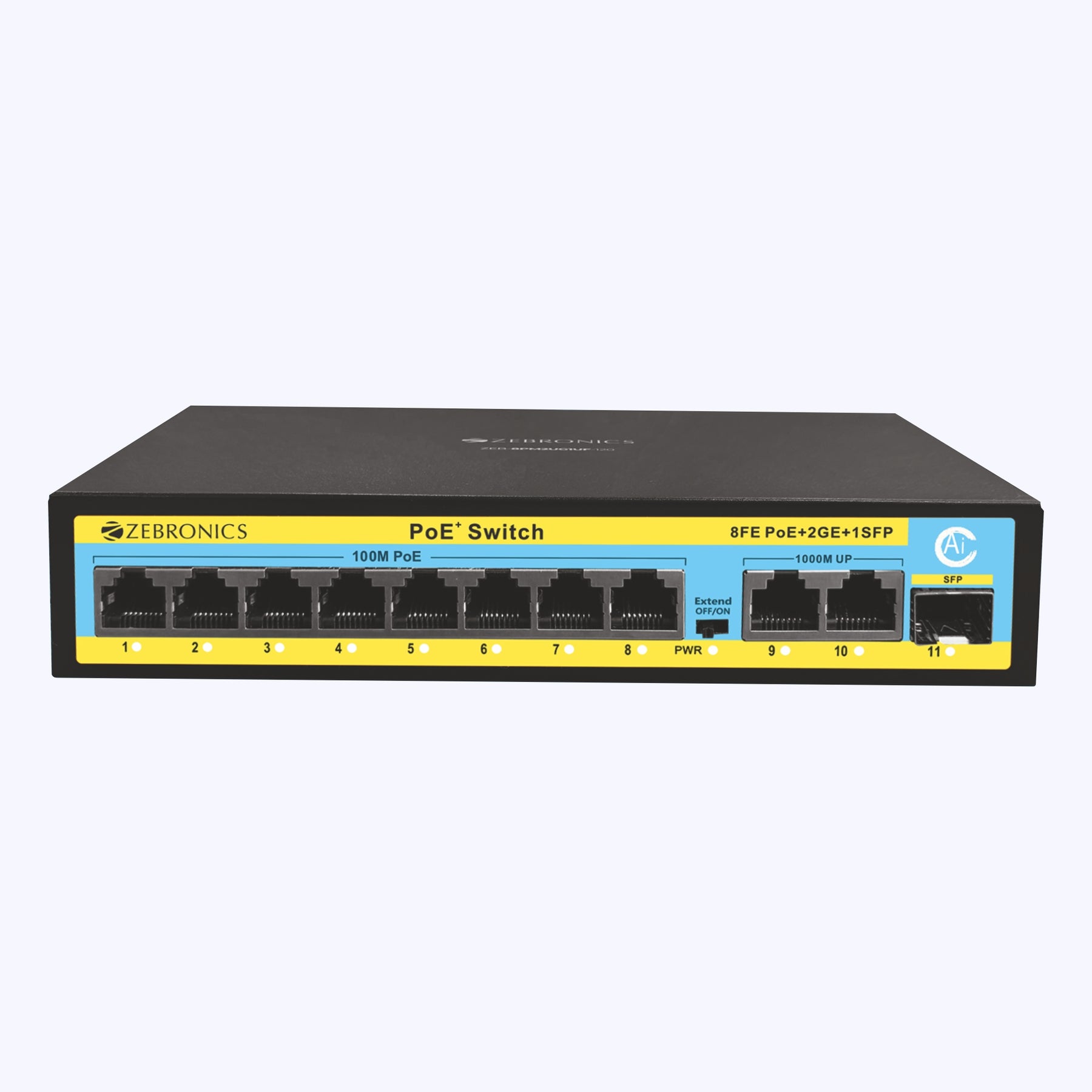

Zeb 8PM2UG1UF 120 - 8 Port POE Switch
Zebronics
₹4,999

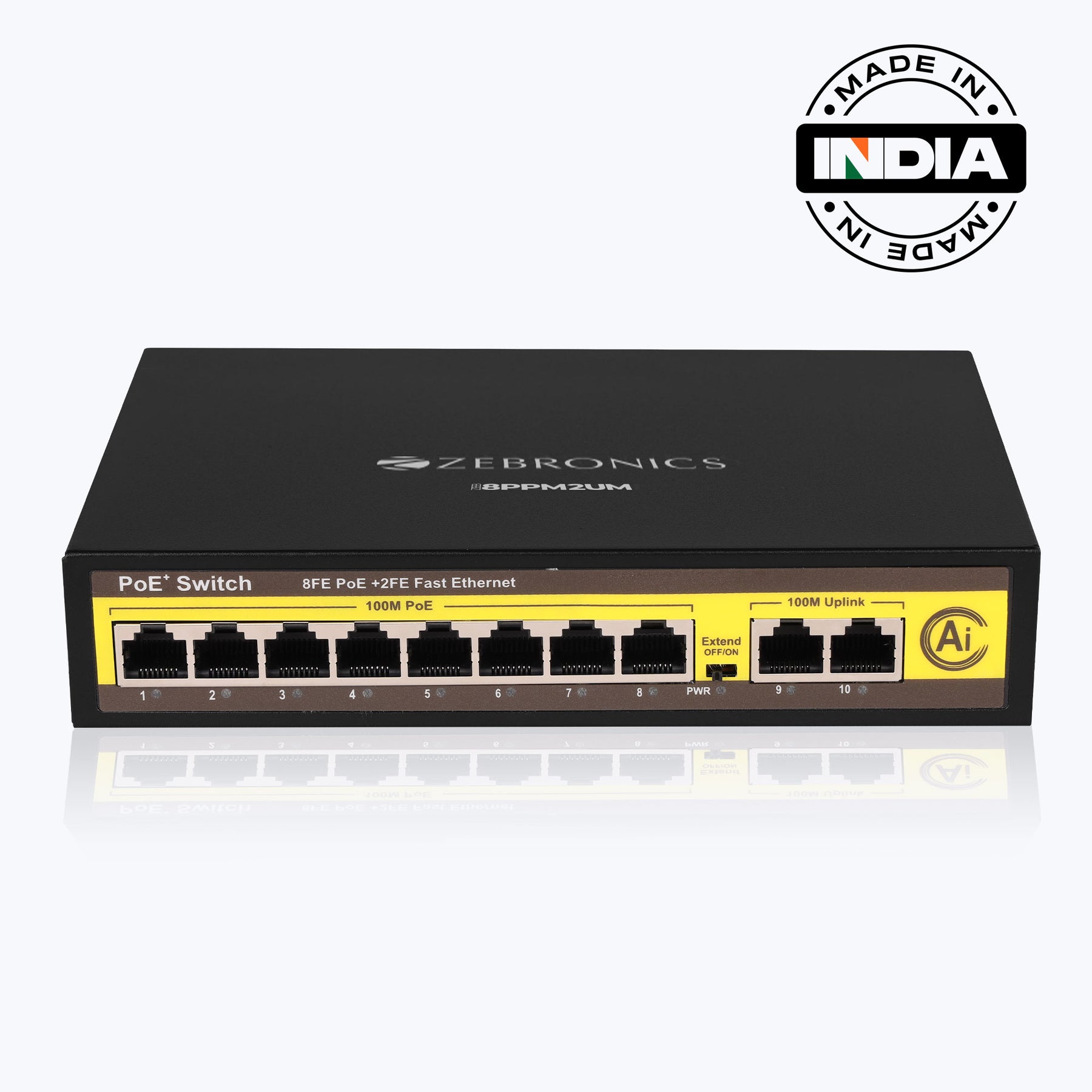

Zeb 8PPM2UM - 8 Port POE Switch
Zebronics
₹3,999

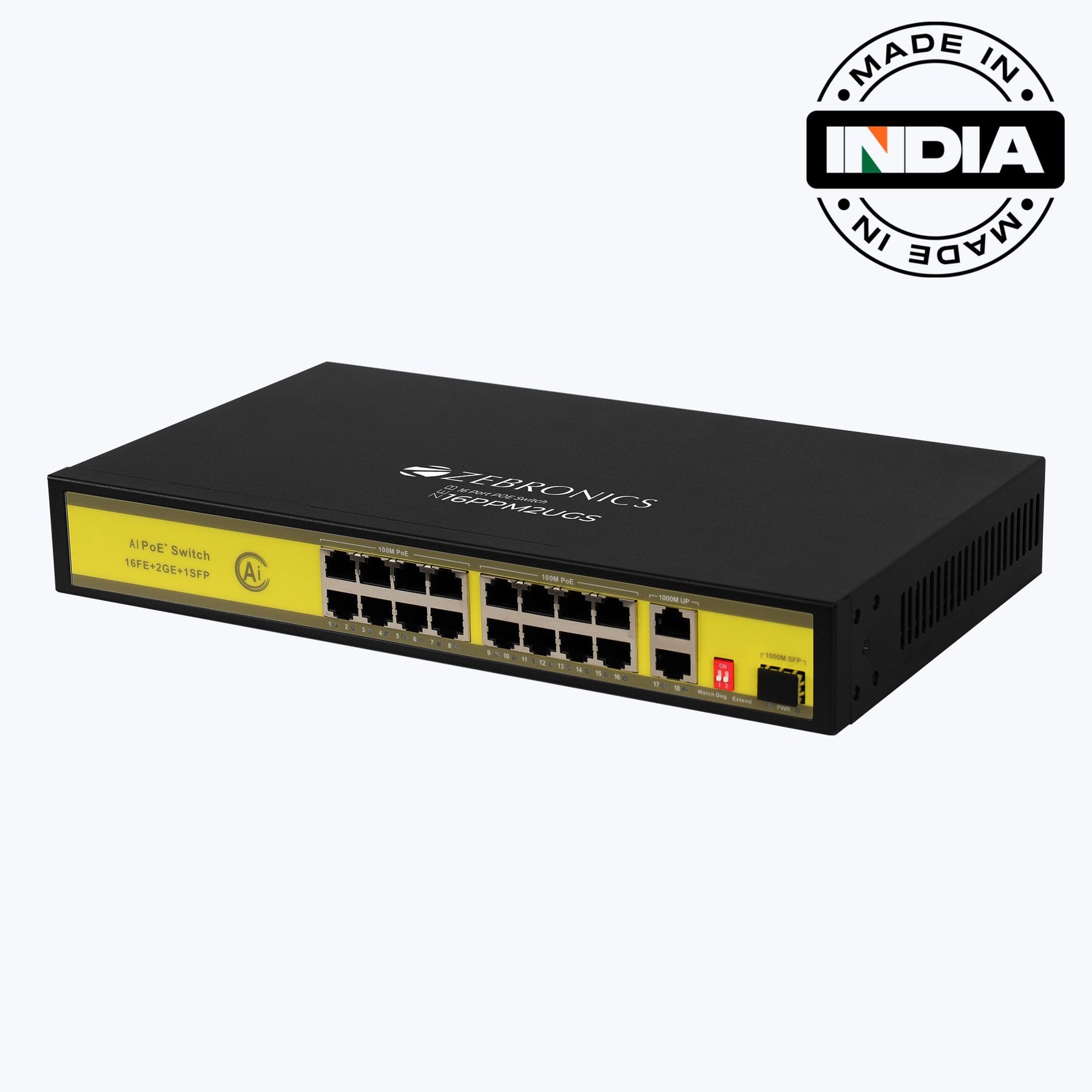

Zeb 16PPM2UGS - 16 Port POE Switch
Zebronics
₹14,999

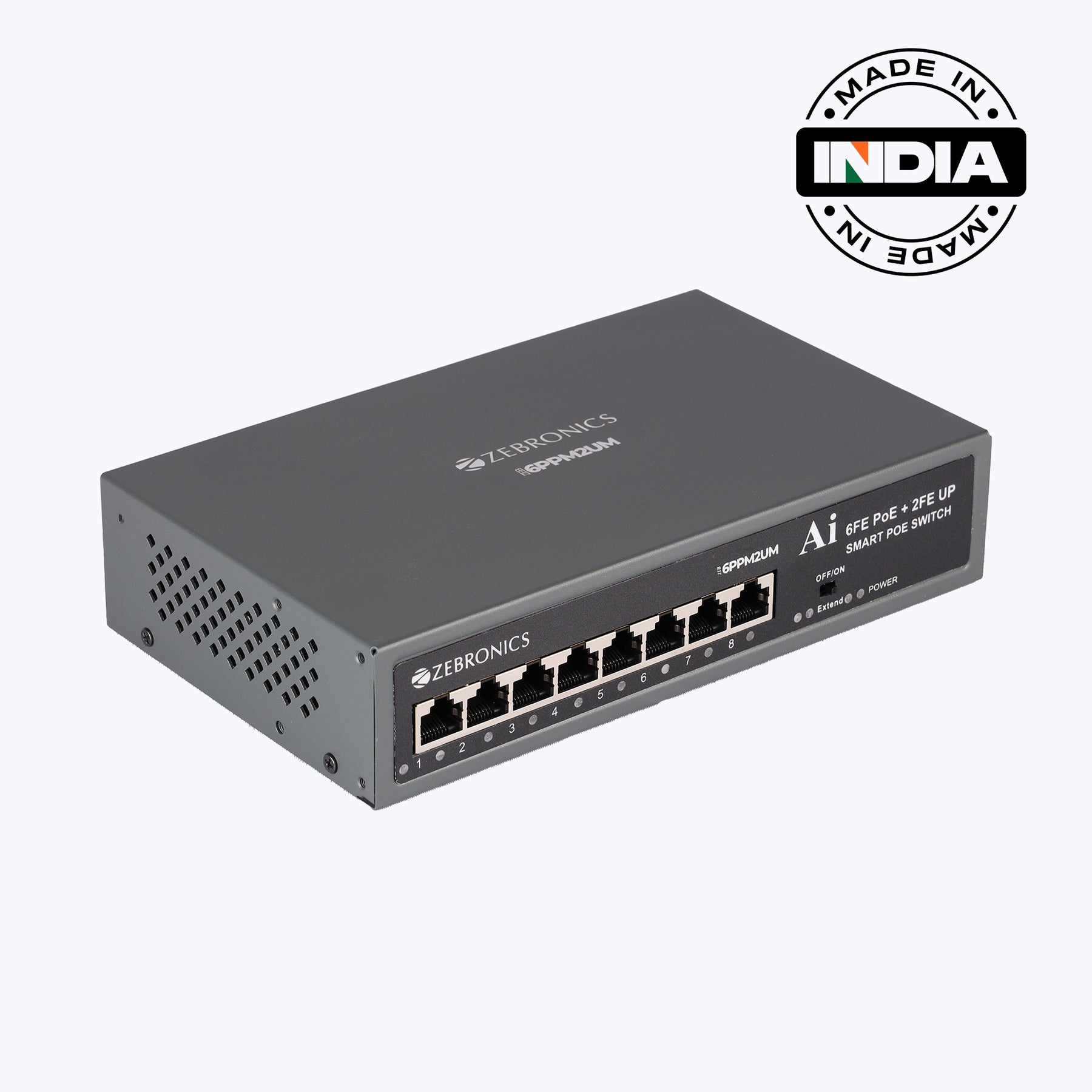

Zeb 6PPM2UM
Zebronics
₹4,999

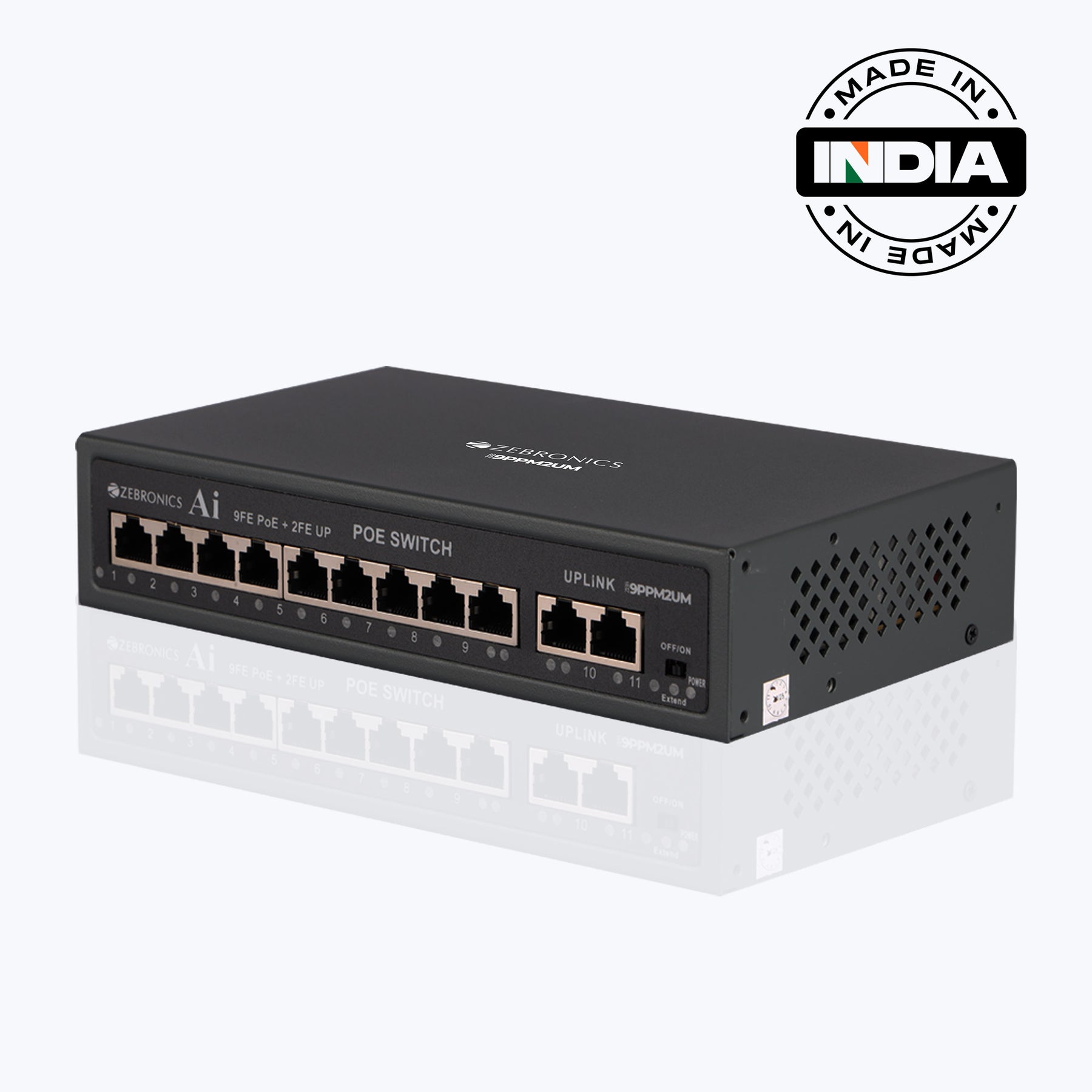

Zeb 9PPM2UM
Zebronics
₹5,999

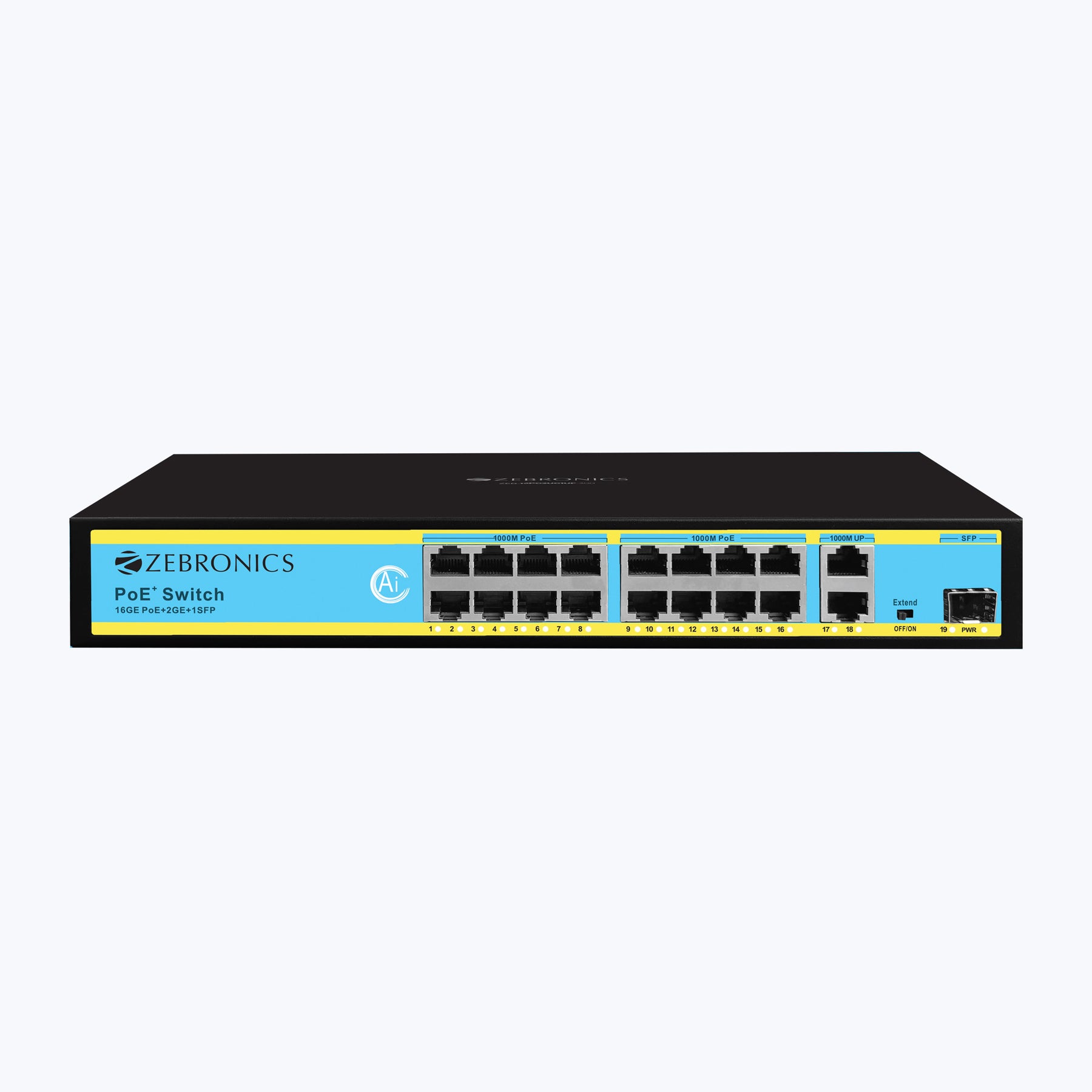

Zeb 16PG2UG1UF 300 - 16 Port POE Switch
