Features

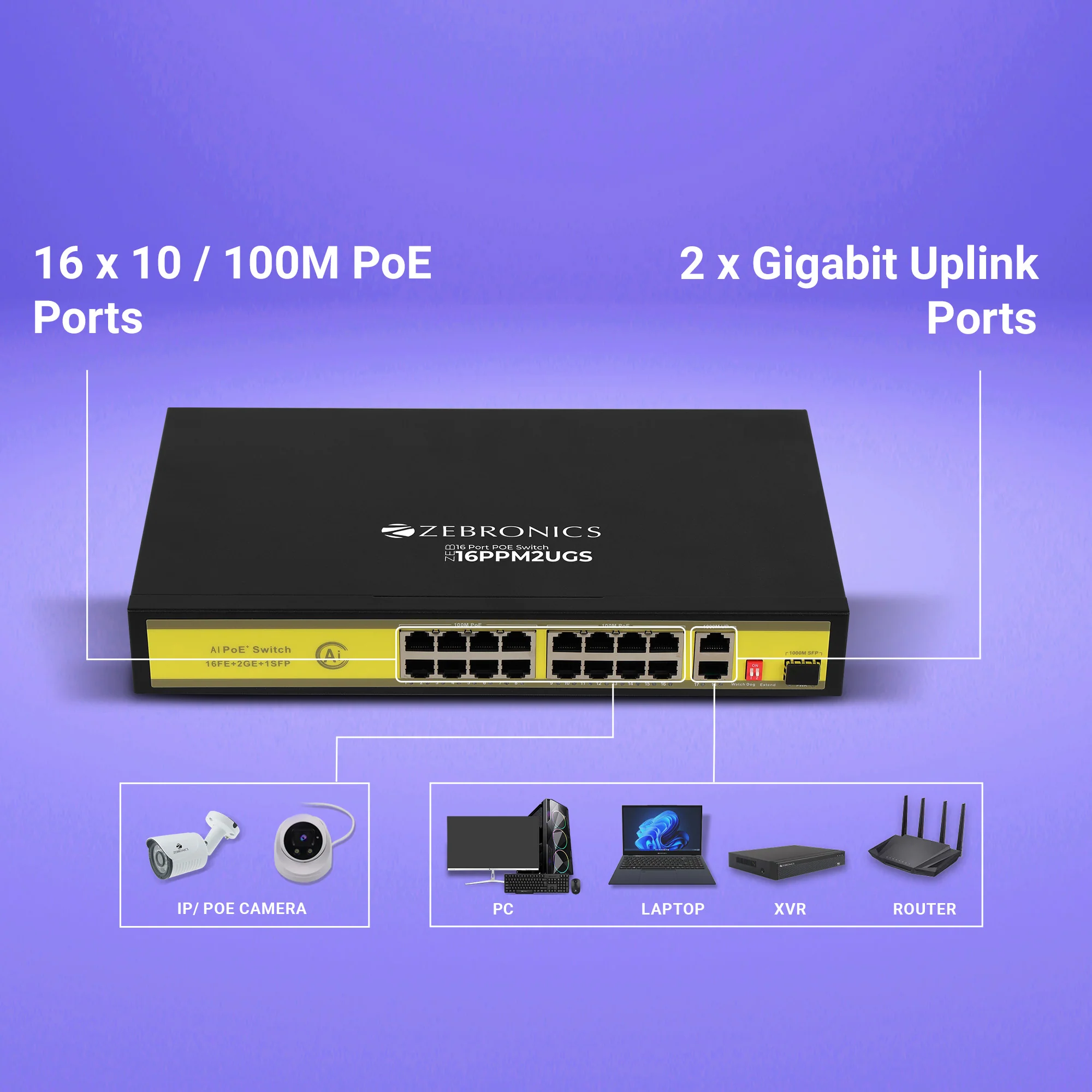

| 16 Self Adaptive PoE Ports |
|
| Dual Gigabit Uplink Ports |
|

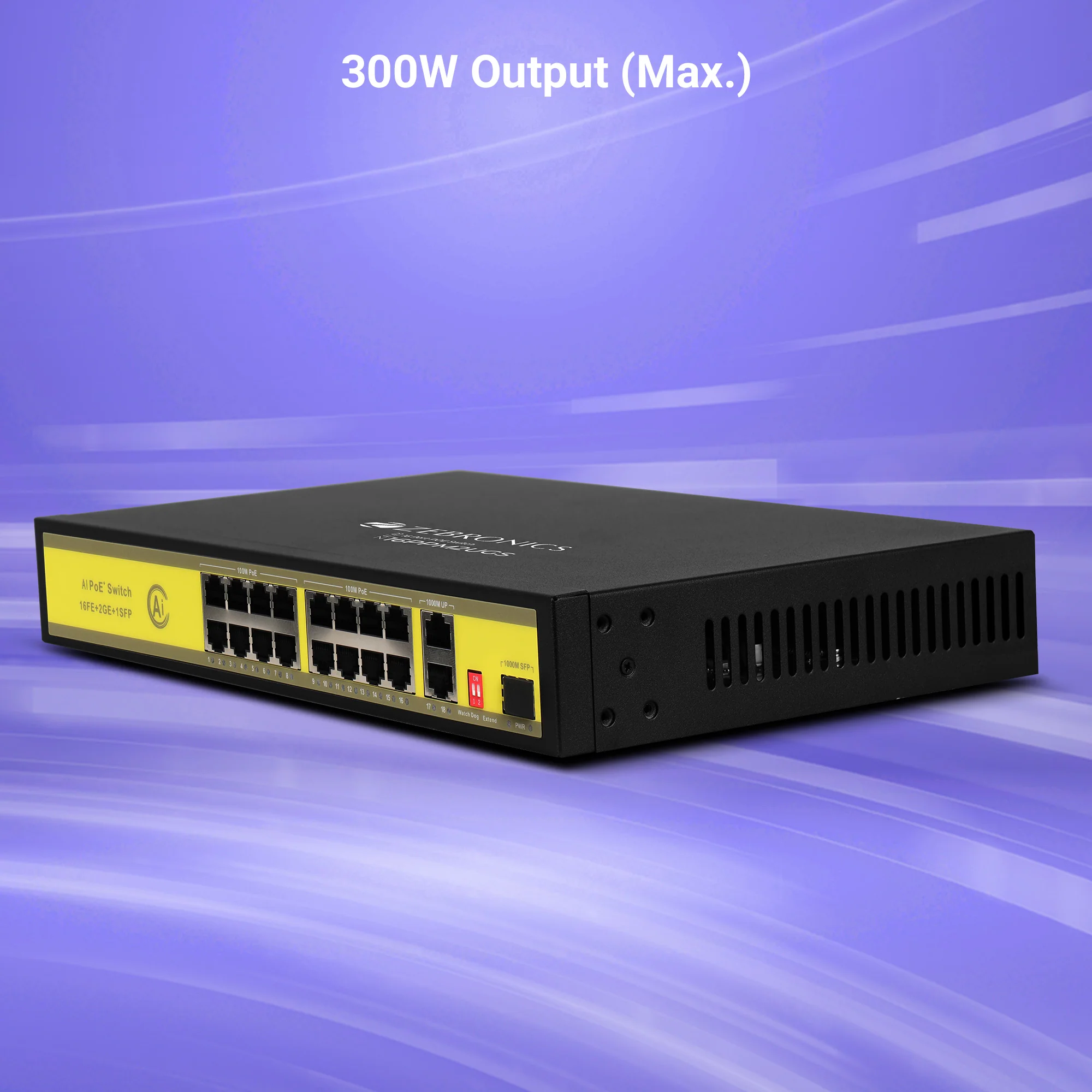

| 300W Output (Max.) |
|

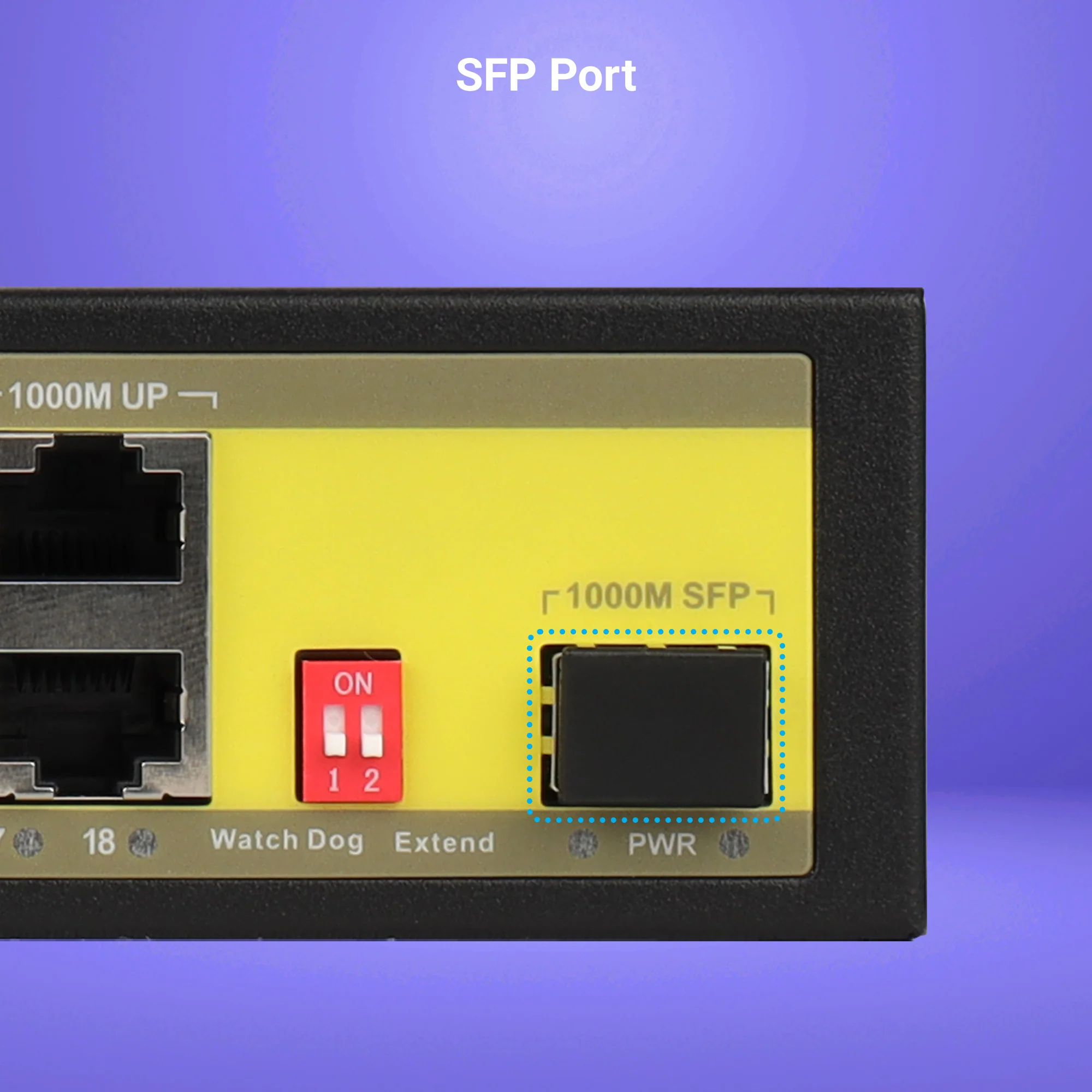

| SFP port |
|

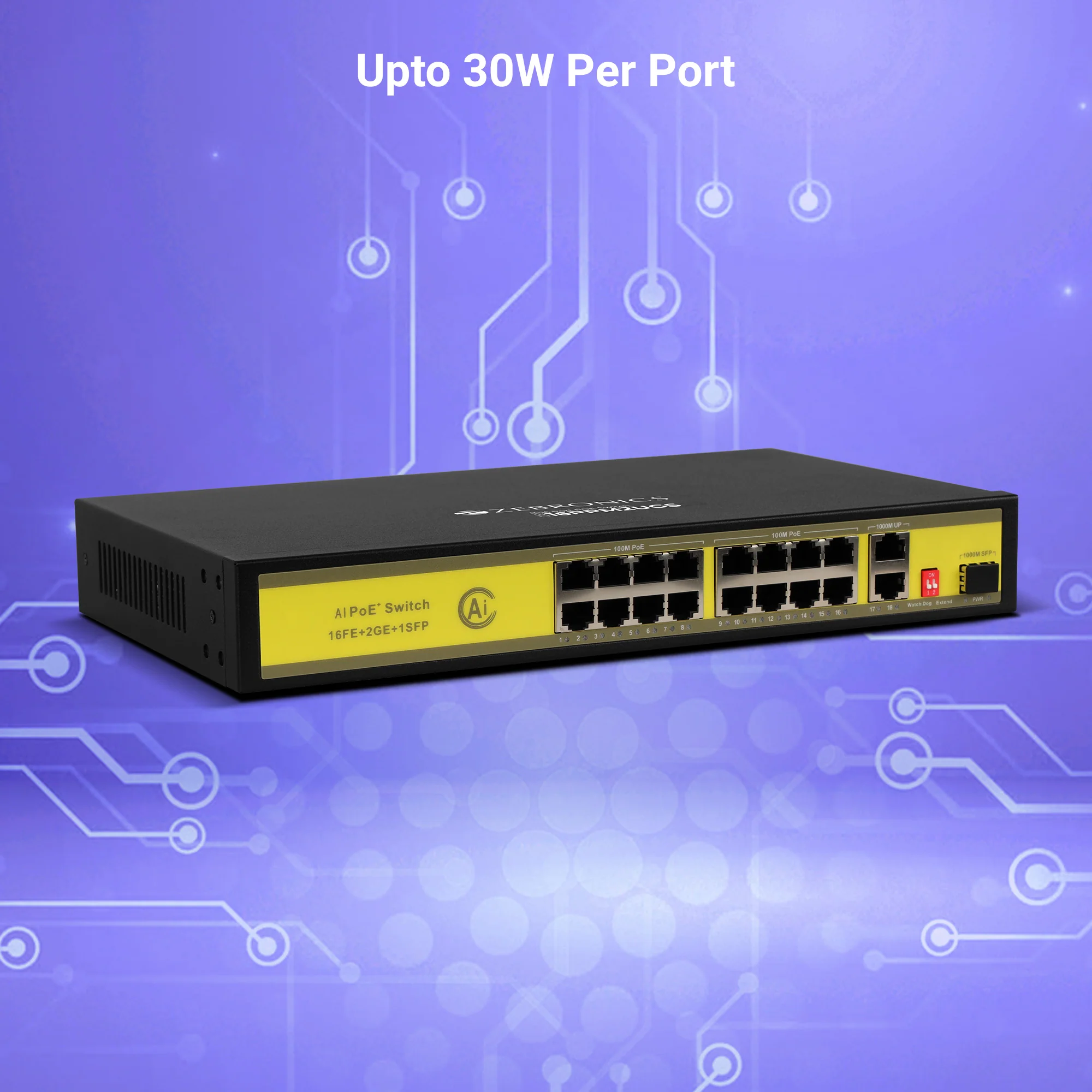

| Upto 30W Per Port |
|
| High Data Rate |
|
| Wide Compatibility |
|

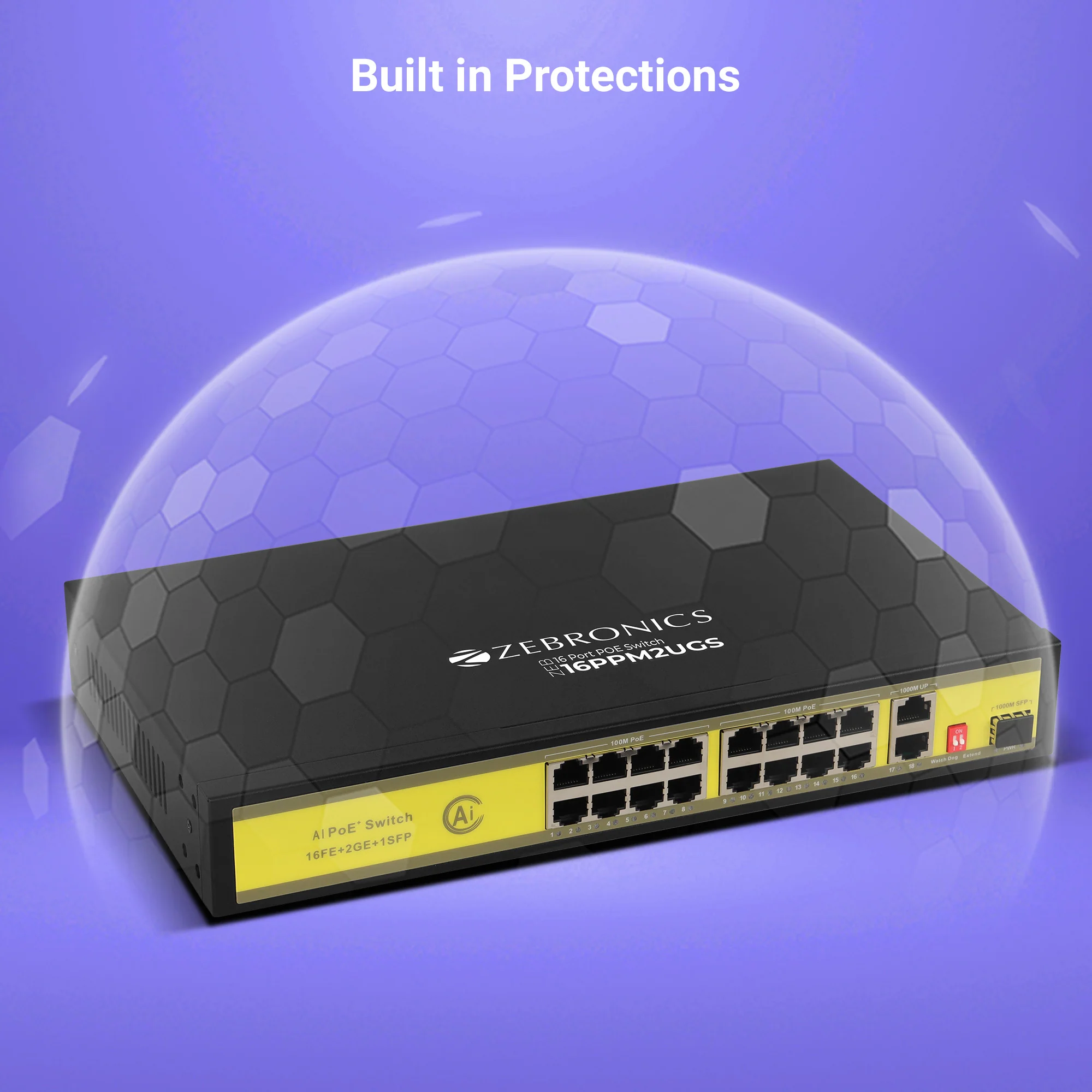

| Short Circuit Protection |
|
| Anti Interference Capability | |
| Lightning Protection | |
| Dynamic Power Control |
Specifications
| Connector Type | 16 Ports 100M PoE + 2 Ports 1000M Ethernet Uplink + 1 SFP port | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters |
PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| Network Media |
10BASE-T: <250 meters 100BASE-TX: <100 meters |
|
| Power Supply |
Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 300W |
|
| Performance Specification |
Bandwidth: 9.2Gbps MAC: 2K Packet Buffer Memory: 1 Mbits 10M Packet Forwarding Rate: 14880pps/port 100M Packet Forwarding Rate: 148800pps/port |
|

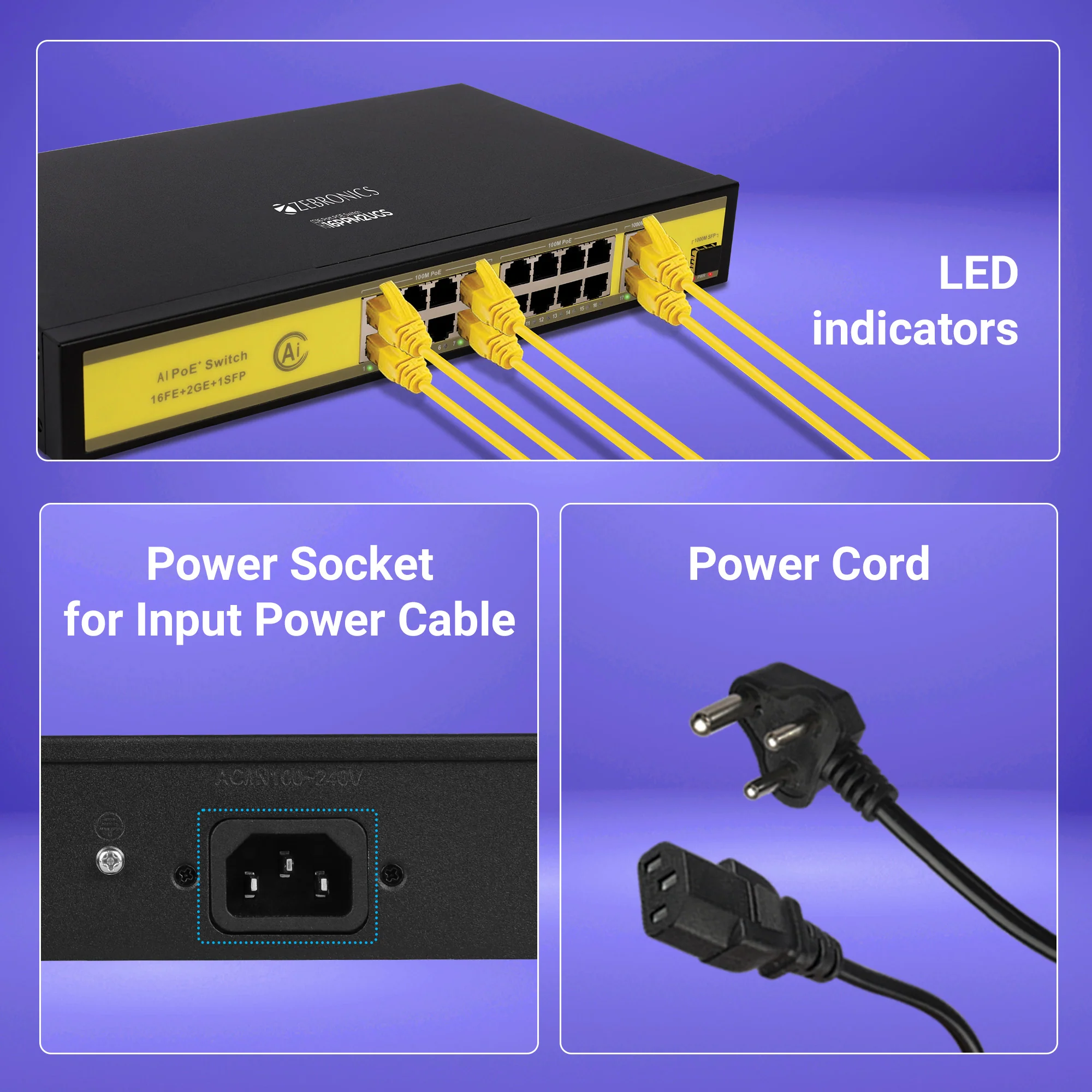

| LED Indicator |
Power (Red): Lit - Powered, Unlit - No Power Ethernet : Flash - Data Transmit, Unlit - Disconnect |
|
| Working Environment |
Operating Temperature: 25°C ~ 50°C Storage Temperature: 20°C ~ 70°C Operating Humidity: Max 15 ~ 90%, Non-Condensing Storage Humidity: Max 10 ~ 95%, Non-Condensing |
|
| Physical Parameter | Product Dimension (W x D x H) : 31.1 x 18.3 x 4.6 cm Package Dimension: (W x D x H) : 34.1 x 26.3 x 7.8 cm Net. Weight: 1.53 Kg |
|
| Transmission Distance |
Data Transmission Distance: 250 (Max.) PoE distance upto 250 meters with 10m via Cat.6 |
|
| Port Surge Protection | 4KV | |
| Forwarding Mode |
Store & Forward |
|
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch |
1 U | |
| Power Cord |
1 U | |
| QR Code Guide |
1 U |
|

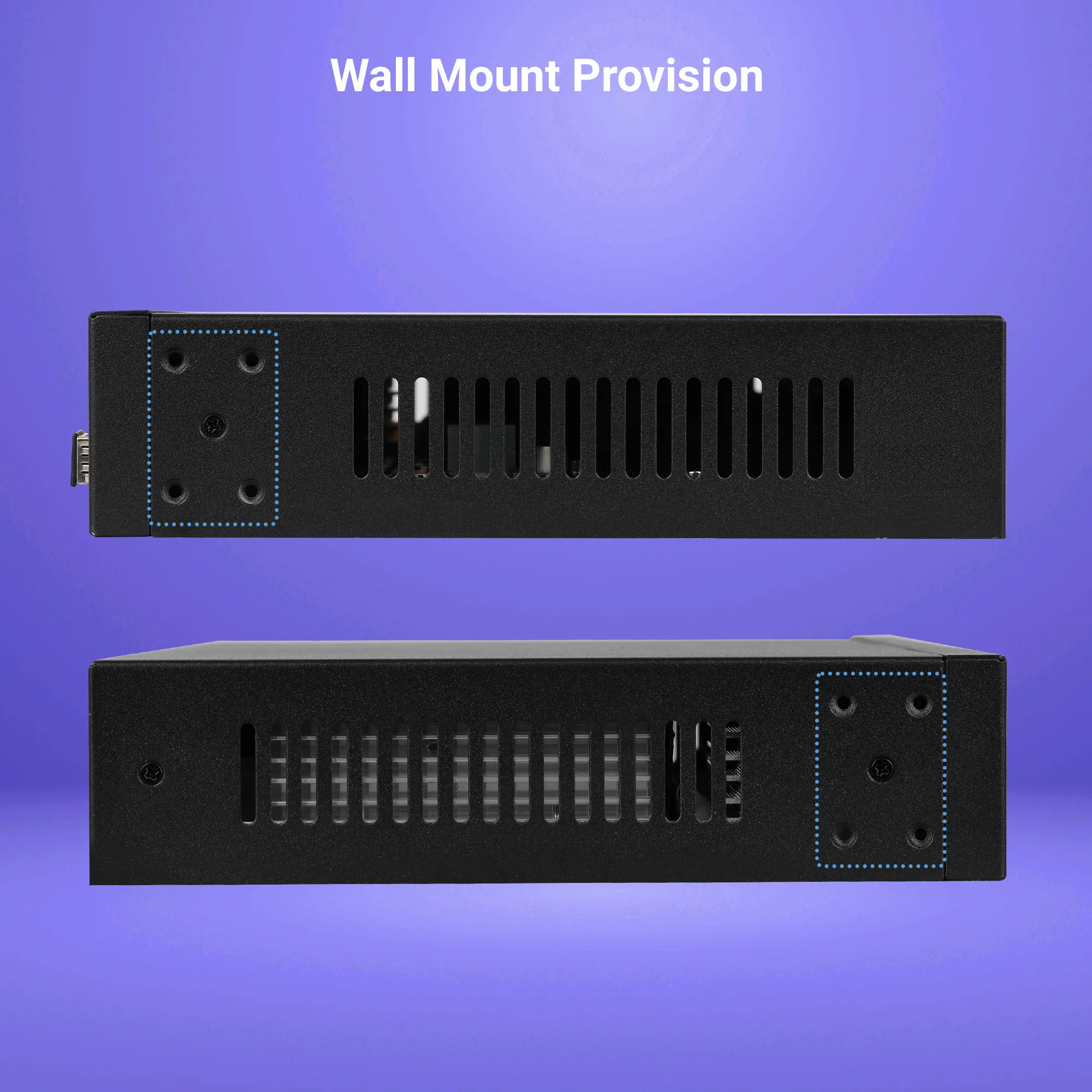

| Wall Mount Kit | 1 Set |
Details
| Country Of Origin | ["India"] |
You may also like

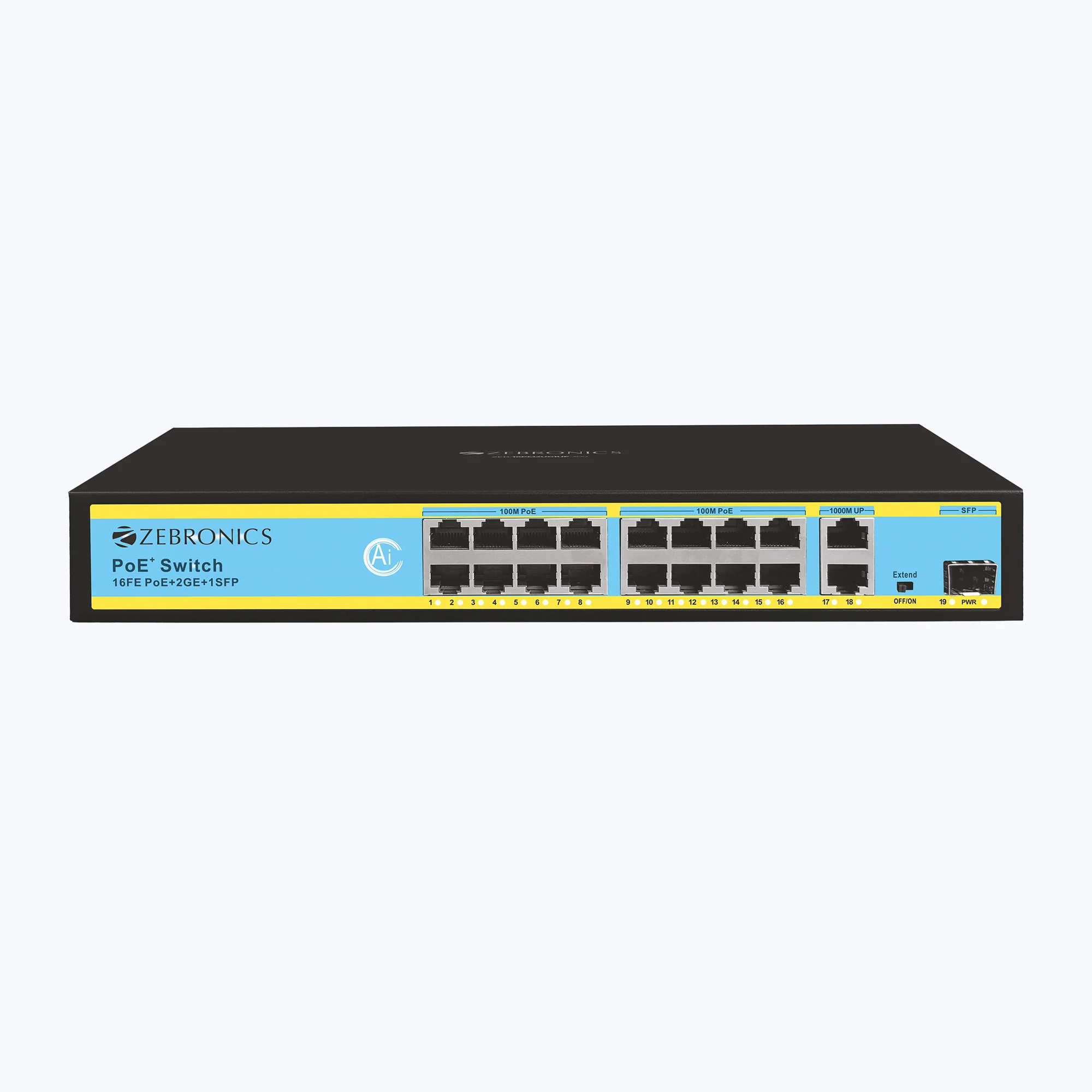

Zeb 16PM2UG1UF 300 - 16 Port POE Switch
Zebronics
₹12,999

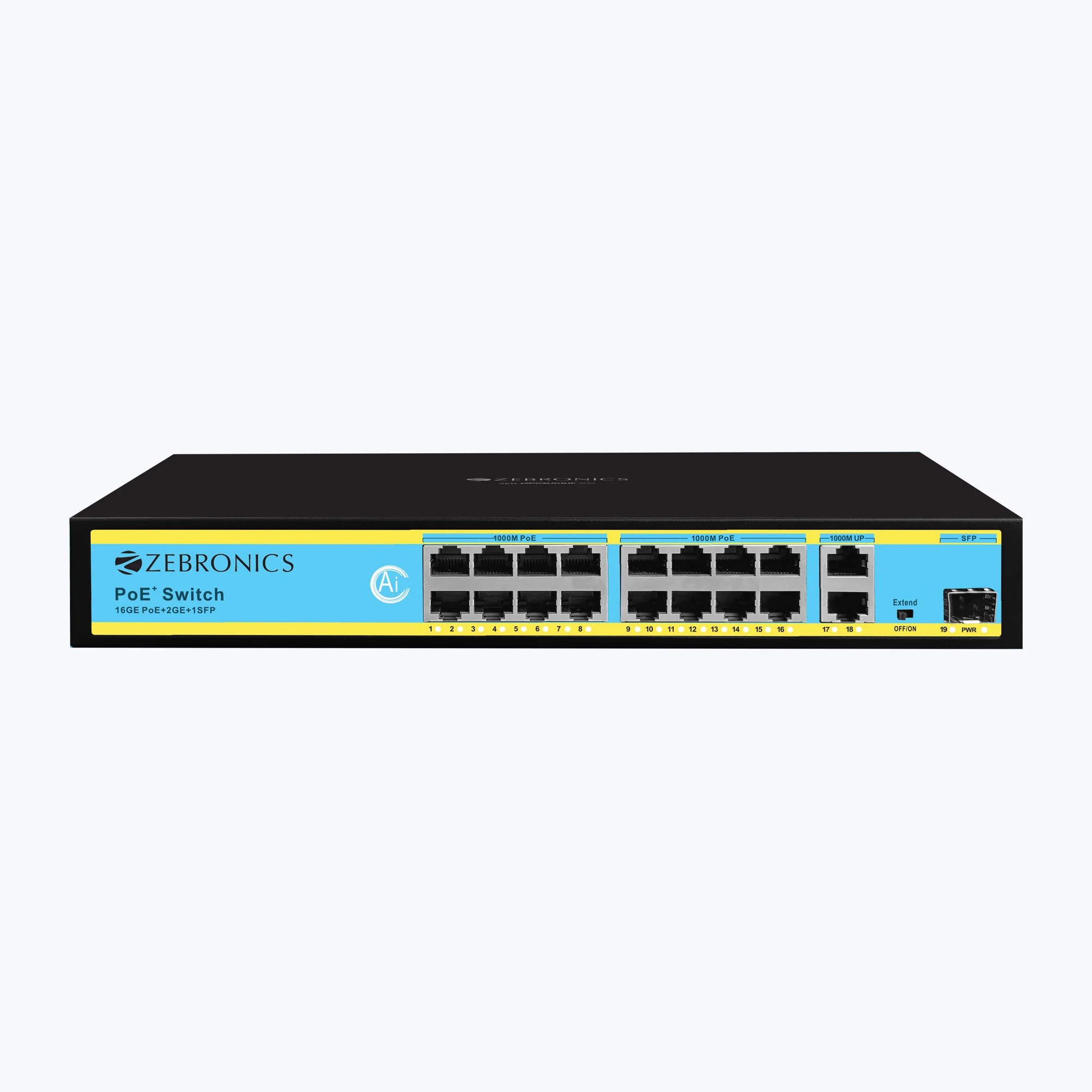

Zeb 16PG2UG1UF 300 - 16 Port POE Switch
Zebronics
₹14,999
Zeb 8PPM2UM - 8 Port POE Switch
Zebronics
₹3,999
Zeb 8PPG2UGS - 8 Port POE Switch
Zebronics
₹9,999
Zeb 8PPM2UG - 8 Port POE Switch
Zebronics
₹6,799

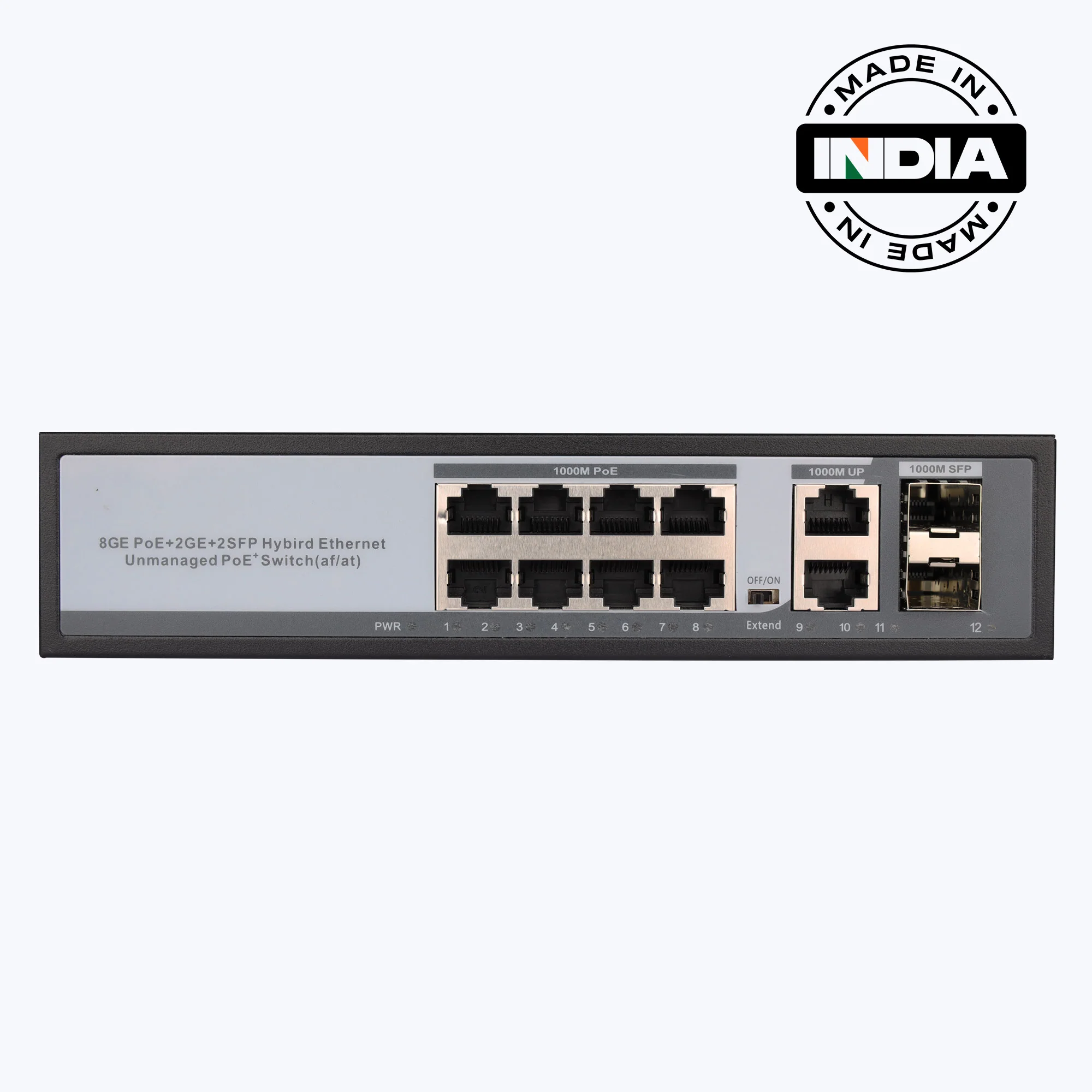

Zeb 8PPG2UG2S - 8 Port POE Switch
Zebronics
₹10,499

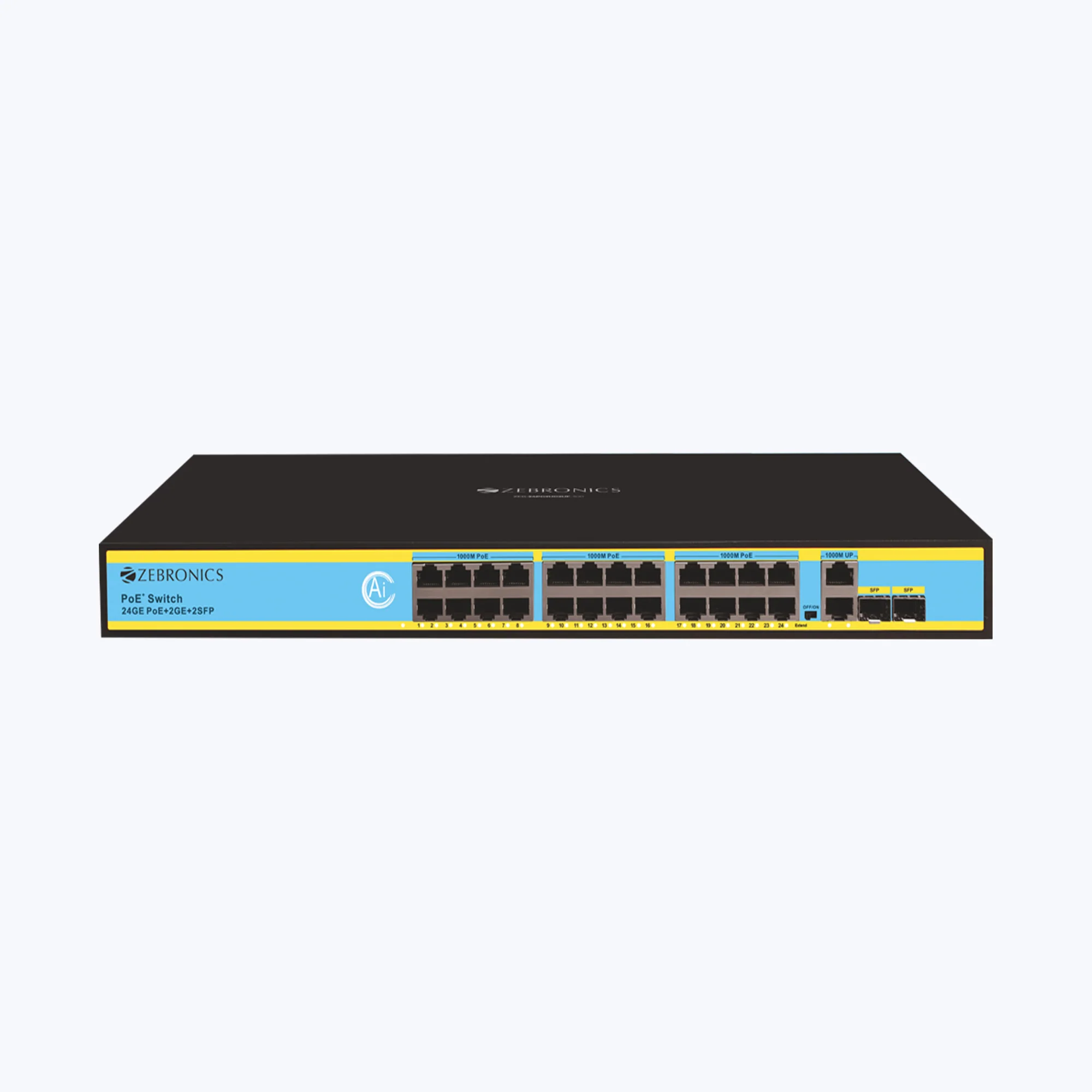

Zeb 24PG2UG2UF 300 - 24 Port POE Switch
