Havana JRU-561 UHF Single Channel Wireless Receiver & HT-51C Handheld Wireless Microphone System

Havana JRU-561 UHF Single Channel Wireless Receiver & HT-51C Handheld Wireless Microphone System Overview:

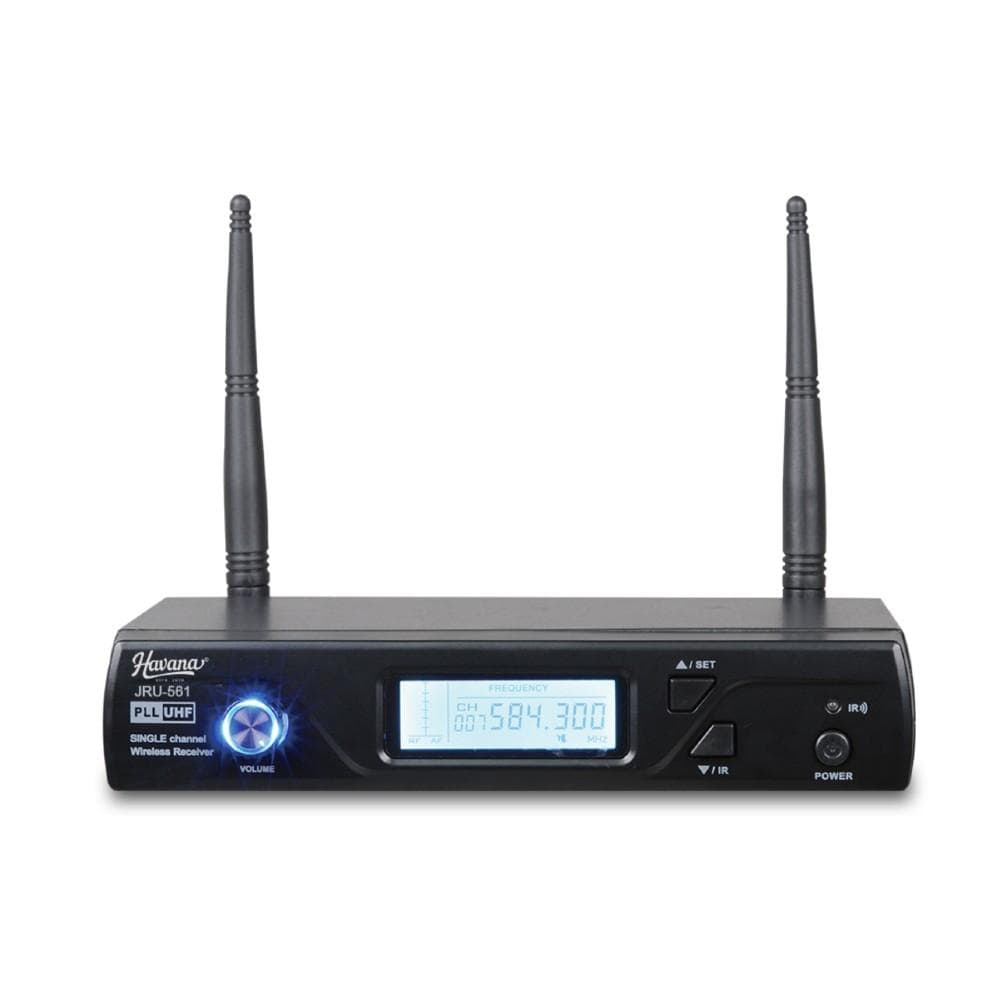

Wireless Receiver:

• Frequency Range: 740-797Mhz
• Oscillation Mode: PLL
• Channel: 16CH / 48CH
• Modulation Model: FM
• Frequency Deviation: +-75K
• SNR: 90dB
• Sensitivity: -90dBm
• Frequency Response: 40Hz-17kHz
• Channel Interval: 300kHz
• T.H.D: <1%
• Output impedance: 600ohm
• POwer Supply: 5V
• Rated Consumption: <300mA
• Infrared frequency automatically matching LCD Display

Handheld Transmitter:

• Power Output:10dBm
• Oscillation model: PLL
• Frequenct Stability: +-0.002%
• Maximum Modulation Degree: 75K
• Frequency Response: 40Hz-17kHz
• Type: Dynamic
• Power Supply: 2 X 1.5V AA

Made in China
