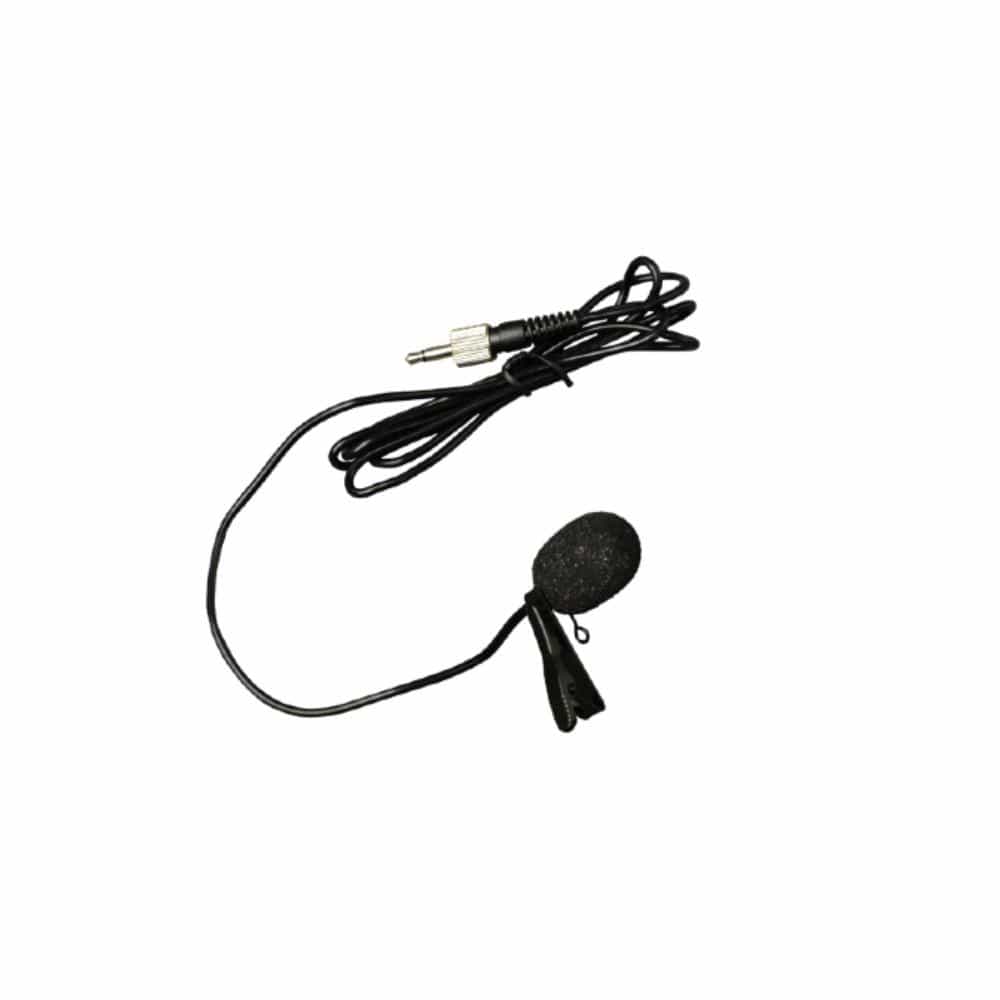

Havana JRU-561 UHF Single Channel Wireless Receiver & PT-51C Body Pack Transmitter With LT-11A Lapel Wireless Microphone System

Havana JRU-561 UHF Single Channel Wireless Receiver & PT-51C Body Pack Transmitter With LT-11A Lapel Wireless Microphone System Overview:

Wireless Receiver:

• Frequency Range: 740-797Mhz
• Oscillation Mode: PLL
• Channel: 16CH / 48CH
• Modulation Model: FM
• Frequency Deviation: +-75K
• SNR: 90dB
• Sensitivity: -90dBm
• Frequency Response: 40Hz-17kHz
• Channel Interval: 300kHz
• T.H.D: <1%
• Output impedance: 600ohm
• POwer Supply: 5V
• Rated Consumption: <300mA
• Infrared frequency automatically matching LCD Display

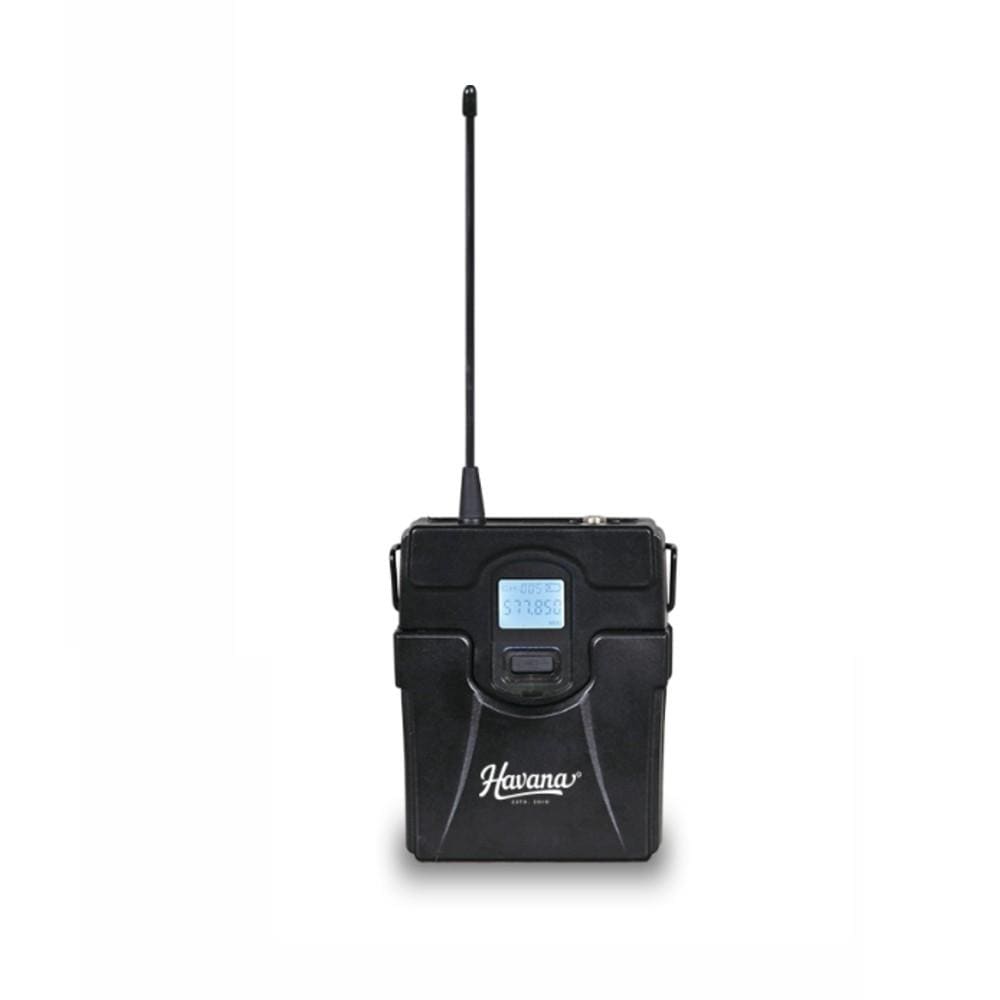

Body Pack Transmitter:

• Power Output: 10dBm
• Oscillation Model: PLL
• Frequency Stability: +-0.002%
• Frequency Response: 40hz-16kHz
• Type: Condenser
• Power Supply: 2 X 1.5V AA
• Current Consumption: <135mA

Made in China
