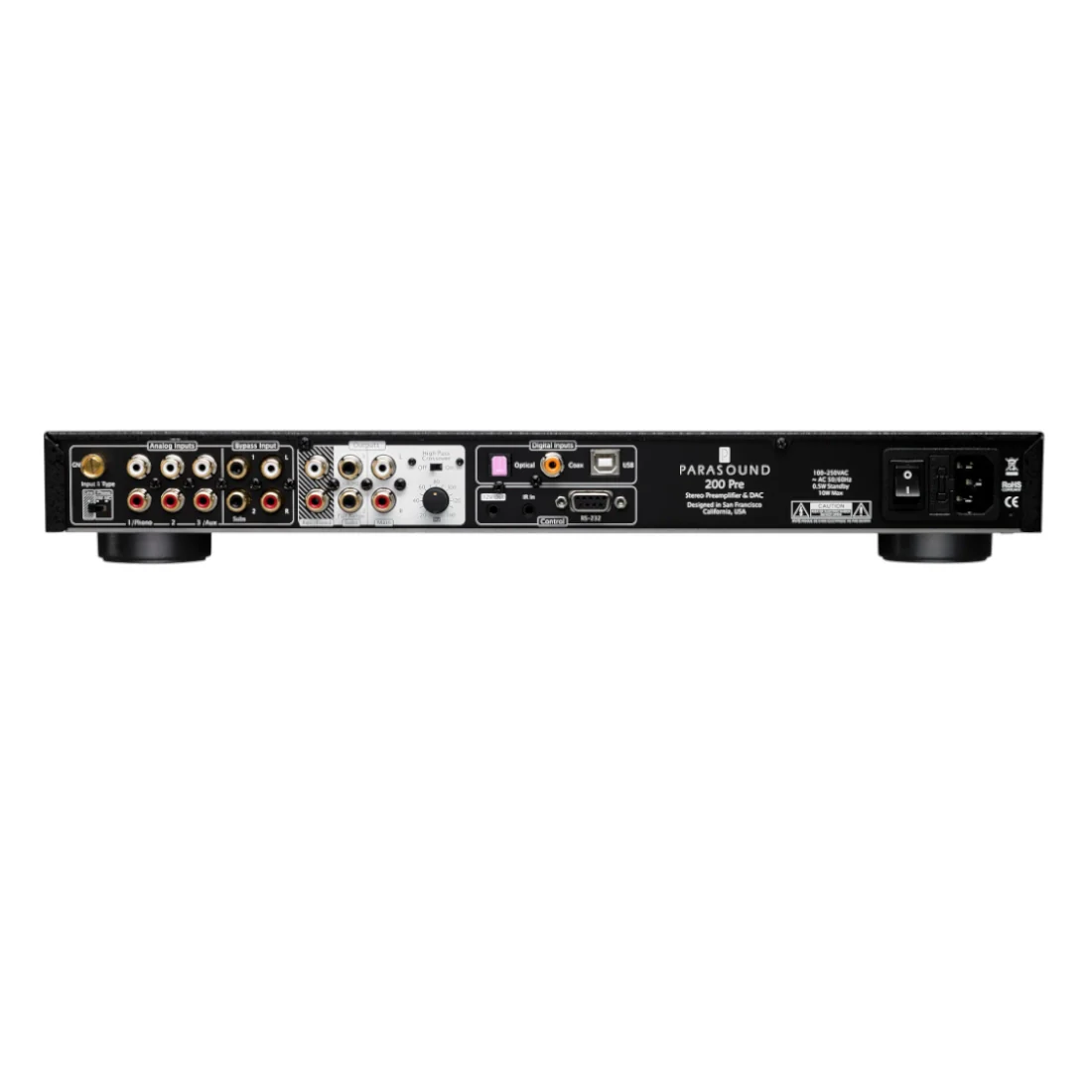

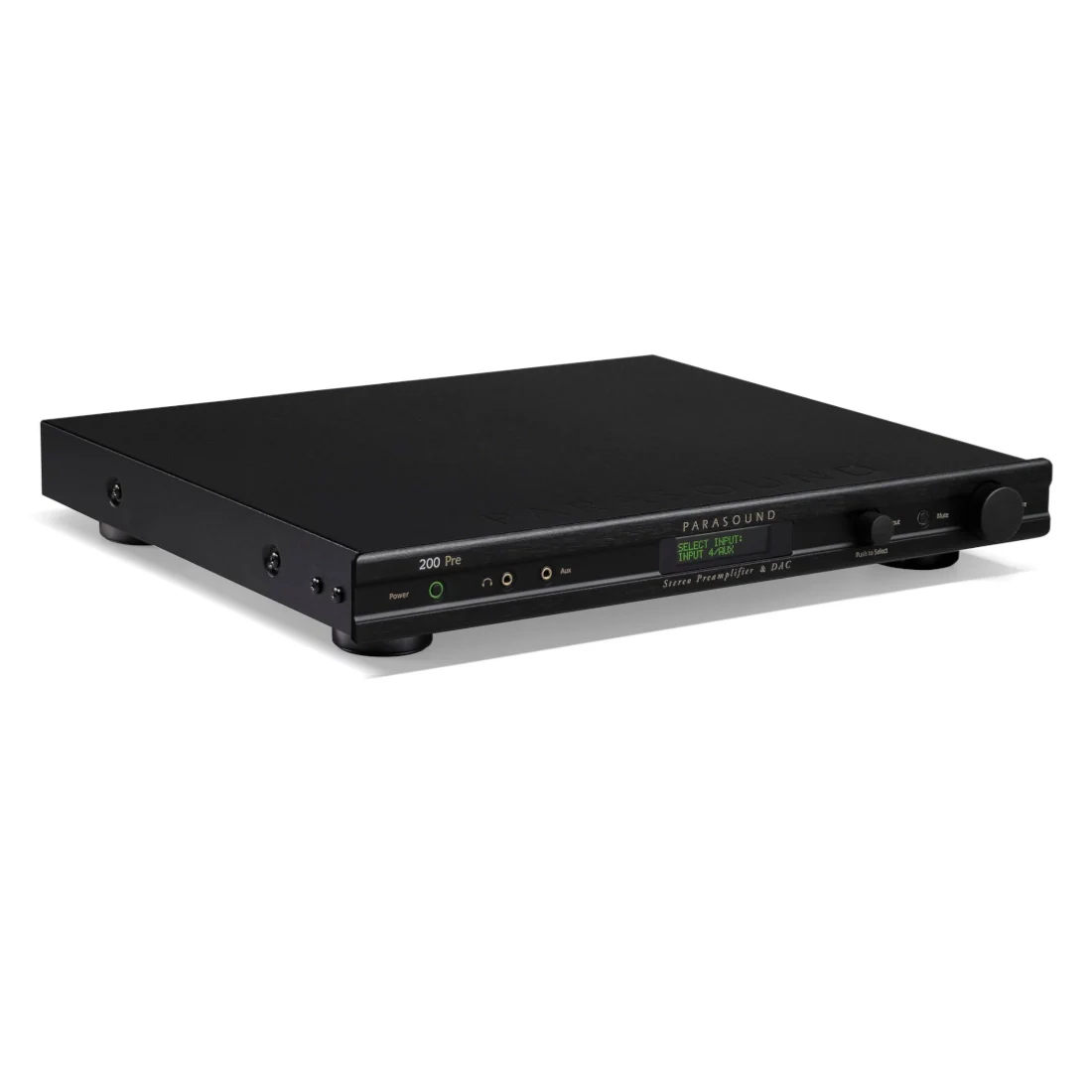

ParaSound NewClassic 200 Pre - Stereo Preamplifier & DAC
Drop the NewClassic 200 Pre into your system and everything snaps into place. Voices step forward, bass integrates cleanly with your sub, and late‑night or loud‑and‑proud sessions feel relaxed and musical. It’s the compact, budget‑smart preamp that makes records, streams, TV, and movies sound more like the real thing. Designed as a true 2‑channel control center, the NC200 (NewClassic 200 Pre) adds what most systems miss: a Burr-Brown 192kHz-24 bit DAC; optical/coax digital audio inputs, MM/MC phono, and analog‑domain bass management with a variable 20–140 Hz high‑pass to the mains plus two sub outputs you can toggle and trim from the remote. You also get Home Theater Bypass, tone/balance controls, and system‑friendly 12 V trigger/IR/RS‑232 in a slim chassis that tucks anywhere.
Warranty
1-year manufacturer's warranty
ParaSound NewClassic 200 Pre Key Features
- Burr-Brown 192kHz-24 bit DAC from the Halo P 5
- USB, Optical and Coax digital audio inputs
- 4 Analog audio inputs
- Phono input for MM or MC cartridges
- Pure analog signal path from input to output
- Analog bass management w/ variable 20-140Hz high pass crossover
- Subwoofer On/Off & level by remote control
- 80Hz low pass subwoofer output
- Full range subwoofer output can also be used for a mono listening area
- Variable and fixed stereo outputs
- Bypass input for surround sound or music streamer integration
- Default turn on volume memory
- Favorite volume memory with remote control button
- Input level matching (source volume offset)
- Bass, treble and balance adjustments by remote control
- Front panel LCD display with dimming
- 2-way RS232 w/ exact volume control & feedback
- Rename inputs to match connected source
- 12dB auto gain for front panel AUX to match levels of other sources
- Dedicated headphone amplifier
- Back-lit remote control with discrete buttons
- 12V trigger output
- Rear panel IR input
- 0.5w standby power consumption meets Energy Star & EU specs
Where to buy?
Buy ParaSound NewClassic 200 Pre - Stereo Preamplifier & DAC online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of ParaSound NewClassic 200 Pre - Stereo Preamplifier & DAC
| Brand & Model # | Parasound NewClassic 200 Pre |
| Frequency Response |
20 Hz - 20 kHz, +0 / -0.05 dB 10 Hz - 80 kHz, +0 / -3 dB |
| Total Harmonic Distortion | (20 Hz - 20 kHz) < 0.03 % |
| Interchannel Crosstalk |
75 dB at 20 kHz |
| Input Sensitivity |
250mv = 1V output, Total gain = 12 dB (volume set to 100) Unity Gain = Volume set to 76 Maximum output = 3.5V |
|
Phono Stage Sensitivity / Input Impedance |
MM: 40 dB / 47 k Ω MC: 50 dB / 100 Ω |
| Input Impedance | 24k Ohms |
| Output Impedance | 470 Ohms |
| S/N Ratio – Line Inputs | > 100 dB, input shorted, IHF A-weighted > 90 dB, input shorted, unweighted |
| S/N Ratio – Digital Inputs | > 100 dB, input shorted, IHF A-weighted > 90 dB, input shorted, unweighted |
| DC Trigger Output | 12 Vdc, 50ma |
| AC Power Requirement | 10 Watts maximum <0.5 Watts in standby 90-250 VAC 50/60 Hz (automatic) |
| Dimensions | Width: 17.25" (437 mm) Depth: 14.25" (362 mm) Depth: 16" (369 mm) with cables connected Height, with feet: 2.5" (105 mm) Height, without feet: 1.75" (89 mm), 1U |
| Weight | Net: 11 lbs (5 kg) |
