Features
| 4 Self Adaptive PoE Ports | |
| Dual 100M Uplink Ports |
|
| 250m Extended Transmission (Max.) |
|
| 75W Output (Max.) |
|
| Upto 30W Per Port |
|
| Full Duplex |
|
| High Data Rate |
|
| Wide Compatibility |
|
| Flexible Mounting |
|
| Dynamic Power Control |
|
| Short Circuit Protection |
|
| Voltage Protection | |
| Anti Interference Capability | |
| Lightning Protection |
Specifications
| Connector Type | 4 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
|
| PoE Parameters | PoE Standard: IEEE802.3af/at (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive Power Pin Assignment : MODE A [1/2(+), 3/6(-)] |
|
| Network Media | 10BASE-T: (<200 Meters) 100BASE-TX: (<100 Meters) |
|
| Power Supply | Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 75W |
|
| Performance Specification | Bandwidth: 1.2Gbps MAC: 1K Packet Buffer Memory: 1 Mbits 10M Packet Forwarding Rate: 14880pps/port 100M Packet Forwarding Rate: 148800pps/port |
|
| LED Indicator | Power (Red): Lit - Powered, Unlit - No Power Ethernet : Flash - Data Transmit, Unlit - Disconnect |
|
| Working Environment | Operating Temperature: 25°C ~ 50°C Storage Temperature: 20°C ~ 70°C Operating Humidity: Max 15 ~ 90%, Non-Condensing Storage Humidity: Max 10 ~ 95%, Non-Condensing |
|
| Physical Parameter | ||
| Product Dimension (W x D x H) | 20.2 x 14 x 4.5 cm | |
| Package Dimension (W x D x H) | ||
| Net. Weight | 950g | |
| Port Surge Protection | 6KV | |
| Forwarding Mode | Cut through Switching | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1U | |
| Power Cord | 1U | |
| QR Code Guide | 1U |
Details
| Country Of Origin | ["India"] |
You may also like
Zeb 6PPM2UM
Zebronics
₹4,999
Zeb 4PM2UM 65 - 4 Port POE Switch
Zebronics
₹3,199
Zeb 8PPM2UG - 8 Port POE Switch
Zebronics
₹6,799
Zeb 8PPM2UM - 8 Port POE Switch
Zebronics
₹3,999
Zeb 9PPM2UM
Zebronics
₹5,999
Zeb 4PG2UG1UF 65 - 4 Port POE Switch
Zebronics
₹4,799
Zeb 8PPG2UGS - 8 Port POE Switch
Zebronics
₹9,999

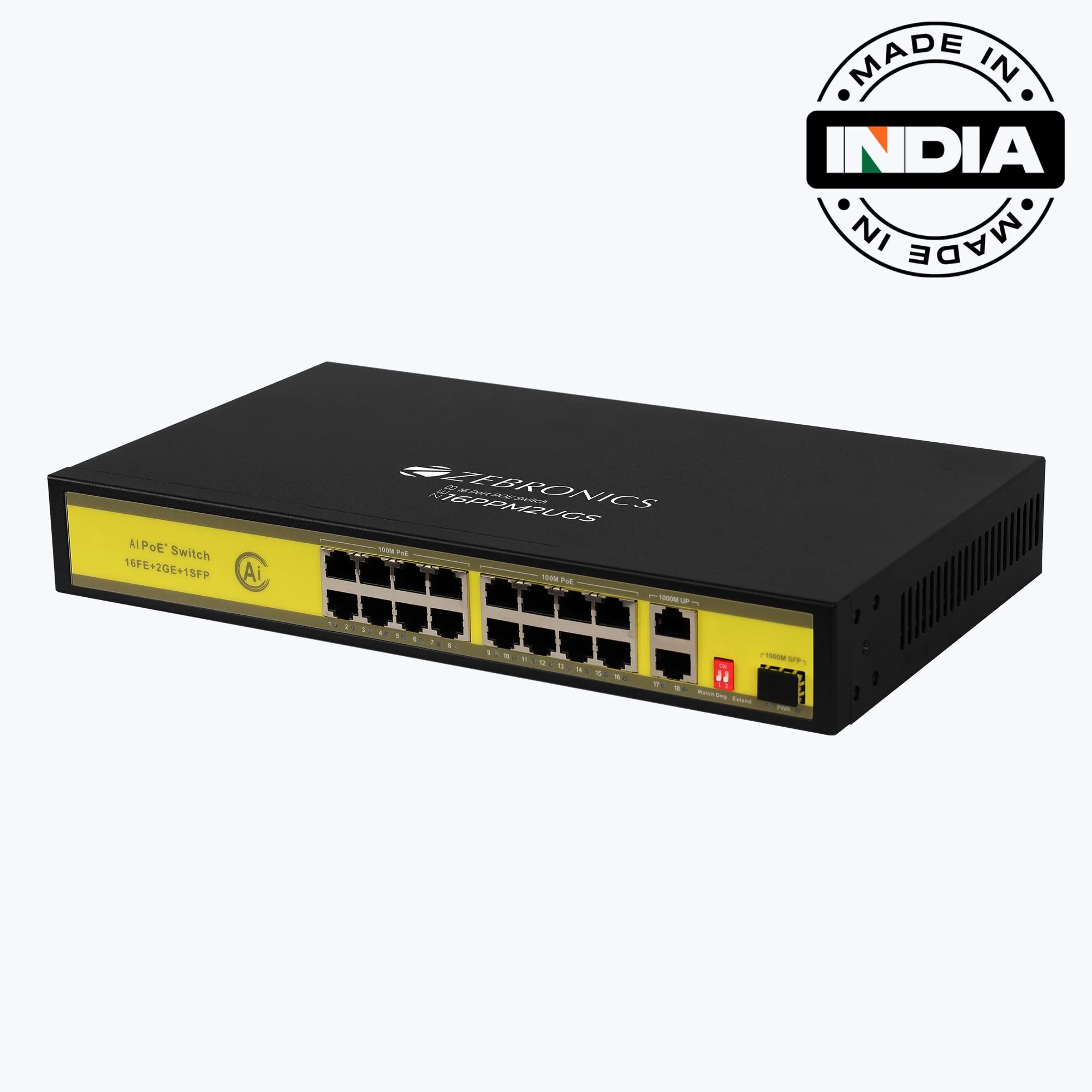

Zeb 16PPM2UGS - 16 Port POE Switch
