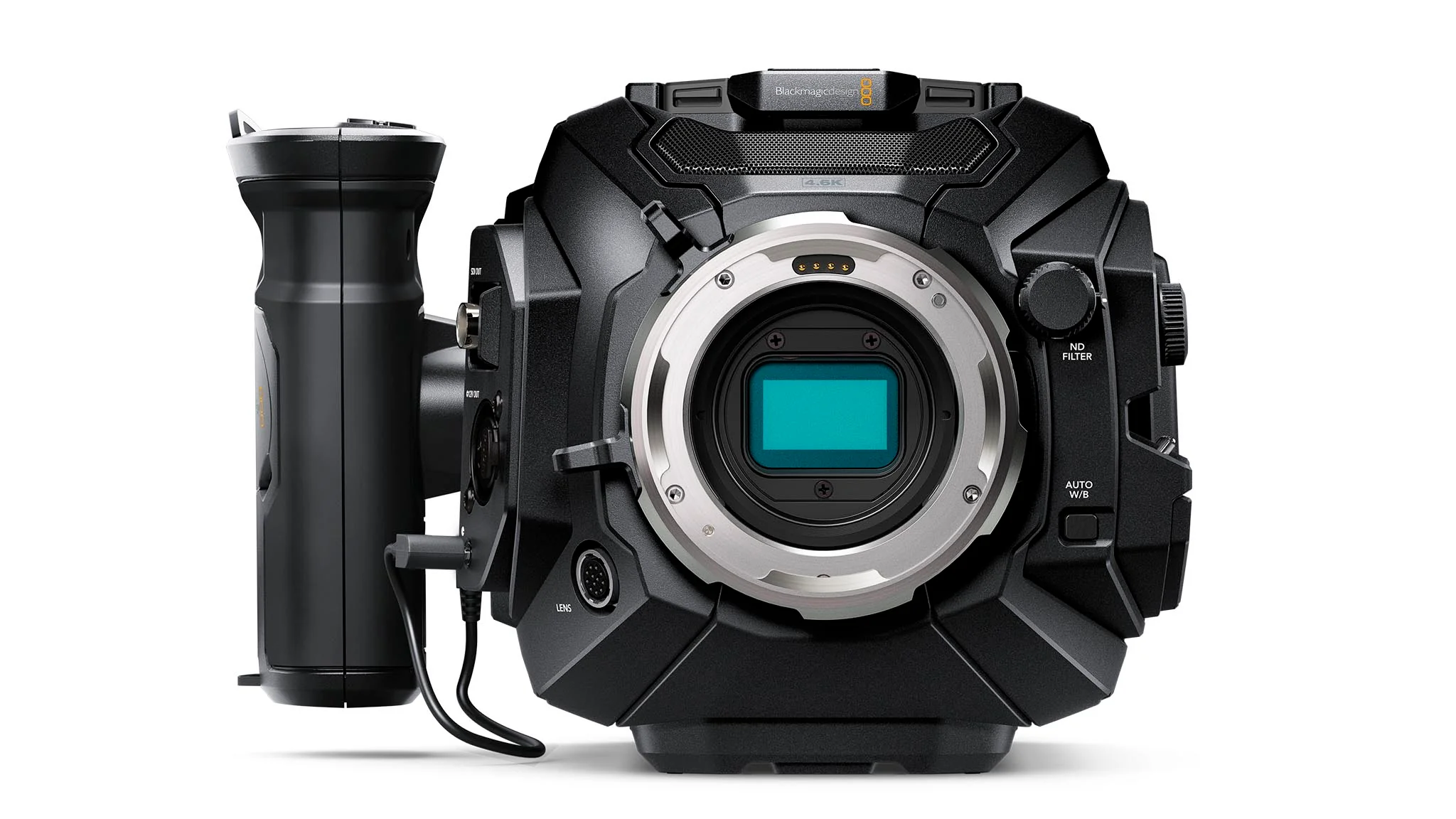

Blackmagic URSA Mini Pro 4.6K G2

Sensor Size

25.34 x 14.25 mm (Super35)

Sensor Resolution

Effective: 11.9 Megapixel (4608 x 2592)

Advertised Dynamic Range

15 Stops

Lens Mount

Canon EF

Lens Communication

Yes

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-II)

Variable Frame Rates

Up to 300 fps

Raw Recording

Raw 12-Bit:

4608 x 2592 at 23.98/24/25/29.97/30/50/59.94/60/120 fps

4608 x 1920 at 23.98/24/25/29.97/30/50/59.94/60/120 fps

4096 x 2304 at 23.98/24/25/29.97/30/50/59.94/60/120 fps

3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps

3072 x 2560 at 23.98/24/25/29.97/30/59.94/60/120/150 fps

2048 x 1152 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps

2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/120/150 fps

1920 x 1080 at 23.98/24/29.97/30/50/59.94/60/300 fps

Recording Modes

ProRes 4444XQ 4:4:4 12-Bit:

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (312.5 MB/s)

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (62.5 MB/s)

ProRes 422HQ 4:2:2 10-Bit:

4608 x 2592p at 23.98/24/25/29.97/30/50/59.94/60/80 fps

4608 x 1920p at 23.98/24/25/29.97/30/60/80 fps

4096 x 2304p at 23.98/24/25/29.97/30/50/59.94/60/80 fps

4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/80 fps

3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60/120 fps (110 MB/s)

3072 x 2560p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps

2048 x 1152p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps

2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/80/120 fps

1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60/120/240 fps (27.5 MB/s)

Raw Output

USB:

4096 x 2592 at 60 fps

3840 x 2160 12-Bit at 60 fps

1920 x 1080 12-Bit at 30/60 fps

Video Connectors

1 x BNC (12G-SDI) Input

2 x BNC (12G-SDI) Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Output

1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output

Other I/O

1 x USB Type-C Data

1 x BNC Timecode Input

1 x BNC Reference Input

2 x 2.5 mm LANC Control Input

Display Type

Articulating Touchscreen LCD

Size

4.0"

Secondary Display

Side: Status Display

Power Connectors

1 x 4-Pin XLR Input

1 x 12-Pin Molex Input/Output

1 x 4-Pin XLR (12 VDC) Output

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Accessory Mount

1 x 1/4"-20 Female

1 x Battery Plate Mount

Dimensions

8.2 x 8 x 5.8" / 21 x 20.1 x 14.7 cm

Weight

5.1 lb / 2.3 kg
