Huepar 902CG Laser Level

• 360-DEGREE VERTICAL and 360-DEGREE HORIZONTAL LINE- With its ultra bright 360-degree vertical and 360-degree horizontal green beams the Huepar 902CG Laser Level provides all-around leveling coverage with accuracy of ±1/9 Inch at 33 Feet and a maximum working range of 130 feet, enabling you to work in different parts of a large room simultaneously.

• GREEN LASER UNIT- This self-leveling cross line laser level adopt the latest LD blue-green laser unit, it is at least twice brighter than red lasers utilizing the same power source. The bright 360° laser lines allows the user to project a laser reference line around the room with accuracy to quickly establish level, enabling users to work in different parts of a room simultaneously.

• MULTIFUNCTIONAL MODE- One button operation makes it easy to project lines together or independently (cross line, vertical and 360-degree horizontal). With our smart pendulum system, the pendulum locks when the level is switched off. Simply, hold the top button 2 seconds to start manual mode, letting you project lines in any position or angle.

• OUTDOOR PULSE MODE & DURABLE- When the pulse mode is turned on, laser tool can be used with a laser detector for working in even brighter environments or at greater working distances. 902CG is covered by TPR soft rubber for shock resistant, IP54 waterproof and dustproof, shockproof, wear resistant, impact resistance, cold and high temperature.

• WARRANTY & KITS INCLUDE- Customer can enjoy 12 months limited warranty but up to 24 months longer warranty if you become a royal customer through the product registration (Offered on the package box). Huepar 902CG Self-Leveling Laser, Easy-to-Adjust magnetic base, Target plate card, Carry pouch, AA batteries, Instruction Manual.

Huepar 902CG Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
• Laser Wavelength: 510±5 nm
• Leveling Accuracy: ± 1/9 Inch at 33 Feet
• Horizontal/Vertical Accuracy: ± 1/9 Inch at 33 Feet
• Leveling/Compensation Range: 4°±1°
• Working Distance (Line): 130ft (100 LUX)
• Working Distance with Huepar Receiver: 165Ft
• Operating Time: 4 hours with all laser beams on
• Power Source: 4×˝AA˝ (LR6), it is recommended to use a large capacity (rechargeable) battery.
• IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough
• Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)

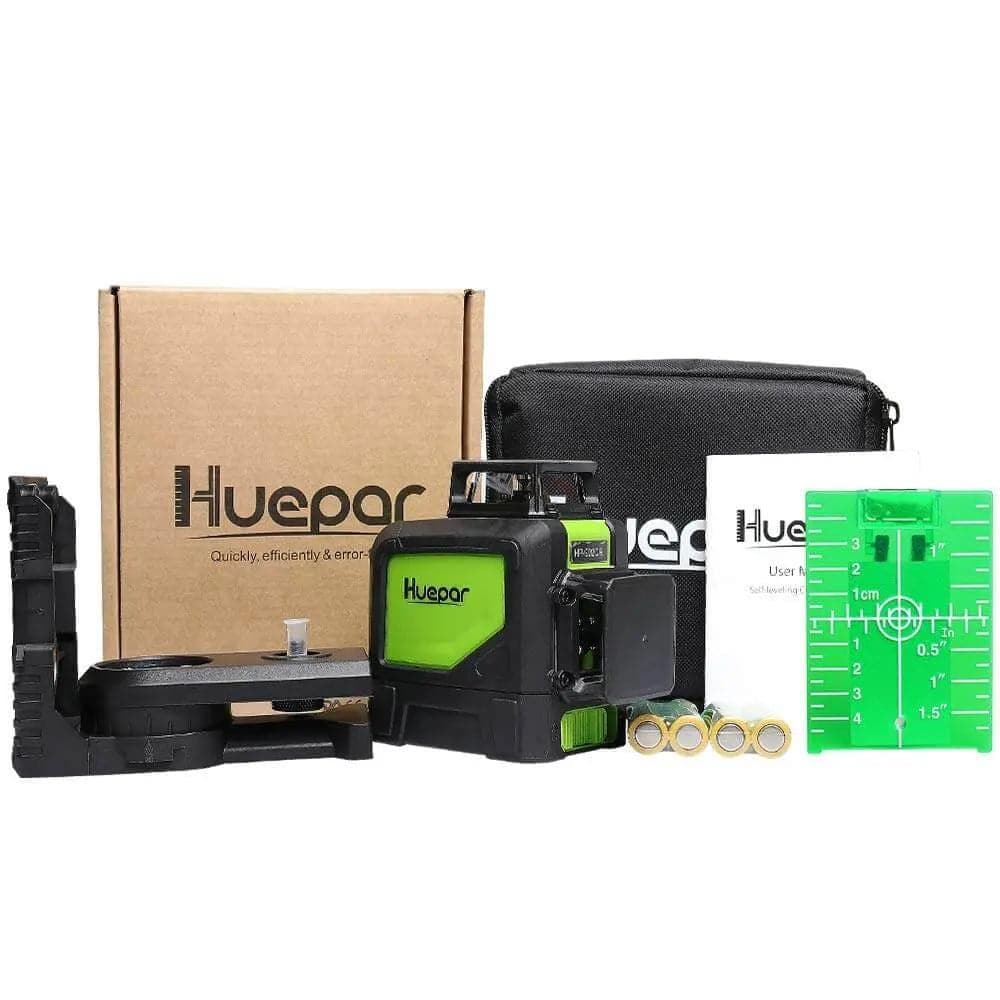

Items in the 902CG Package

• 1 X Huepar 902CG laser level

• 1 X Magnetic pivoting Base

• 1 X Laser target

• 4 X AA Batteries

• 1 X Cloth case

• 1 X English User's Manual





Three kinds of circuit switching functions (902CG functions):

• This professional cross-line laser includes vertical, horizontal and cross-line modes, which can project two lines independently or together. The Huepar 902CG has a manual mode that allows the user to lock the cross-line, to use the tool at any angle.

• Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence.

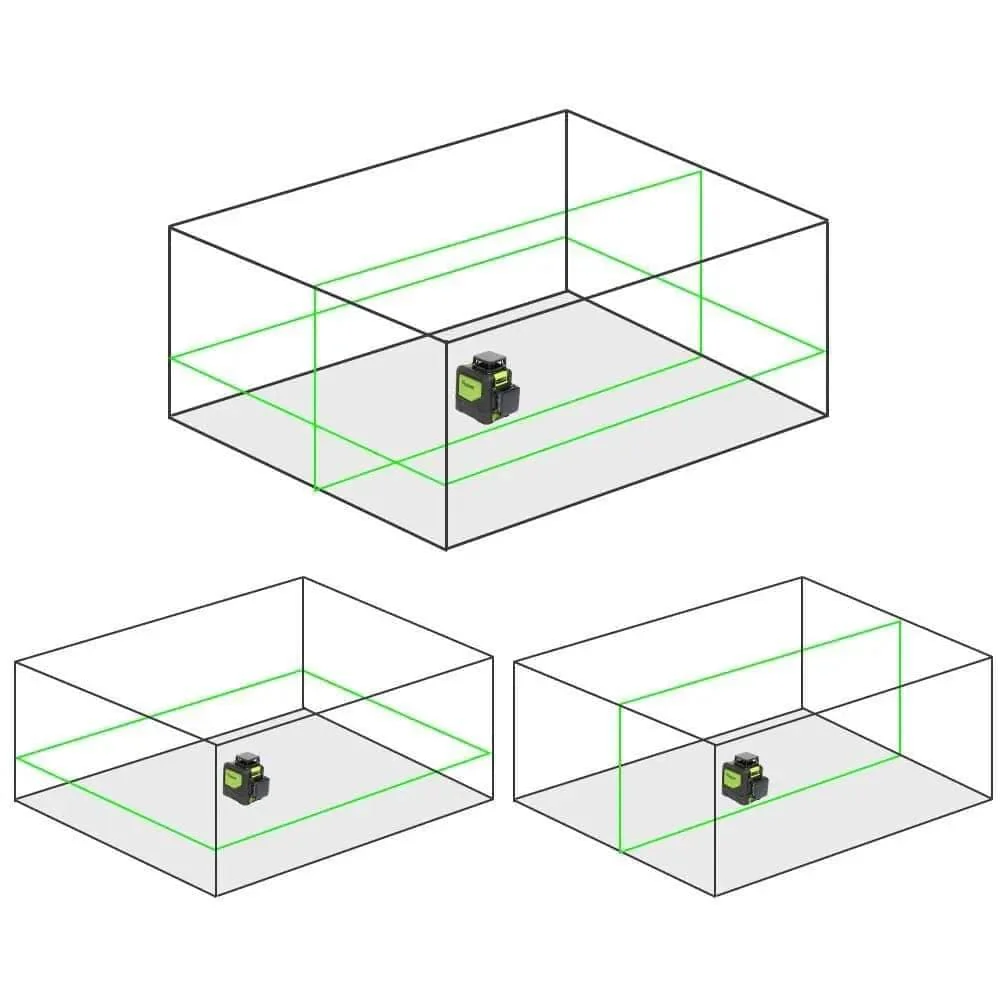

• 360° cover horizontal line and 360° vertical line (H360°/V360°)

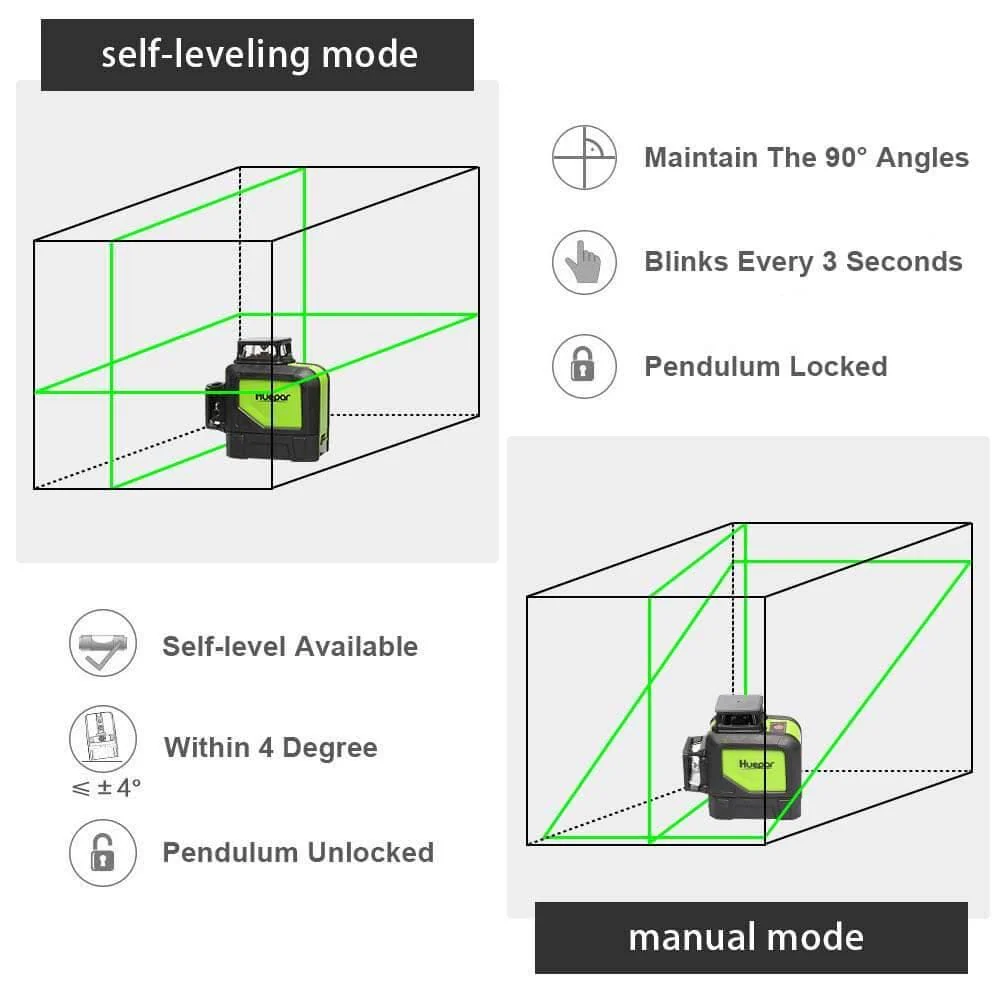

Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

Manual mode:

When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Pulse Mode

• Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.

• Application: When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.

Note: When use with a receiver, it’s necessary to turn on the pulse mode .It is compatible with Huepar Line Laser Receiver only.

Brighter green beams

• Intense Green Line Laser with Higher Visibility, It's more brighter and eye friendly than red laser, which gives you a more comfortable experience.

• New green diode technology makes green beams 300% as bright as red beams at the same distance, ideal for bright conditions where red beams are hard to see.

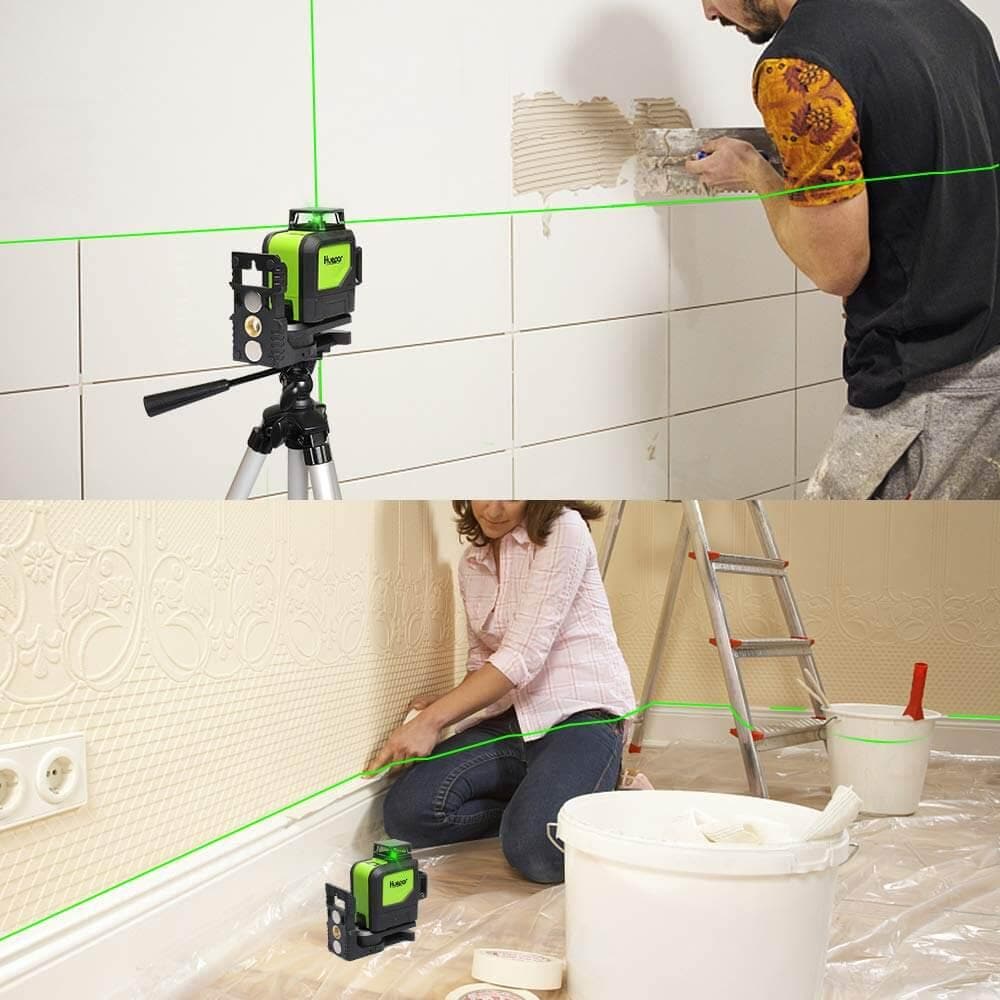

Widely used

• Huepar's laser tools can help you work effectively in home decoration: such as line up some planters in anticipation of a new decking projects, home refurb projects, hang pictures, mirrors, curtain rails etc.

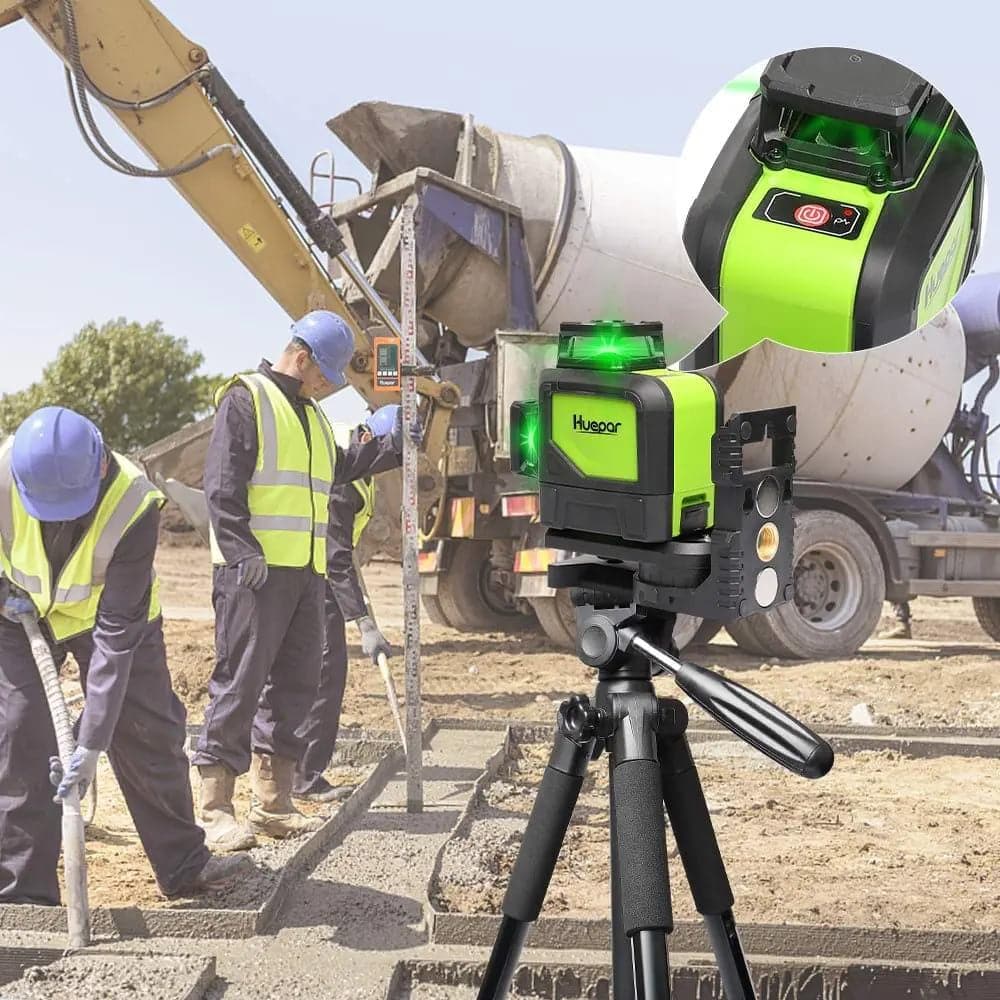

• And it can also work for railway construction, bridge construction, wall construction, etc.
