Huepar 9211G Laser Level

• COMBINES PLUMB AND UP POINTS WITH CROSS LINE- Huepar 9211G self-Leveling laser level offers two points plus a cross-line for a two-in-one laser. This hybrid point and line laser tool combines all the features of the Huepar line laser plus point-to-point plumb, giving contractors in the commercial and remodeling trades maximum versatility.

• FINE POSITIONING- This laser level offers cross-line accuracy of +/- 1/9 inch at 33 feet, up point accuracy of 1/13 inch at 33 feet and down point accuracy of 1/9 inch at 33 feet. Class II 510-530nm laser product. We adopt the latest LD blue-green laser unit, It is at least twice brighter than red lasers utilizing the same power source.

• SELF-LEVELING- The 9211G cross-line laser features the Smart Pendulum System, you are able to self-level on an inclined surface within 4 degrees. If the surface inclines over 4 degrees, the laser will flash to indicate you are out-of-leveling parameters. You can be confident that you are within optimal leveling range. Secure transport lock protects pendulum when unit is switched off. Manual mode locks lines for use at any angle.

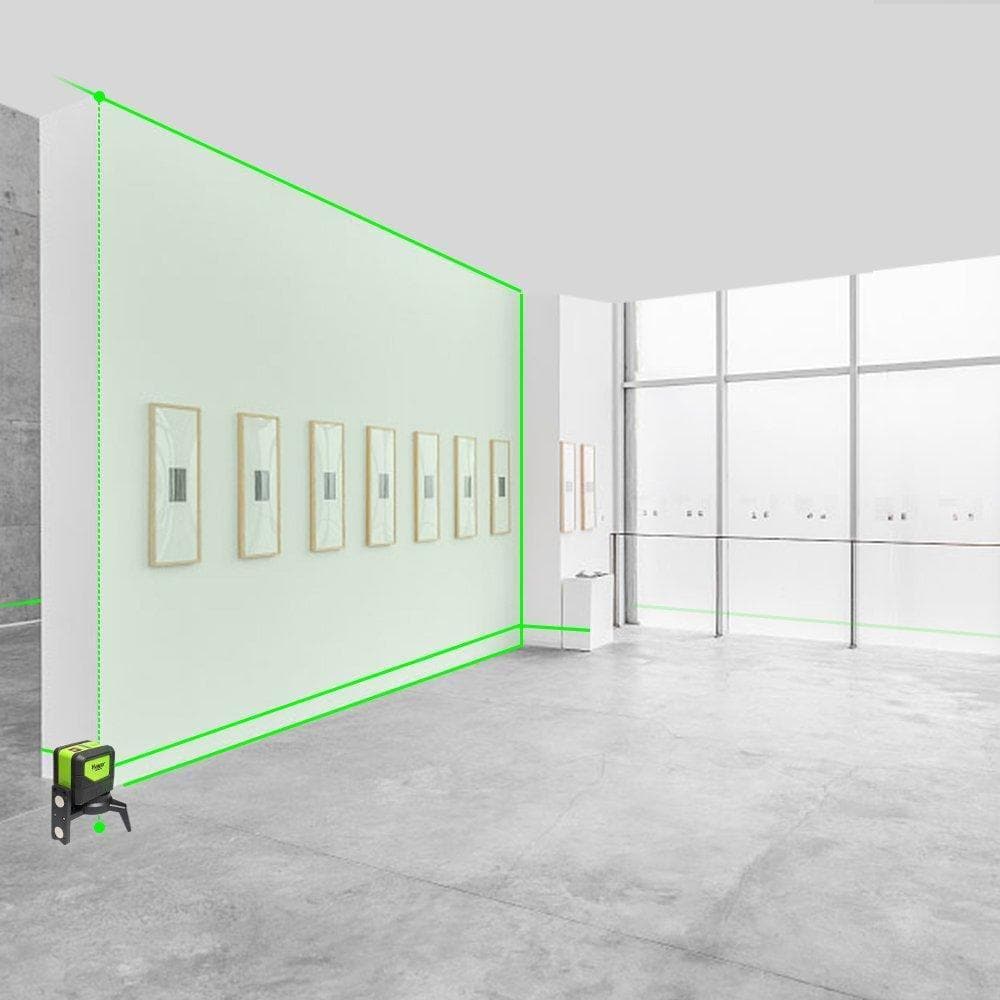

• INTUITIVE OPERATION & EXTRA LONG LASER LINES- Just gently press the power button to activate this device, easily project a cross line laser with plumb bob. Highly-visible laser lines with wide 110º horizontal, 180º vertical fan angles - easily-seen, long lines minimize the need to reposition the unit.



9211G Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW

• Laser Wavelength: 510~530 nm

• Leveling Accuracy: ±1/9 Inch at 33 Feet

• Leveling/Compensation Range: 4°±1°

• Up Plumb Accuracy: 1/13 Inch at 33 Feet

• Down Plumb Accuracy: 1/9 Inch at 33 Feet

• Working Distance (Dot/Line):197ft/ 85ft (100 LUX)

• Operating Time: 6 hours with all laser beams on

• Power Source: 2×˝AA˝ (LR6), it is recommended to use a large capacity (rechargeable) battery.

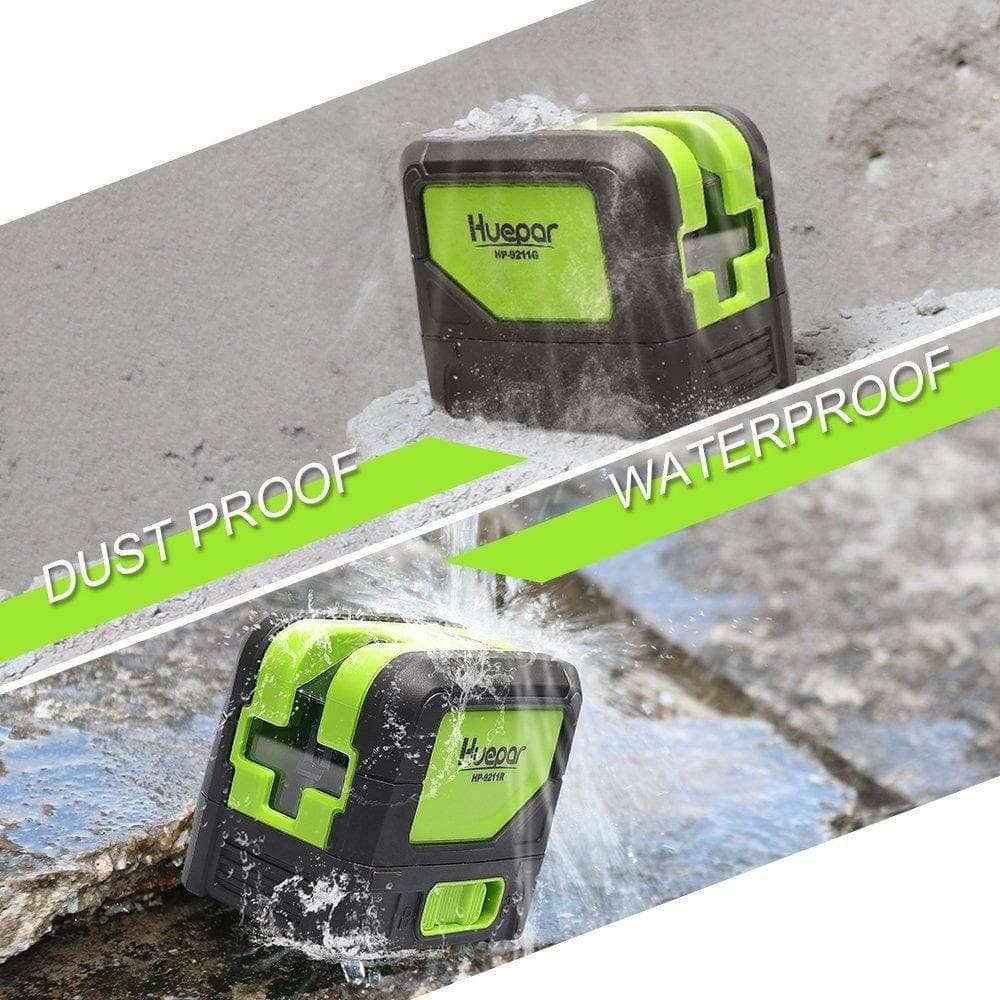

• IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough

• Operation Temperature Range: -10℃-＋50℃

• Storage Temperature Range: -20℃-＋70℃

WARNING: Avoid direct exposure of the laser beam to the eyes.

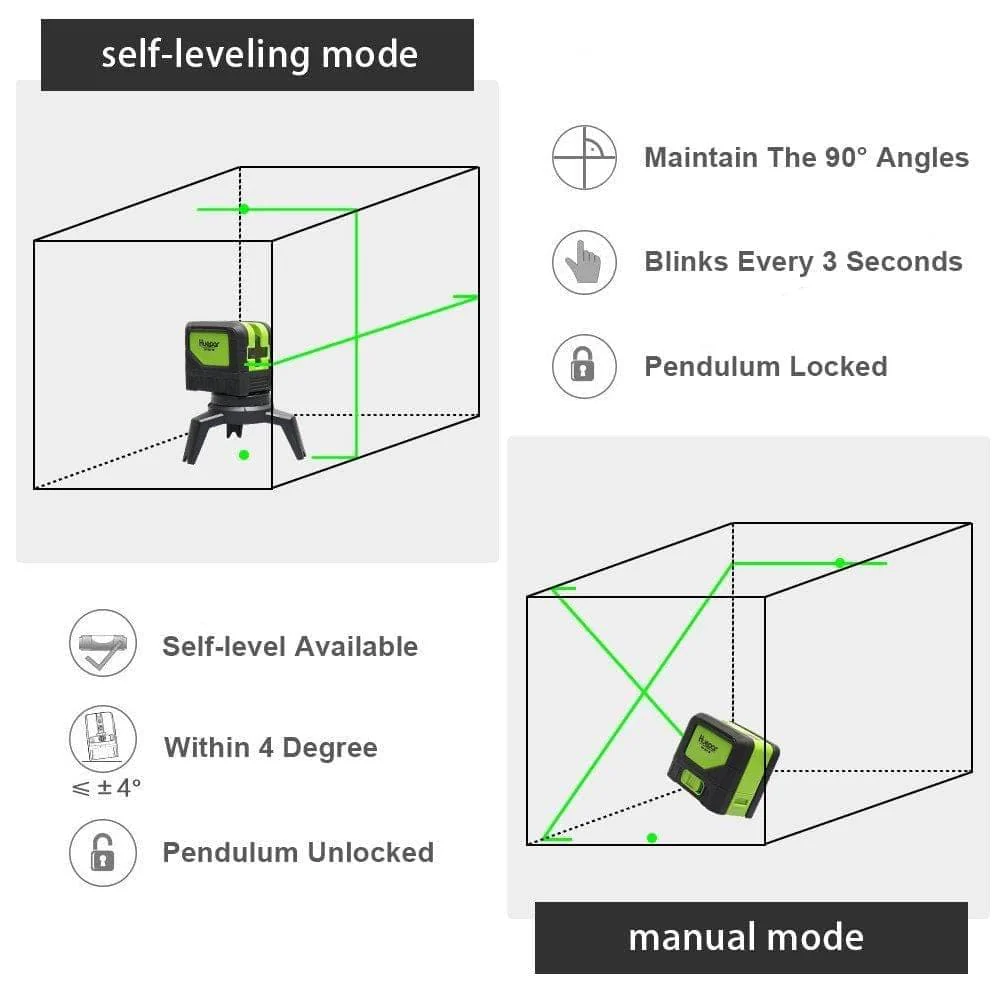

Two modes of use

➤Self-leveling mode:

Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

➤Manual mode:

Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

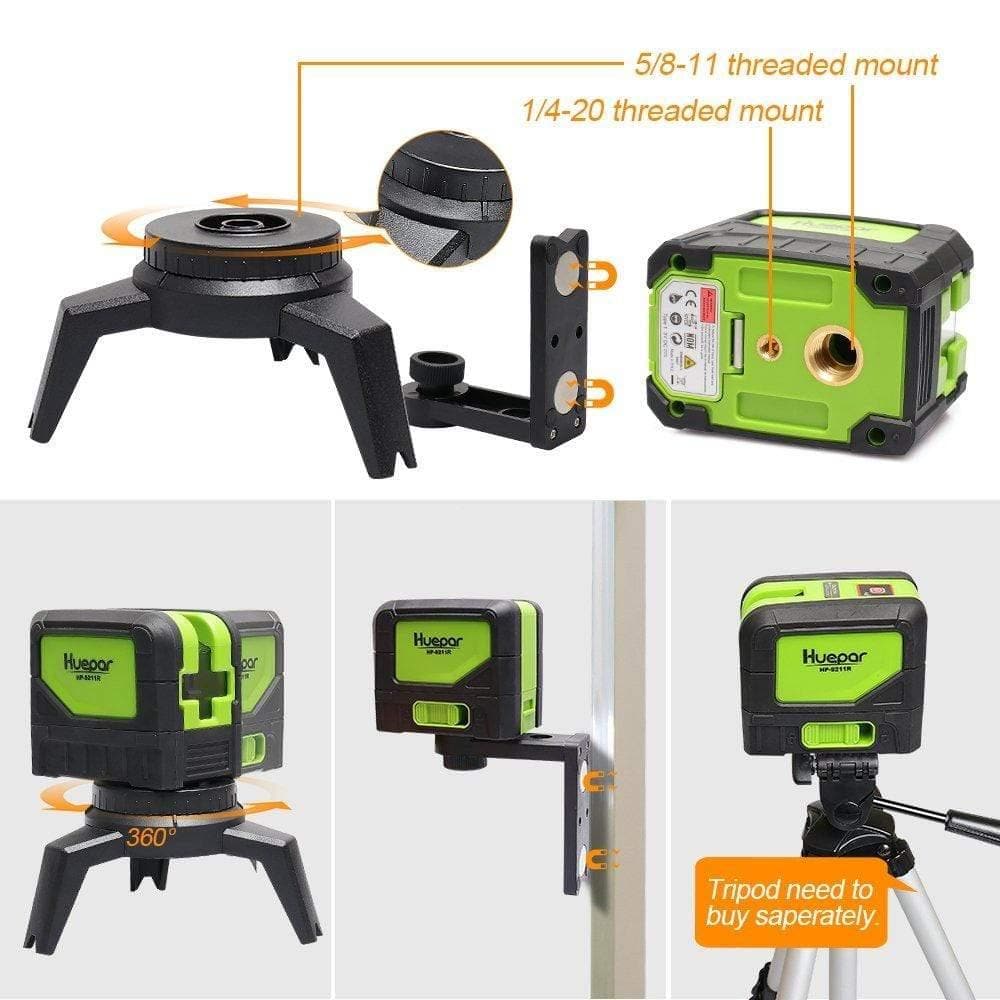

Various Kinds of Fixing Method:

➤Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 180 degrees as you like.

➤With top quality Rotating Mounting Bracket, more convenient and can be turned around 360 degrees as you like.

➤It can also accpets a standard tripod screw to do height adjustment.



➤How to power ON: Short press the power key or slide locking switch to turn the laser tool ON.

➤How to power OFF:Lock the pendulum before short pressing the power button to turn the laser tool OFF.

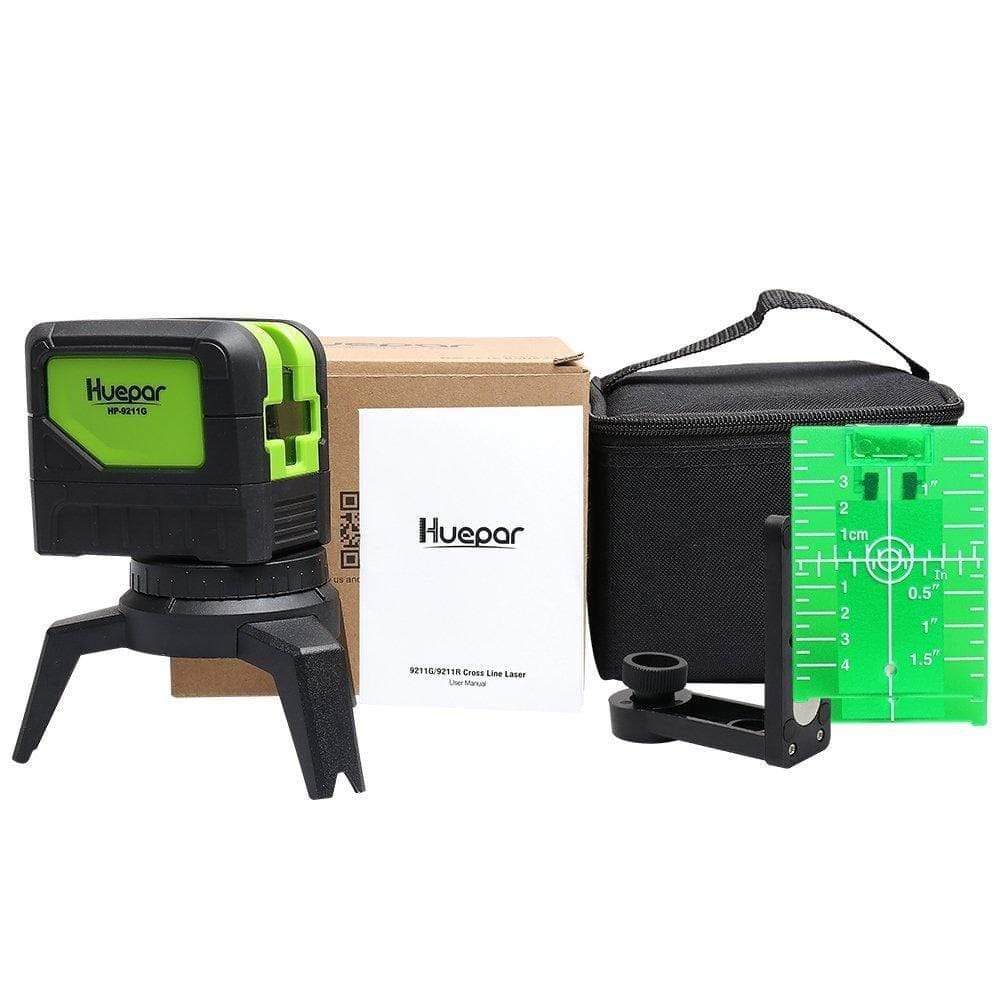

Items in the Package:

• 1 X Huepar 9211G laser level( No including battery )

• 1 X 360 Degree Magnetic pivoting base

• 1 X Green laser target card

• 1 X Cloth case

• 1 X English User's Manual

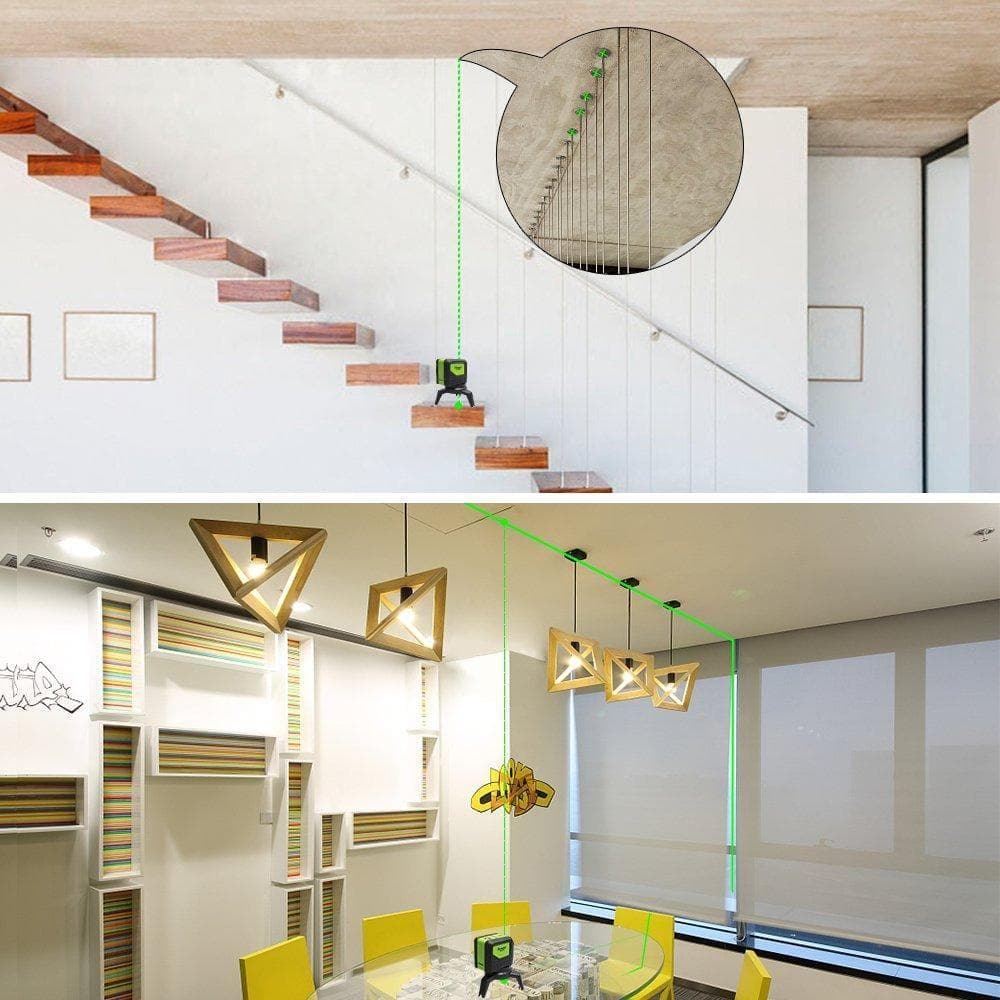

The laser tool can help you easier on Home Decoration, Partition Wall Construction,

Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation, Pictures Hanging Design, Laying out Tile,

Windows Construction etc.
