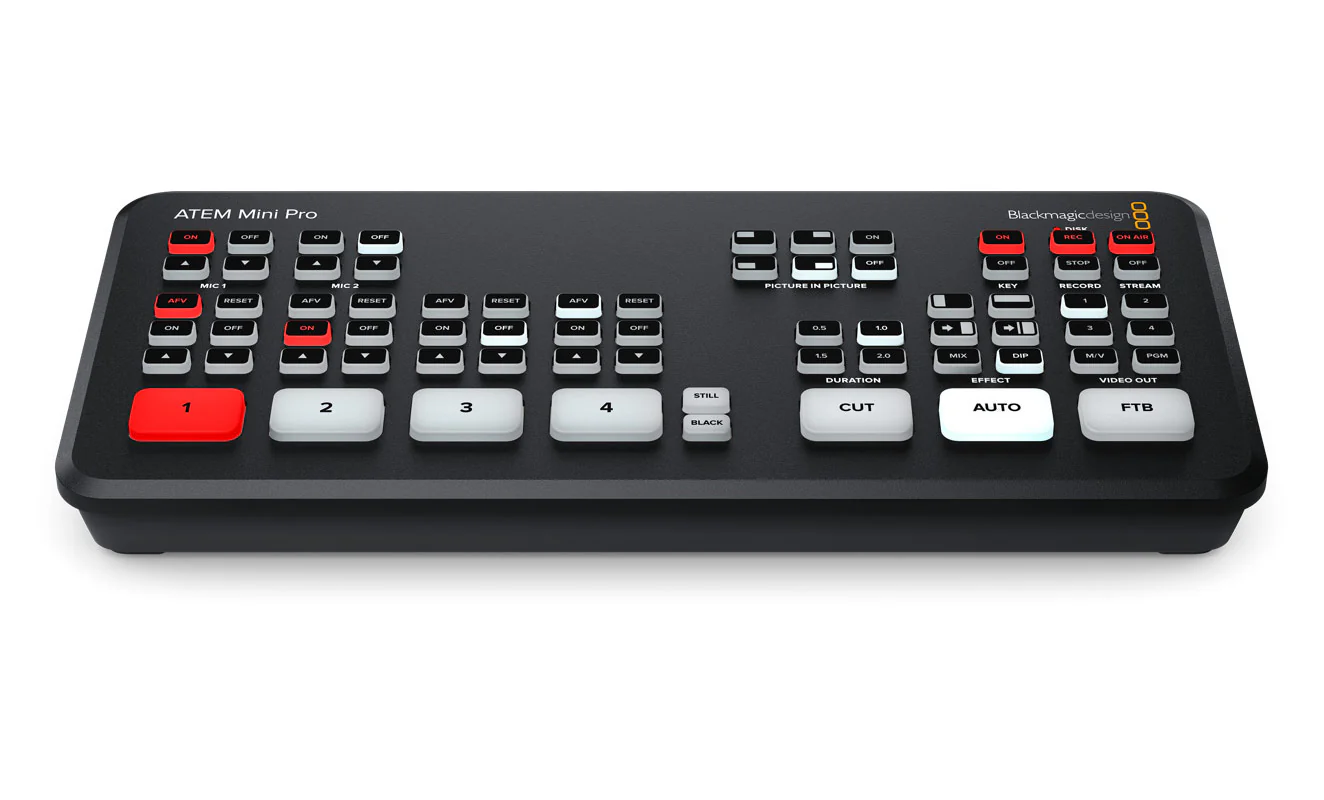

Blackmagic ATEM Mini Pro
Key Features:
- 4-Channel Live Stream HDMI Switcher
- Control up to Four BMPCC 6K/4K Cameras
- Live Tally, Stream and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- HDMI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- Color and Pattern Generators
- DVE Transition, Chroma/Luma Keyers
New Features

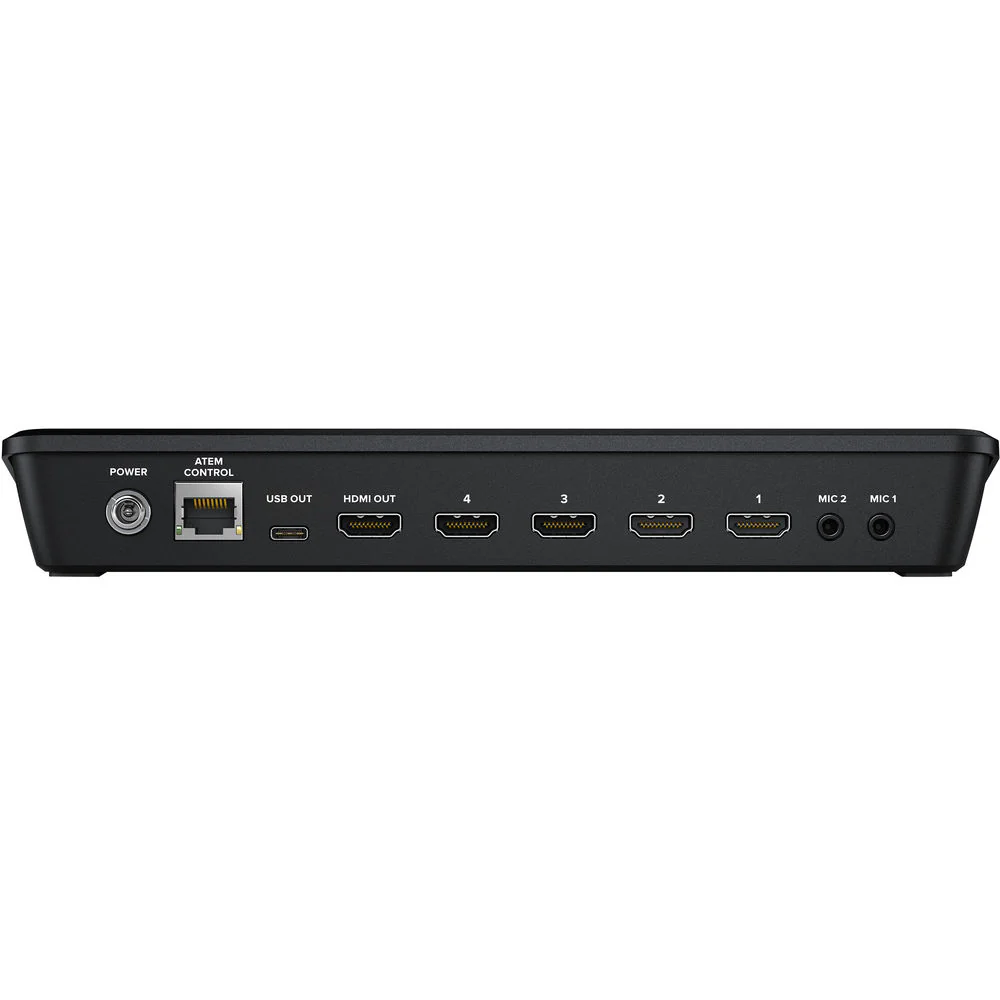

- Same rear panel as ATEM Mini with added buttons and software features
- Stream video up to 1080p HD
- Quick stream, on-air and record buttons
- Hardware encoder so there's no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K and 4K cameras
- Simultaneous USB recording
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on air status, audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
|
Available M/E Layers |
5 M/E |
|
Effect Types |
1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
|
Downstream Keys |
1 x Chroma, DVE 2 x Luma |
|
Audio Mixing |
2-Channel Mixing |
|
Switching Type |
Pushbutton |
|
Number of Video Input Sources |
4 |
|
Video Input Connectors |
4 x HDMI Female |
|
Input Video Format |
HDMI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
|
Audio Input Connectors |
2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
|
Embedded Audio Input |
HDMI: 2-Channel (per Input) |
|
Video Output Channels |
1 |
|
Video Output Connectors |
1 x HDMI |
|
Output Video Format |
HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps |
|
Embedded Audio Output |
HDMI: 2-Channel (per Output) |
|
Multiview Output |
Yes |
|
Monitor Output |
1 x HDMI |
|
Other I/O |
1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output 1 x USB Type-C Firmware, Control Input/Output |
|
OS Compatibility |
macOS 10.14 or Later Windows 10 |
|
Power Connector |
1 x Barrel (12 VDC) Input |
|
Power Consumption |
36 W |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
14 to 140°F / -10 to 60°C |
|
Operating Humidity |
0 to 90% |
|
Dimensions |
9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm |
|
Weight |
19.4 oz / 550 g |
|
Package Weight |
2.32 lb / 1.05 kg |
|
Box Dimensions (LxWxH) |
11 x 5.7 x 4.65" |
In the Box:
- Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
- 12V Power Supply with International Adapters
- Limited 1-Year Warranty
