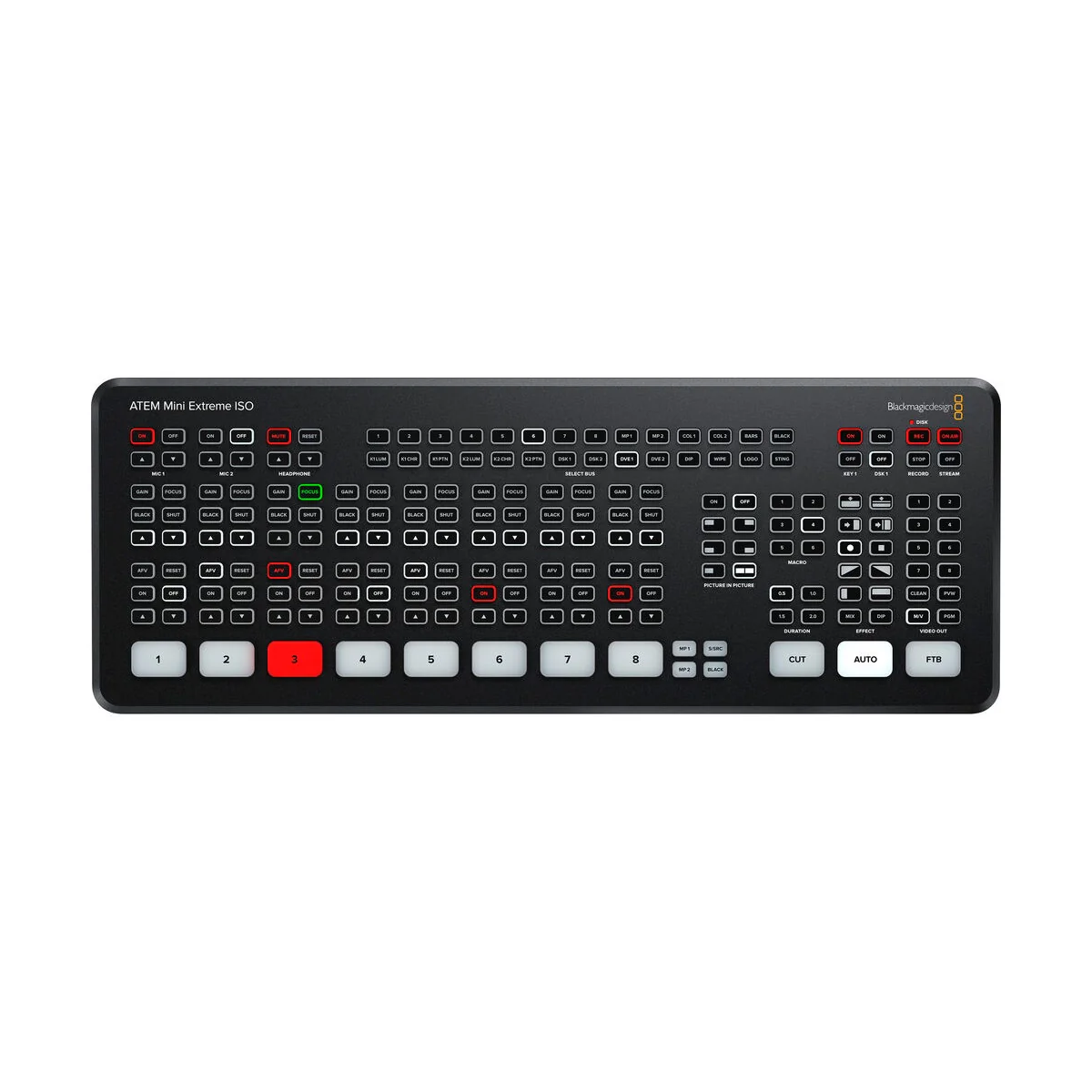

Blackmagic Design ATEM Mini Extreme ISO

Available M/E Layers

9 M/E

Effect Types

2 x DVE

4 x Luma Key

4 x Chroma Key

Graphics Memory

20 Images

Downstream Keys

2 x Chroma, Luma, DVE

Generators

5 x Pattern

2 x Color

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton, Software

Processing Resolution

1080p

Number of Video Input Sources

8

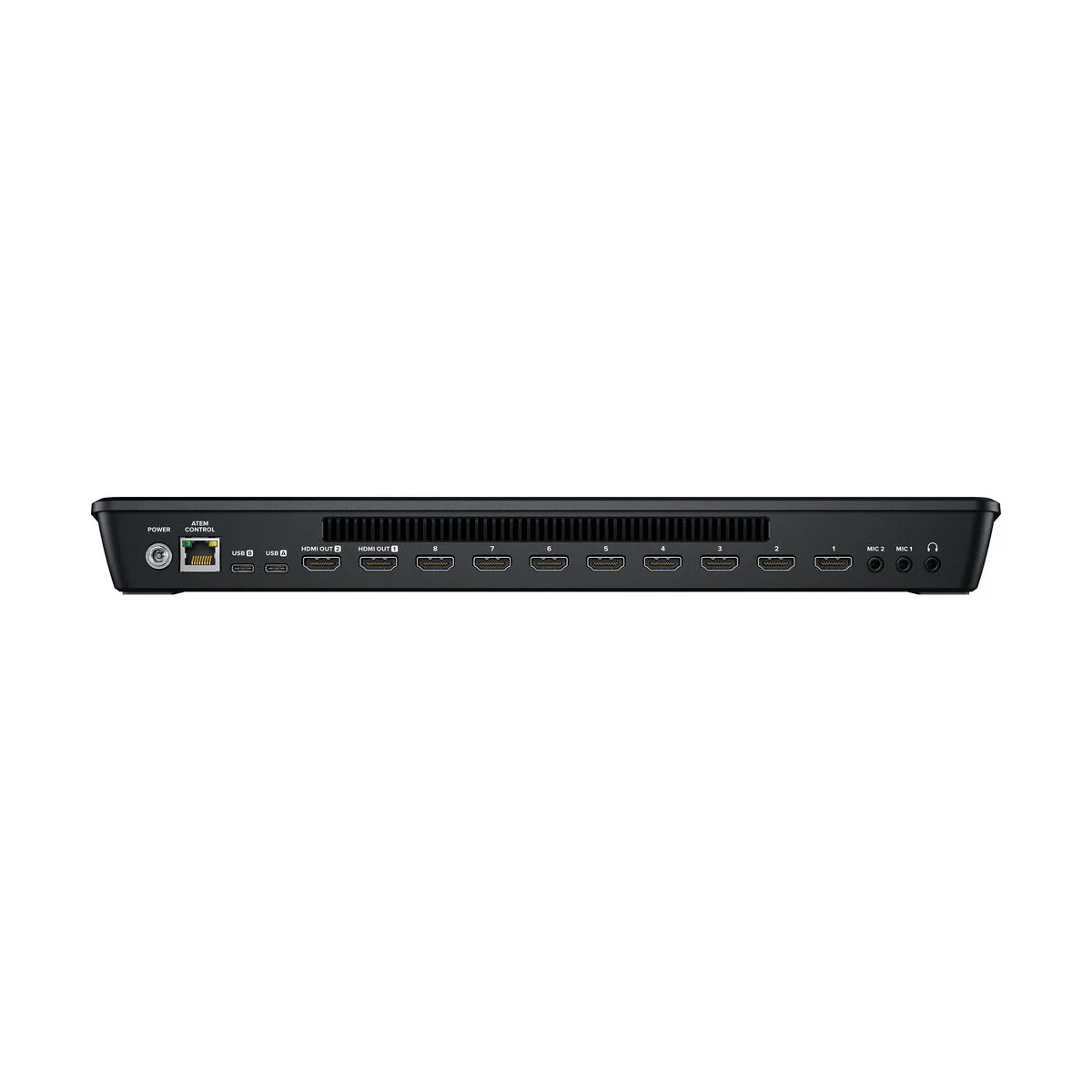

Video Input Connectors

8 x HDMI

Input Video Format

HDMI (10-Bit 4:2:2 YUV)

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080i: 50/59.94/60 fps

720p: 50/59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)

Video Output Channels

2

Video Output Connectors

2 x HDMI

Output Video Format

HDMI (10-Bit 4:2:2 YUV)

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Output Connectors

1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female

Embedded Audio Output

HDMI: 2-Channel

Multiview Output

16-Way Multiview viaHDMI

Other I/O

1 x RJ45

2 x USB Type-C

HDCP Support

None

IP Video

H.264:

1920 x 1080 Encoding

Transport Protocols

RTMP

Simultaneous Streams

1 Streams

Recording Modes

1920 x 1080p up to 60 fps (MP4)

OS Compatibility

macOS 10.15

macOS 11.1 or Later

Windows 10

Power Connector

1 x External 12V power supply.

Power Consumption

Device: 36 W

Operating Temperature

5° C to 40° C (41° - 104° F)

Storage Temperature

-10° to 60° C (14° to 140° F)

Operating Humidity

0% to 90% non-condensing

Dimensions

14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm

Weight

1.23 kg

In the Box

Blackmagic Design ATEM Mini Extreme ISO.

12 VDC Power Supply with International Plugs.

Limited 1-Year Warranty.
