Blackmagic Design DeckLink Mini Recorder HD
- Broadcast-Quality Recording
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Inputs
- Supports up to 2K DCI over SDI
- Up to 1080p60 Resolution Support in HDMI
- 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
- REC 601/709 Color Space Support
- Mac, Windows, and Linux Compatible
Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.
The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.
Note: For use on a Mac, a Mac Pro is required with PCI Express slots.
- Wirecast
- vMix
- OBS
- Cinergy Capture Pro
- DevTek EasyMediaSuite
- Glookast Capturer
- Livestream Producer
- Metus Ingest
- Softron MovieRecorder
- ToolsOnAir just:in
- Burst Video WebClip2Go & [REC]Marker
- Zoom
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- HEVC
- XDCAM EX
- XDCAM HD
- XDCAMHD422
- DNxHR & DNxHD
- AppleProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes 422LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10-bit 4:4:4
|
Host Connection |
PCIe (Length Unspecified) |
|
Video Input Connectors |
1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
|
Input Video Format |
SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Simultaneous Multi-Input Support |
Not Specified by Manufacturer |
|
Audio Input Connectors |
None |
|
Embedded Audio Input |
SDI: 16-Channel HDMI: 8-Channel |
|
Embedded Audio Output |
None |
|
Video Standard Compliance |
SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1 |
|
HDR Compatibility |
Not Specified by Manufacturer |
|
OS Compatibility |
macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
|
Power Consumption |
Device: 3 W |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% (Non-Condensing) |
|
Storage Humidity |
0 to 90% (Non-Condensing) |
|

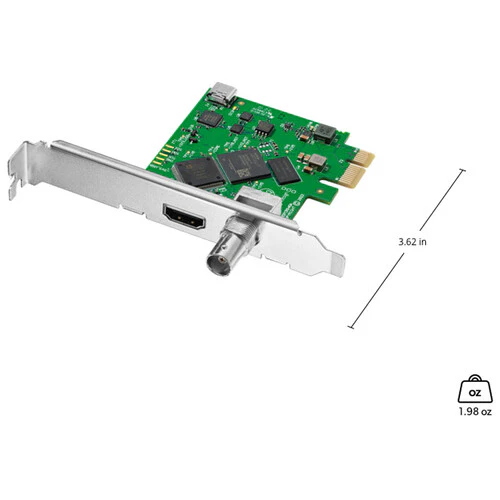

Dimensions |
3.62" / 91.95 mm |
|
Weight |
1.98 oz / 56 g |
In the Box:
- Blackmagic Design DeckLink Mini Recorder HD
- Low-Profile Slot Bracket
- Limited 1-Year Warranty
