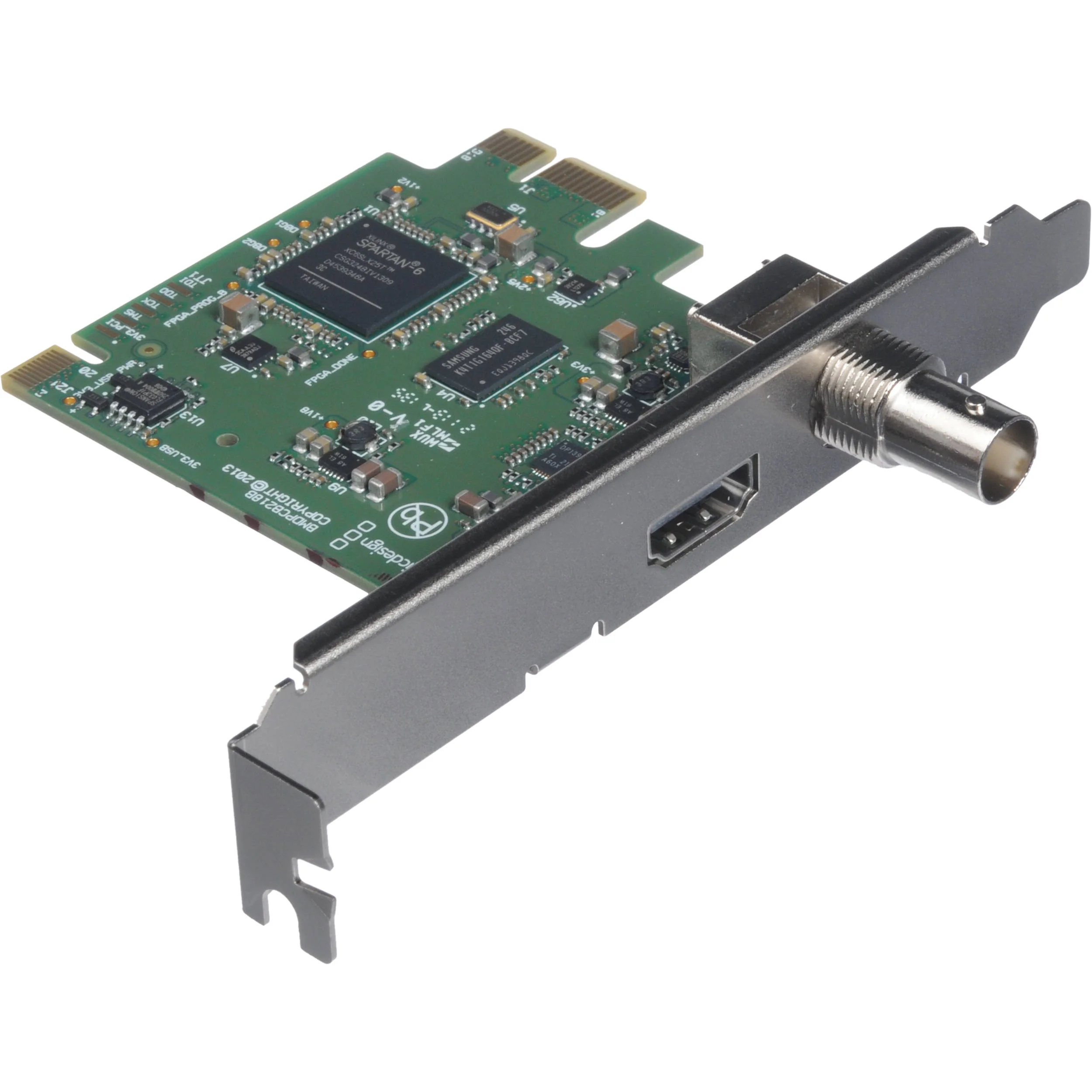

Blackmagic DeckLink Mini Monitor
Key Features:
- Playback & Monitoring Functionality
- For High-Resolution Color Correction
- 1-Lane PCIe Slot Card (for 1-16 Lanes)
- SDI and HDMI Outputs
- Up to 1080p30 Resolution Support
- Uncompressed 10-Bit Video Output
- 4:2:2 Video Sampling Support
- REC 601/709 Color Space Support
- Color Space Conversion / Down Conversion
- Mac, Windows, and Linux Compatible
The Blackmagic Design DeckLink Mini Monitor is a 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots. In contrast to a full capture and playback input/output card, the DeckLink Mini Monitor provides you with just the playback and monitoring functionality for performing color-correction and delivering client presentations on high-resolution HDMI or SDI monitors. The card supports up to 1080p30 formats and it outputs up to 10-bit uncompressed video.
You can output via both the SDI and HDMI connections simultaneously or just one of them. The outputs are active and begin functioning right away when you plug into them. The card also automatically switches between SD and HD formats, so it'll handle all common video formats. Two PCIe shields are included for both full-height and low-profile PCIe slots.
PCIe Compatibility
Supported Codecs
|
Host Connection |
PCIe x1 (PCIe 1.0) |
|
Video Output Connectors |
1 x HDMI (HDMI 1.4a) 1 x BNC (SD-SDI) |
|
Output Video Format |
HDMI (8/10-Bit 4:2:2 YUV) NTSC: 59.94 fps PAL (768 x 576): 50 fps 720p: 50/59.94/60 fps 1080p: 23.98/24/25/29.97/30 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps |
|
Audio Output Connectors |
None |
|
Embedded Audio Output |
None |
|
Video Standard Compliance |
SMPTE 259M/292M |
|
OS Compatibility |
Windows 8.1 or Later macOS 10.14 or Later Linux |
|
Power Consumption |
Device: 4 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Certifications |
C-Tick, CE, FCC, as per Manufacturer |
|
Dimensions |
3.94" / 10.01 cm |
|
Weight |
1.98 oz / 56 g |
|
Warranty Length |
Limited 3-Year Warranty |
In the Box:
- Blackmagic Design DeckLink Mini Monitor
- SD Card with Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows; Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
- Full-Height PCIe Shield
- Low-Profile PCIe Shield
- Limited 3-Year Warranty
