Parasound Halo A 52+ Multichannel Amplifier

Ooberpad proudly brings to you the dynamic Parasound Halo A 52+ Multichannel Amplifier. The Parasound A 52+ is based on Parasound's previous and hugely successful A 52 model and features relevant upgrades in power output, circuitry refinements, and of course, is equipped with the latest Halo styling. The new model enhances the available power from 125 to 180 watts per channel into 8 ohms and 255 watts into 4 ohms, with all channels driven. As with its predecessor, the Parasound Halo A 52+ is the work of audio legend John Curl, leveraging high-bias Class A/AB and direct-coupled circuit topology.

Warranty

1-year manufacturer's warranty

Key Features:

• Class A/AB circuitry designed by legendary John Curl
• Direct coupled - no capacitors or inductors in audio path ensures the cleanest signal
• Balanced XLR inputs with discrete circuits
• Full power is rated all the way down to 5Hz for unrestricted low-end bass
• Custom 1.5 kVA encapsulated toroid power transformer with independent secondary windings for each channel
• Hand-matched JFETs for input stage
• Hand-matched MOSFETs for driver stage
• Beta-matched 15 amp, 60 MHz bipolar output transistors (3 pairs per channel)
• 100,000 µF power supply filter capacitance
• DC Servo and relay protection circuits
• Auto turn on by audio signal or 12V trigger
• Heavy-duty 24k gold-plated, 5-way speaker terminals
• 3U chassis with updated cosmetics, rack mountable with HRA3 (sold separately)

Benefits of Parasound Halo A 52+ Multichannel Amplifier:

Power-packed With Upgraded Features

Where to buy?
Buy Parasound Halo A 52+ Multichannel Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Parasound Halo A 52+ Multichannel Amplifier:

Brand & Model #	Parasound Halo A 52+
Power Output - All 5 Channels Driven	180 watts x 5, 8 Ω  255 watts x 5, 4 Ω
Power Output - 2 Channels Driven	225 watts x 2, 8 Ω  350 watts x 2, 4 Ω
Power measurements parameters with 120VAC	0.05% THD, RMS continuous power,  full audio band (20 Hz - 20 kHz)
Current capacity	45 amperes peak, per channel
Dynamic headroom	>1.5dB
Slew Rate	> 130 volts per microsecond
Frequency Response	5 Hz - 100 kHz, +0/-3 dB  20 Hz - 20 kHz, +0/-0.3 dB
Total Harmonic Distortion (THD)	< 0.05 % at full power  < 0.03 % at typical listening levels
IM Distortion	< 0.04 %
TIM	Unmeasurable
Interchannel crosstalk	> 78 dB at 1 kHz  > 63 dB at 20 kHz
Input Sensitivity for 28.28 V Output into 8 Ω	Unbalanced: 1 V  Balanced: 1 V per leg  Total Gain: 29 dB
Input Impedance	Unbalanced: 47 kΩ  Balanced: 94 kΩ, 47 kΩ per leg
S/N ratio	> 112 dB, input shorted, IHF A-weighted  > 102 dB, input shorted, unweighted
Damping Factor	> 1100 at 20 Hz
DC Trigger Requirements	+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements	2 mV - 10 mV
XLR Pin Identification	1 = Ground (Shield)  2 = Positive  3 = Negative (Return)
Dimensions	Width: 17-1/4" (437 mm)  Height without feet: 5-1/4" (133 mm)  Height with feet: 5-7/8" (149 mm)  Depth: 20" (508 mm)  Depth with cables: 21-1/4" (540 mm)
Net Weight	55 lb. (25 kg)
Power Requirement	Standby: 1 Watt  Idle: 125 Watts  Maximum: 1500 Watts

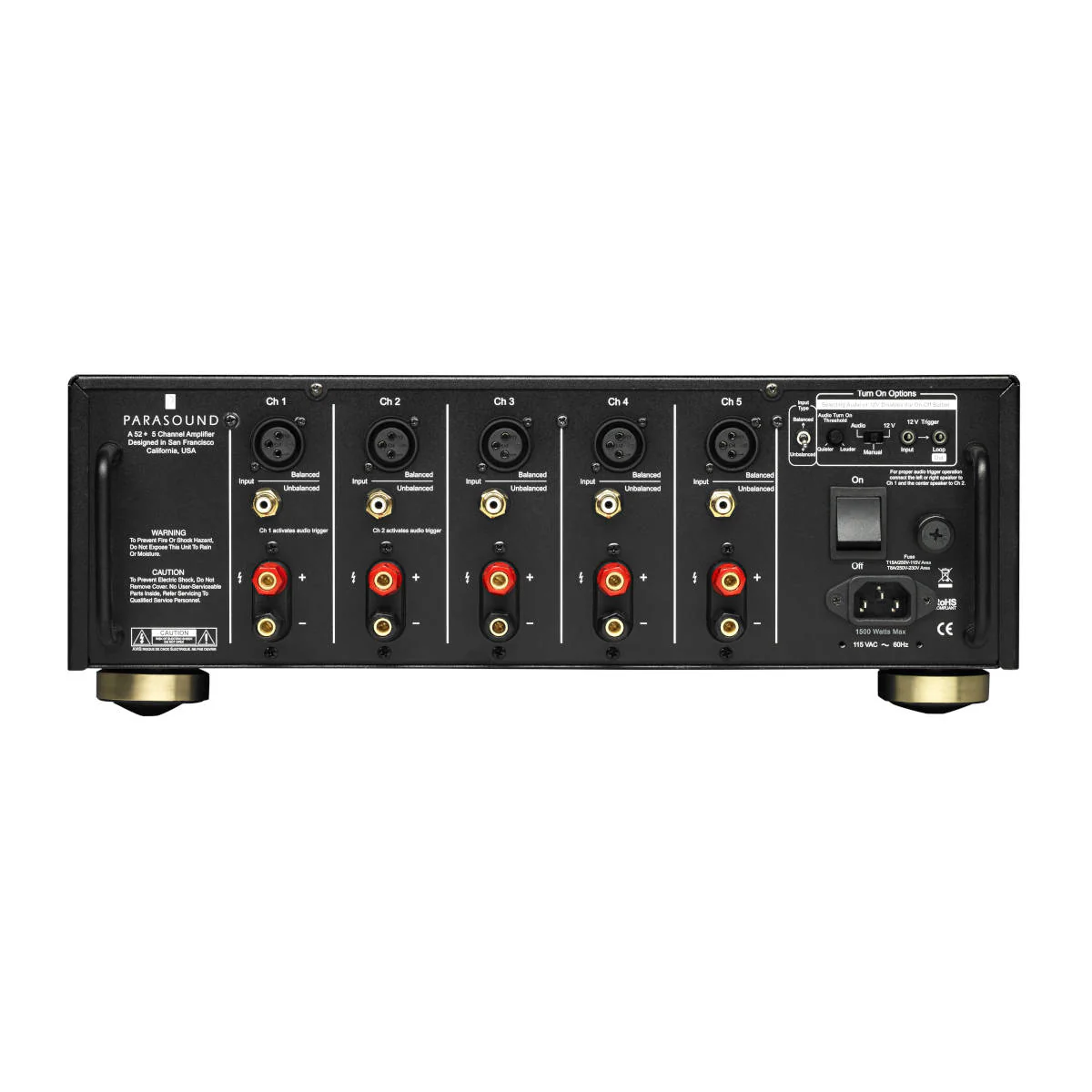

Power-packed With Upgraded Features Centred around Parasound's previous and highly successful A 52 model, the upgraded Parasound Halo A 52+ features a larger custom-made toroidal power transformer to lend support to its higher power output. It has five RCA unbalanced and five balanced XLR inputs, a separate module for each channel, DC Servos and relays to safeguard the amp and speakers. Features comprise of automatic turn-on, a 3U chassis with rear carry handles which is rack-mountable with optional adaptors. The A 52+ has a black anodized extruded front panel with new sturdy aluminium end-caps that are milled and hand-polished. These embody a fresh and refined Halo appearance. Where to buy? Buy Parasound Halo A 52+ Multichannel Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India . Technical Specifications of Parasound Halo A 52+ Multichannel Amplifier: <!-- td {border: 1px solid #ccc;}br {mso-data-placement:same-cell;} --> Brand & Model # Parasound Halo A 52+ Power Output - All 5 Channels Driven 180 watts x 5, 8 Ω 255 watts x 5, 4 Ω Power Output - 2 Channels Driven 225 watts x 2, 8 Ω 350 watts x 2, 4 Ω Power measurements parameters with 120VAC 0.05% THD, RMS continuous power, full audio band (20 Hz - 20 kHz) Current capacity 45 amperes peak, per channel Dynamic headroom >1.5dB Slew Rate > 130 volts per microsecond Frequency Response 5 Hz - 100 kHz, +0/-3 dB 20 Hz - 20 kHz, +0/-0.3 dB Total Harmonic Distortion (THD) < 0.05 % at full power < 0.03 % at typical listening levels IM Distortion < 0.04 % TIM Unmeasurable Interchannel crosstalk > 78 dB at 1 kHz > 63 dB at 20 kHz Input Sensitivity for 28.28 V Output into 8 Ω Unbalanced: 1 V Balanced: 1 V per leg Total Gain: 29 dB Input Impedance Unbalanced: 47 kΩ Balanced: 94 kΩ, 47 kΩ per
