Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher
- Supports 12G/3G/HD-SDI at 10-Bit
- 10 x 12G-SDI Inputs, 6 x 12G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB-C
- Frame Rate/Format Converter per Input
- 28-Channel Audio Mixer
- 4 x Upstream, 1 x Downstream Keyer
- Chroma/Luma Keyers
- Color/Pattern Generators
- Hardware/Software macOS/Windows Control
The ATEM 1 M/E Constellation UHD 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 10 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to six 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.
Technical Specifications:
|
Available M/E Layers |
1 M/E |
|
Effect Types |
4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE |
|
Downstream Keys |
1x Chroma, Luma, DVE |
|
Generators |
2x Color 5x Pattern |
|
Audio Mixing |
48-Channel Mixing |
|
Switching Type |
Pushbutton, Software |
|
Latency |
10 Lines |
|
Processing Resolution |
UHD 4K |
|
Color Processing |
10-Bit 4:2:2 |
|
Number of Video Input Sources |
10 |
|
Video Inputs |
10x BNC (12G-SDI) Female |
|
Input Video Format |
SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
Audio Inputs |
2x 1/4" TRS |
|
Embedded Audio Input |
SDI: 16-Channel |
|
Video Output Channels |
6 |
|
Video Outputs |
6x BNC (12G-SDI) Female |
|
Output Video Format |
SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
Embedded Audio Output |
SDI: 16-Channel |
|
Multiview Output |
16-Way Multiview |
|
Other I/O |

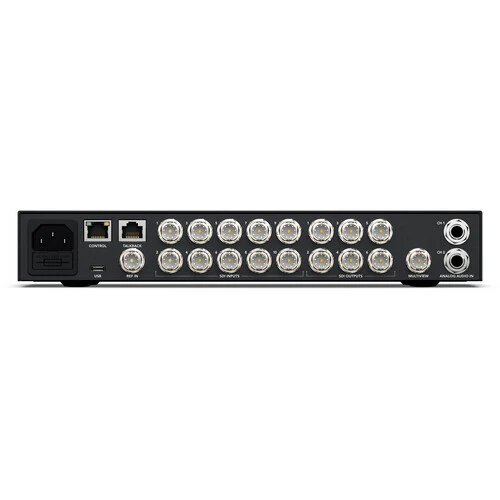

1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input |
|
Video Standard Compliance |
SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10 |
|
Display Size |
2.2" |
|
OS Compatibility |
Windows 10 to 11 macOS 13.0 to 14.0 |
|
Processor |
Not Specified by Manufacturer |
|
Wi-Fi |
Yes |
|
Bluetooth |
No |
|
Power I/O |
1x IEC C13 Input |
|
Power Consumption |
Device: 100 to 240 VAC (90 W) |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% |
In the Box:
- Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher
- Limited 1-Year Manufacturer Warranty
