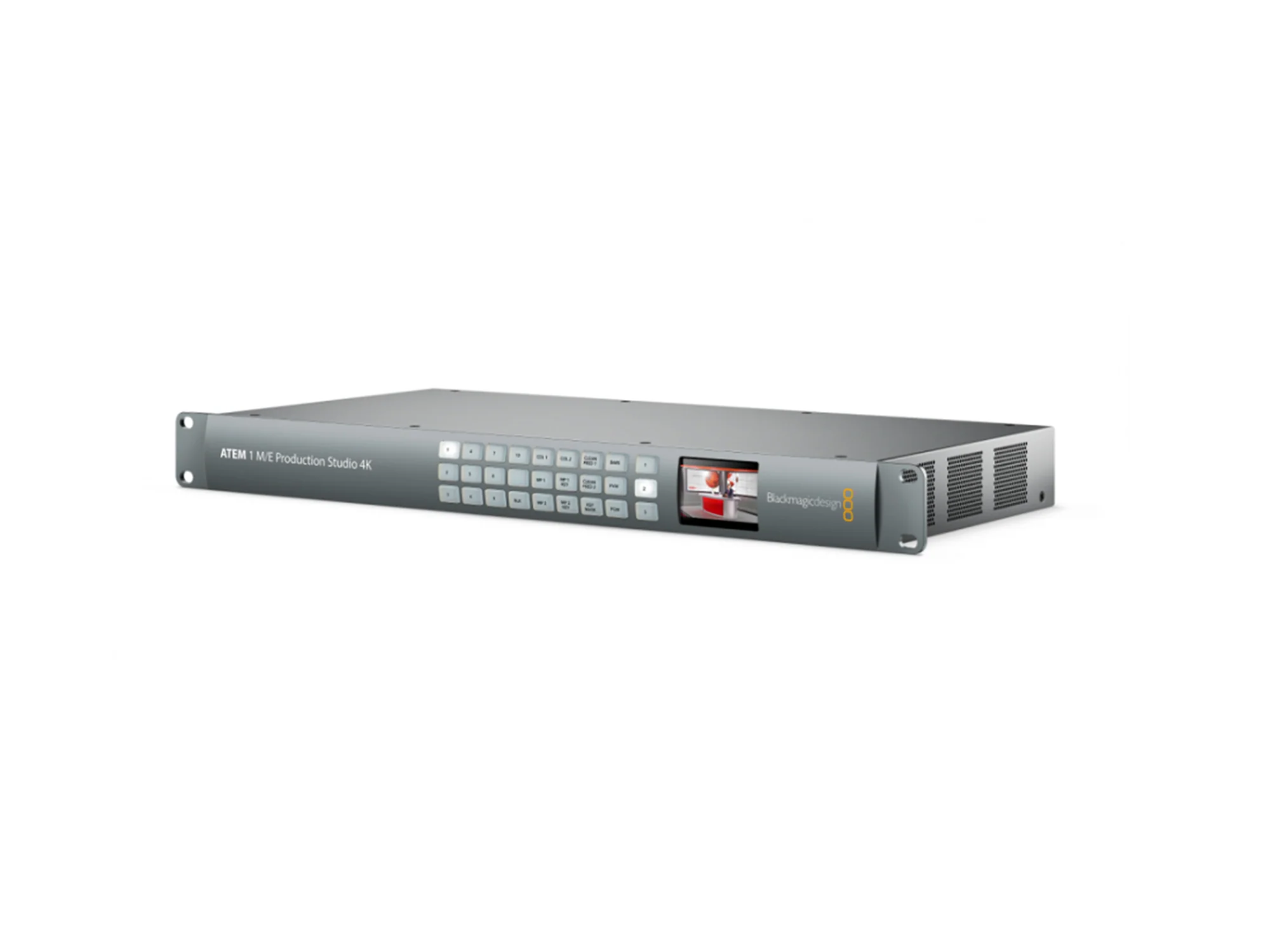

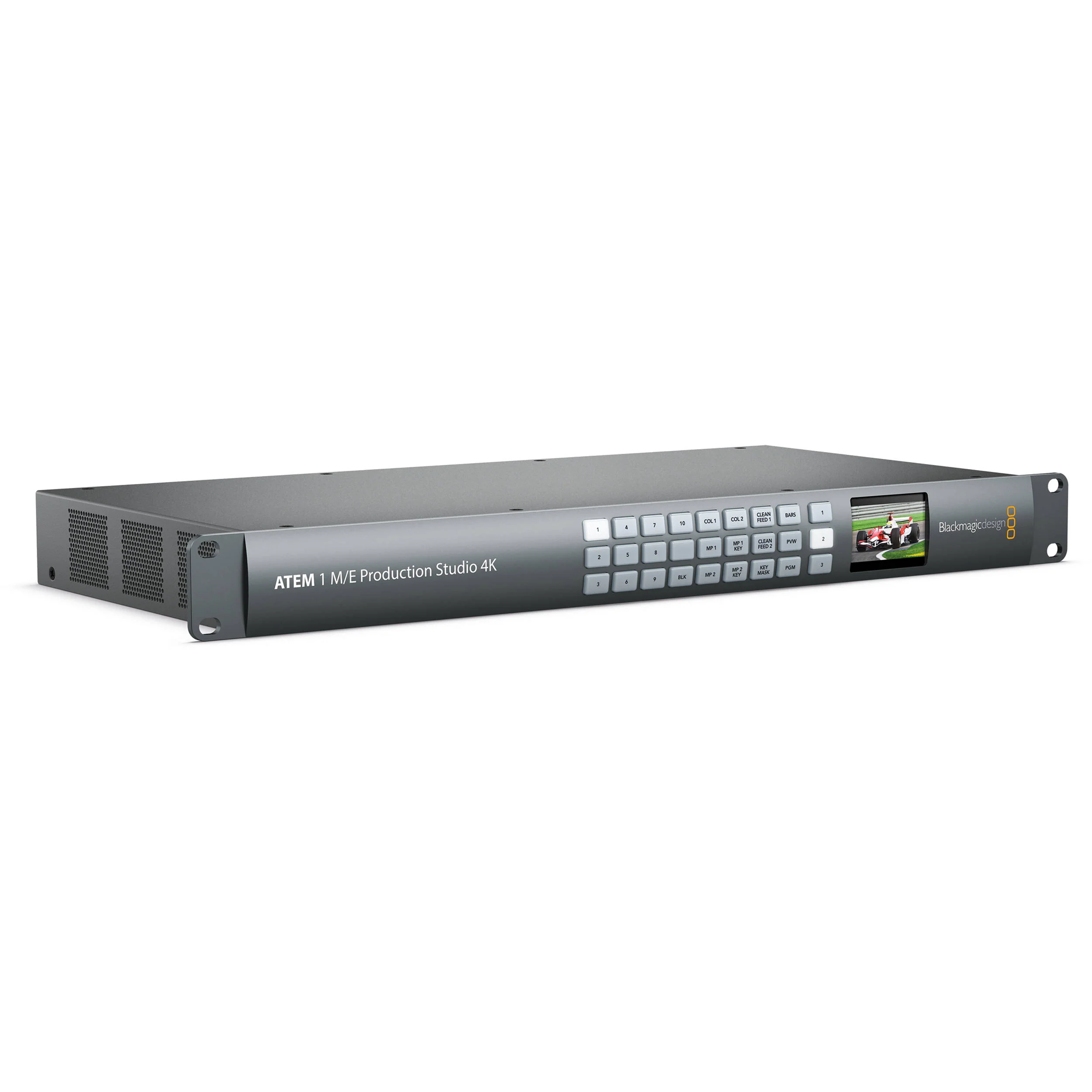

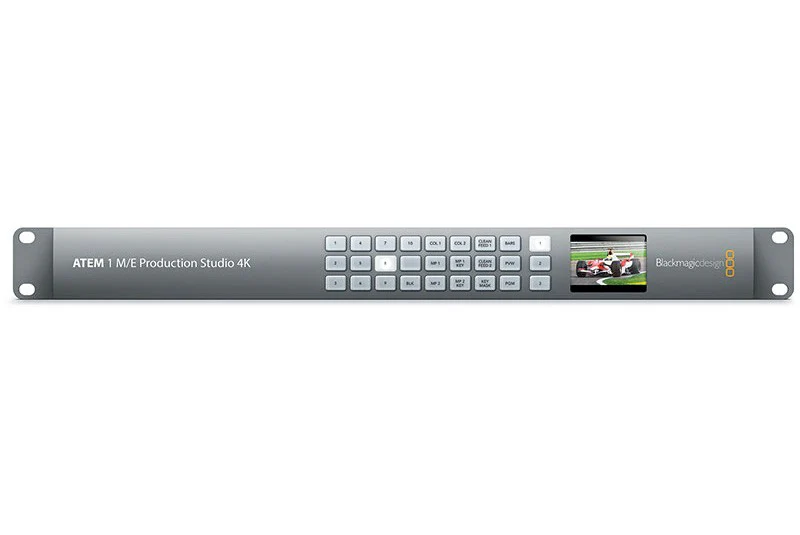

Blackmagic ATEM 1 M/E Production Studio 4K
Key Features:
- Supports NTSC/PAL/HD/UHD 4K at 10-bit
- Supports 4K Resolution over SDI or HDMI
- 1 x HDMI & 10 x 6G-SDI Inputs
- Tri-Sync/Black Burst Ref Sync Input
- 10 x Built-In Frame Synchronizers
- Multiview Monitoring in HD
- Program Outputs in UHD/HD/SD
- 4 x Keyers Total: 3 x Luma, 1 x Chroma
- 12-Channel Audio Mixer
- Hardware or Software Mac/Windows Control
|
Effect Types |
1 x DVE and Stinger 4 x Chroma Key 7 x Luma Key |
|
Downstream Keys |
2 x Alpha |
|
Generators |
7 x Pattern 2 x Color |
|
Switching Type |
Pushbutton, Software |
|
Latency |
2 Lines |
|
Color Processing |
10-Bit |
|
Number of Video Input Sources |
10 |
|
Video Input Connectors |
10 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) 1 x HDMI |
|
Input Video Format |
SDI (10-Bit) UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/50/59.94 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL: 25 fps NTSC: 29.97 fps HDMI UHD 4K: 23.98/24/25/29.97 fps 1080p: 50/59.94 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL NTSC |
|
Audio Input Connectors |
2 x 3-Pin XLR 1 x 2RCA |
|
Embedded Audio Input |
SDI: 2-Channel (per Input) |
|
Video Output Channels |
1 |
|
Video Output Connectors |
2 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Program) 1 x BNC (HD-SDI) (Program) 1 x HDMI (Program) 1 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Preview) 3 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Pass-Through) |
|
Output Video Format |
SDI (10-Bit) UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 29.97/50/59.94 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576) NTSC HDMI (10-Bit) UHD 4K: 23.98/24/25/29.97 fps 1080p: 50/59.94 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps PAL (768 x 576) NTSC |
|
Audio Output Connectors |
2 x 3-Pin XLR |
|
Multiview Output |
10-Way Multiview viaSDI 10-Way Multiview viaHDMI |
|

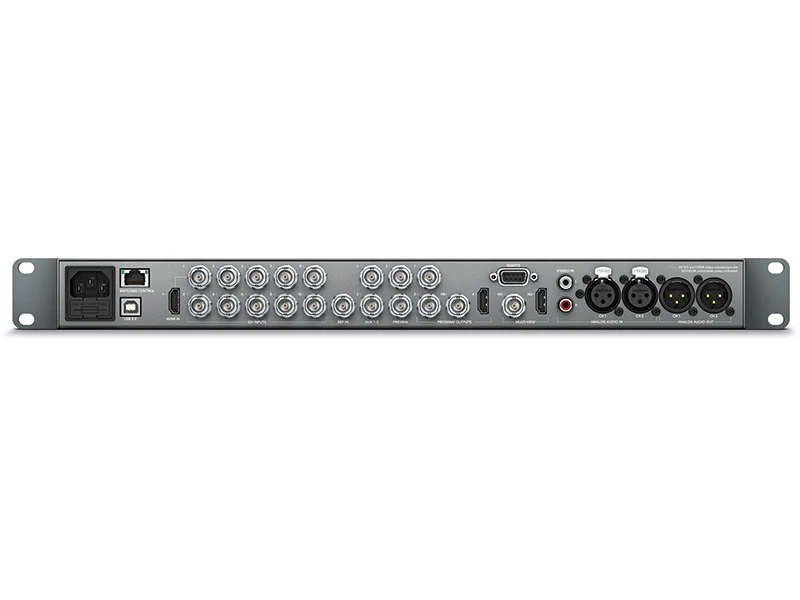

Other I/O |
1 x BNC Blackburst, Tri-Level Sync 1 x RJ45 LAN 1 x USB Type-B 1 x DE-9/DB-9 RS-422 |
|
Video Standard Compliance |
SMPTE 259M/292M |
|
HDCP Support |
None |
|
Display Size |
2" |
|
OS Compatibility |
macOS 10.7 or Later macOS 10.8 or Later Windows 7 Windows 8 |
|
Power Connector |
1 x IEC C14 Input |
|
Power Consumption |
Device: 100 W |
|
Rack Form Factor |
1 RU |
|
Dimensions |
19 x 9.25 x 1.7" / 48.26 x 23.5 x 4.32 cm |
|
Weight |
5.73 lb / 2.6 kg |
|
Package Weight |
6.65 lb / 3 kg |
|
Box Dimensions (LxWxH) |
19.2 x 10.9 x 3.4" |
In the Box:
- Blackmagic Design ATEM 1 M/E Production Studio 4K
- Limited 1-Year Warranty
