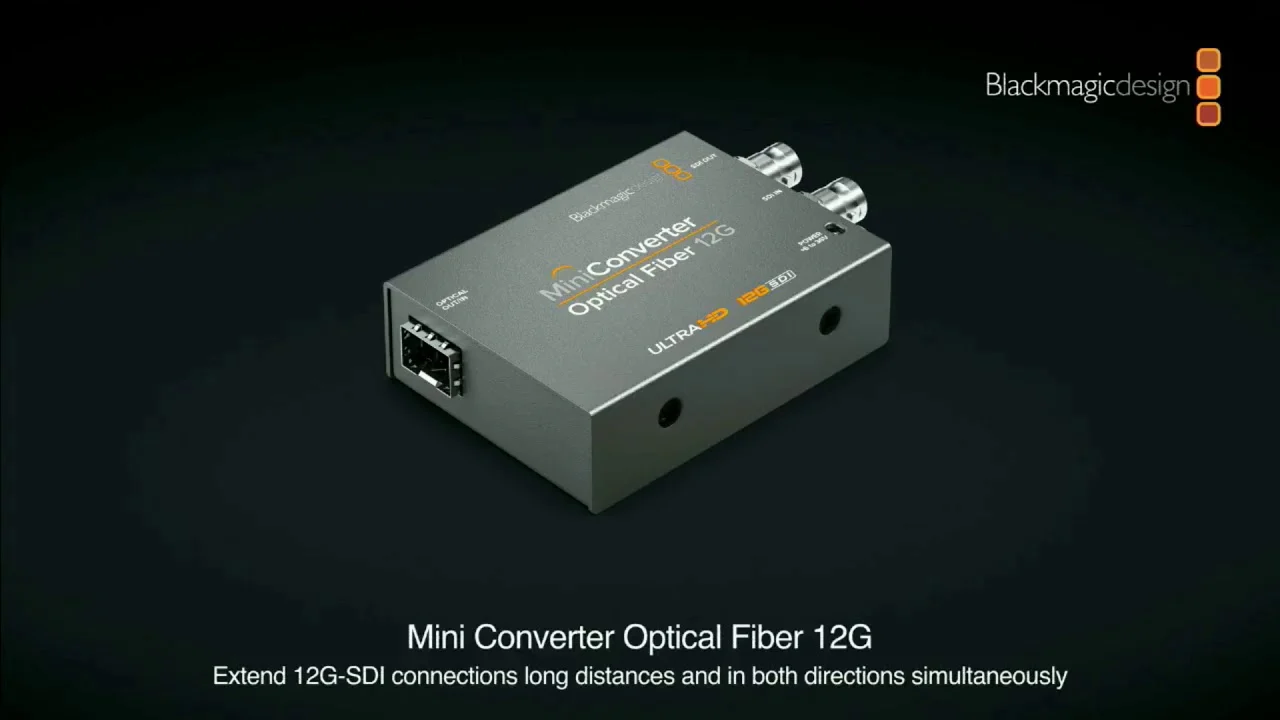

Blackmagic Mini Converter Optical Fiber 12G
Key Features:
- Converts 12G/6G/3G-SDI to Optical Fiber
- Supports Signals up to DCI 4K25
- Multi-Rate, Bidirectional Capability

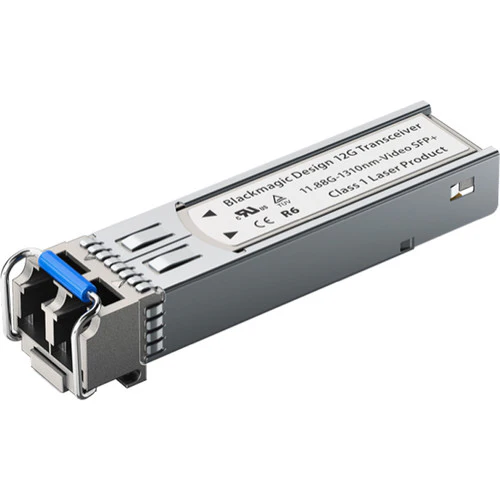

- Requires Separate SFP Optical Module
- Automatic Input Signal Detection
- 16-Channel Embedded Audio Support
- Diagrammed Function Switches
- Update via Converter Utility Software
- Locking, Universal Power Supply
- Compact Metal Housing

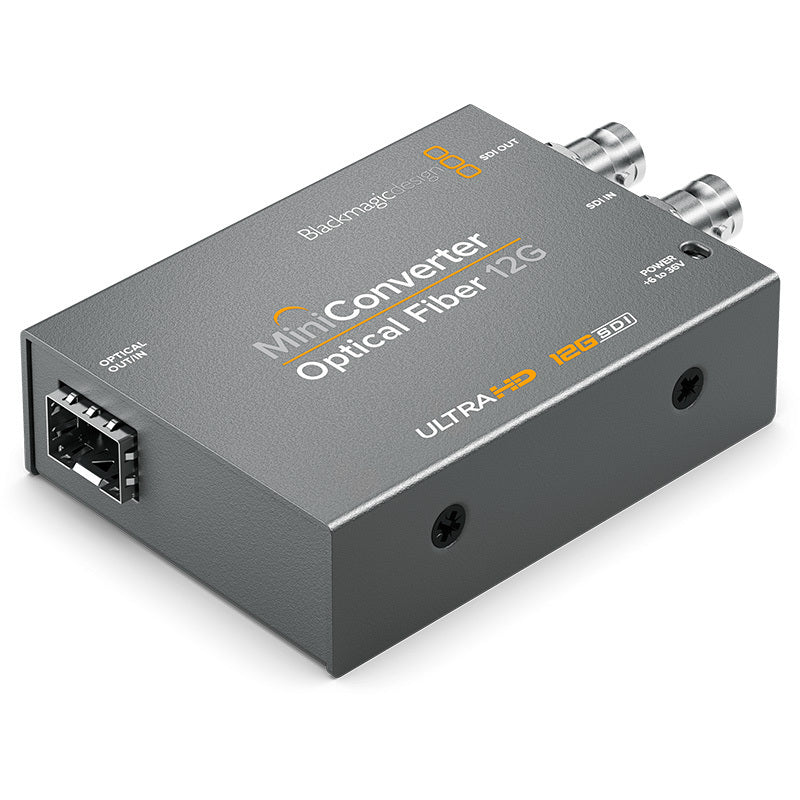

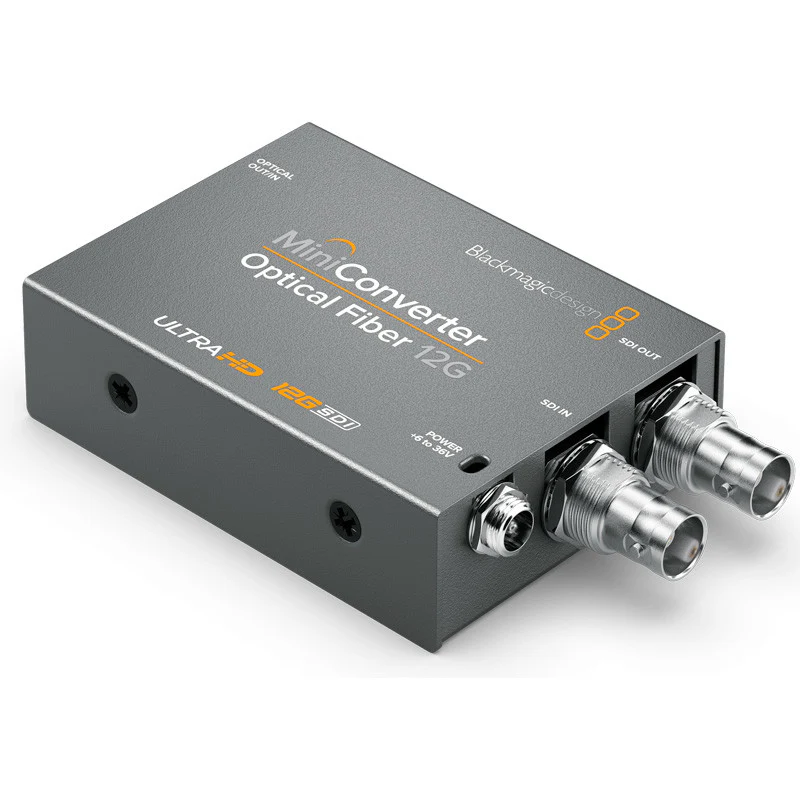

The Mini Converter Optical Fiber 12G-SDI from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.
Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.
Features:
- Bidirectional, multi-rate SDI to optical fiber conversion
- Supports video signals up to DCI 4K25 and UHD 4K60
- Automatic signal detection
- Supports up to 16-channel embedded audio
- Change settings with function switches or the macOS/Windows-compatible software
- Universal power supply with locking connector
- Rugged, compact metal housing
- One SMPTE optical fiber SFP socket (requires separate module)
- 12G/6G/3G-SDI input and output
Technical Specifications:
|
Video Input Connectors |
1 x BNC (12G-SDI) |
|
Input Video Format |
SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps |
|
Embedded Audio Input |
SDI: 16-Channel |
|
Video Output Connectors |
1 x BNC (12G-SDI / 3G-SDI / 6G-SDI) |
|
Output Video Format |
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps |
|
Embedded Audio Output |
SDI: 16-Channel |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081 ITU -R BT.601 |
|
HDCP Support |
None |
|
Expansion Slots |
1 x SFP Slot |
|
Power Connector |
1 x Barrel (6 to 36 VDC) Input |
|
Power Consumption |
Power Supply: 2 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Dimensions |
4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm |
|
Weight |
7.4 oz / 210 g |
In the Box:
- Blackmagic Design Mini Converter Optical Fiber 12G-SDI
- Universal Power Supply
- Limited 1-Year Warranty
