Huepar HM03CG Laser Level

• Brighter Green Laser & Material: This self-leveling laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. The 3D laser level is made of ABS and covered by TPR soft rubber, which delivers soft touch and stronger protection.

• 3D Laser Level and Pulse Mode: The Huepar green laser level can cover all around the room because it has one 360° horizontal and also two 360° vertical lines. You can easily choose to turn on/off any laser line as each button corresponds to a single laser line. The green beam is 4x bright as the red laser, with working range up to 98 feet (100LUX) of accuracy within ±1/9" at 33 Feet. The outdoor pulse mode extends the laser range up to 200 feet with Huepar Line Laser Detector.

• Two Operation Modes: This 3D laser level has self-leveling mode and manual mode. For the self-leveling mode: unlock the pendulum and the laser level will self-level within 3°, otherwise the laser will keep flashing. Lock the pendulum, to switch to the manual mode and meet your alignment needs from different angles.

• Large Battery Capacity and Type-C Charging Port: The built-in 3.7V 4000mAh Li-ion battery offers you 8 hours of continuous working time, so it’s not necessary to charge the batteries frequently. The 4 battery indicators show you the current battery status and the charging protection prevents overcharging. This laser tool can also be charged by laptop, power bank, car charger, etc, because it has type-C charging port.

• Mounting Thread and 360° Magnetic Bracket: This green line laser can be fixed on a tripod with a 1/4"-20 mount thread. You can quickly position and hang it on metallic surfaces because it has strong magnetic bracket which offers also 1/4"-20 & 5/8" - 11 mounting threads to suit different tripods. The Huepar green laser level has more fixing methods using the two nail holes on the bracket. This will help you with your home projects, for hanging pictures and wallpaper.

• Kit Content and Professional Service: A portable hard carry case is included for an easier carriage and storage. The package contains 1 HM03CG laser level, 1 magnetic bracket, 1 hard carry case and 1 Type-C charging cord. Our professional team is happy to help you with a 24-Month after-sale service and lifetime technical support. Please feel free to contact us for any additional information or technical support.

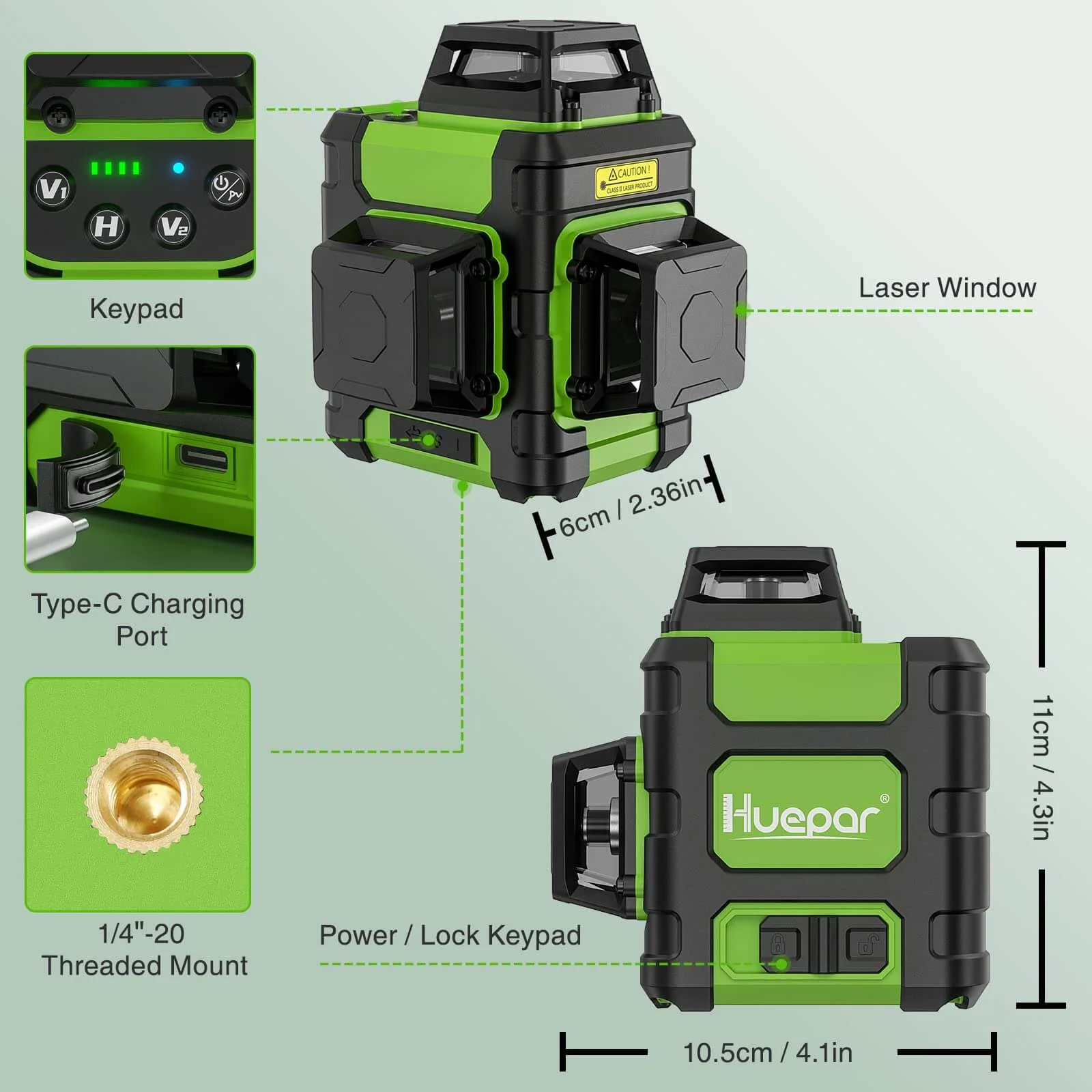

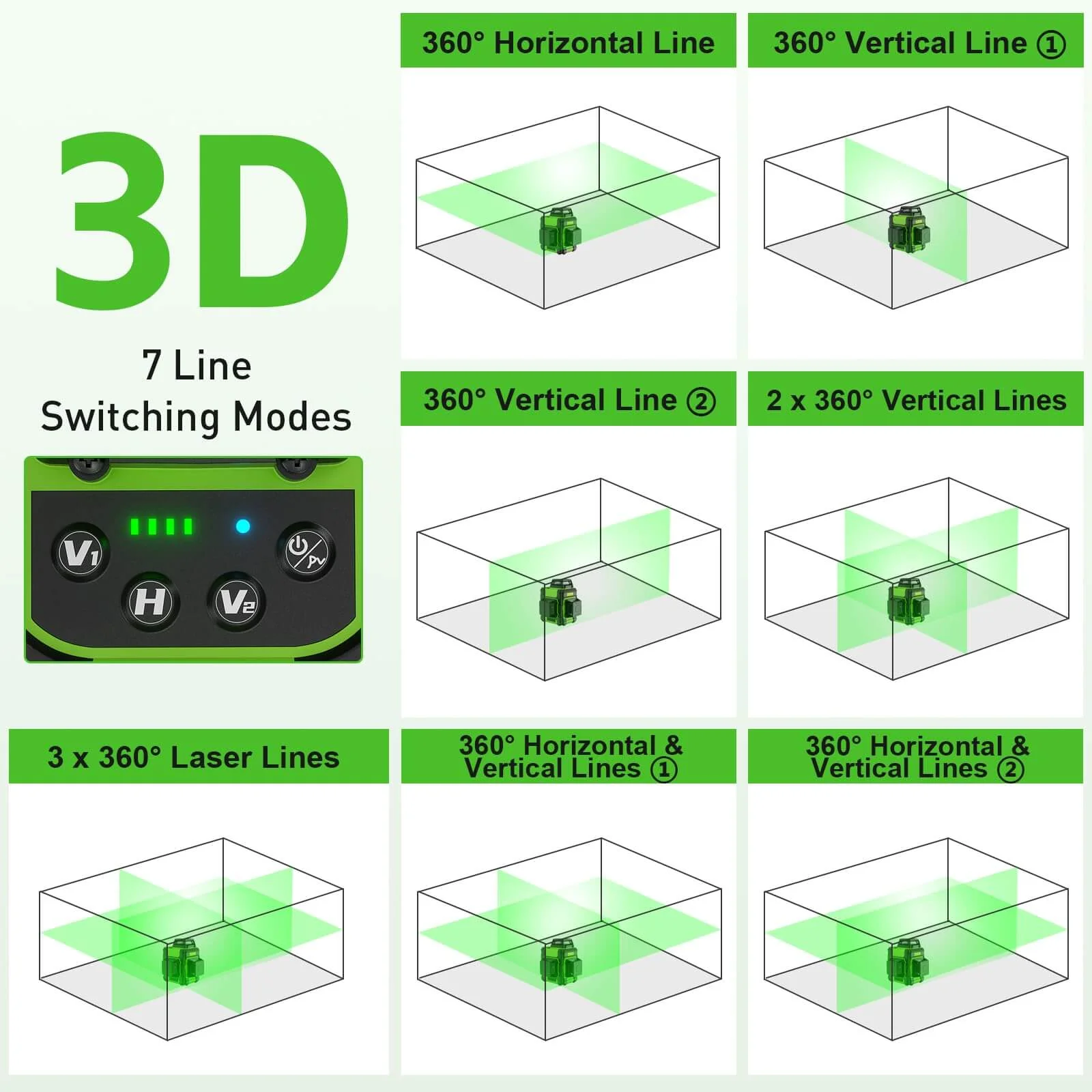

Lines Switching & 3D 360° Laser Lines

• Short press the "H" and "V" buttons on the keypad to switch the 360°Horizontal and 360°Vertical laser lines separately.
• The three laser lines can be selected individually depends on job site applications.
• Two 360° horizontal and one 360° vertical lines appear simultaneously providing all-around leveling coverage on the floor, wall, and ceiling all around the room.
• Making it possible to greatly reduce the time loss associated with conventional horizontal alignment.
• The 3D Laser Level provides all-around leveling coverage with an accuracy of ± 1/9 in at 33ft.

Self-leveling mode & Manual mode

Self-leveling mode:

• When the laser tool is switched to the unlocked position, self-leveling mode is on.
• This 3D laser level can quickly level within 3 seconds.
• The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (3°±1°).

Manual mode:

• When the pendulum lock is in locked position, you can place the laser tool at various angles to have non-level straight lines.
• The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

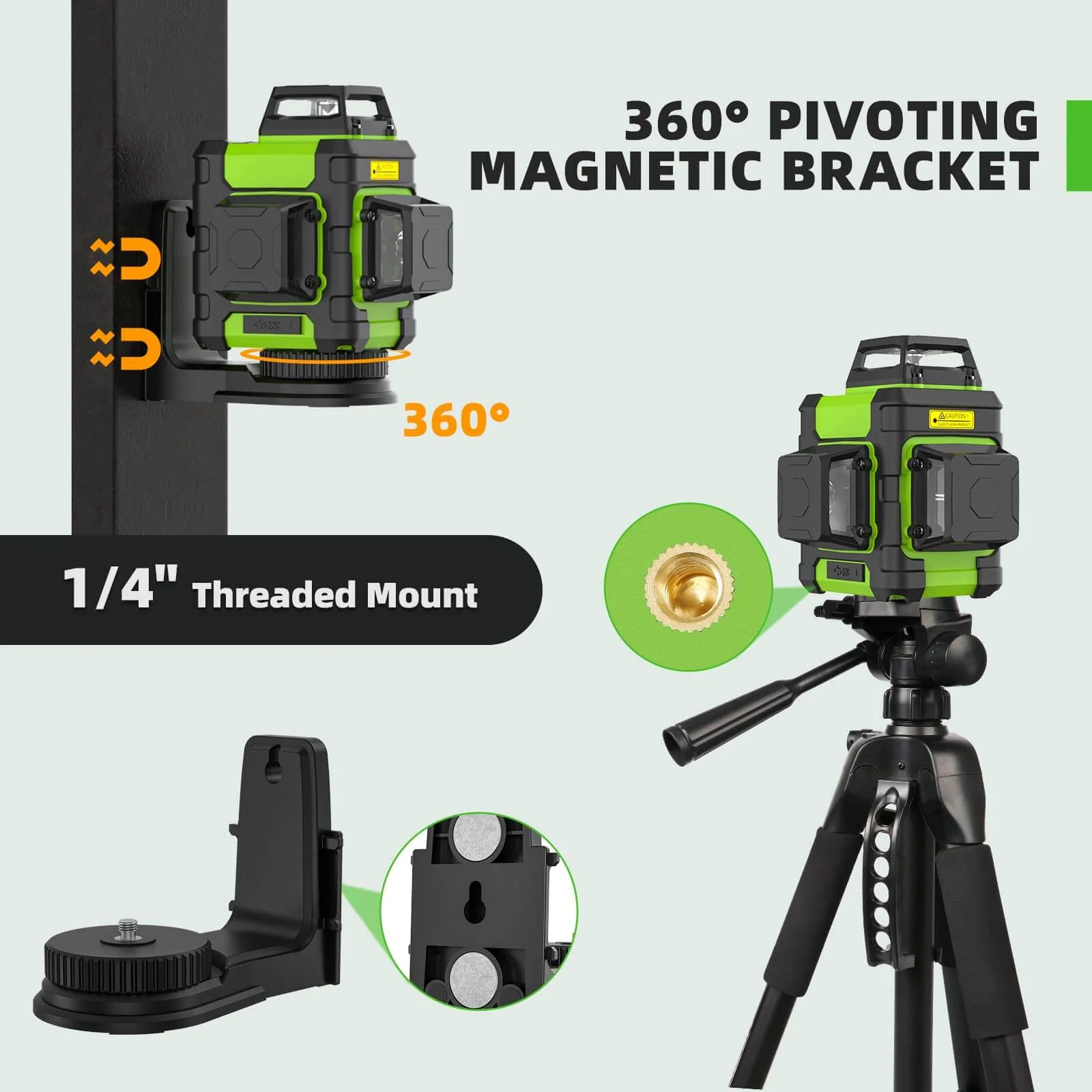

Wide Application & Easy to Install

• 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
• 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
• 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole and the laser line can be projected at any position or angle, which is very convenient for your work.



Type-C Charging Port & Rechargeable Built-in Li-ion Battery

• This laser tool utilizes the built-in large capacity of 3.7V / 4000mAh Li-ion battery which provides up to 8 hours of running time.
• 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent overcharging.
• With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
• The line laser enjoys lower energy consumption and longer battery lifespan, let you use more times without changing the battery frequently.

Pulse Mode

• After power ON, short press pulse mode button to switch ON/OFF the pulse mode.
• Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
• It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
• Note: Keep the pulse mode on when using with a receiver.

Upgraded Bright Green Laser Technology

• The upgraded laser technology makes the Green laser beam bright and clear used indoors and outdoor.
• This cross line laser adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.
• At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.
• This laser tool can fully meet indoor and outdoor projects.

Hard Carrying Case & IP54

• The laser tool is completely covered by TPR soft rubber, which delivers a soft touch and stronger protection.
• The kit comes with a hard carry case bringing much more convenient to carry and store the laser tool.
• The laser level meets the IP54 protection level and can be shockproof, dustproof, waterproof, wear-resistant, impact-resistant, cold-resistant, and high-temperature resistant, ideal for construction site work.

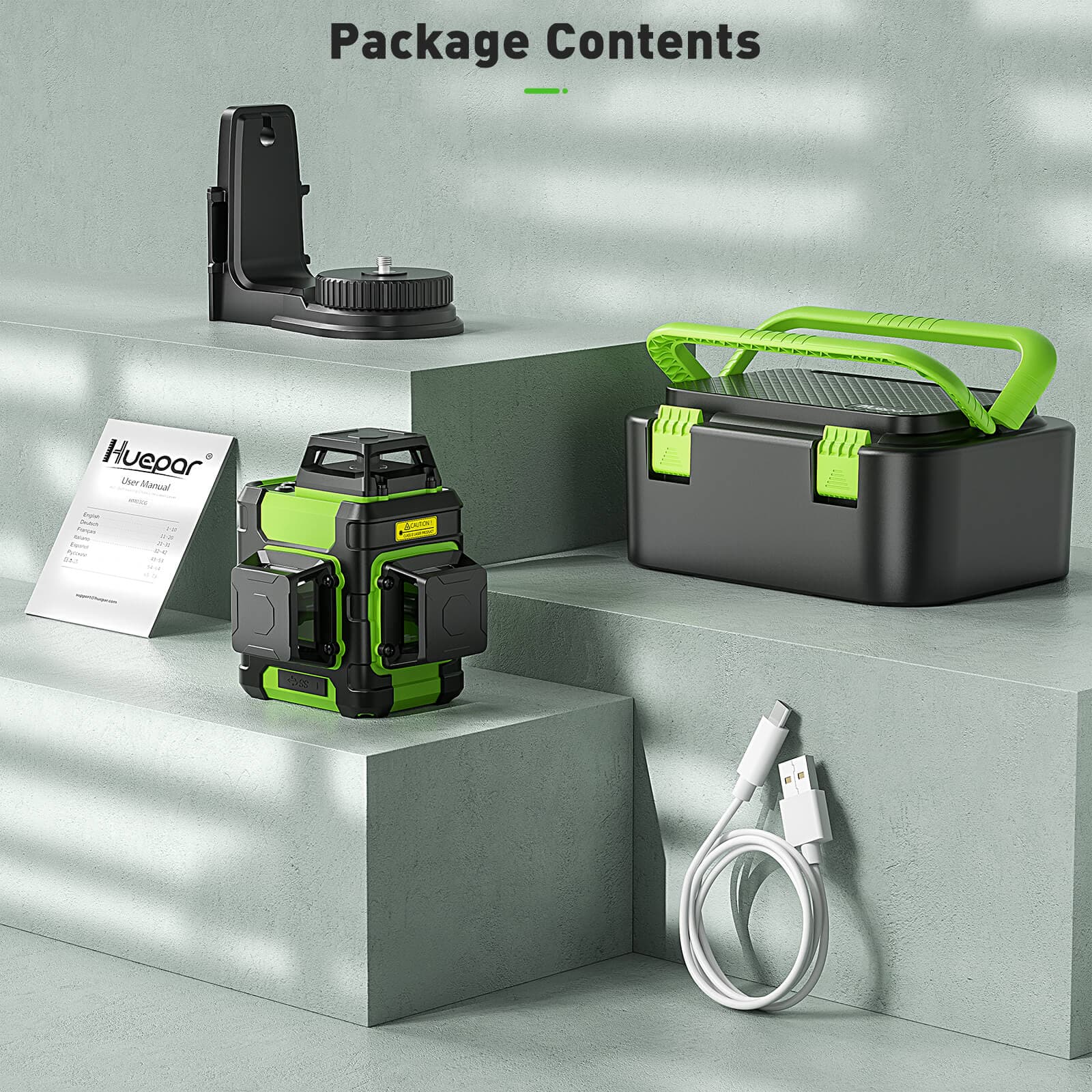

Package Contents

• 1 x Huepar HM03CG Laser Level
• 1 x Type-C Power Cord
• 1 x 360° Magnetic Pivoting Base
• 1 x Multilingual User Manual
• 1 x Hard Carry Case
