Huepar Pro ZK03CG Laser Level
- ±1/13 inch at 33Ft High Accuracy: The professional self-leveling laser level has high accuracy in ±1/13 inch at 33Ft with working range up to 100Ft(100 LUX). Using Huepar laser receiver(not included) in strong light or outdoor conditions, pulse mode extends the laser range to 200Ft. The 3D line laser adopted bright Osram green laser unit with greater stability and visibility. It is laser Class 2 (IEC/EN60825-1/2014), <1mW.
- 8000mAh Li-ion Battery: The 8000mAh rechargeable Li-ion battery provides 10 hours of working time with all laser beams on. It can be charged separately with the type-C charging port. The removable battery also has a micro-USB port to charge other devices, like laser distance meter, or other laser levels and tools.
- 5-year Warranty & Durable Design: Our professional team is happy to help you with a 60-Month after-sale service and lifetime technical support. A durable hard carry case is included for easier carriage and storage. The laser window cover is made of rugged metal and the laser level tool is wrapped in overmold housing with full rubber for shock protection. IP54 Rating helps to withstand harsh jobsite conditions.

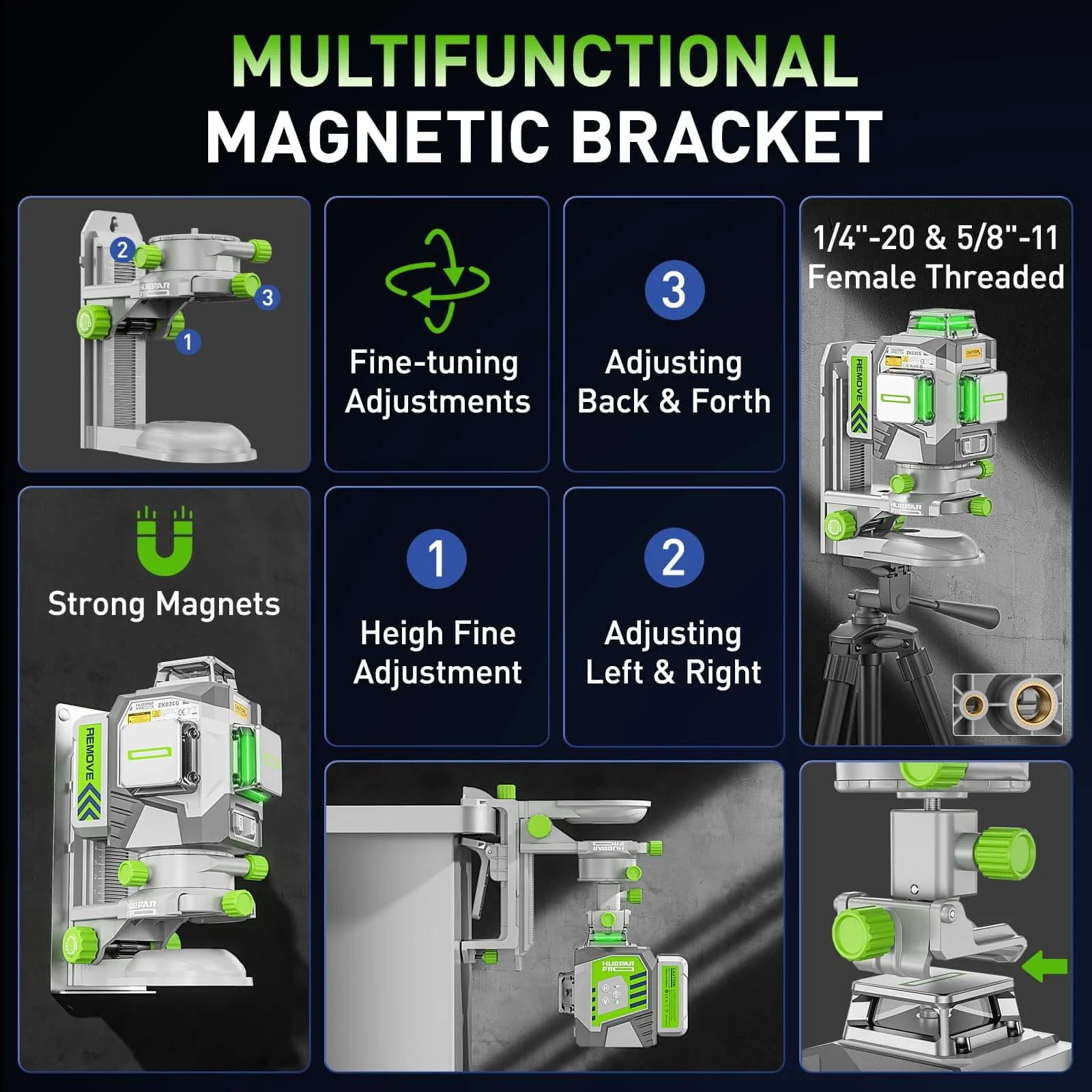

- Remote Control & Magnetic Bracket: With remote control, turn on/off pulse mode, switch three laser lines at a distance up to 32.8Ft. Magnetic bracket offers quick positioning on metal surfaces with fine-tuning knobs to adjust laser line up & down, left & right, back & forth, and rotate 360°. The bracket has 1/4"-20 and 5/8"-11 threaded mounts on bottom to be used with tripods or pole mounts. The green laser level tool also has 1/4"-20 mount thread to suit a tripod or pole mount.
- Self-leveling/Manual Mode & Line Switch: The cross line tool has a smart pendulum to self-level in 3 seconds when unlocked. It emits a beeping sound and the laser line flashes quickly when exceeds the self-leveling range of ±3°. Lock the pendulum to manual mode and the laser line can be used at any angle. The three 360 lines can be selected individually using the H and V buttons on keypad.
- 3D Laser Level: This green beam laser level is a 3 x 360° laser level with one 360° top horizontal laser lines and two 360° vertical laser planes that projected onto ceilings, walls, and floors throughout the room. The 360° top horizontal line can be used for ceiling application.
Specifications:
Laser Class: Class 2 (IEC/EN6082 5-1/2014),<1mW
Laser Wavelength: 505-520nm
Leveling Accuracy: ±2mm/10m (±1/13 in.at 33ft)
Leveling/Compensation Range: ±3°
Self-leveling Time: ≤3 seconds
Reference Working Distance (100lux): 30m / 98ft
Reference Working Distance (with Laser Receiver): 40-60m / 130-197ft
Reference Operating Time: About 10 hours
Power Source: 3.7V/8000mAh Li-ion battery
Charging Port: Type-C
Power Adapter: 5V=2A
Charging Time: About 5 hours
Female Threaded Size: 1/4''-20
IP Rating: IP54
Operation Temperature Range: -10°C ~ +50°C
Storage Temperature Range: -20°C ~ +70°C

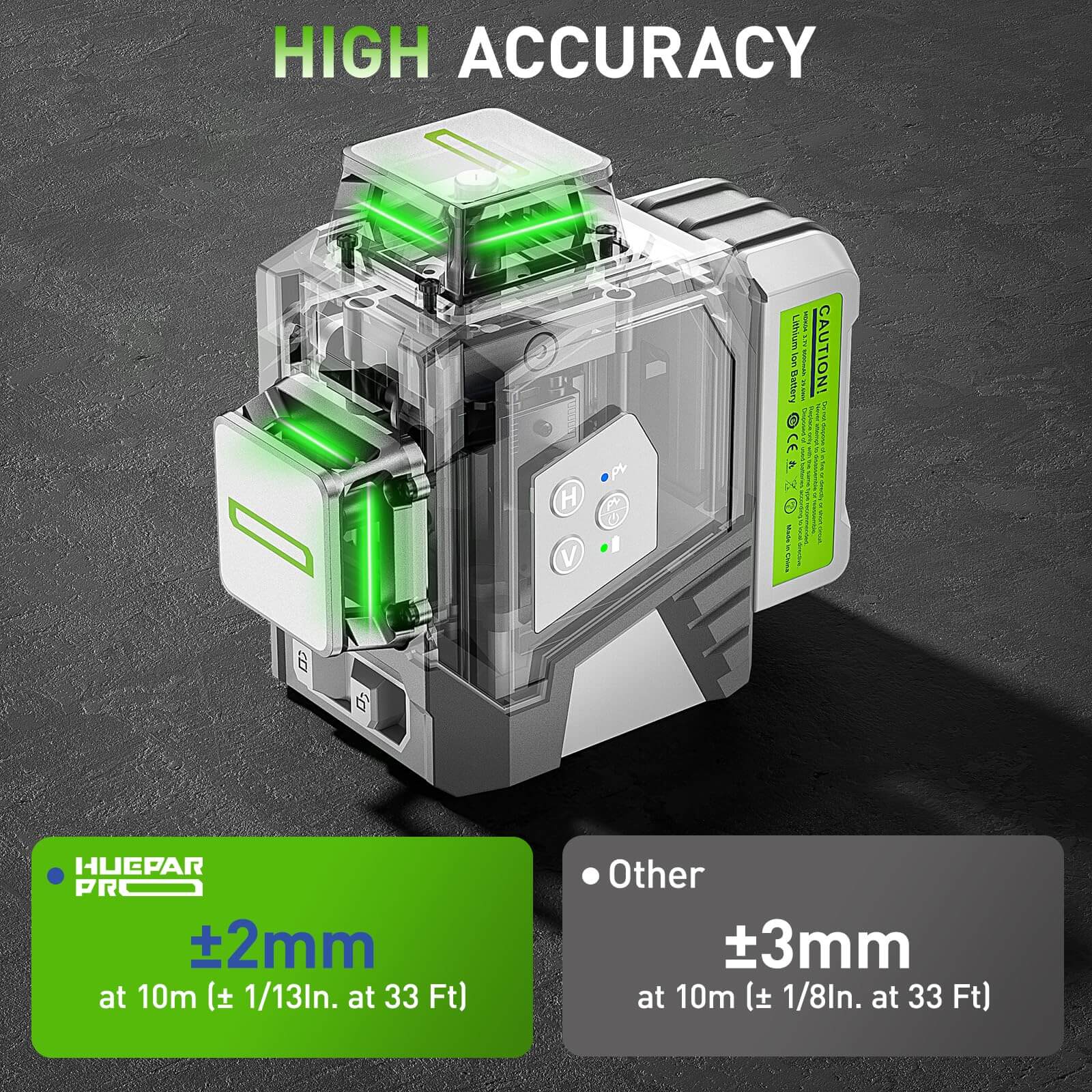

±1/13 inch at 33Ft High Accuracy
- From a large number of laser level modules, high precision modules are selected and specially tuned by hand to produce a laser level with an accuracy of 1/13 inch at 33 feet.
- The percentage of high-precision modules in the total number of modules is only 10%.

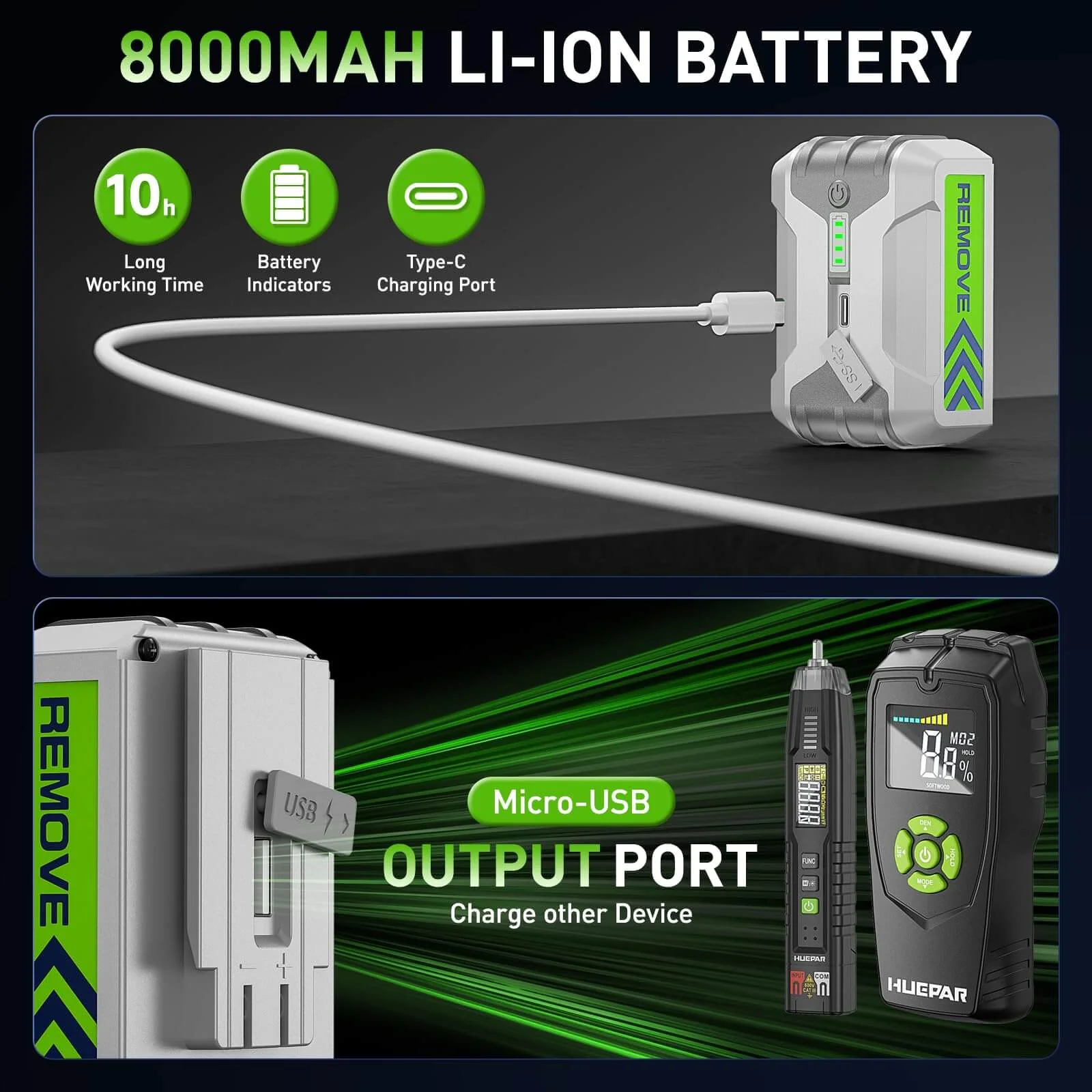

8000mAh Rechargeable Li-ion Battery
10 Hours Working Time
- The 8000mAh rechargeable Li-ion battery enables the laser level to work for 10 hours with all three 360° laser beams on.
- Type-C charging port can be used to charge the battery through car charger, rechargeable treasure and other ways.
- Battery indicators let you know the power status at any time.
With Output to Charge other Device
The removable Li-ion battery also has a micro-USB port to be used as a power bank to charge other devices, like laser distance meter, or other laser levels and tools.

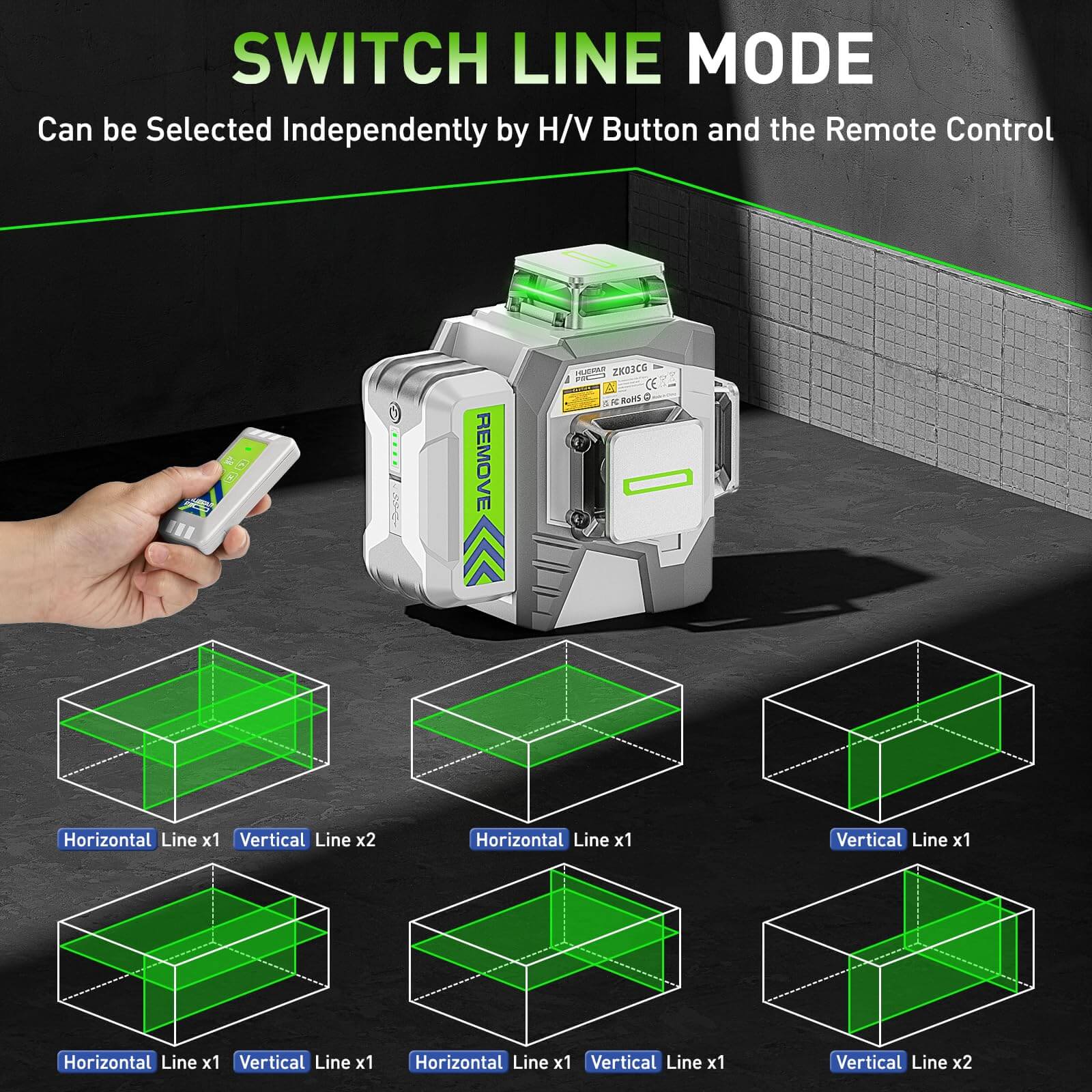

Line Switching
360° laser lines can be selected separately by "H" and "V" buttons on keypad and the remote control.

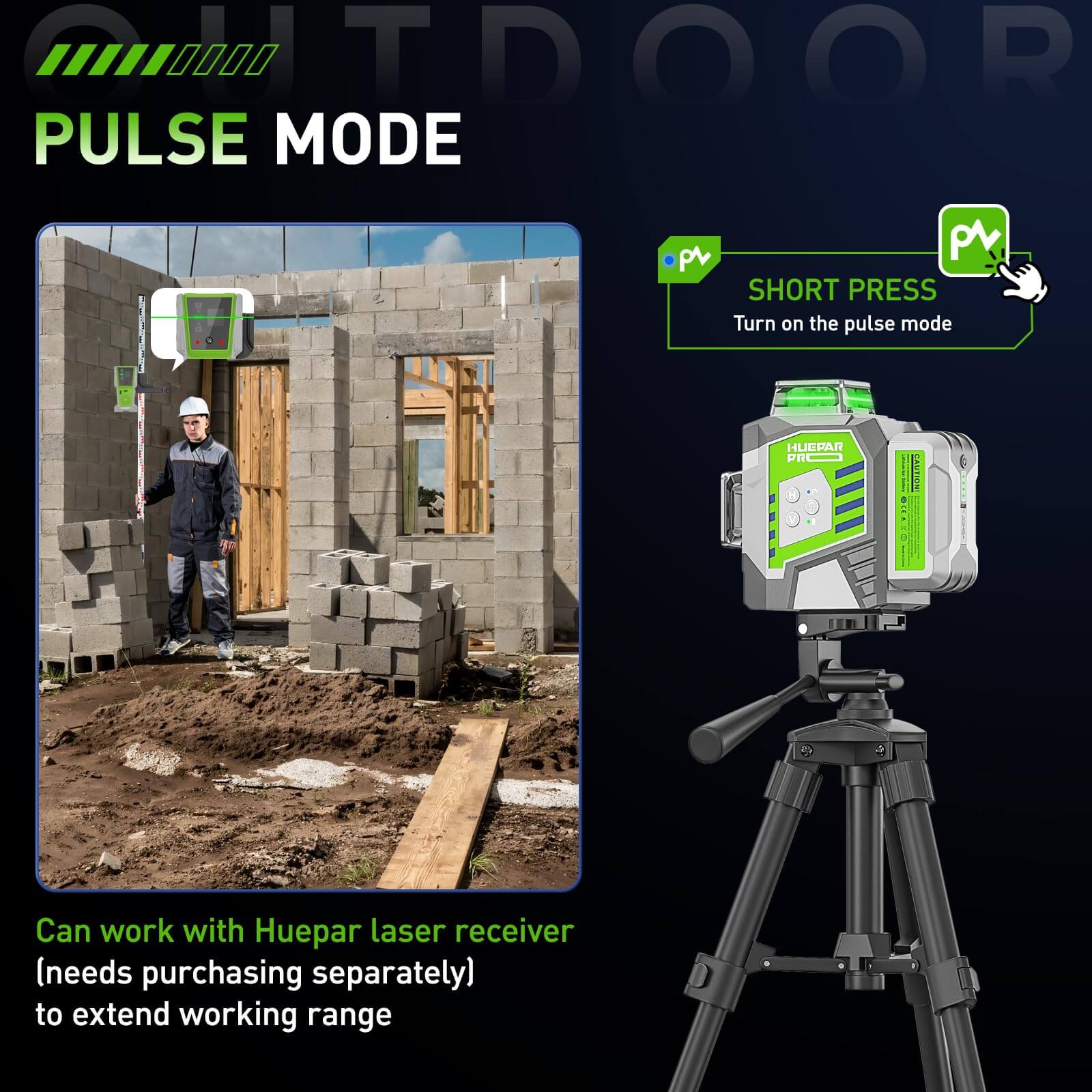

Pulse Mode
Pulse Mode extends working range to 200Ft, using with a Huepar laser detector LR-6RG/LR-5RG/LR-8RG.

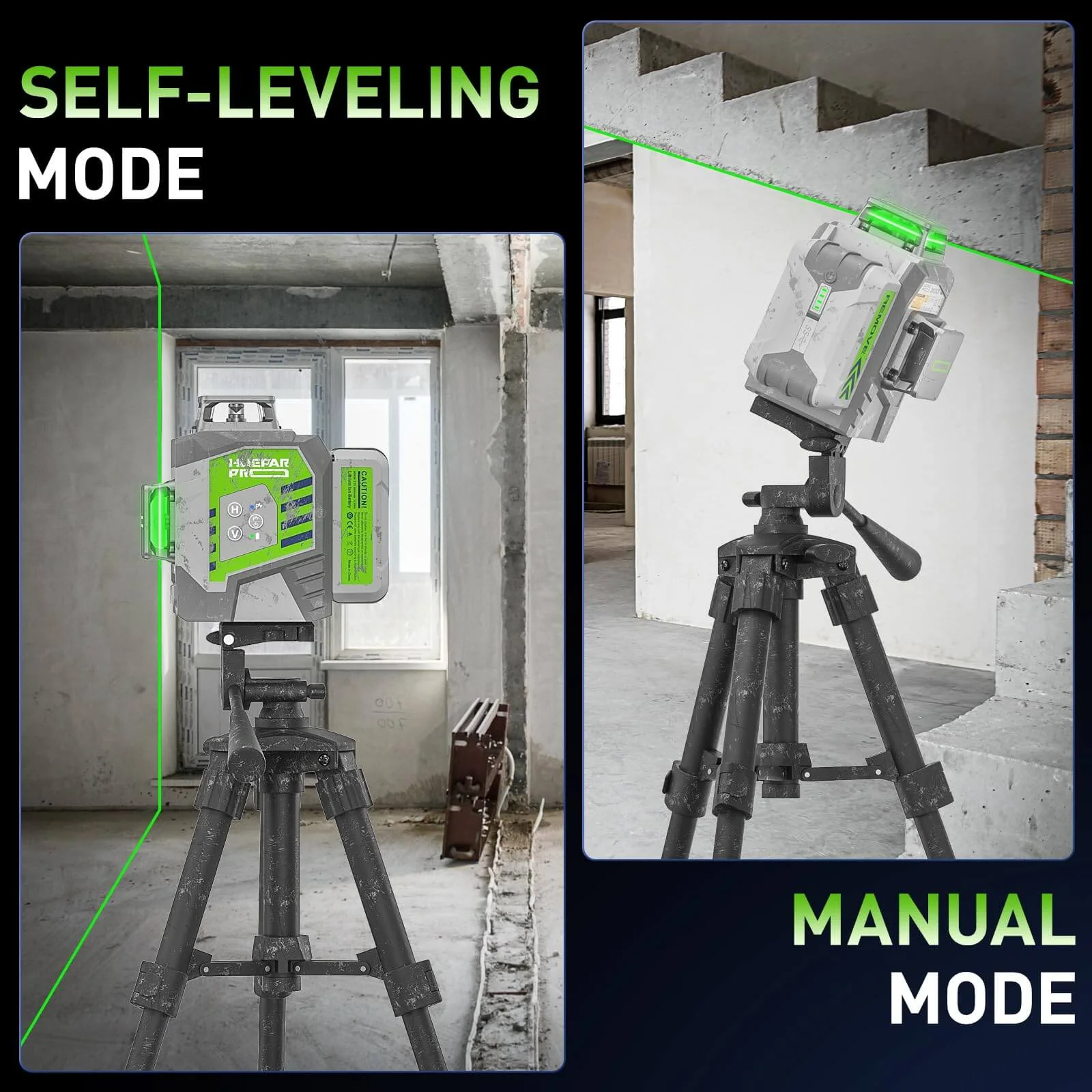

Self-leveling Mode
The pendulum unlocks to enable self-leveling mode with Levelling compensation range ±3°.
Manual Mode
The pendulum is in the locked position and the laser tool can be placed at any angle for use.
