LS R4 AC Compressor Bracket High Mount Kit For Chevrolet LQ4 LQ9 L92 L99 L33 LR4 LSX

Features:

• This bracket is specifically designed for the LS R4 AC compressor, located on the passenger side. Suitable for LQ for LS2 for LS3 for LS6 VORTEC Trucks

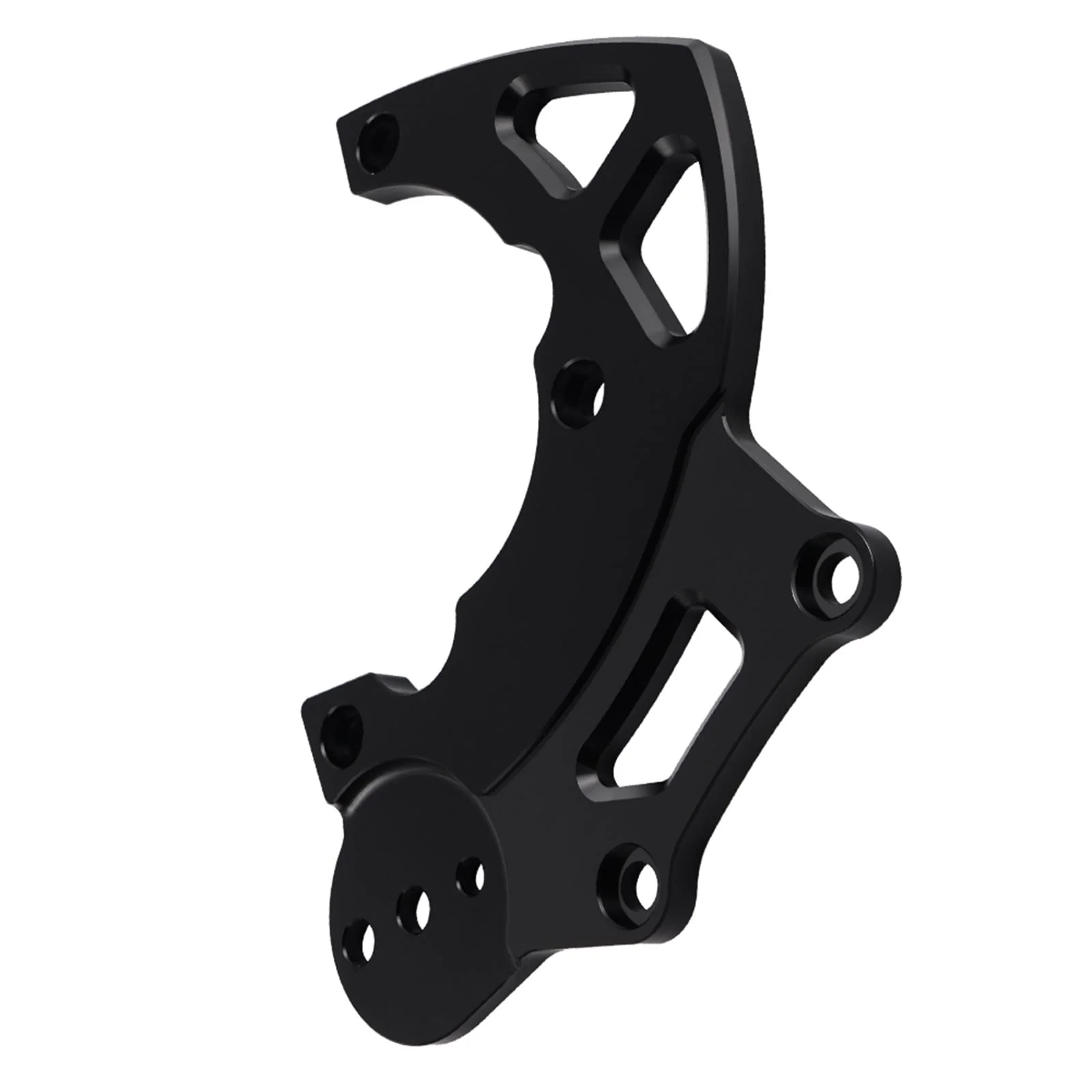

• Front Main Bracket Crafted from 1/2" Thick 6061-T6 Aluminum
• Both rear supports are manufactured from 1.00" thick 6061-T6 aluminum,  Designed to Prevent Any Deflection. (Competitors use 1/4 inch thick, unfinished aluminum)
• Our design and great glossy finish make this support kit one of the best.
• Compatible with Chevrolet GMC LQ LS2 LS3 LS6 A/C Vortec Truck Triangles.

Item Specifications:

• Brand: Bevinsee
• Condition: 100% Brand new
• Material: Aluminum
• Processing: CNC-machined

Package Included:

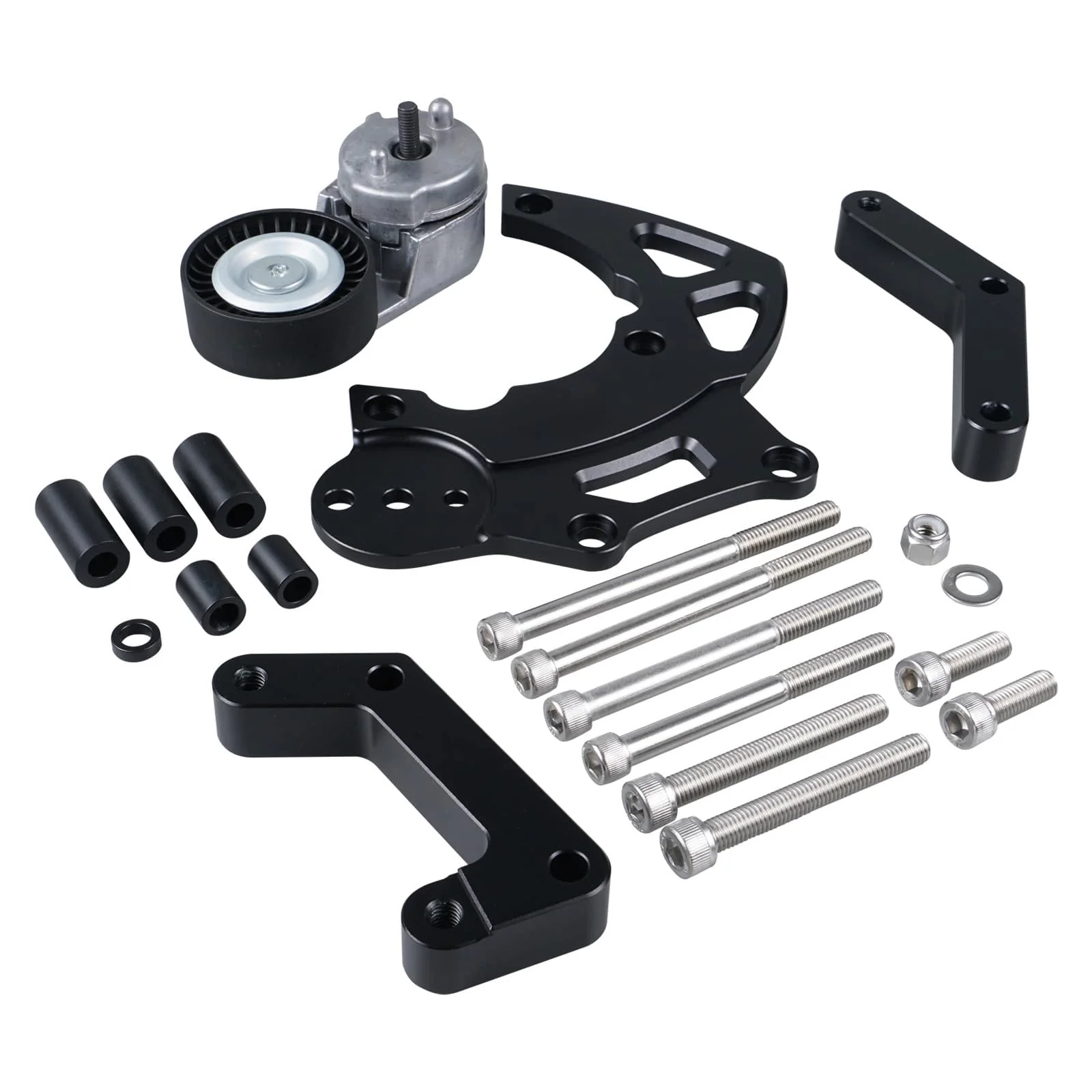

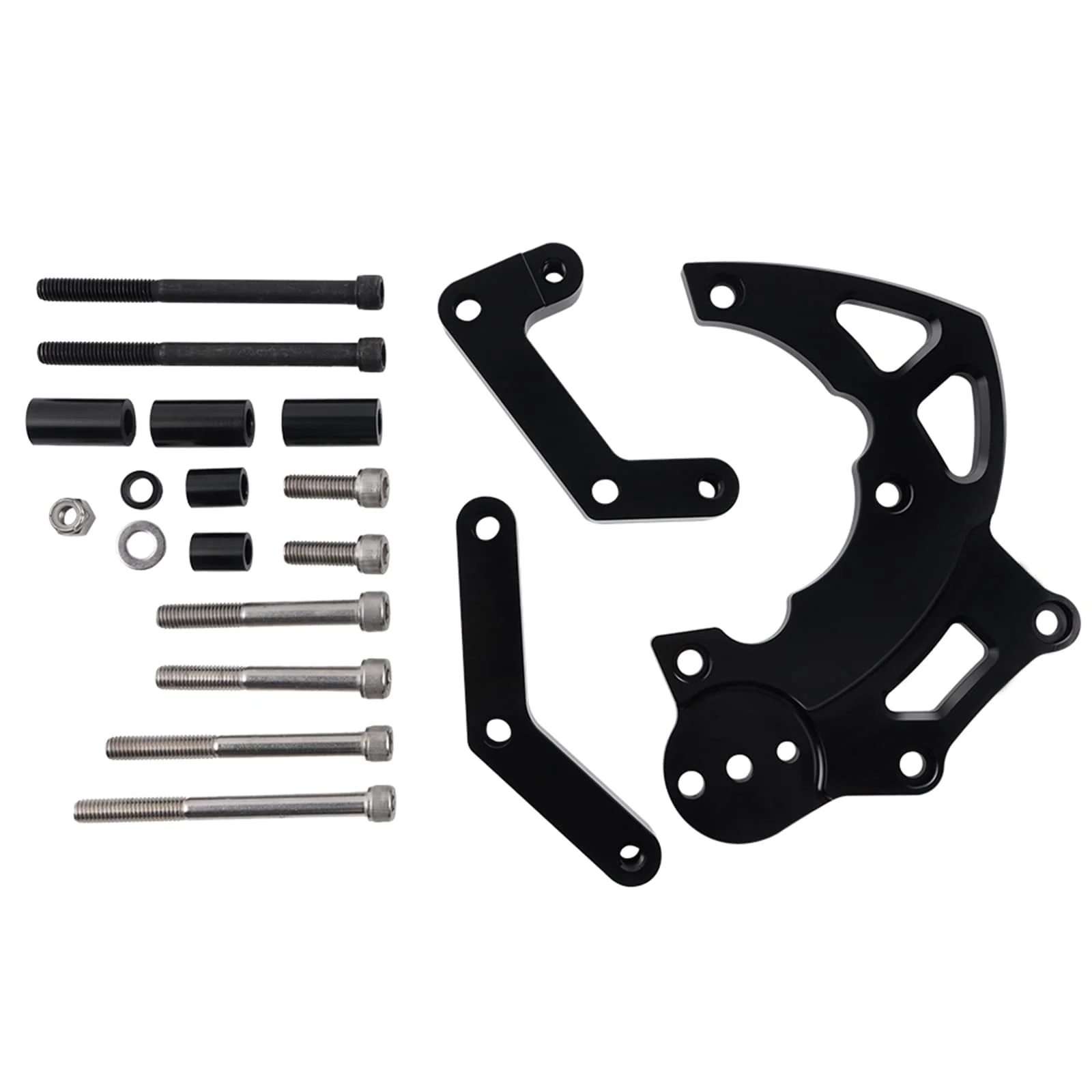

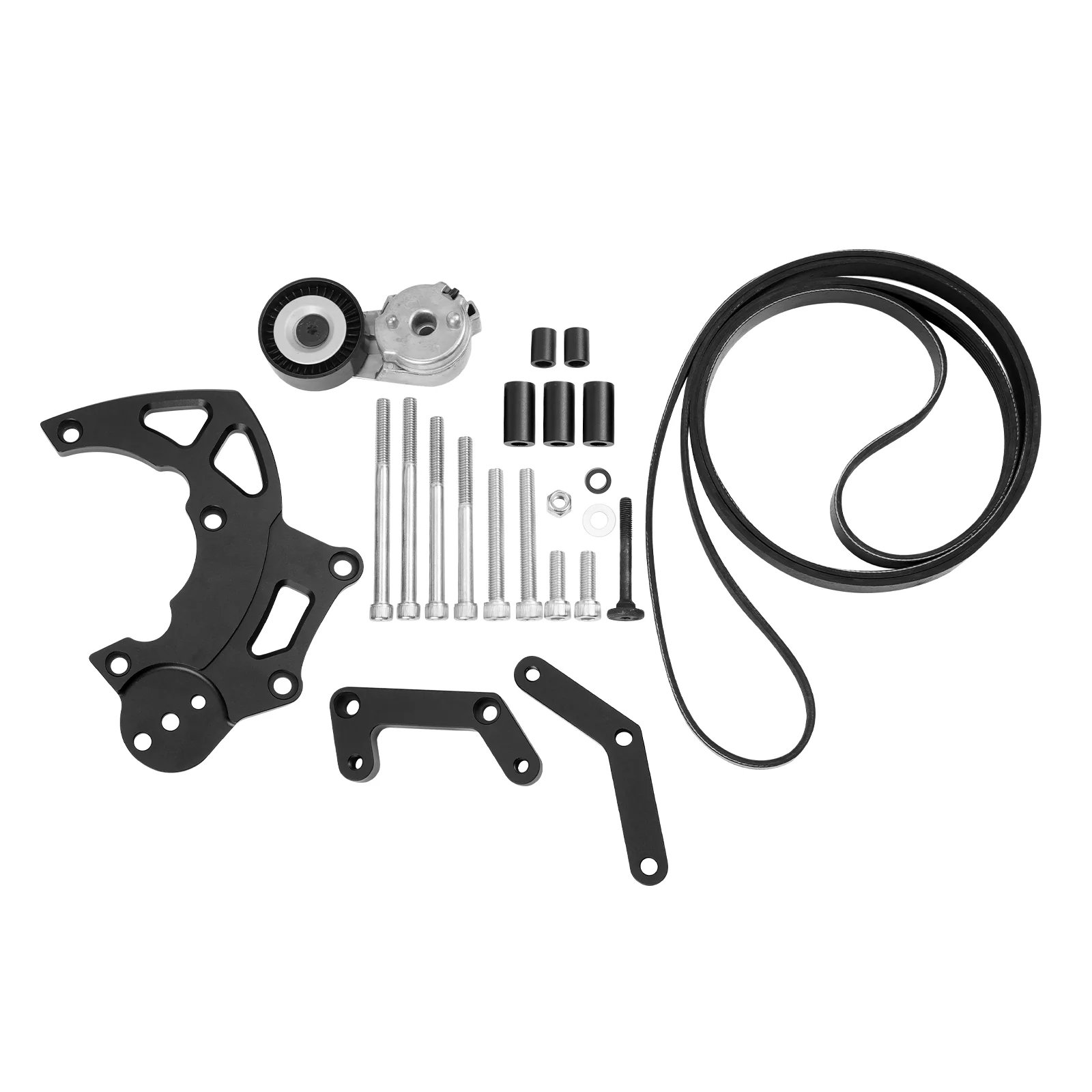

1 main support. (1/2 thick), 2 rear brackets (1.00 thick), all hardware requires installation, instructions.

Fitment:

The bracket is designed to work with GM factory R4 Compressor 1988-1995.

Compatible with Chevy, and for GMC, for SUV, and for Truck Engines from 1999 to 2013 with Vortec Engines

Compatible with 4.8, 5.3, 5.7, 6.0, 6.2 or LSX blocks. (Designed for Truck or SUV Vortec Accessory Drive).

Note: Belt not included; If you use the factory alternator bracket, you need a 104-inch long belt.
