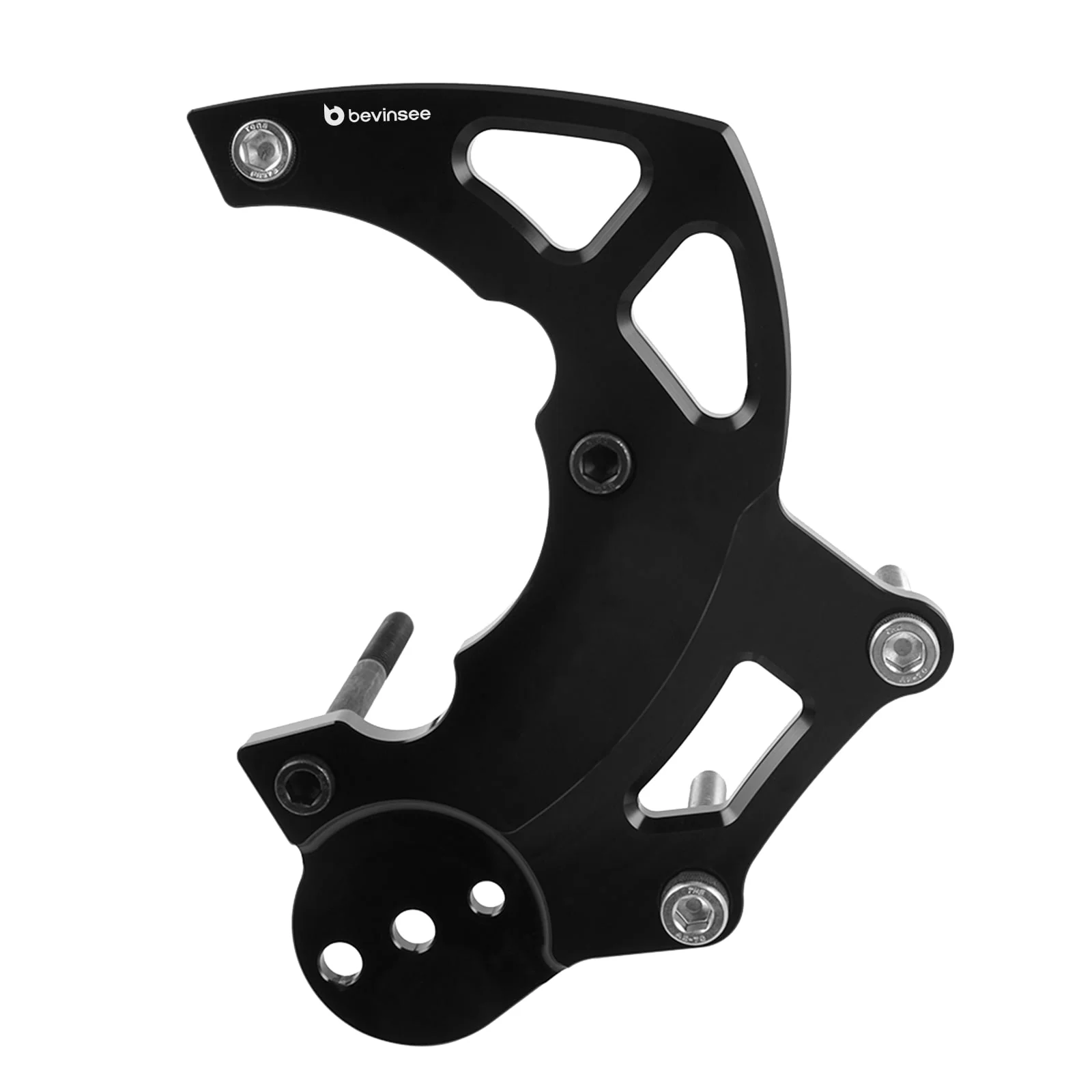

LS R4 AC Compressor High Mount Bracket For Chevrolet GMC SUV Truck Engines LSX AC LQ LS2 LS3 LS6 A/C Vortec Truck Triangles

Features:

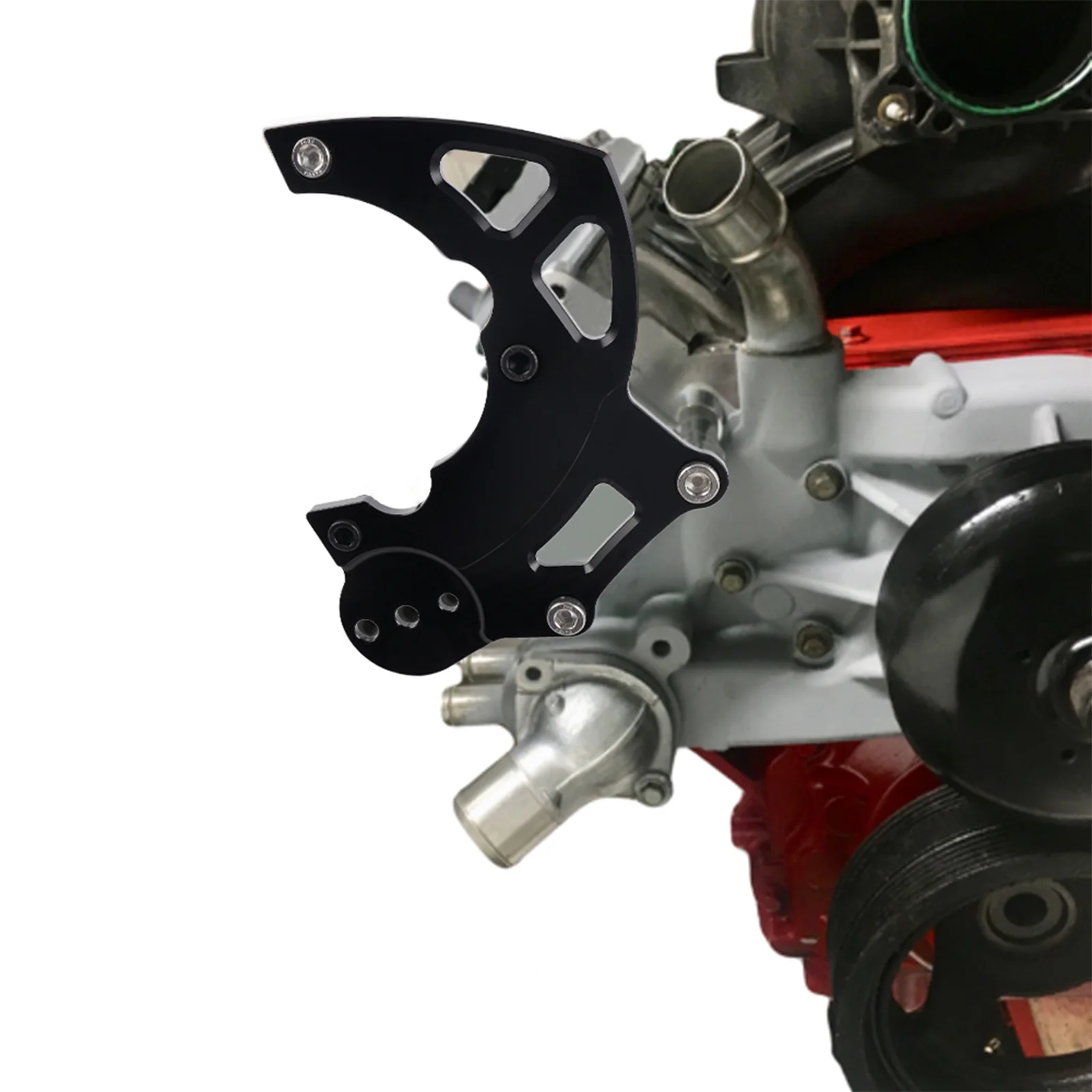

• This bracket is specifically designed for the LS R4 AC compressor, located on the passenger side. Suitable for LQ for LS2 for LS3 for LS6 VORTEC Trucks
• Front Main Bracket Crafted from 1/2" Thick 6061-T6 Aluminum

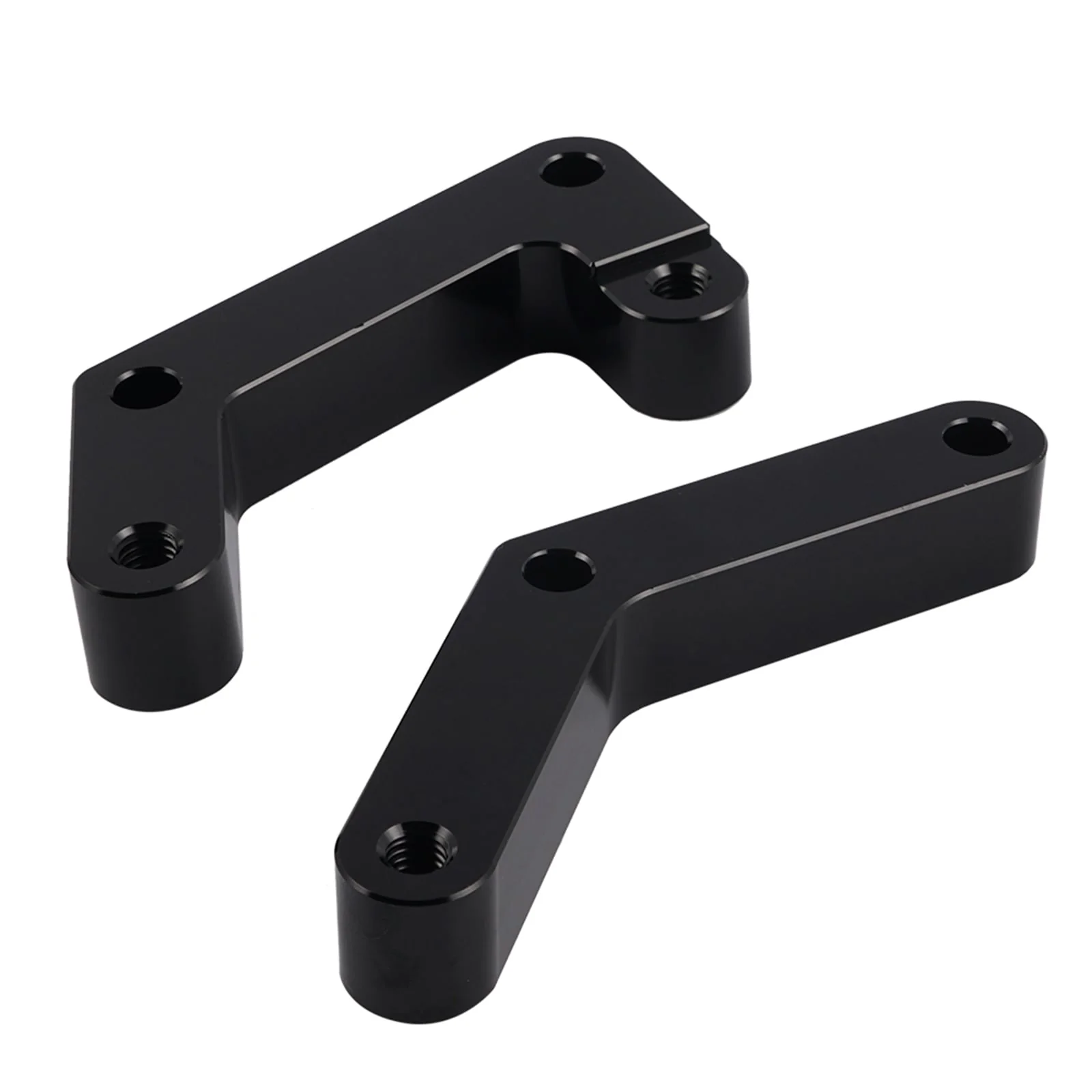

• Both rear supports are manufactured from 1.00" thick 6061-T6 aluminum,  Designed to Prevent Any Deflection (competitors use 1/4" thin aluminum, with not finish.)
•  Our design and the great shiny finish made this Bracket kit one of the best.

Item Specifics:

• Brank: Bevinsee
• Type: A/C High Mount Bracket
• Material:ALUMINUM

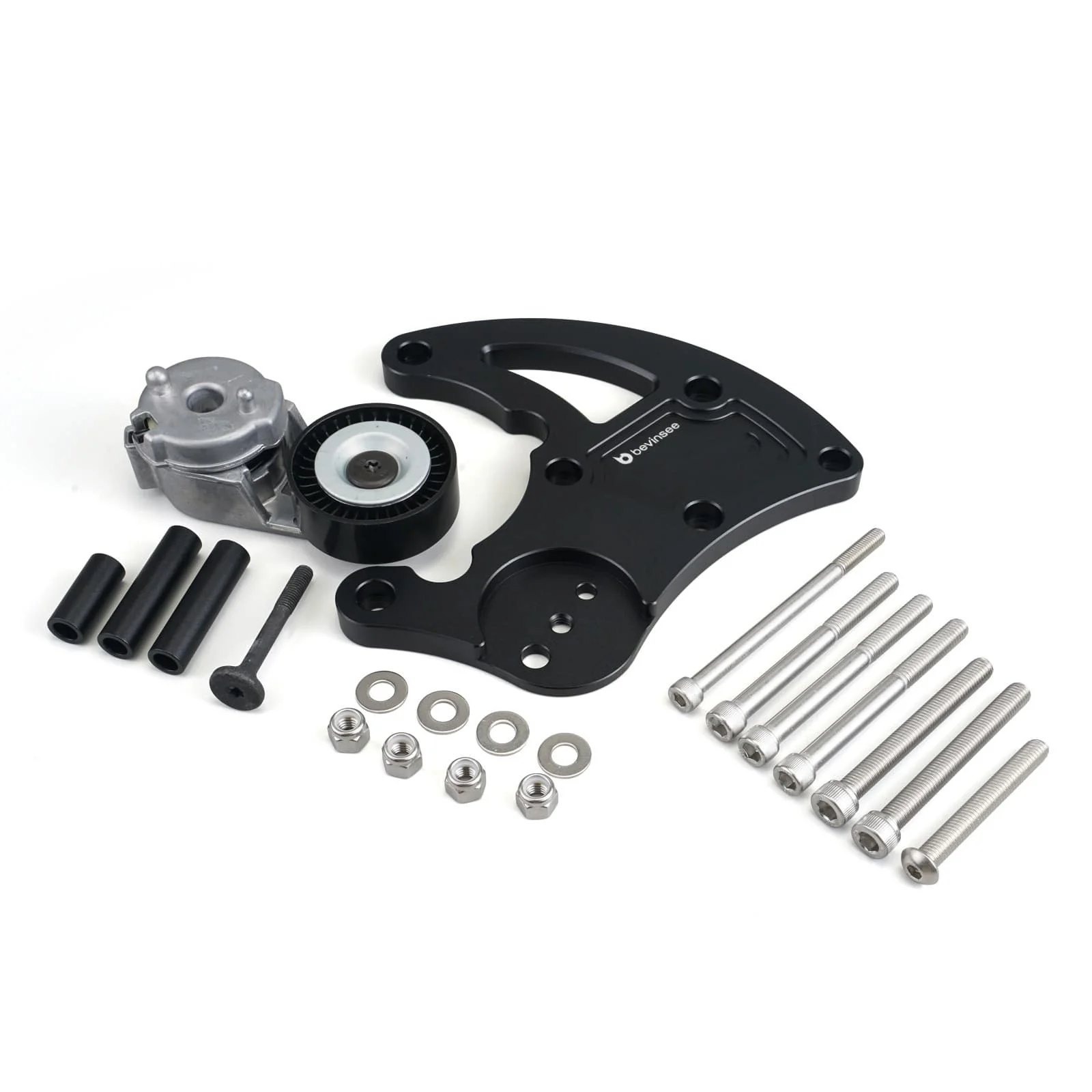

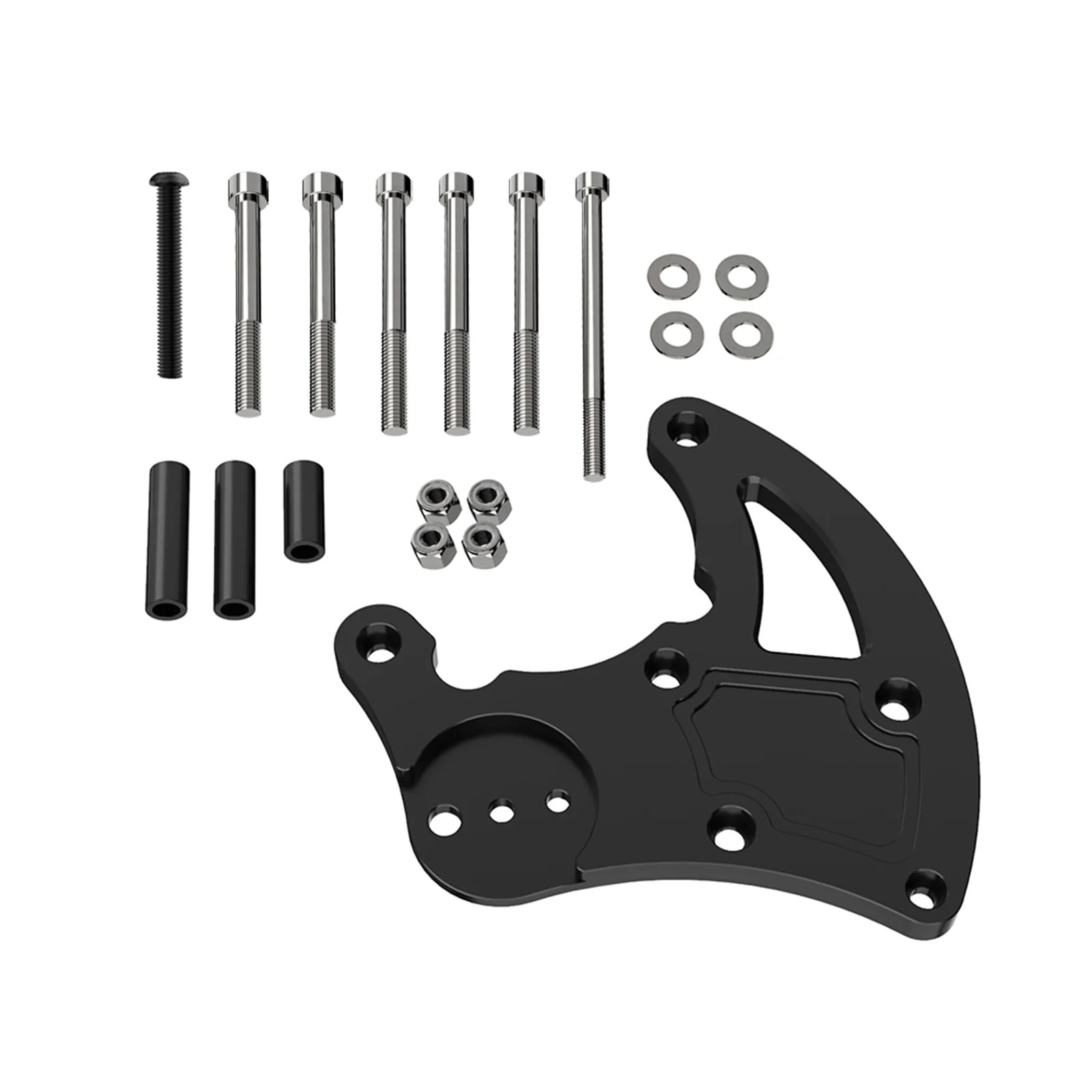

Package Included:

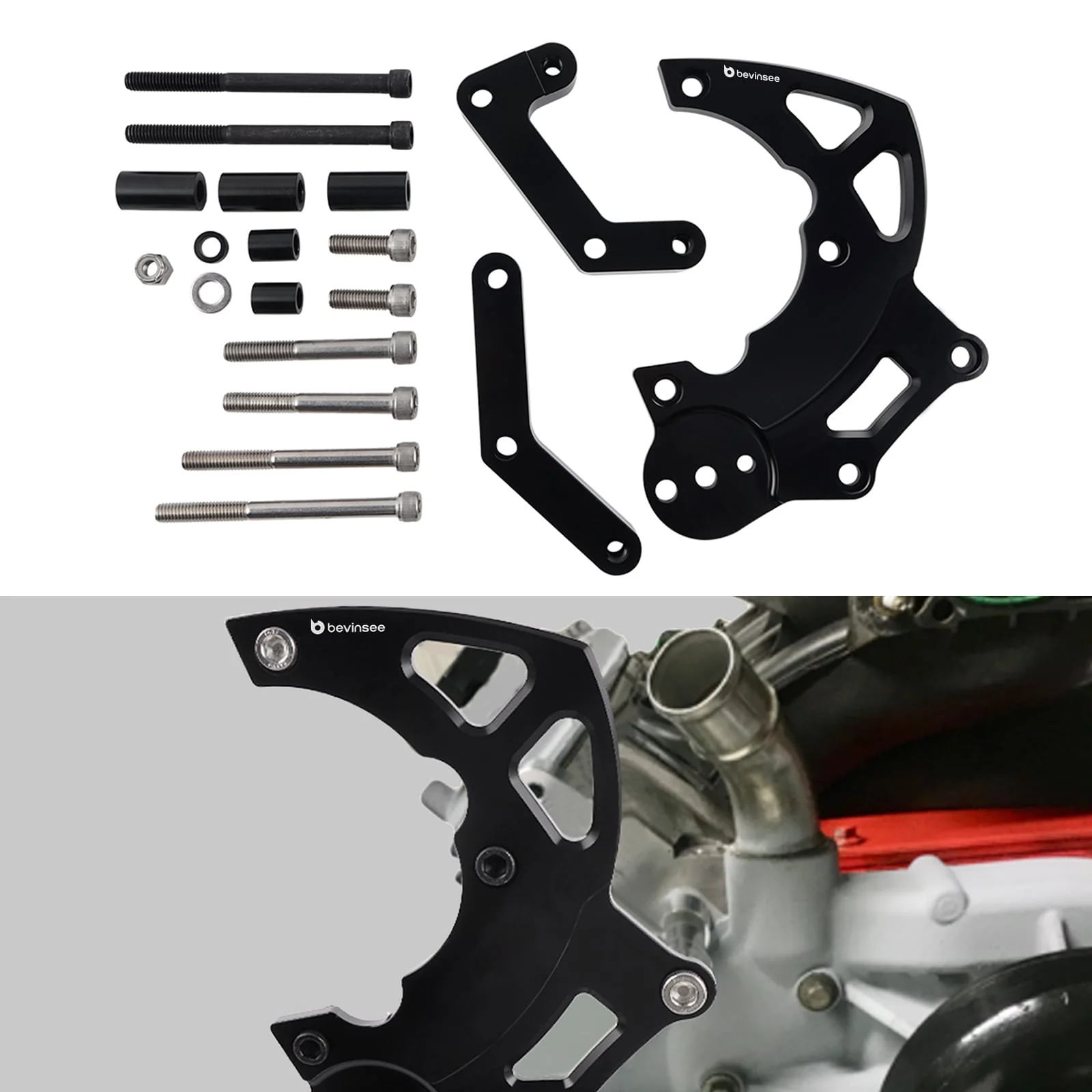

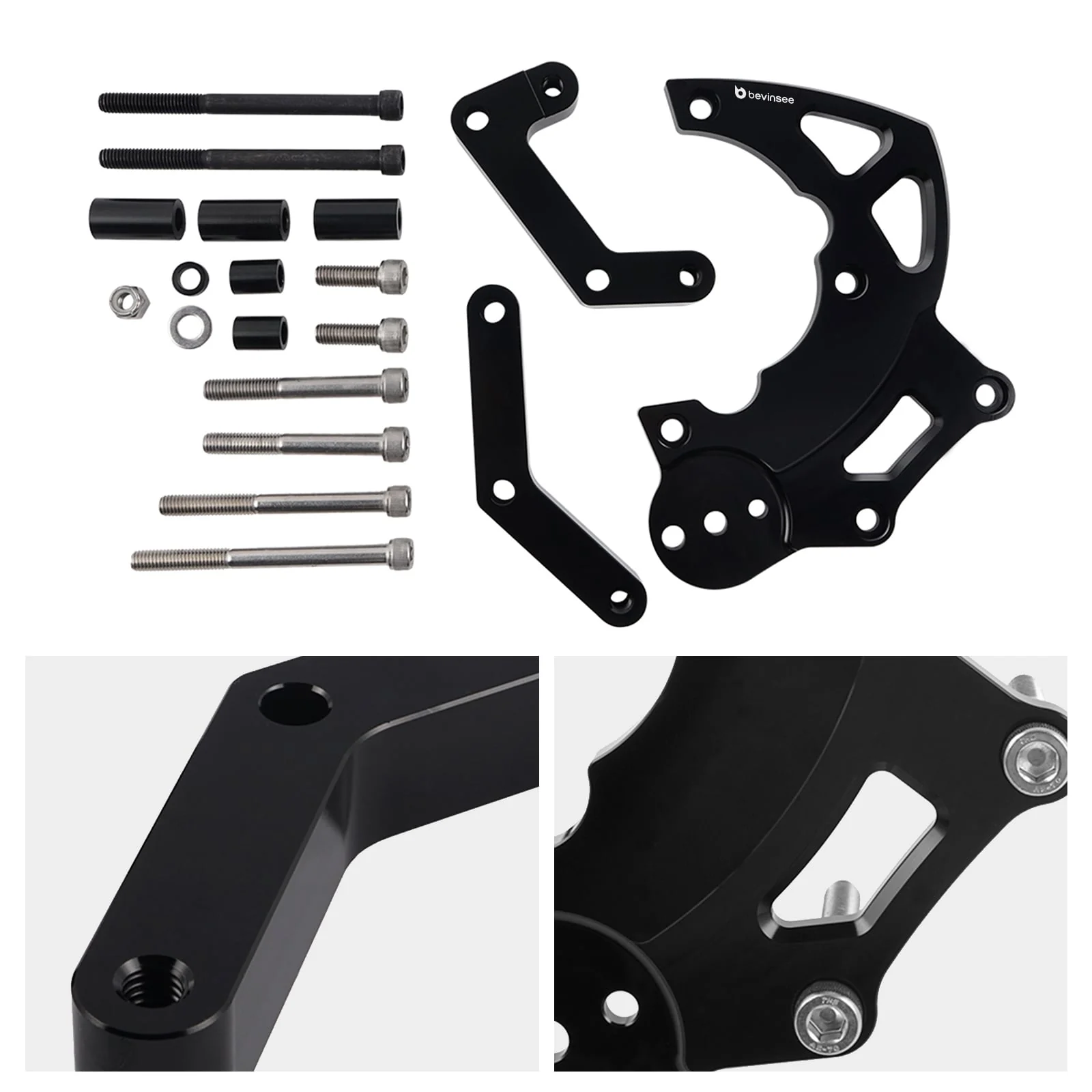

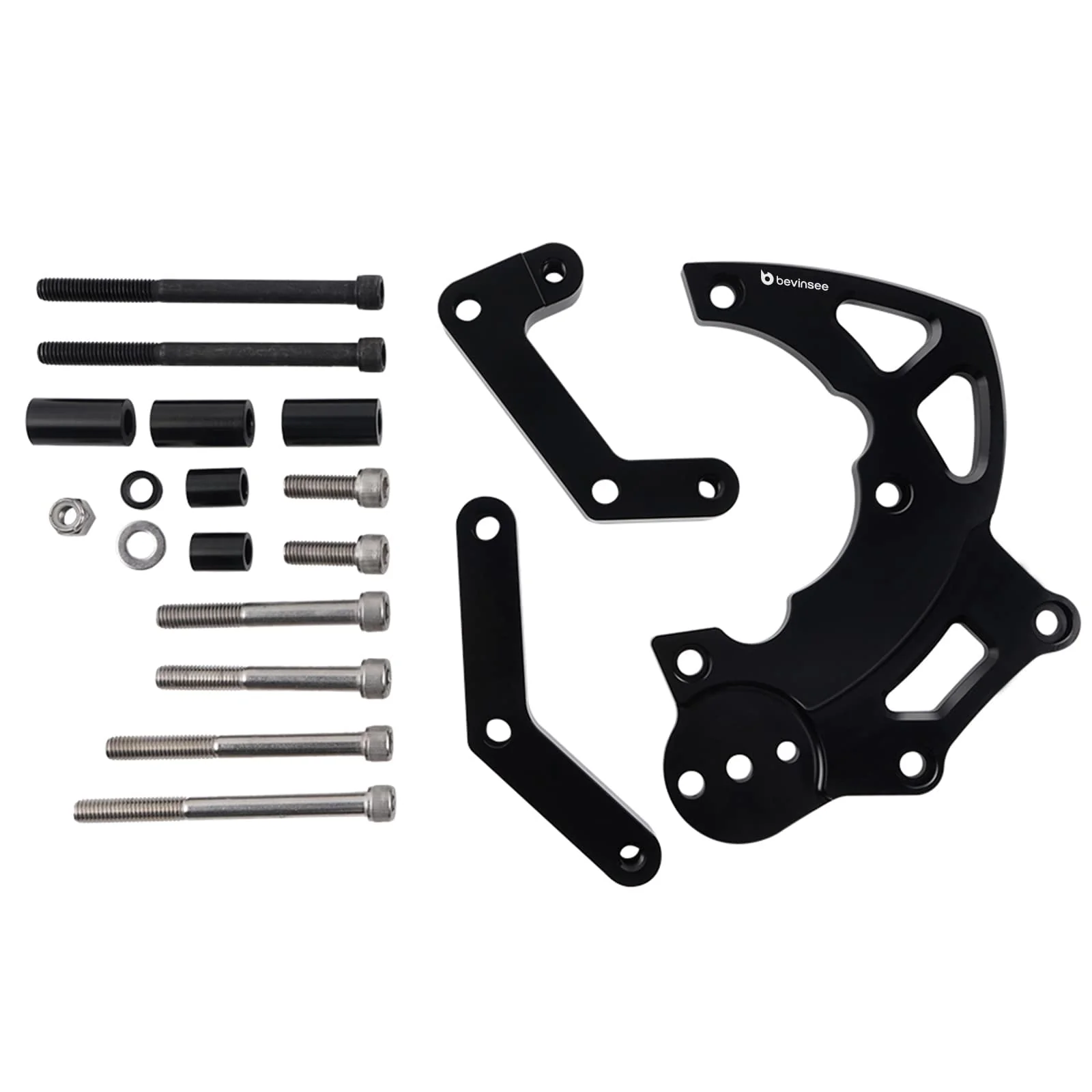

• 1 main Bracket. (1/2 thick)
• 2 rear supports (1.00 thick)
• All hardware require to install.
• Instruction.

Works with:

• Bracket is designed to work with GM factory R4 Compressor 1988-1995.
• Compatible with Chevy, and for GMC, for SUV, and for Truck Engines from 1999 to 2013 with Vortec Engines
• For 4.8, 5.3, 5.7, 6.0, 6.2 or LSX Blocks. (Designed for Truck or SUV Vortec Accessory Drive).

Note:

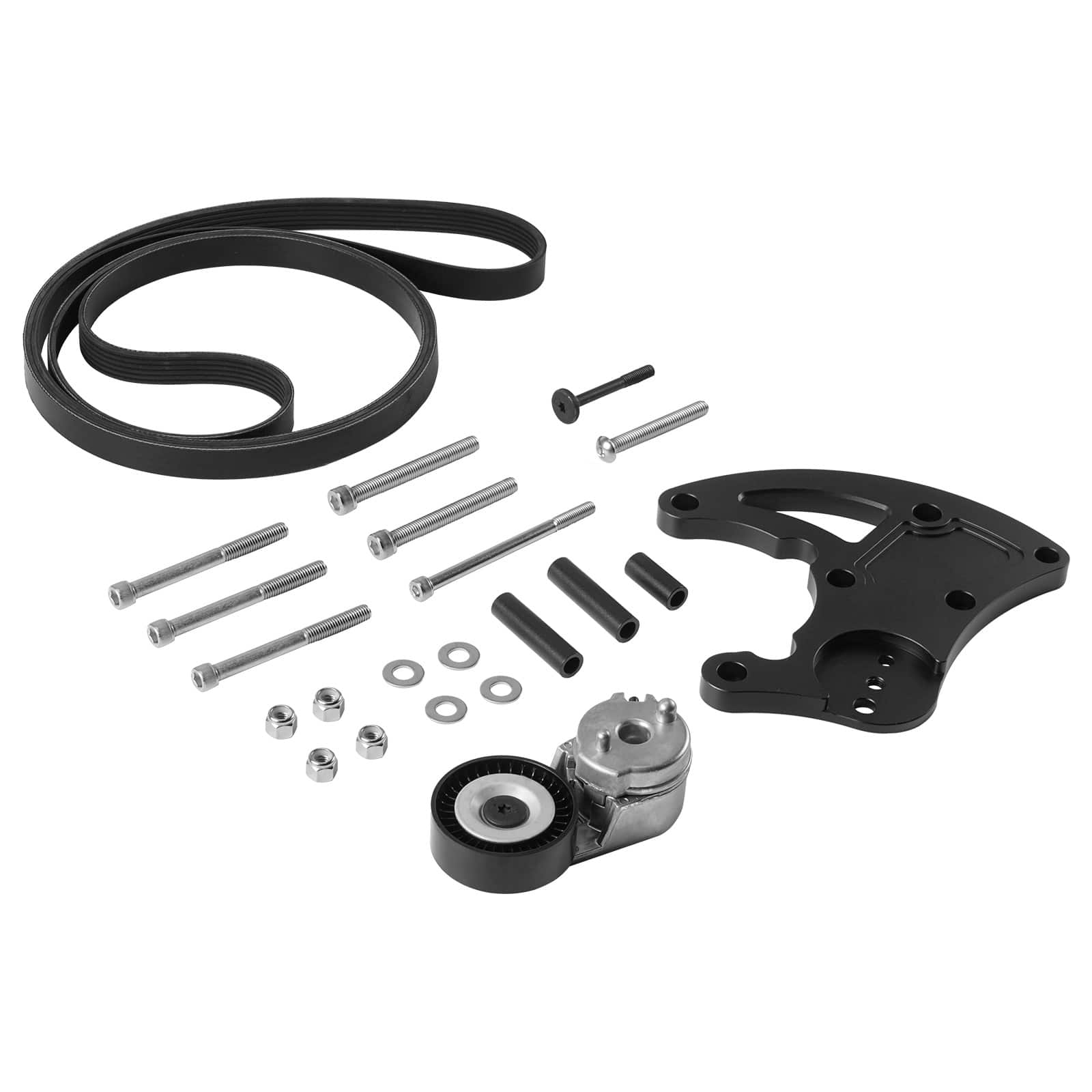

• Belt Tensioner Not Included，You Need Dayco #89245
• Belt Not Included，You Need DAYCO #5061038
• Requires use of the 4 inch clutch, will NOT work with 5 inch
