SHARK 600 Wp HJT Dual-Glass Solar Panel (Pack of 31)
Loom Solar introduces the latest SHARK 600 Wp HJT solar panel developed for homes and businesses with a high conversion efficiency of up to 23.50%. It delivers its maximum power voltage 34.42V with maximum current 17.44 A, Powered by 108 high-efficiency solar cells, The front is protected with durable and weather-resistant tempered glass. Additionally, having an IP68-rated junction box. This module is made to fulfil modern needs efficiently with outstanding performance.
- High Power & Efficiency: 600 Wp HJT module offers up to 23.50% efficiency with maximum power of 34.42 V.
- More Energy with Bifacial Design: Up to 95% bifaciality, more power from the rear side.
- Reliable & Long-Lasting: Anti-LeTID and Anti-PID protection, low power degradation and reducing the impact of micro-cracks.
- Built for Tough Weather: Tested to IEC 61215 standards, including 35 mm ice-ball impact, and can handle heavy snow (5400 Pa) and strong winds (2400 Pa).
- Long-Term Warranty Assurance: 15-year product warranty on materials and workmanship, plus a 30-year linear power performance warranty.
Electrical Specifications
|
Peak Power Pmax (W) |
600 |
|
Maximum Power Voltage Vmp (V) |
34.42 |
|
Maximum Power Current Imp (A) |
17.44 |
|
Open Circuit Voltage VOC (V) |
40.61 |
|
Short Circuit Current ISC (A) |
17.68 |
|
Module Efficiency (%) |
23.50 |
|
Power Tolerance (W) |
0+5W |
|
No. of Bus Bars |
18BB |
|
*STC: automatic mass AM1.5, irradiance 1000 W/m2, cell temperature 25°C |
Mechanical Specifications
|
Number of Cells |
108 pieces (2*54) |
|

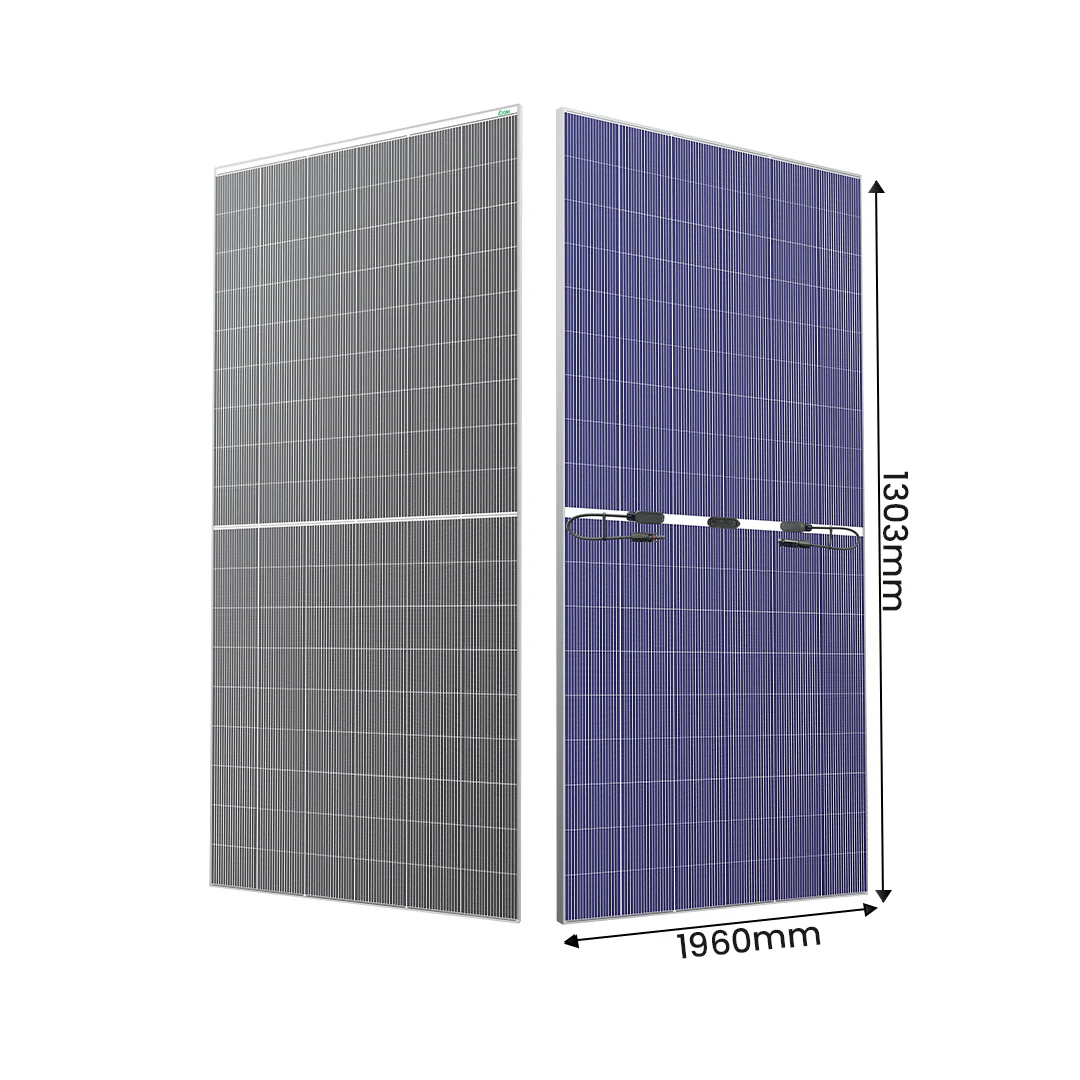

Module Dimensions |
1960*1303*35mm |
|
Weight |
32.3 kg |
|
Front Glass |
2.0 mm, High Tempered coated glass |
|
Back Glass |
2.0 mm, Semi-tempered glass |
|
Frame |
Anodized aluminium alloy |
|
Junction Box |
IP68 rated |
|
Cable |
4.0 mm |
|
No. of Diodes |
3 |
|
Wind Pressure / Snow Pressure |
2400 Pa / 5400 Pa |
|
Connector |
MC4 |
Warranty
The degradation in the first year is 1%, and from the second year onwards, the annual degradation does not exceed 0.30%
| Product Warranty | 15-year |
| Performance warranty | 30-year |
Download datasheet from here.
