Specifications

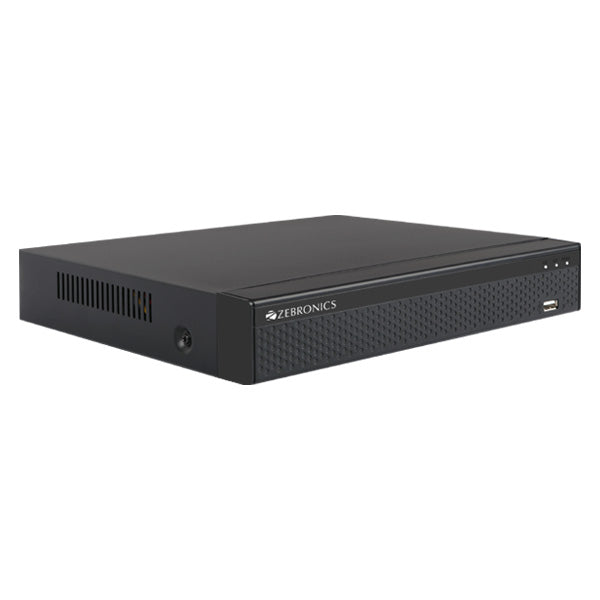

| Model |
ZEB-8F1DA2H1-5MPL | |
| System | ||
| Main Processor | HI3520DV400 | |
| Operating System |
Embedded LINUX | |
| Video | ||
| Input | Normal Mode: Analog: 8*(TVI / AHD: 5M; AHD / TVI / CVI: 4M; AHD / TVI: 3M; AHD / TVI / CVI: 1080P / 720P; Analog: 960H) Analog+Network: 2*Analog(5MP) +7* network (MAX 5MP), 4*Analog (5MP)+5*network (MAX 5MP), 6*Analog (5MP)+3* network (MAX 5MP) Network: 12*5MP / 4MP / 3MP / 1080P / 960P / 720P (Total incoming bandwidth ≤48M) |
|
| Input |
8CH BNC | |
| Signal Type |
Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / Network | |
| Output |
1HD,1 VGA, CVBS | |
| Audio | ||
| Input |
2 Channel, RCA | |
| Two-way Audio |
No | |
| Output |
1 Channel, RCA | |
| Alarm | ||
| Sensor Input |
4 CH | |
| Output |
1 CH | |
| Motion Detection | 8 Channel (max 12 Channel in pure network mode) | |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications (motion detection) |
|
| Email Alarm | Send Image to The Designated E-mail |
