Key Features:
- Real-Time Compositing for Live Action
- Use with Broadcast Graphics Virtual Sets
- Advanced Algorithms and Color Science
- Improved Edge Handling, Color Separation
- Better Color Fidelity, Spill Suppression
- Work in Ultra HD & HD with Sub Pixels
- Numerous Outputs and Connections
- Numerous Supported Video Standards
- USB-C Software Updates, IP Configure
- One Rack Size Unit

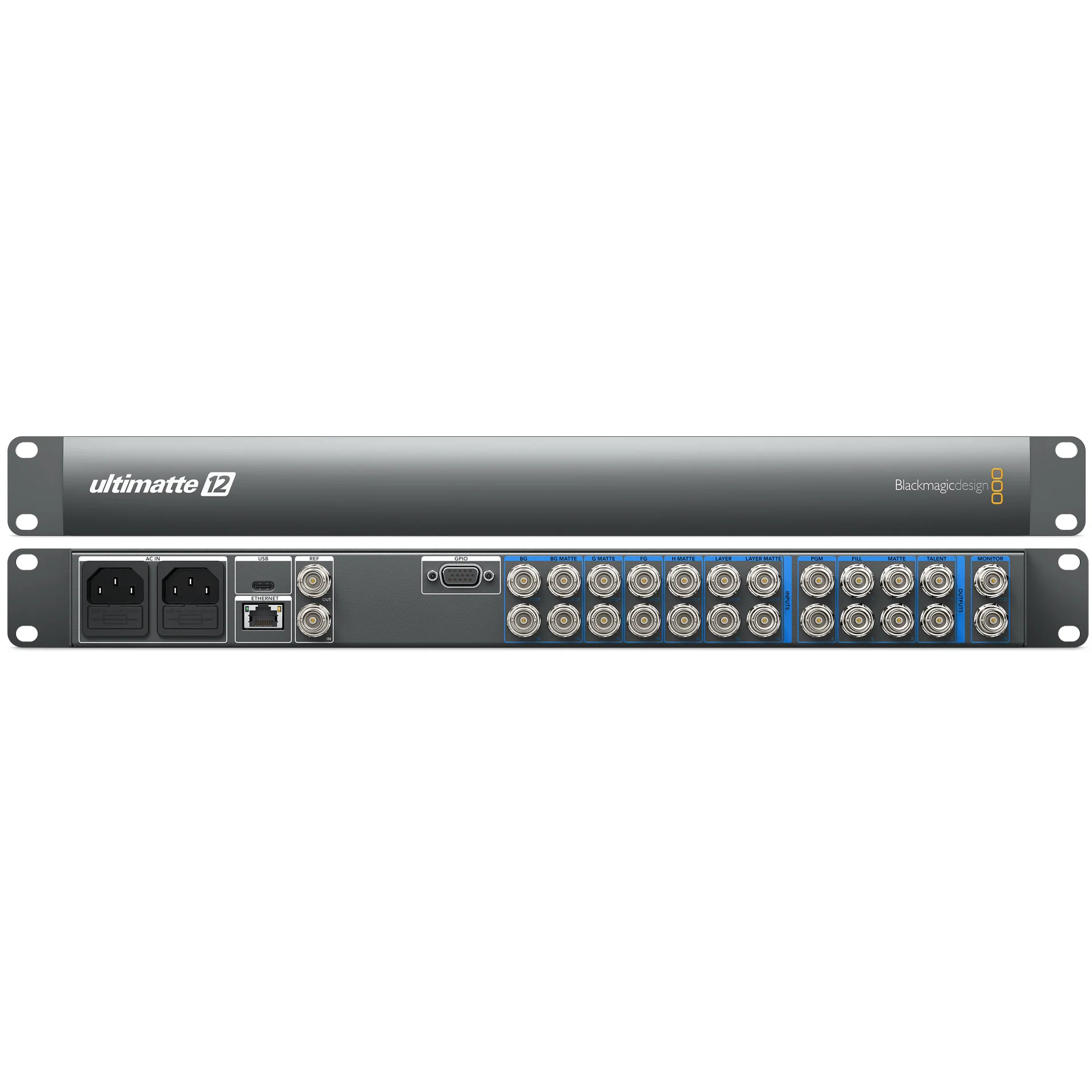

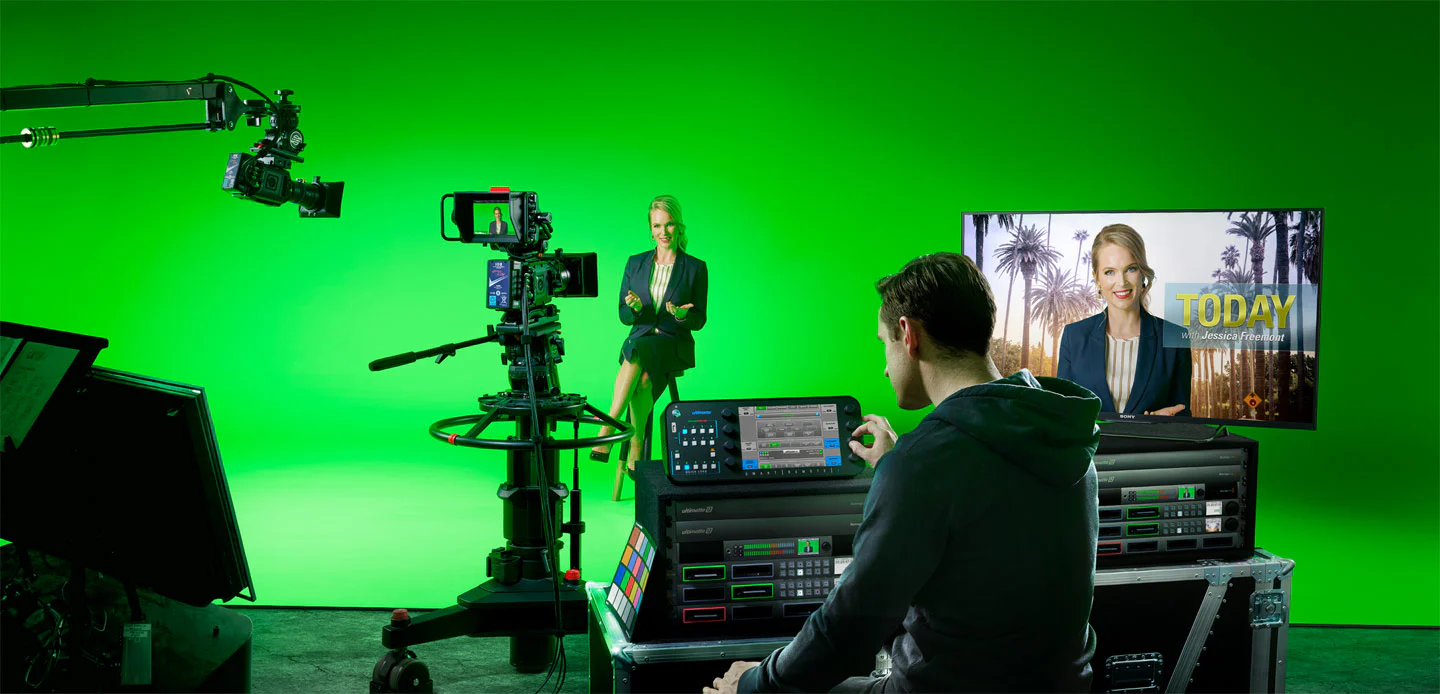

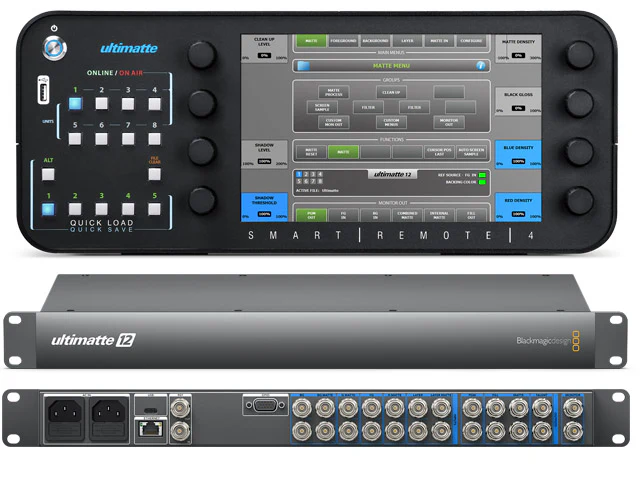

Take your real-time compositing for keying live action video to the next generation with the Ultimatte 12 Keyer Advanced Compositing Processor from Blackmagic Design. Broadcast graphics professionals will appreciate the ability to use virtual sets, advanced algorithms, and color science that provide improved edge handling, color separation, fidelity, and spill suppression. The Ultimatte works in Ultra HD & HD with sub pixel processing for an improved image.
For versatility, the unit has numerous outputs and connections, and is compatible with a wide range of video standards. The software is easily updated with the USB-C connection, and configuration is managed with the Ultimatte's IP address which is set using the set-up utility while connected via USB. The physical size is one rack size unit.
- 4:2:2 Video sampling
- 7x SDI video inputs (plus monitor in), and 9x SDI video outputs
- Tri-Sync or black burst reference input and loop output
- 270mb, 1.5G, 3G, 6G, 12G multi rate support SDI rates
Technical Specifications:
|
Standards |
SD Video Standards 625i50 PAL, 525i59.94 NTSC HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259, SMPTE 292, SMPTE 424, SMPTE 2081, SMPTE 2082 |
|
Video Sampling |
4:2:2 |
|
Software |
Software Updates Using USB-C connection directly connected to Mac OS X or Windows computers Configuration Ultimatte IP address is set via the Ultimatte setup utility connected via USB |
|
Control System |

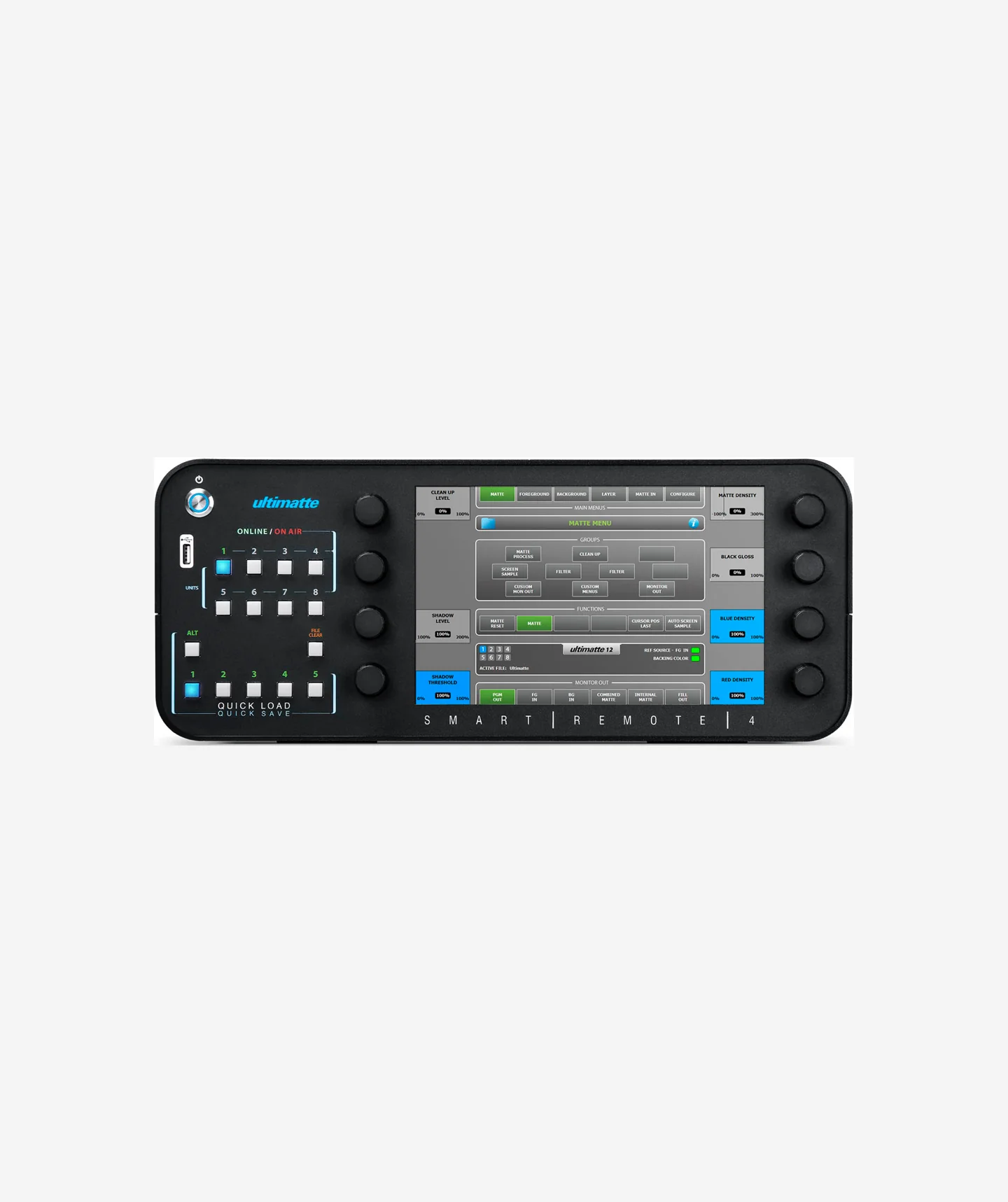

Control Panel Required Ultimatte Smart Remote 4 Custom Control Ethernet protocol included in the Ultimatte Instruction Manual |
|
Connections |
SDI Video Inputs 7, plus monitor in SDI Video Outputs 9 SDI Video Loop 7 x reclocked SD, HD, Ultra HD for corresponding inputs SDI Rates 270Mb, 1.5G, 3G, 6G, 12G multi rate support Reference Input Tri-Sync or Black Burst Reference Loop Output Tri-Sync or Black Burst Control Panel Connection Ethernet supports 10/100Mbps. Allows direct connection between Ultimatte 12 and Ultimatte Smart Remote 4 GPIO 5 x GPI In; 1 x GPI Out; 1 x Tally In. |
|
Physical Installation |
1 Rack unit size |
|
Operating Temperature |
Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C |
|
Relative Humidity (non-condensing) |
0-90% |
|
Power Requirements |
Power Supply: 2 x Internal 100-240V AC, 50/60 Hz Power Usage: 100W |
|
Dimensions |
19.0 x 1.73 x 9.25" / 48.26 x 4.39 x 23.5 cm |
|
Weight |
5.84 lb / 2.6 kg |
In the Box:
- Blackmagic Design Ultimatte 12 Keyer Advanced Compositing Processor
- SD Card with Software and Manual
- Limited 1-Year Warranty
