Huepar Z03CG Laser Level

• FULLY LAYOUT WITH 3 X 360 LINE LASERS: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room, Two vertical lines cross at 90° angles makes user quickly visualize and finish square layout.

• TRIPLE POWER TECHNOLOGY: Huepar laser tool employed the included large capacity lithium battery for extended run-time, or with 4 AA alkaline batteries, This laser tool can be used at job site with direct input charging even if taking out the battery.

• MULTIFUNCTIONAL LASER TOOL: The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications, This line laser level tool self levels and indicates out-of-level condition while pendulum unlocked.

Huepar Z03CG 12 Lines 3D Green Laser Level Specifications:

• Laser Class:Class 2
• Laser Wavelength:510-530nm
• Leveling/Compensation Range:3.5°±1°
• Working Distance (Line):40M (100 LUX), 80M with Huepar Receiver LR-5RG/LR-6RG
• Operating Time:Li-ion Battery: 7 hours with all laser beams on
• Power Source:2PCS 7.4V/2600mah,4PCS AA battery((if ship from China ,it is not included)
• Package:Cloth Bag
• IP Rating:IP54 dust-proof, waterproof and shockproof, reliable and tough
• Operation Temperature Range:14℉ ~ 122℉ (-10℃~ 50℃)

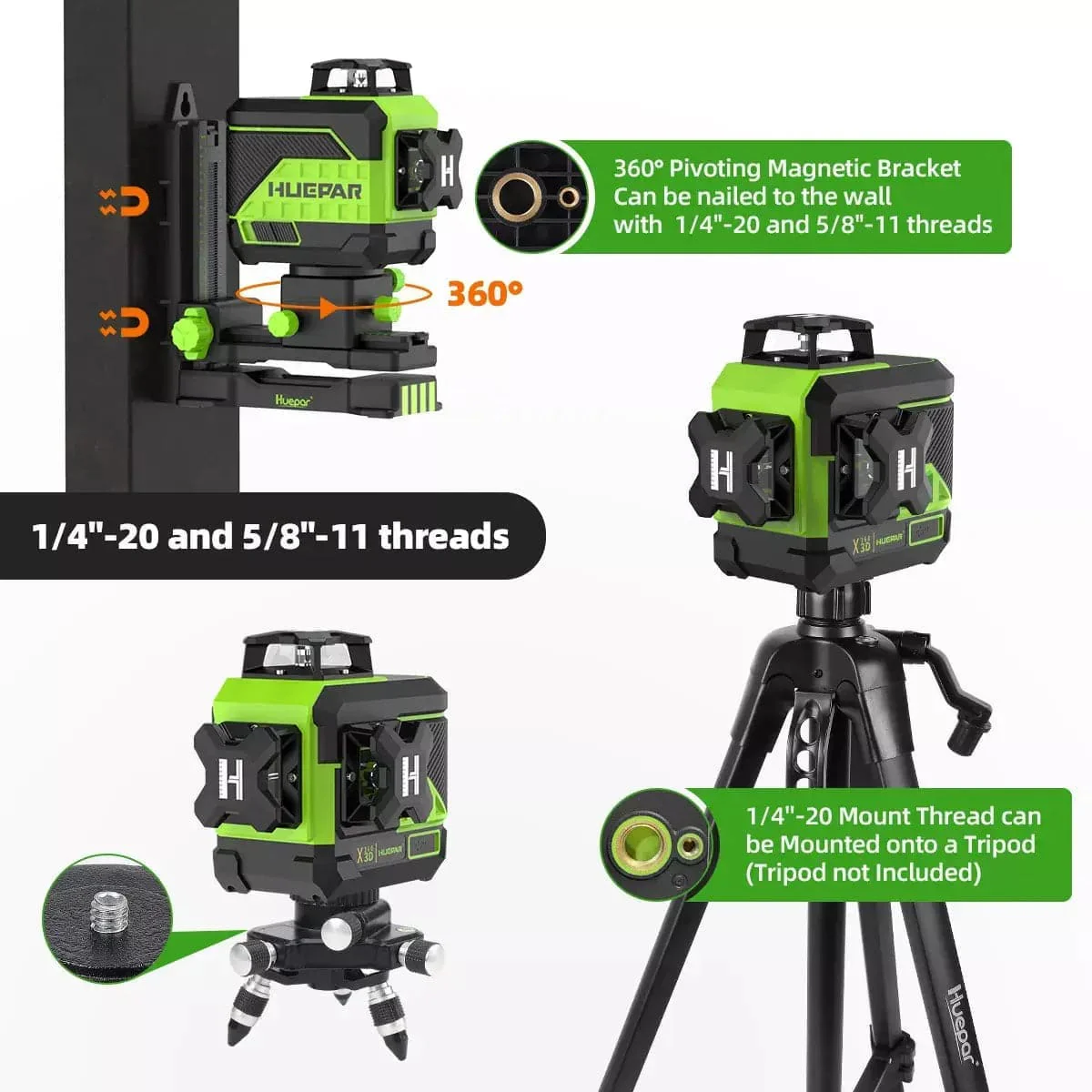

• Mount Size:1/4"-20 and 5/8"-11

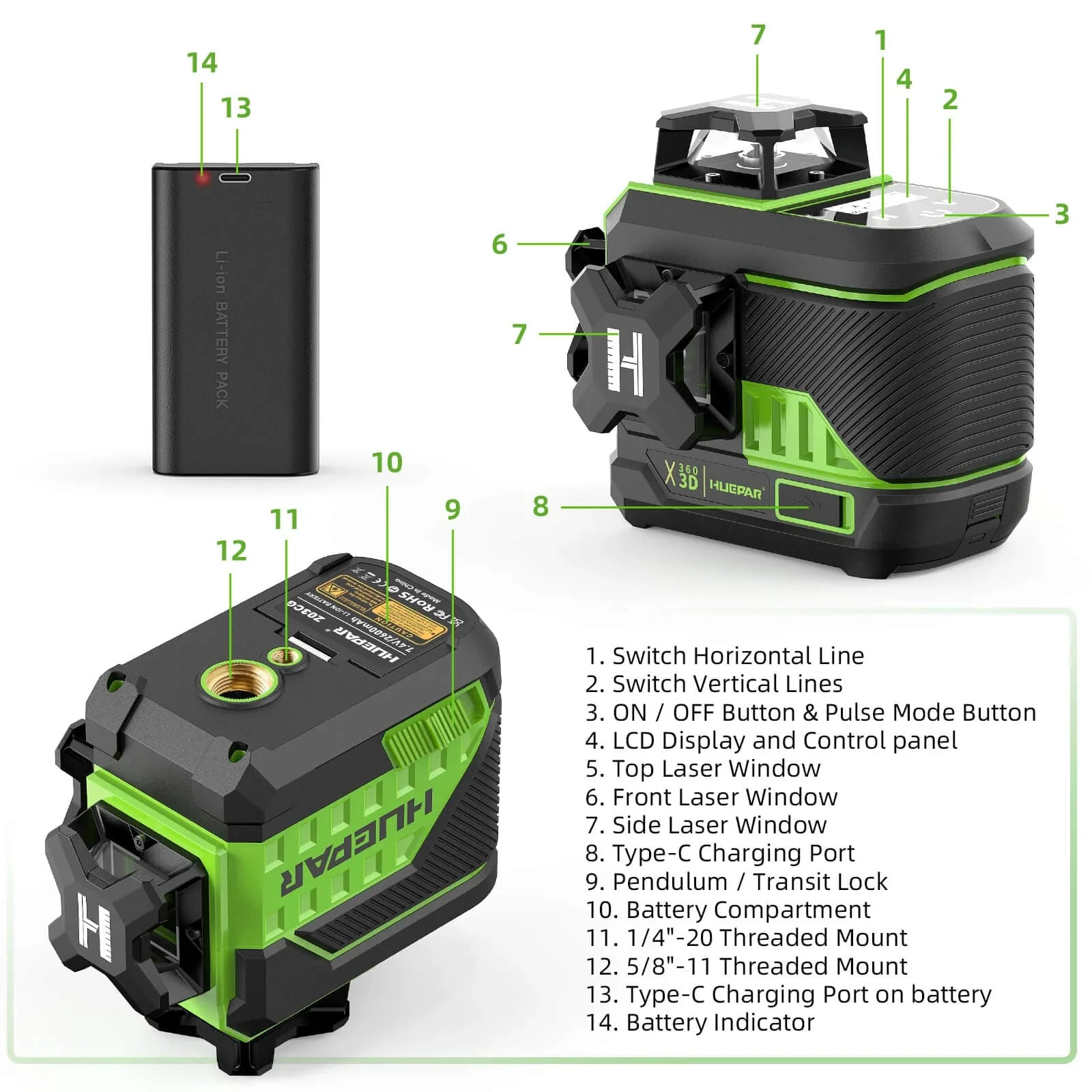

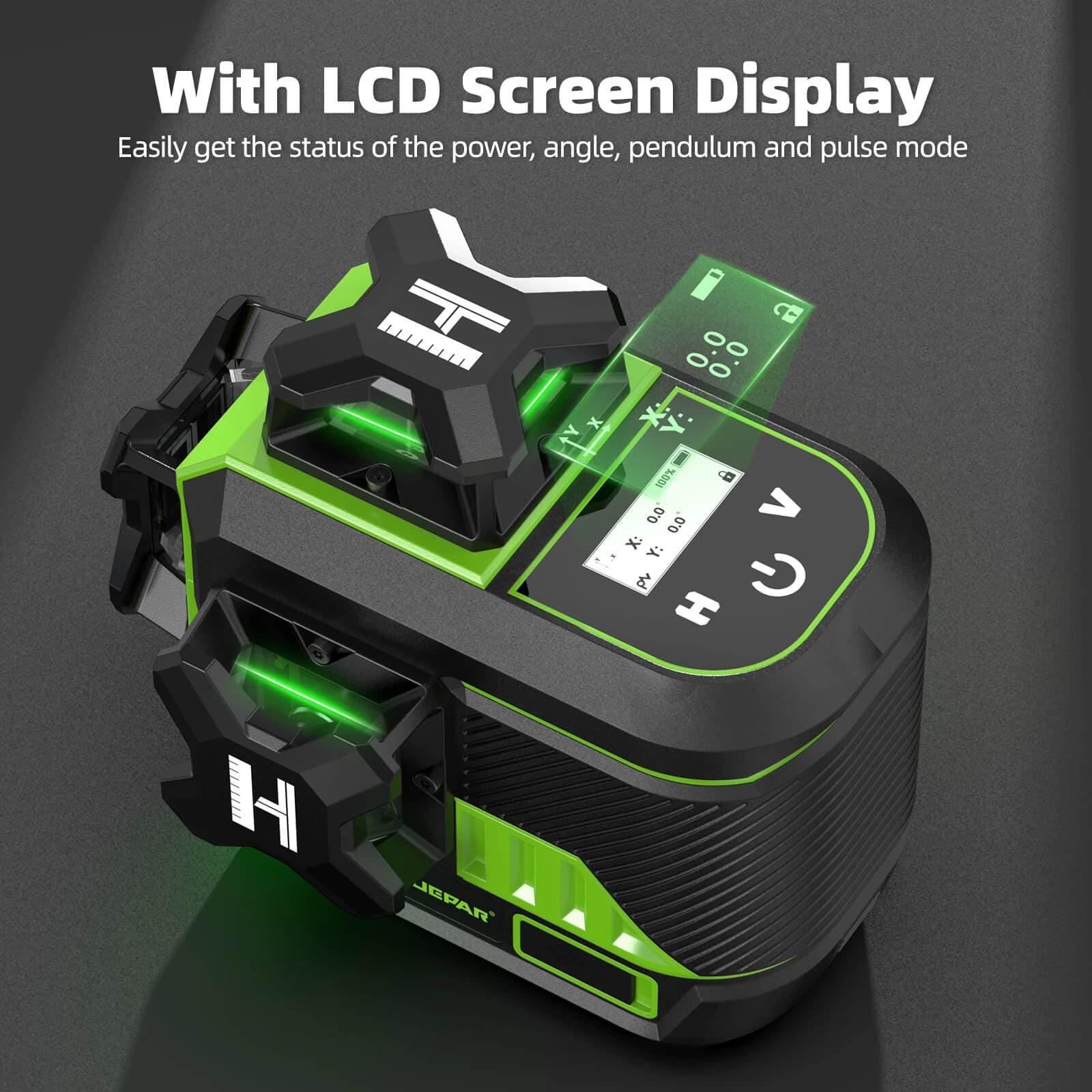

LCD Screen Display

• Huepar Z03CG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
• Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.



Self-leveling mode:

When open the pendulum , the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range 3.5°±1°.

Manual mode:

When the pendulum is in the middle position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.



Multifunctional Laser Tool

360° horizontal & 360° vertical laser lines can be selected by separate H and V buttons. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser beeps when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines at any angle.

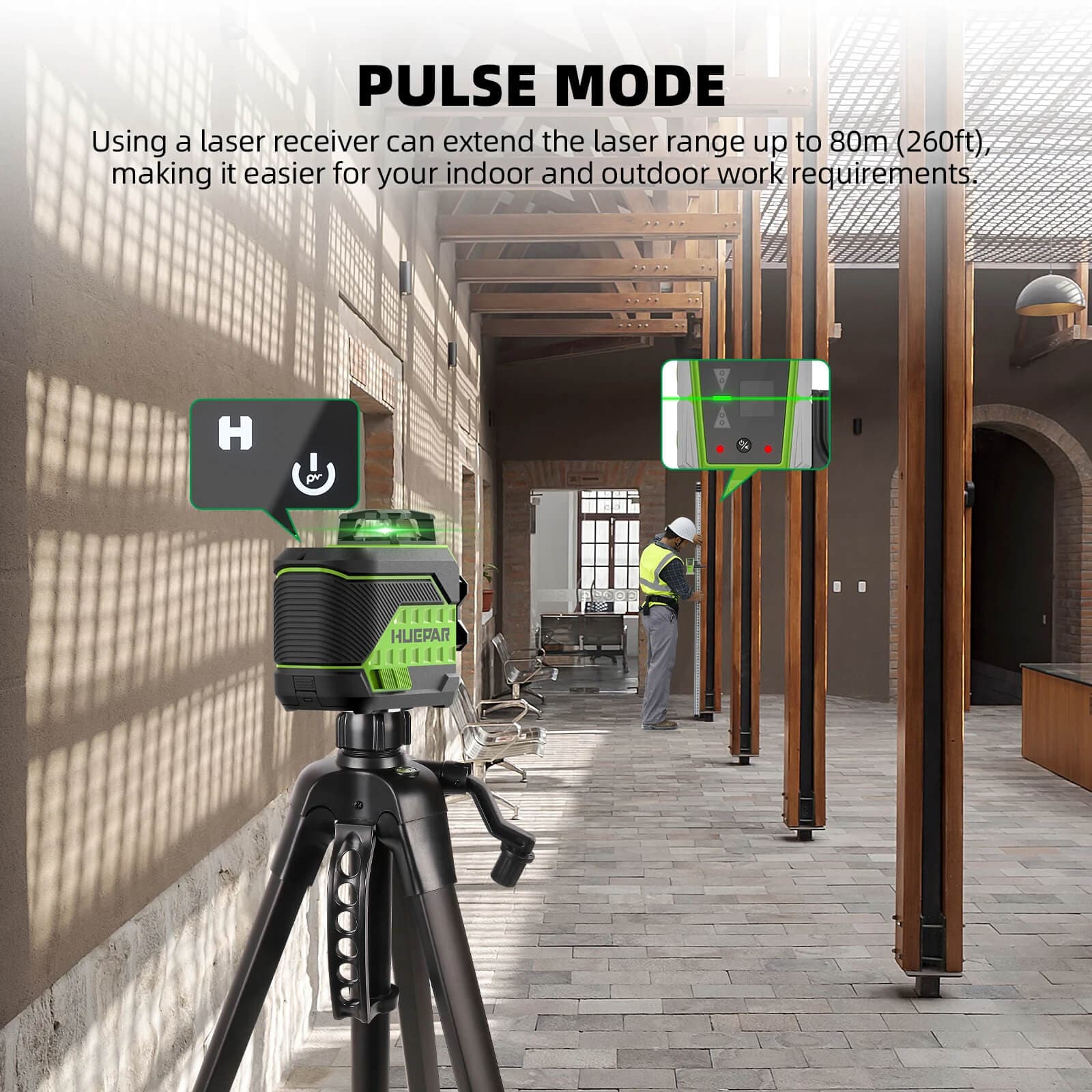

Pulse mode :

extends laser range up to 250Ft. with Huepar Laser Receiver LR-6RG/LR-5RG/LR-8RG. The laser adopts bright Osram green laser unit.

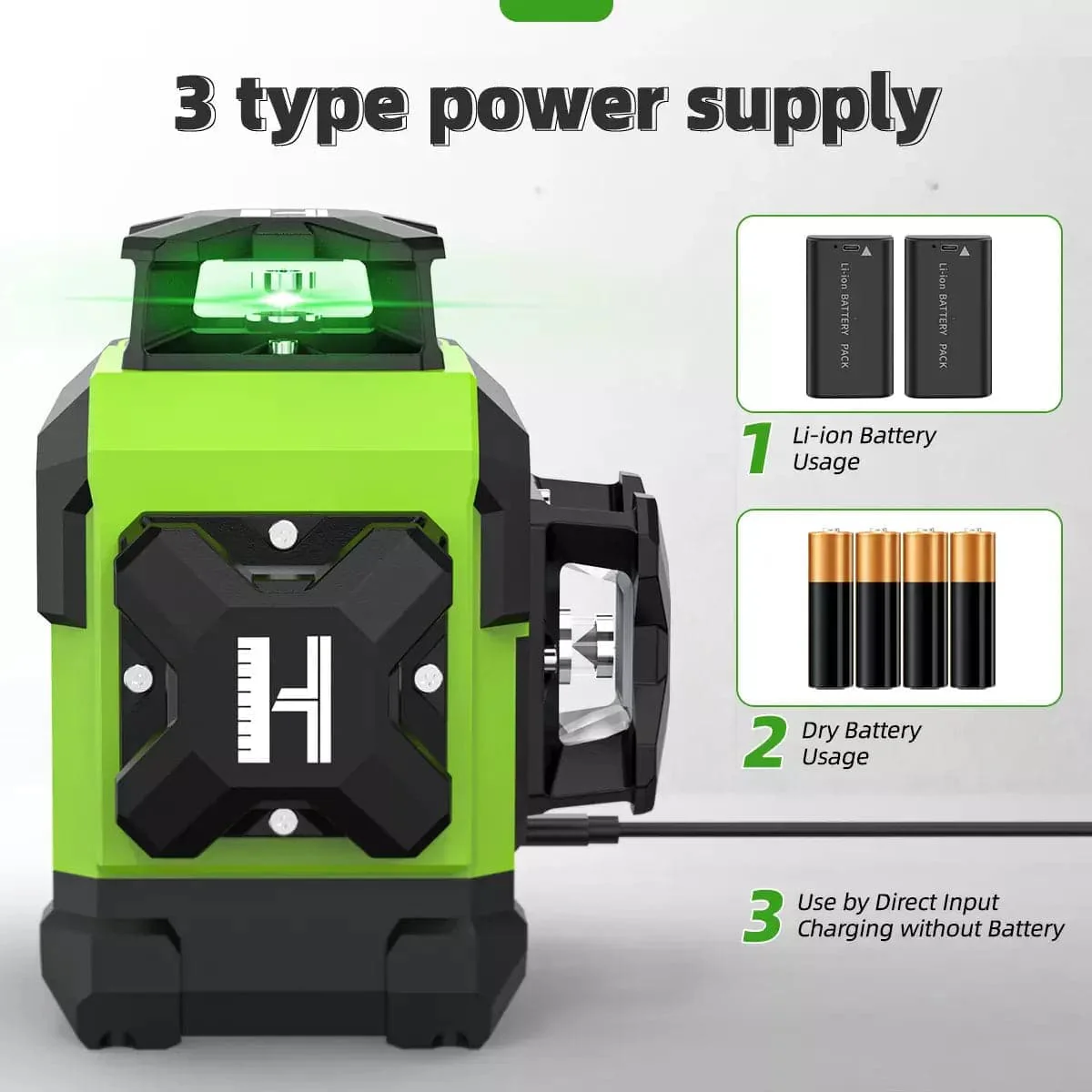

Triple Power Methods & Data Cable Port:

This 360 laser tool adopted large capacity 2PCS Li-ion batteries for extended run-time, or with 4 AA alka line batteries. The Li-ion battery has a charging port to be charged separately and can also be charged by phone, laptop, power bank, car charger, etc. The included battery holder is for installing 4 AA batteries to use the tool. The laser tool can be used at job site by plugged in when taking out the battery.



WATERPROOF & WARRANTY:

IP54 waterproof design protects the unit from water splashes, dust and construction debris. The kit has a cloth bag for much more convenience to carry and store the laser tool. We provide a year after-sale service, lifetime technical support. Please contact us freely if you have any concerns.

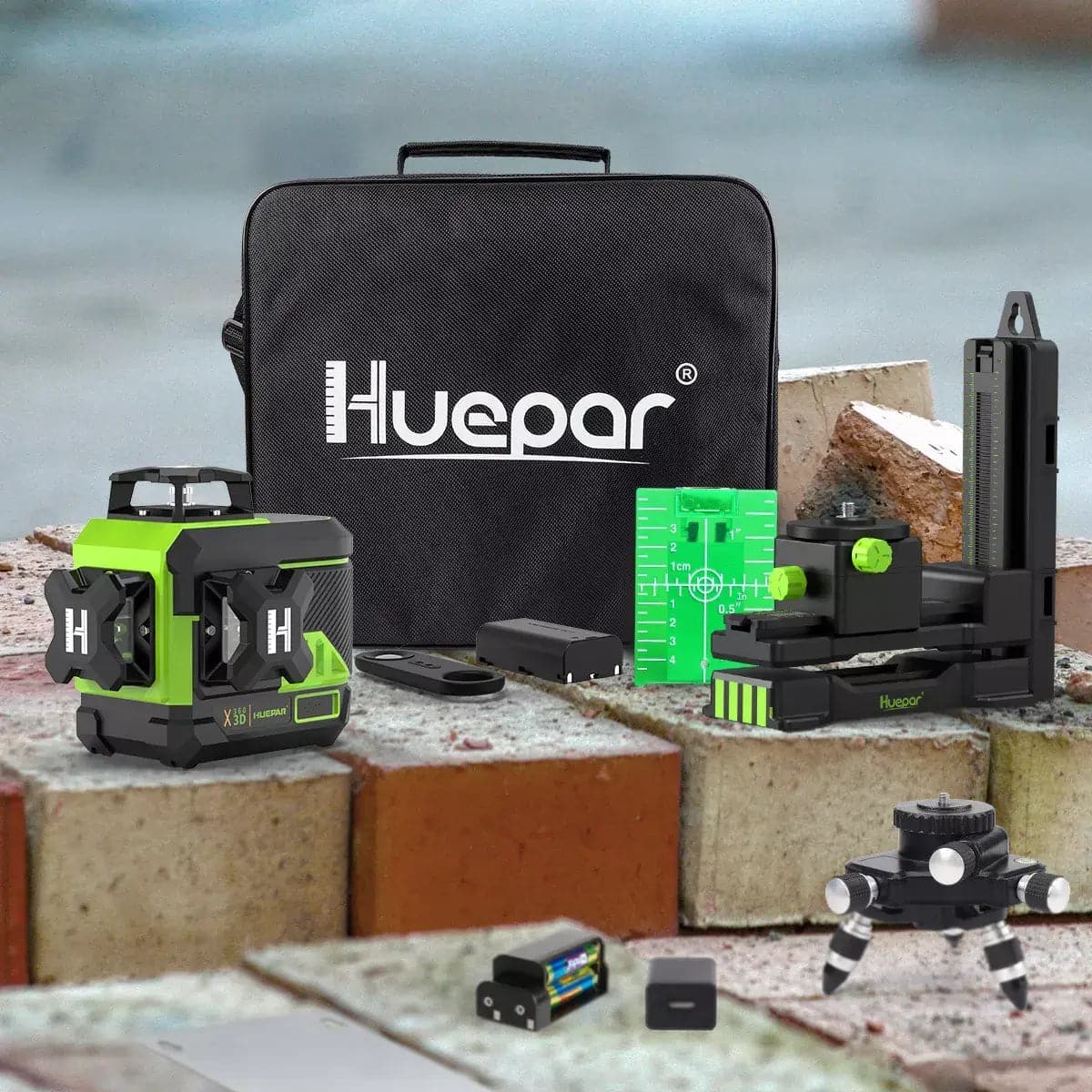

Packing List:

1 x Huepar Z03CG Green Laser Level

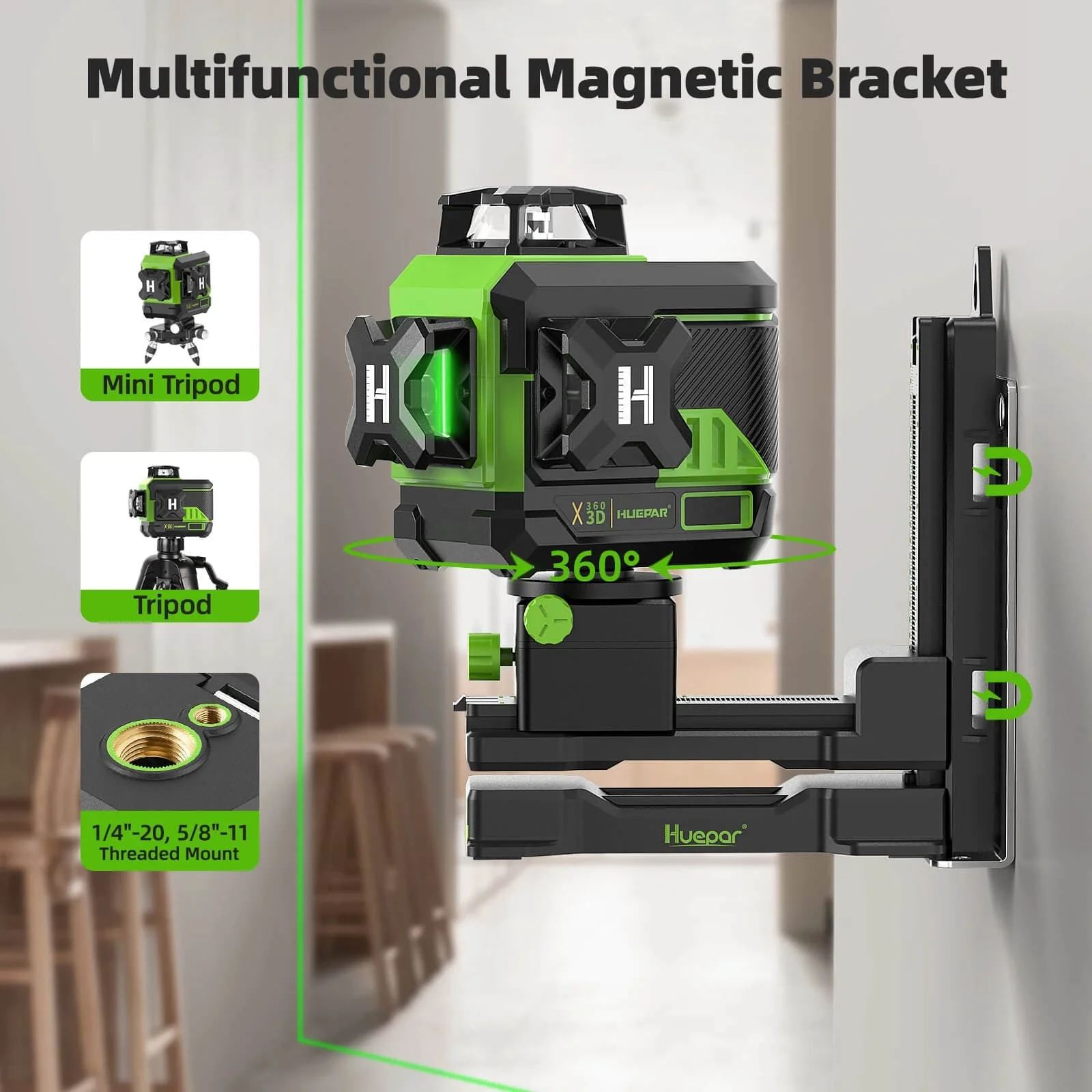

1 x Multifunctional Baecket
1 x AT2 Base Adapter
2 x 2600mAh Li-ion Battery

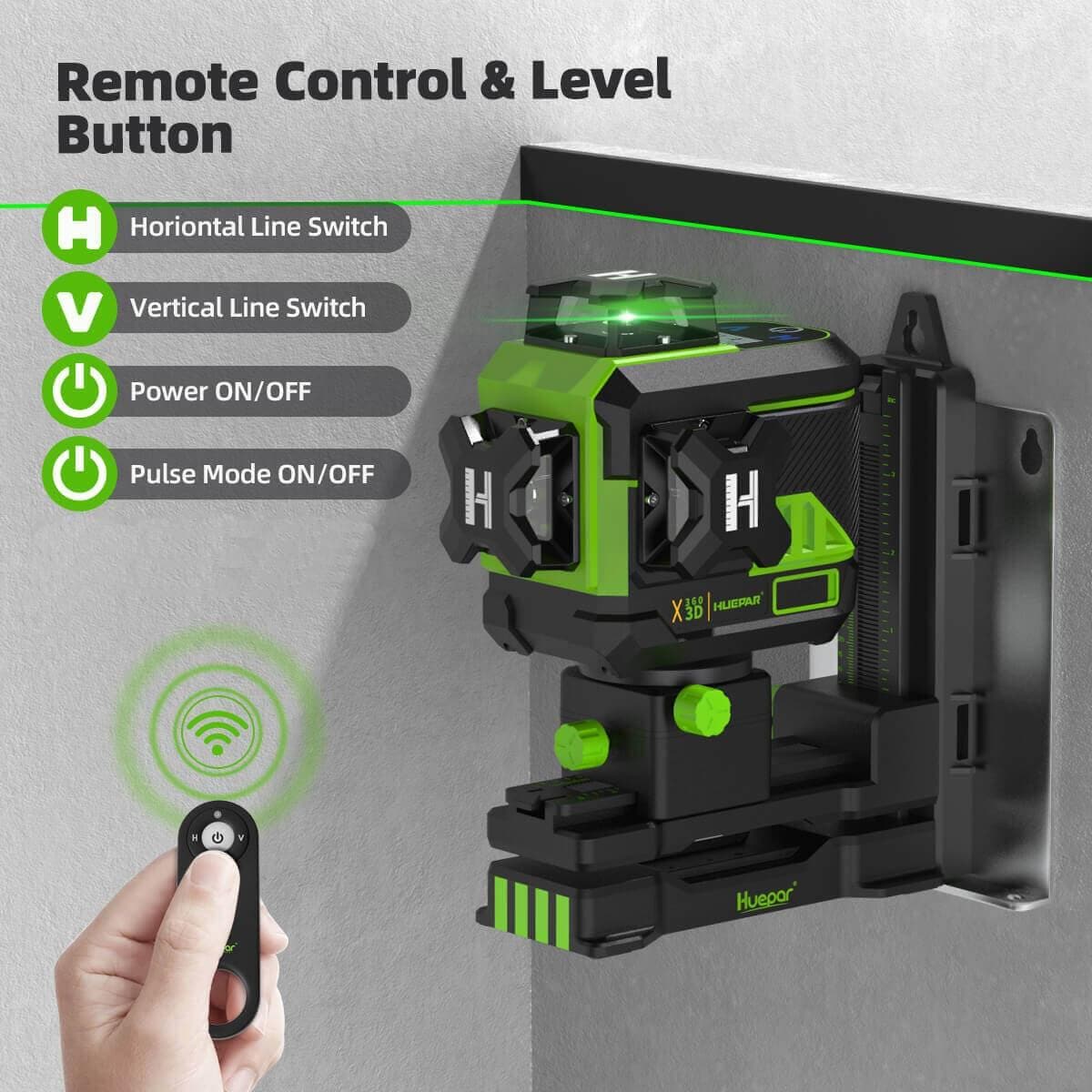

1 x Remote Control
1 x Power Adapter
1 x AA Battery Compartment
4 x AA battery ( AA battery is not included if ships from China)
1 x User Manual
1 x Carrying Case
