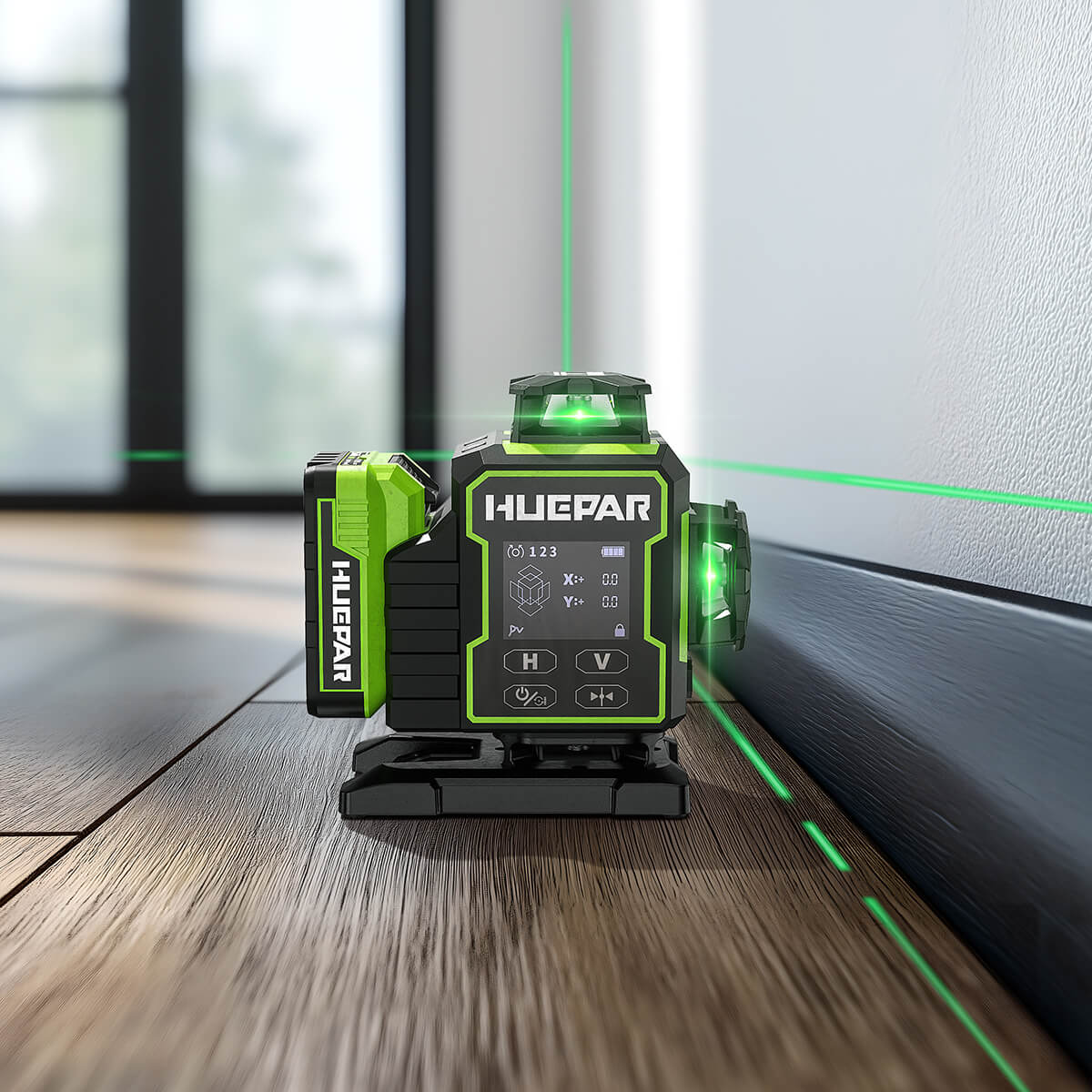

Huepar W04CG Laser Level

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

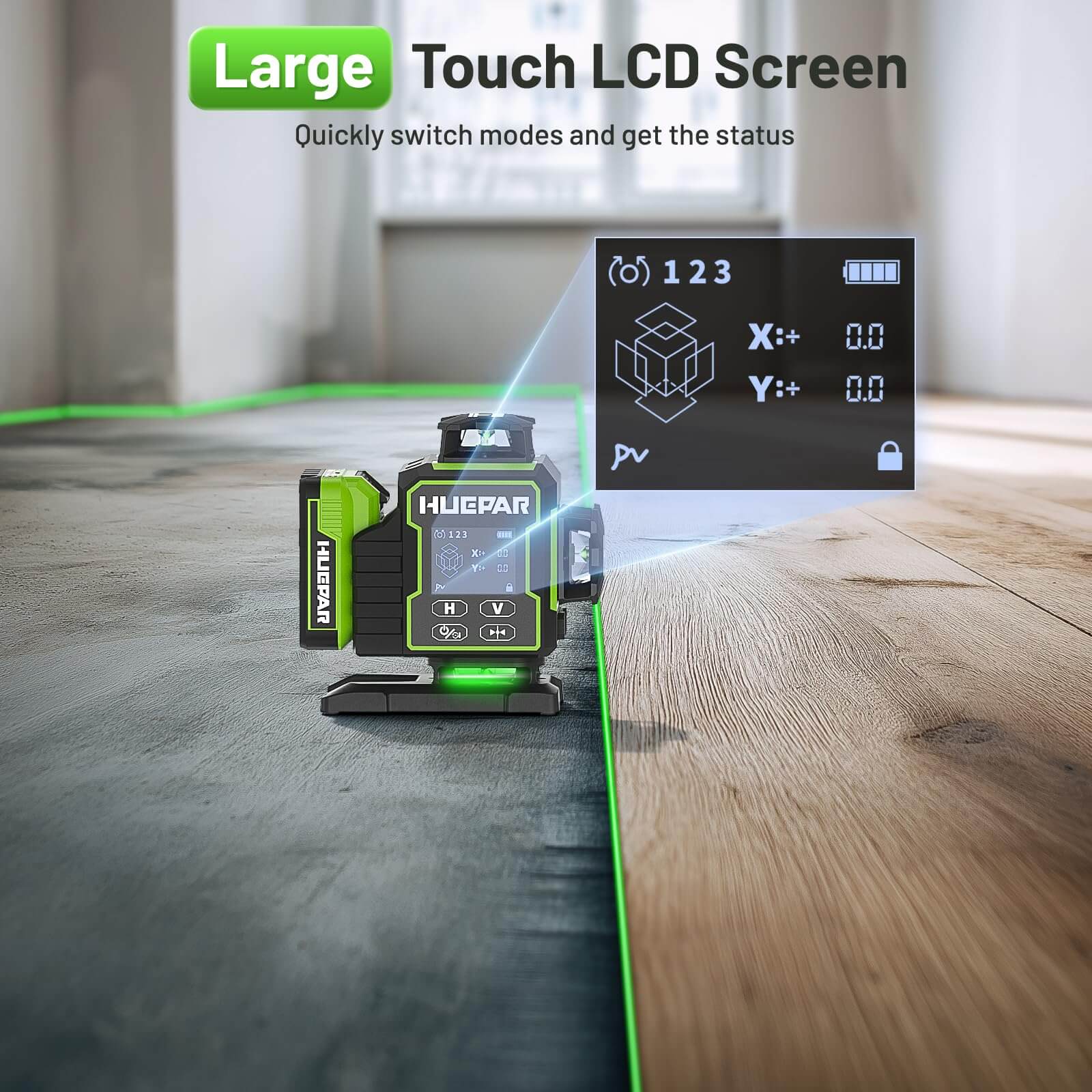

Laser Wavelength: 505-530nm* Screen type: LCD screen with backlight
Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)
Leveling/Compensation Range: ±3°
Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG
Operating Time: 6.5 hours continual use with all laser beams on
Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh
Charging Time: About 3.5 hours.

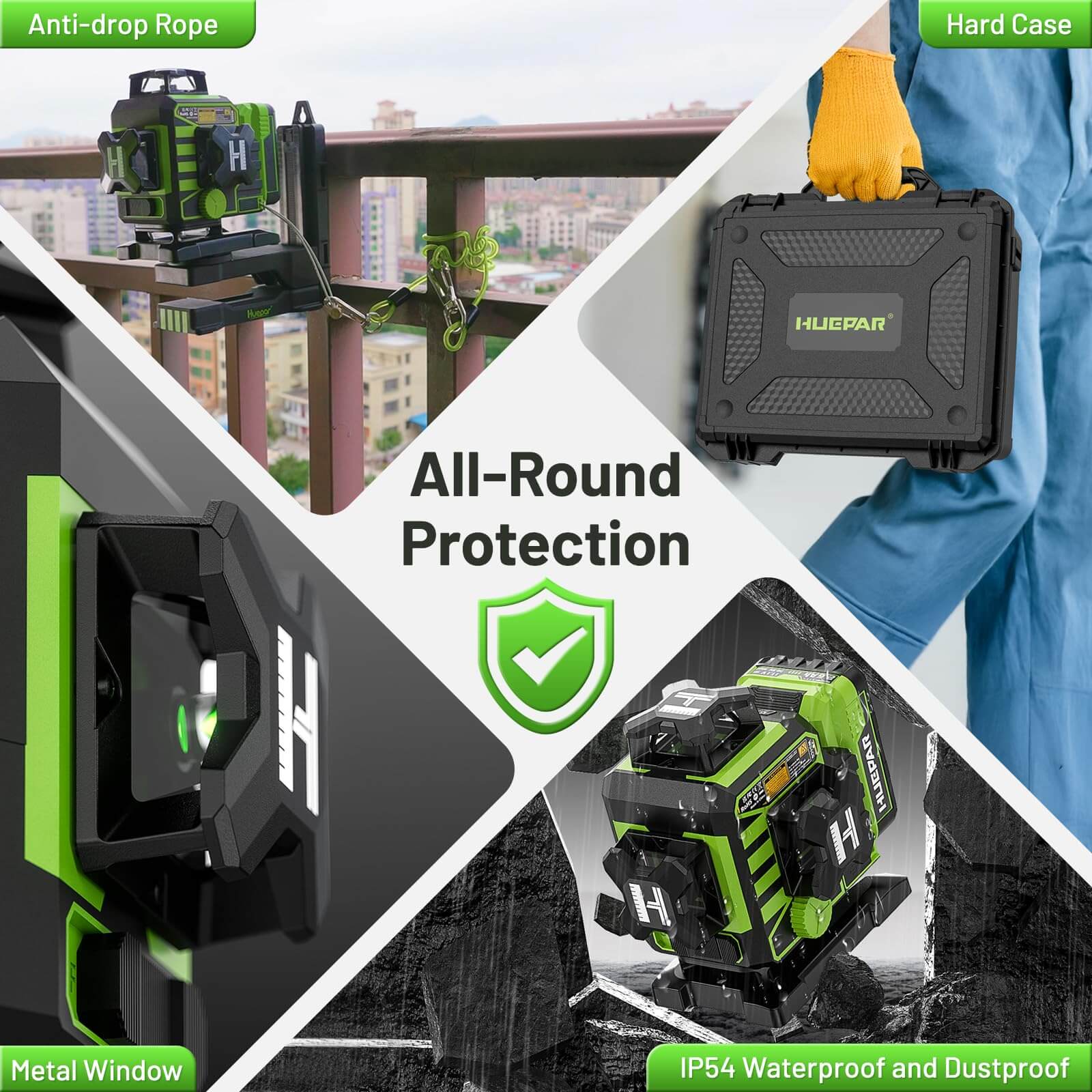

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
Mount Size: 1/4"-20 & 5/8"-11

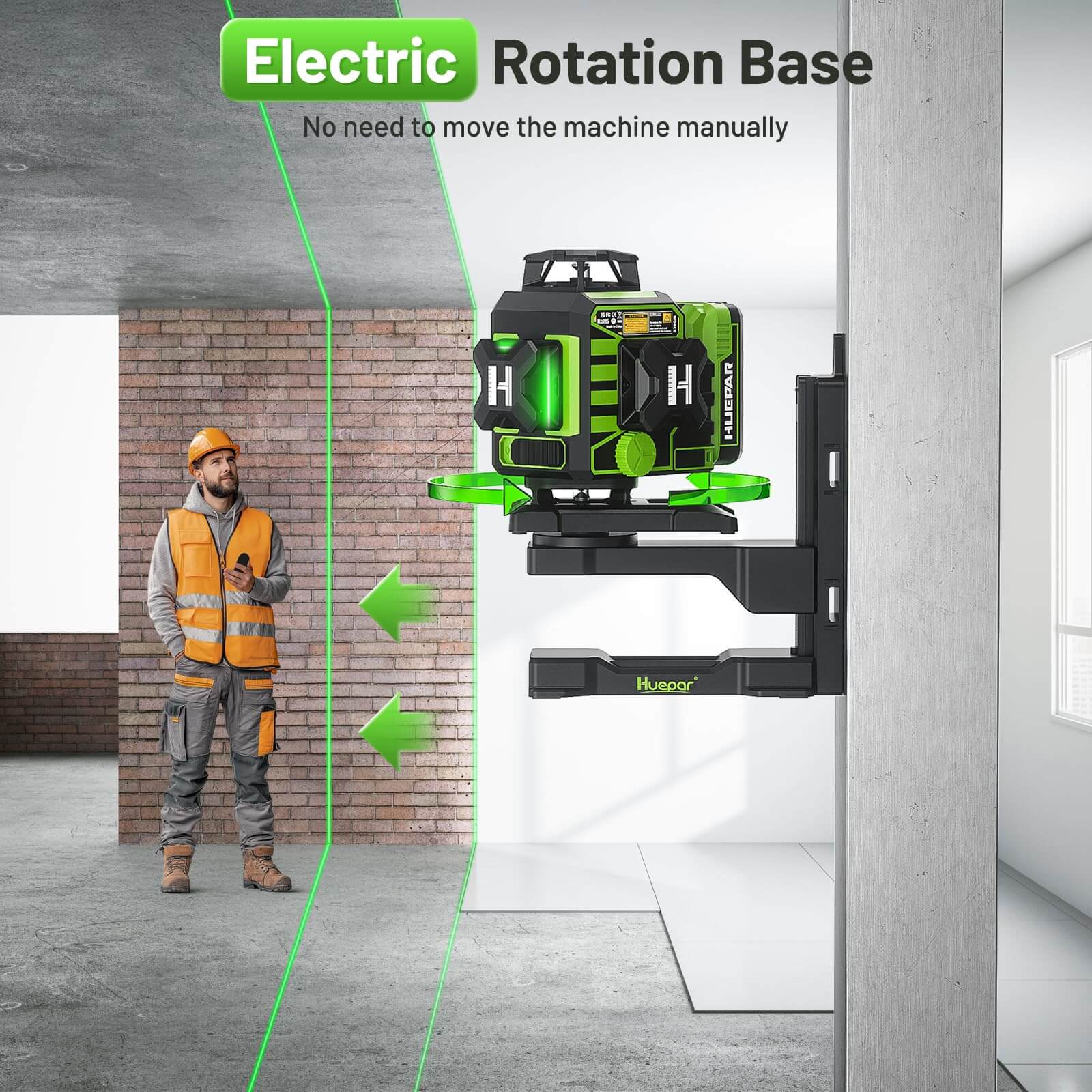

Three Speed Adjustment Electric Base

• High speed 240mm/s: suitable for measurement in open areas or environments that require fast scanning, which can improve work efficiency.
• Medium speed 48mm/s: suitable for general measurement and calibration tasks, and can be flexibly used in various working environments.
• Low speed 9.7mm/s: suitable for environments that require precision measurement or alignment work, ensuring high precision and stability of measurement.

Convenient Charging Design

• Design and Charging Ports: The laser level has two charging ports. One is located on the side of the device, and the other is used for charging through a battery.

• Battery Capacity: The level has a 2600mAh battery, allowing for long-term use within a certain range.

• Convenience and Environmental Considerations: Despite requiring battery power, the built-in charging port makes the device both convenient and environmentally friendly.

Infinite Remote Control Tangent

• The portable 2.4g wireless remote control enables users to switch between horizontal and vertical laser lines during work.

• Used for horizontal and vertical positioning on indoor and outdoor walls and floors to ensure construction accuracy.

• Helpful in home decoration tasks like wall tiles, wallpaper, and picture frame installation to maintain levelness.

• The remote control allows users to easily control the W04CG for precise positioning and measurement, making the tool more convenient and efficient.

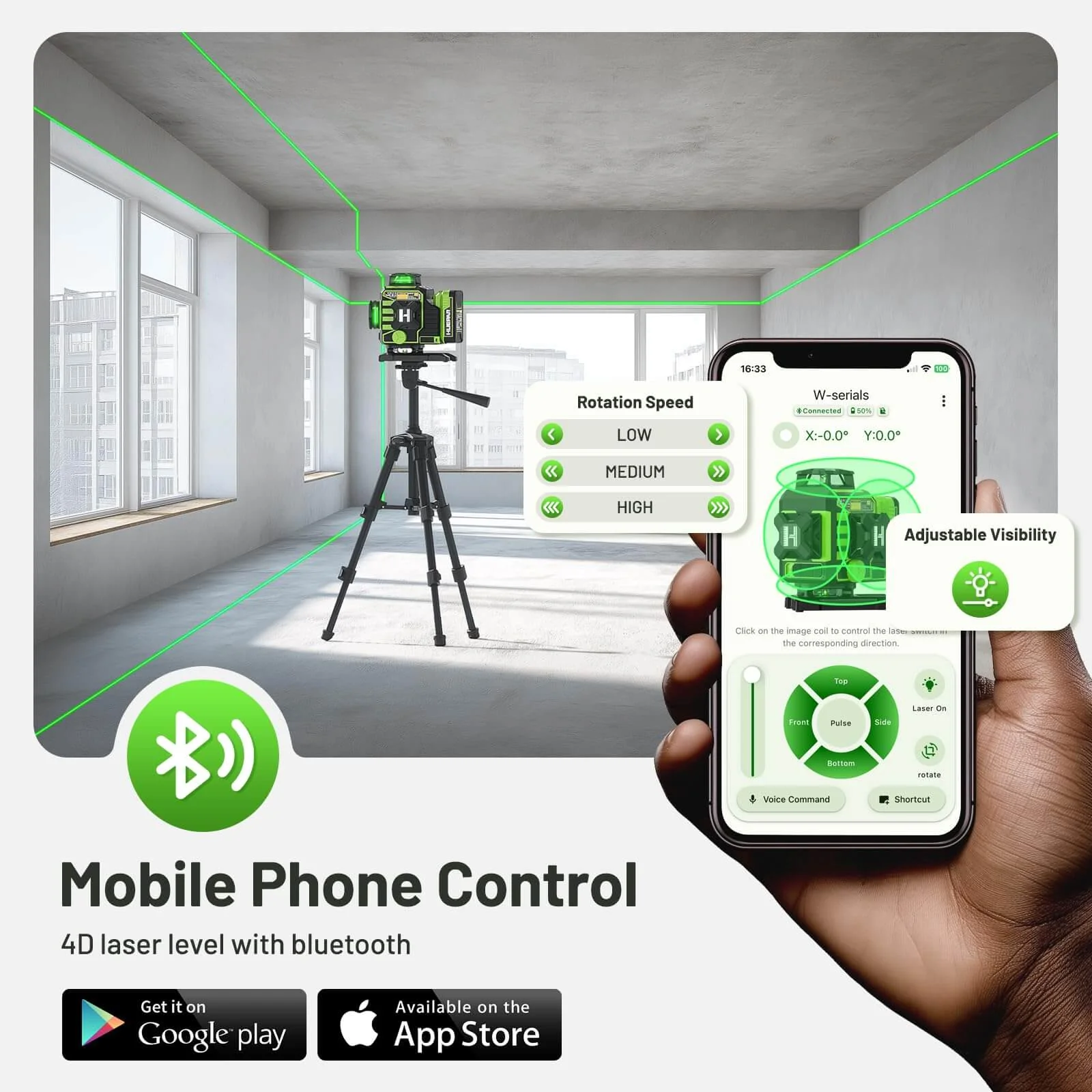

Long Distance Connection

• Users can remotely operate and control the laser level within a range of up to 50 meters using the app.
• For example, users can adjust the working mode and parameters directly from the mobile app on the construction site, without needing to interact physically with the equipment.

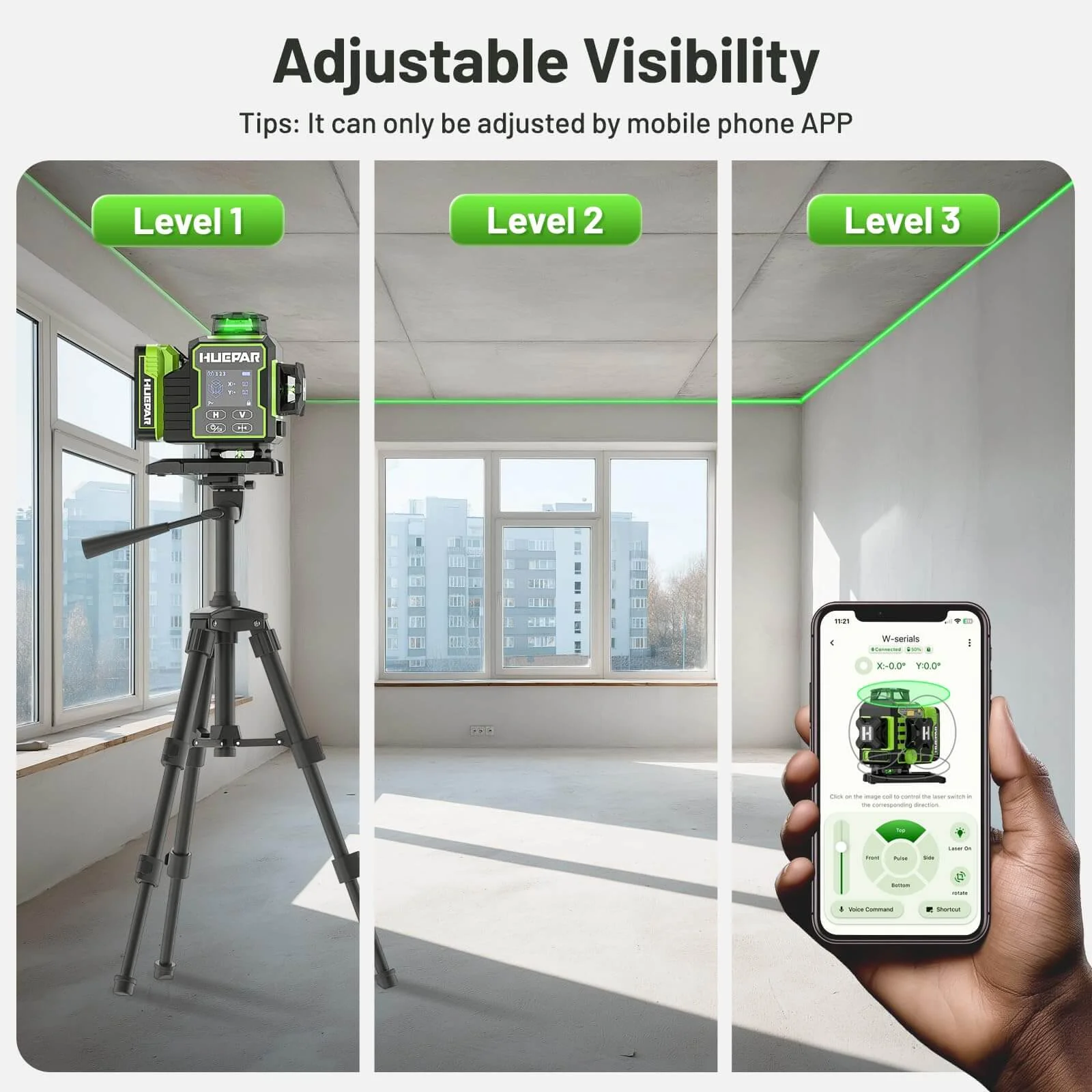

Adjustable Visibility

• Minimum Brightness: Ideal for dimly lit environments, such as indoor construction sites or nighttime use.

• Medium Brightness: Suitable for general indoor or semi-bright environments.

• Maximum Brightness: Best for outdoor or strong light environments, like construction sites with direct sunlight.

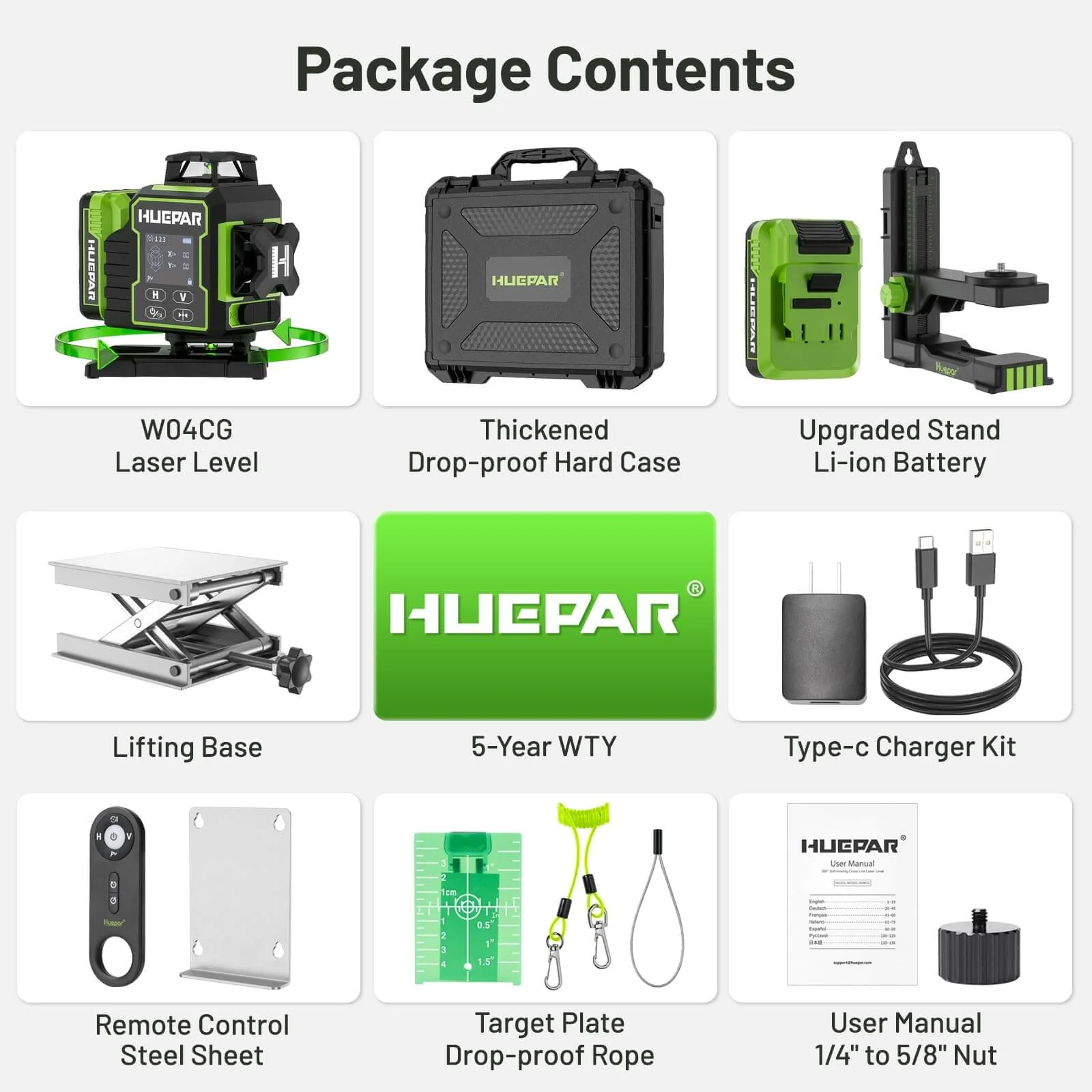

Packing List

1 x Laser Level
1 x Bluetooth Remote Control
1 x Magnetic Bracket
1 x Power Adapter & Type-C cord
1 x Hard Carry Case
1 x Lifting Base
1 x Lase Level User Manual
1 x Steel Sheet
1 x Laser Target Plate
1 x 1/4"-20 to 5/8" Adaptor
