Huepar 904DG Laser Level

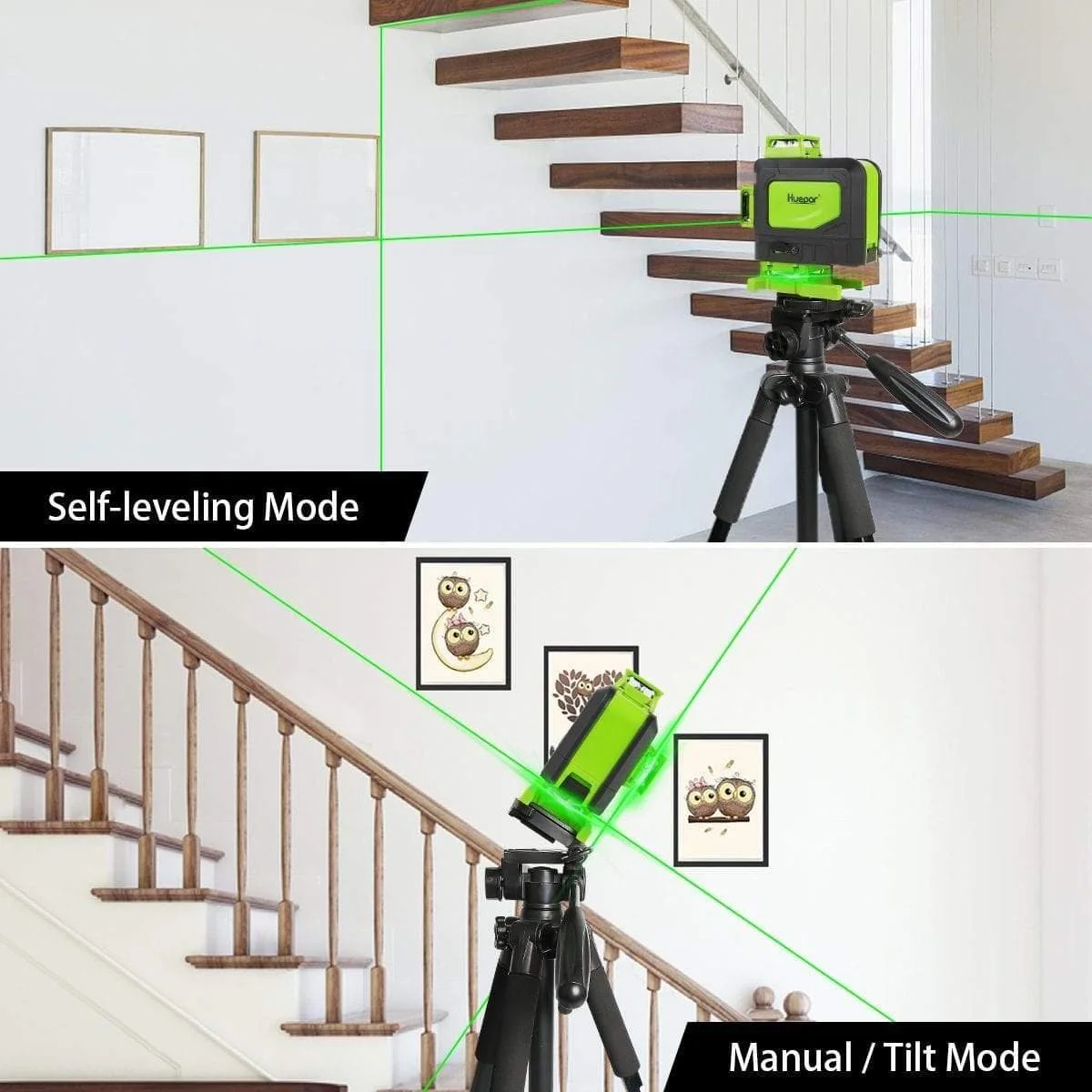

Self-leveling mode&Manual mode

Self-leveling mode:

• Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

• When the pendulum is in the locked position, the laser tool can be placed for use at any angle.

• The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.



LONG WORKING TIME

Huepar 904DG Laser Level employed a large capacity of 3.7V / 5200mAh Li-ion Battery and provides up to 6-12 hours of running time. The Li-ion Battery comes with a Type-C charging port that can be charged separately. When taking out the battery, this 4D laser level can be used at the job site by plugged in directly. The 16 lines laser level can also be charged by laptop, power bank, car charger, etc.

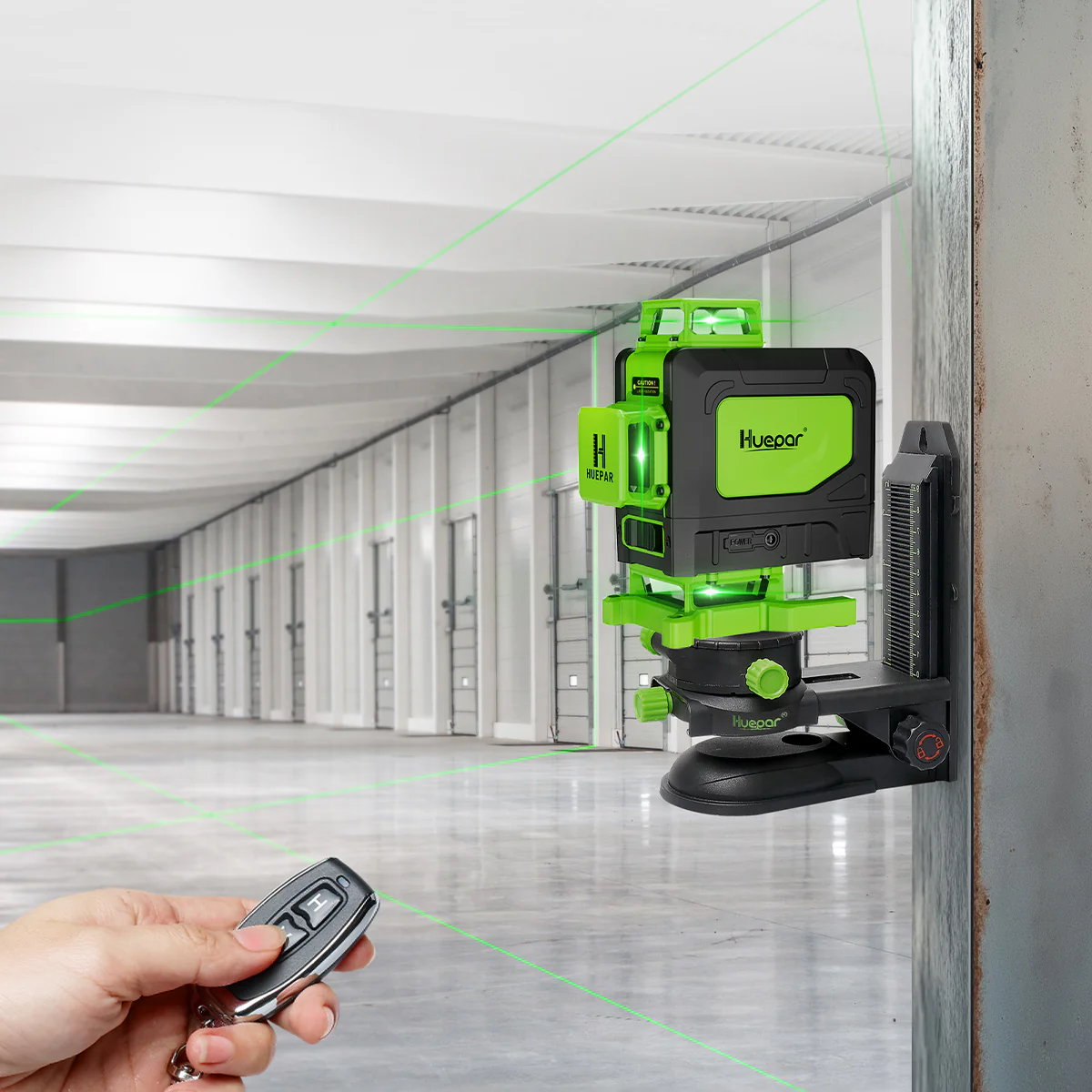

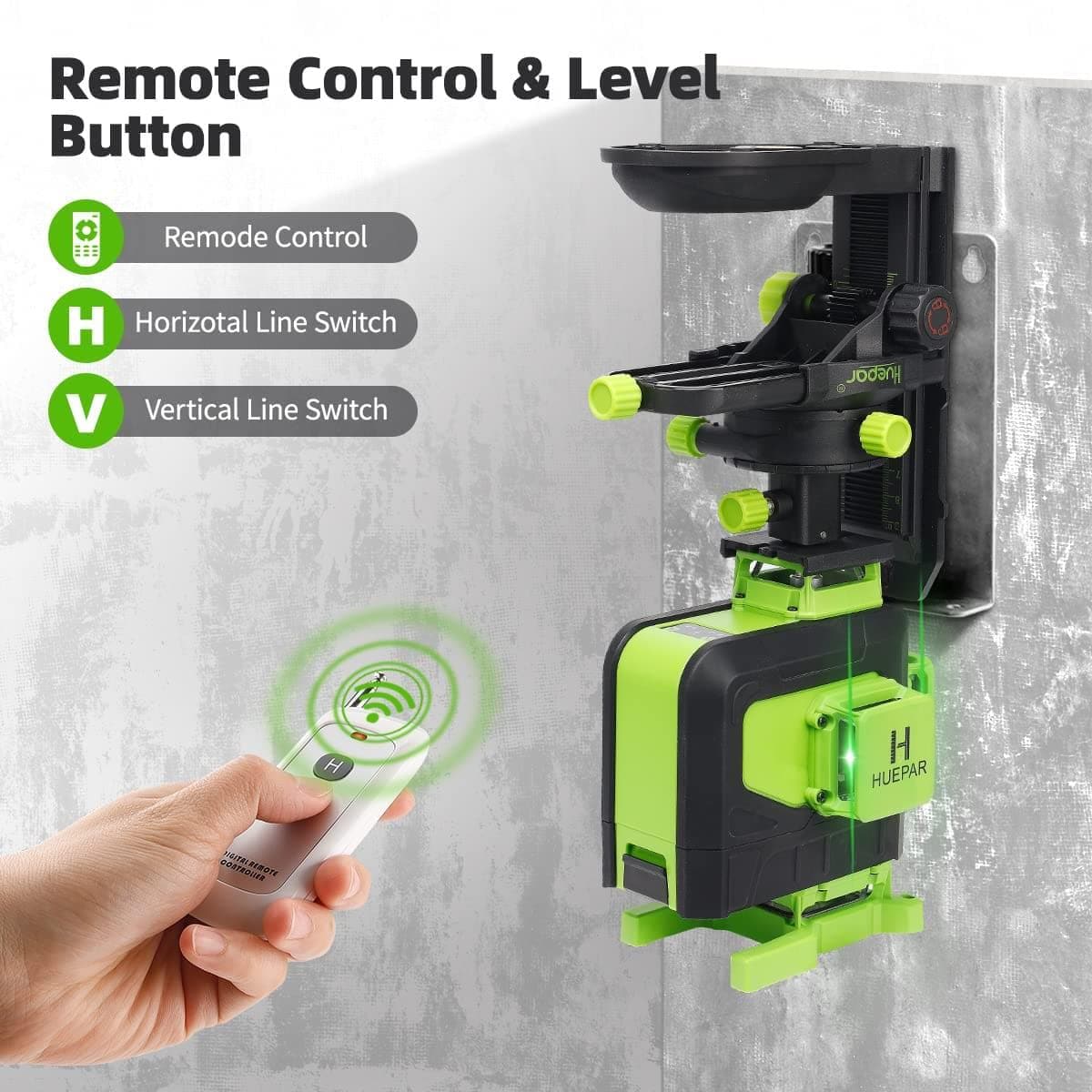

Easy to Work with the Remote Control

Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.

The remote control enables to select 4x360° laser lines individually at a distance up to 33Ft.

In manual mode, when all laser lines are switched off while the indicators are still on.



Strong Magnetic Bracket

Huepar Laser Level Fine-tuning Bracket with four fine adjustment knobs on the bracket, helps to adjust the left and right position within 1.2 inch（3cm）, the front and back position within 2.2 inch（5.5cm）, the height within 3.6 inch（9cm）, and the horizontal rotation 360°. The graduations are marked in inches and centimeters for easy readings. A dedicated adapter included helps to hang the laser tool, enabling the laser window closer to the wall for working.

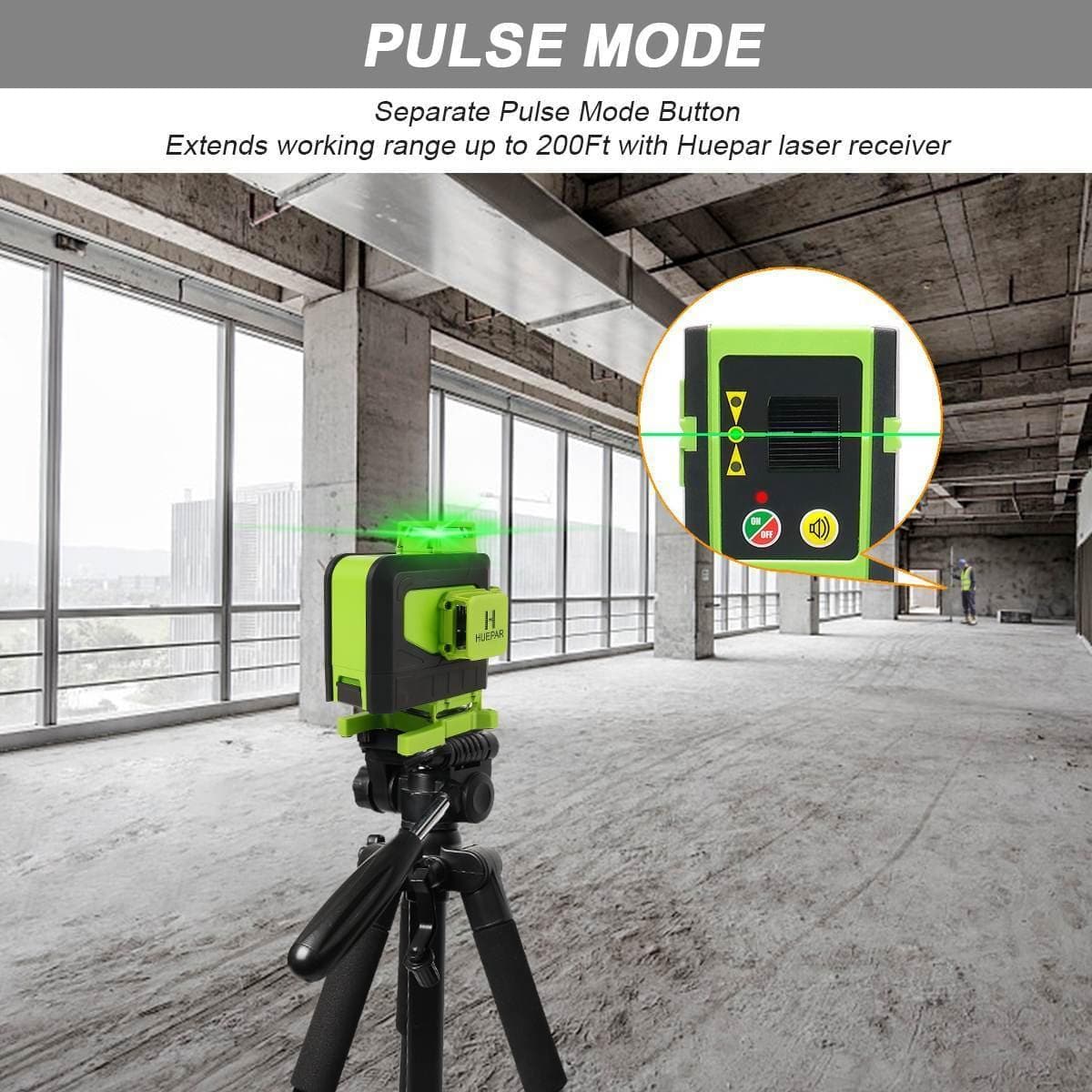

Pulse Mode

At self-leveling mode, long press the button V to switch ON/OFF the pulse mode.

Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

This 16 lines laser tool is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

Note: Keep the pulse mode on when using with a receiver.

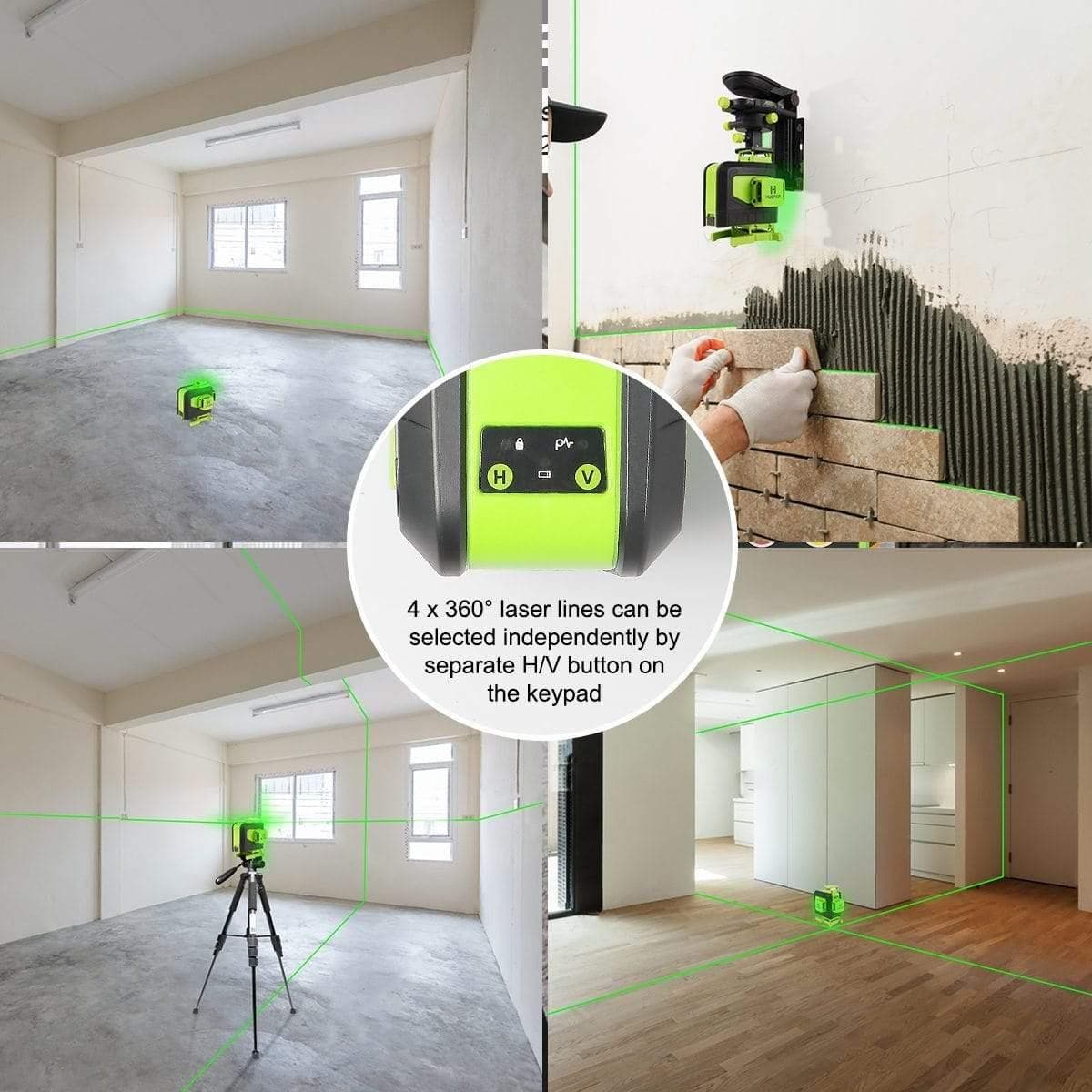

4 X 360°Laser Lines & Lines Switching

This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.

Two 360° vertical lines cross at 90°angles that makes user quickly visualize and finish square layout.

Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.

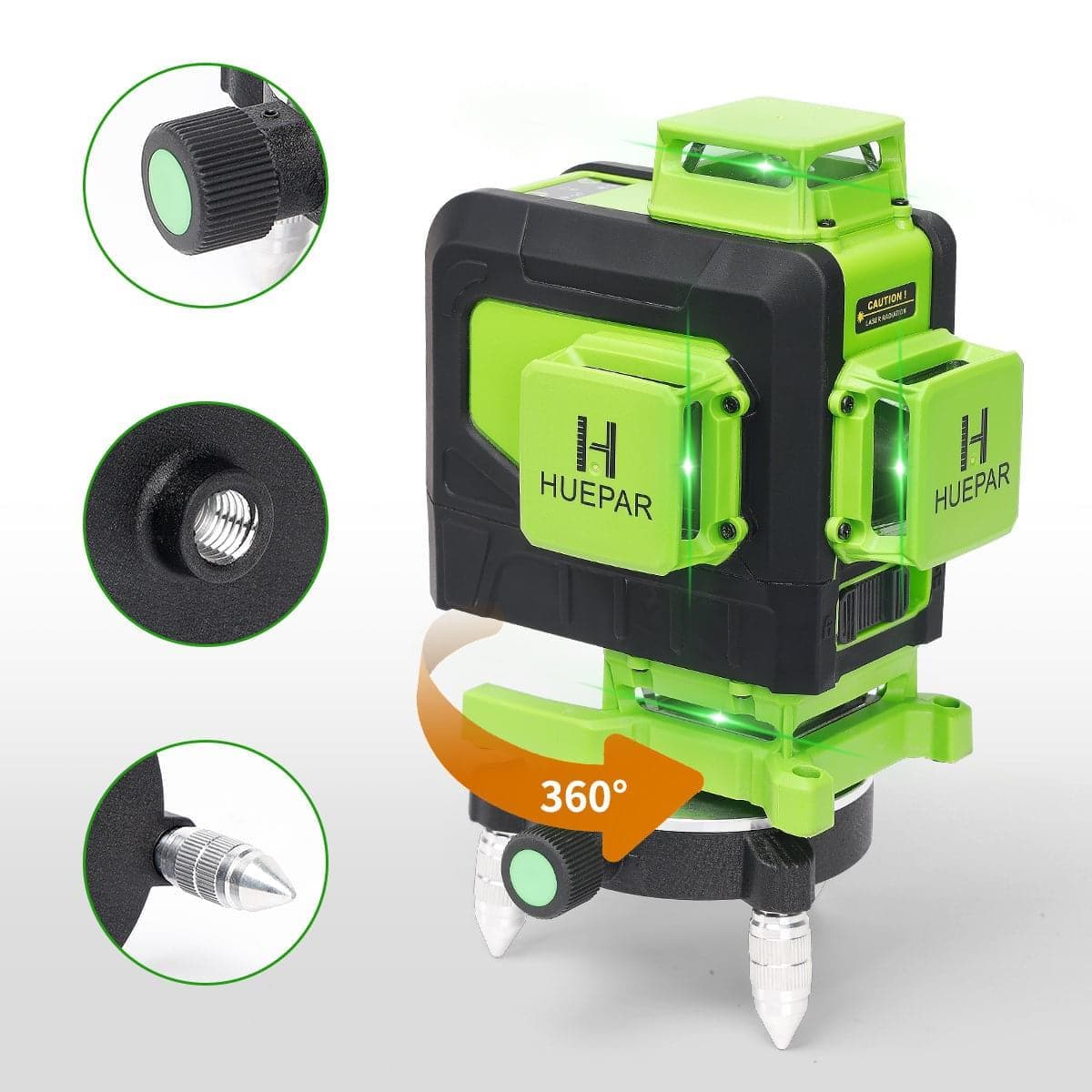

Metal Micro-Adjusting Base

Equipped with a metal micro-adjust fine turning pivoting base, and the micro rotary knob enables users to make 360°adjustment.

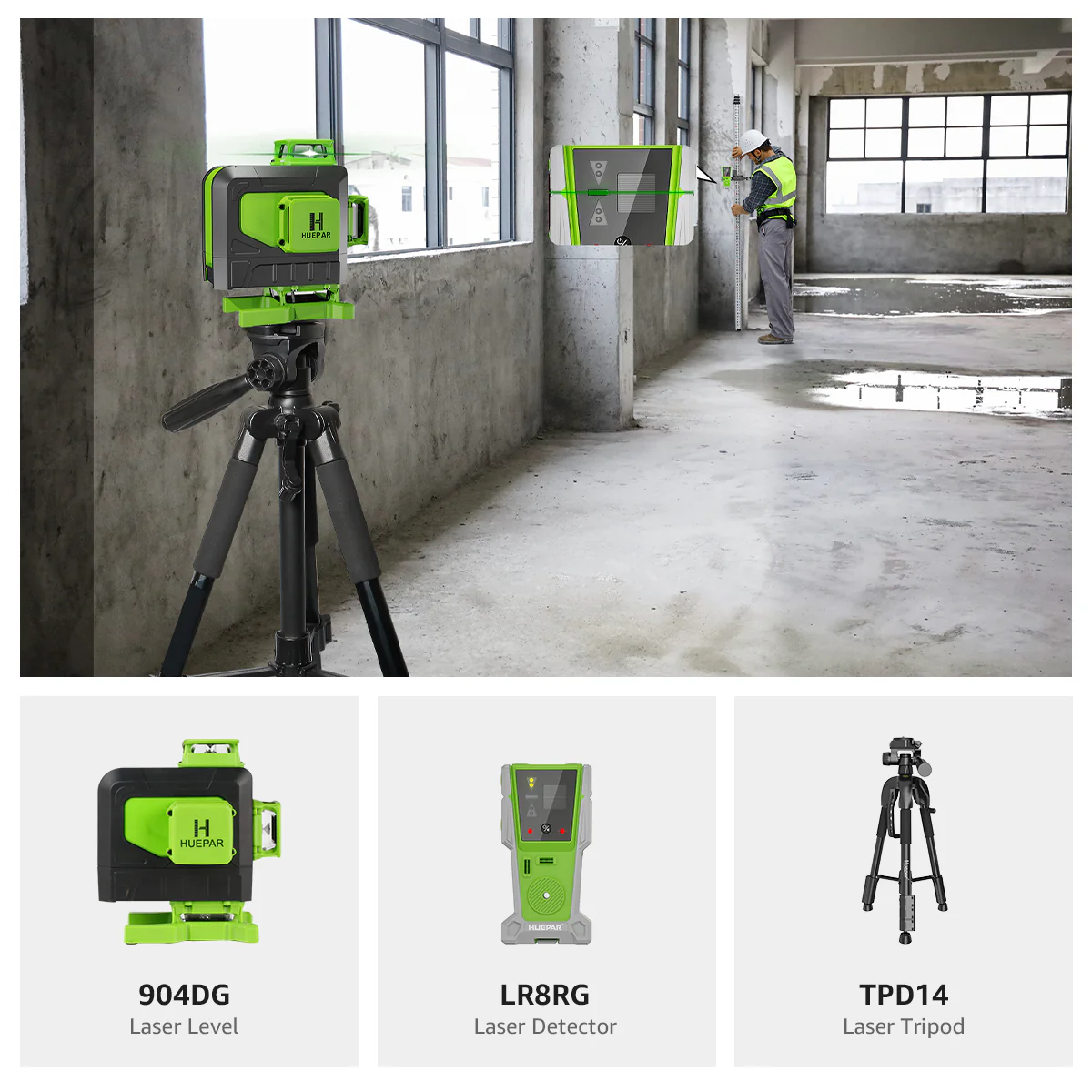

Users can adjust the height by rotate the three legs of the adapter even on a tilt surface.The 5/8" threaded mount makes it possible to be attached to a tripod or other tool for use.



Wide Applications

Huepar 4x360°Green Laser Level 904DG provides an all-in-one level and alignment solution for one-person job setup.

This 360° cross line laser tool is ideal for paving floor tiles, installing ceilings, door, window, or furniture carpentry, hanging wallpaper, etc.

Laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering construction, railway construction, etc.
