Key Features:
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion

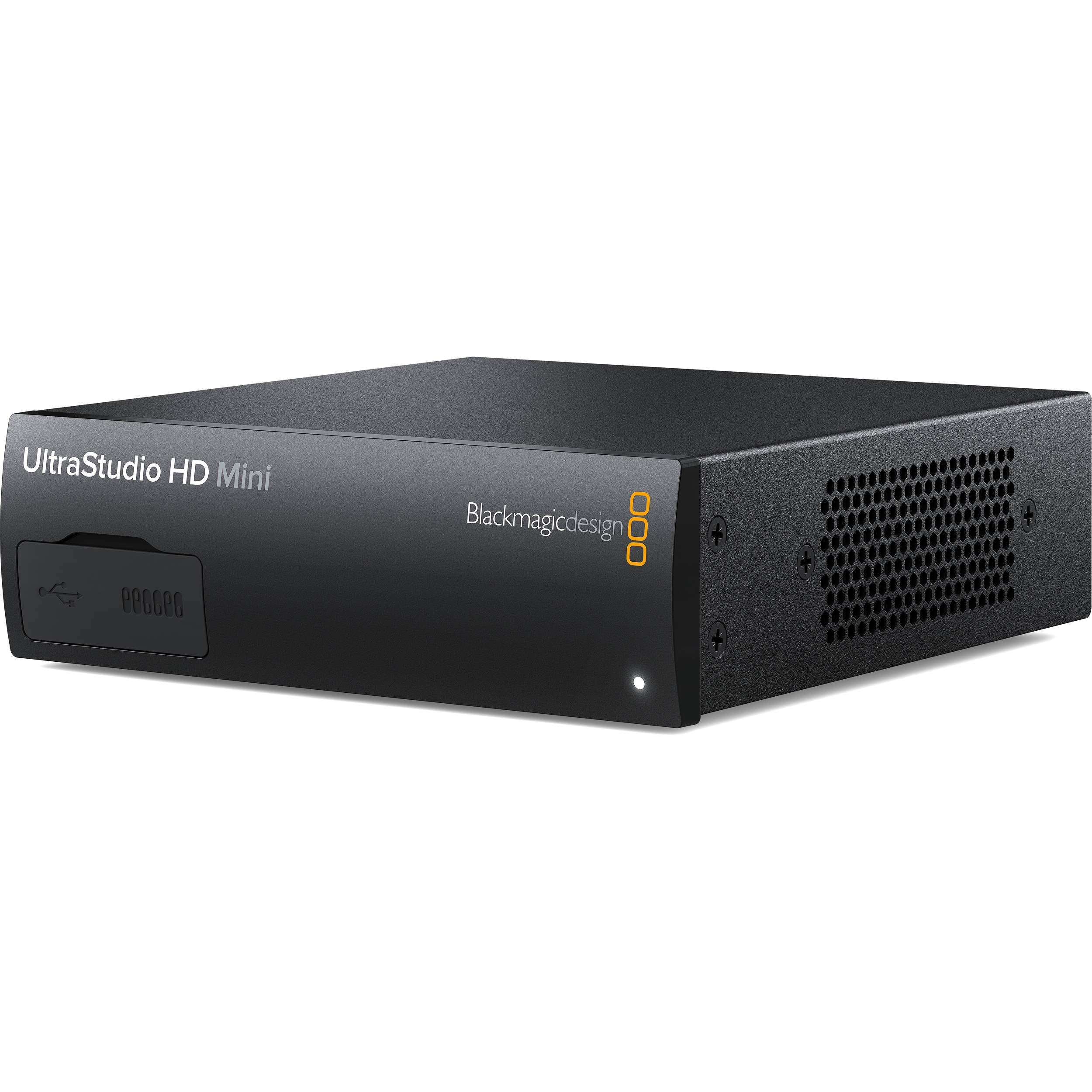

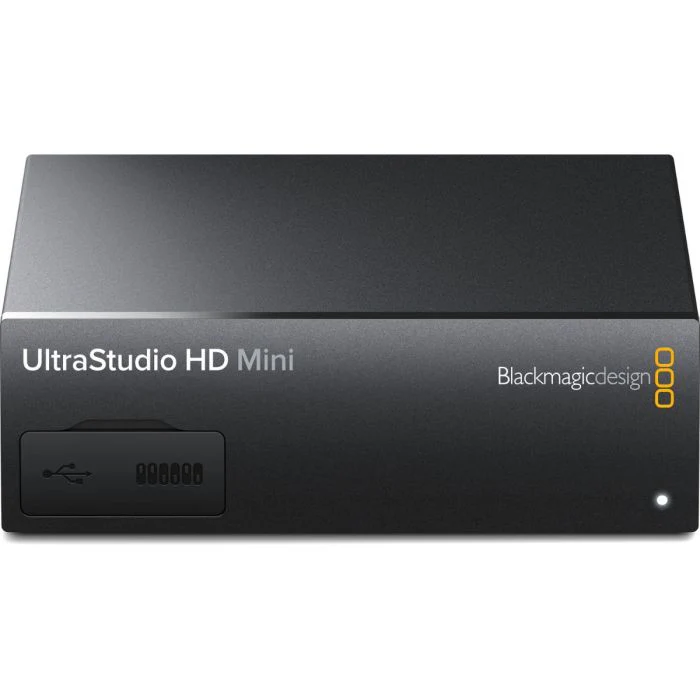

Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.
Control
Processing
HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real-Time Effects Support
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve
Thunderbolt 3 Connectivity
Software Application Support
Apple: Final Cut Pro X
Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
Avid: Media Composer, Pro Tools
Autodesk: Smoke
Steinberg: Cubase, Nuendo
Note: Check the Blackmagic Design website for updated application support lists.
|
Host Connection |
USB Type-C (Thunderbolt 3) |
|
Video Input Connectors |
1 x BNC (3G-SDI) Female 1 x 3BNC (Component / Composite) Female |
|
Input Video Format |
SDI (4:4:4/4:2:2) DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC PAL |
|
Audio Input Connectors |
2 x 1/4" TRS Analog Female |
|
Embedded Audio Input |
SDI: 16-Channel |
|
Video Output Connectors |
2 x BNC (3G-SDI) Female 1 x HDMI (HDMI 1.4b) Female |
|
Output Video Format |
HDMI (8-Bit 4:4:4 RGB) 1080p: 30 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p: 30 fps |
|
Embedded Audio Output |
SDI: 16-Channel HDMI: 2-Channel |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M-A/425M-B |
|
Other I/O |
1 x DE-9/DB-9 RS-422 Input 1 x BNC Reference Input |
|
OS Compatibility |
Windows 7 or Later macOS 10.14 or Later Linux |
|
Power Connector |
None |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Dimensions |
6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
|
Weight |
1.34 lb / 608 g |
|
Warranty Length |
Limited 3-Year Warranty |
In the Box:
- Blackmagic Design UltraStudio HD Mini
- DaVinci Resolve SD Card
- SD Card with Software and Manual
- Limited 3-Year Warranty
