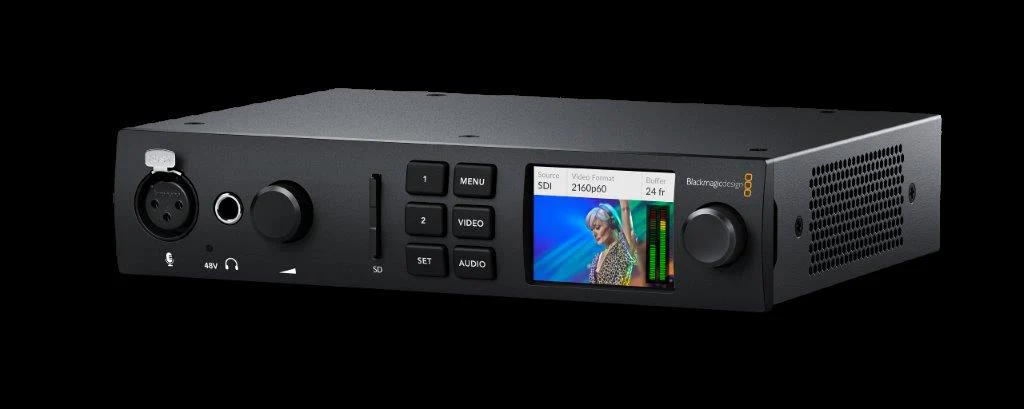

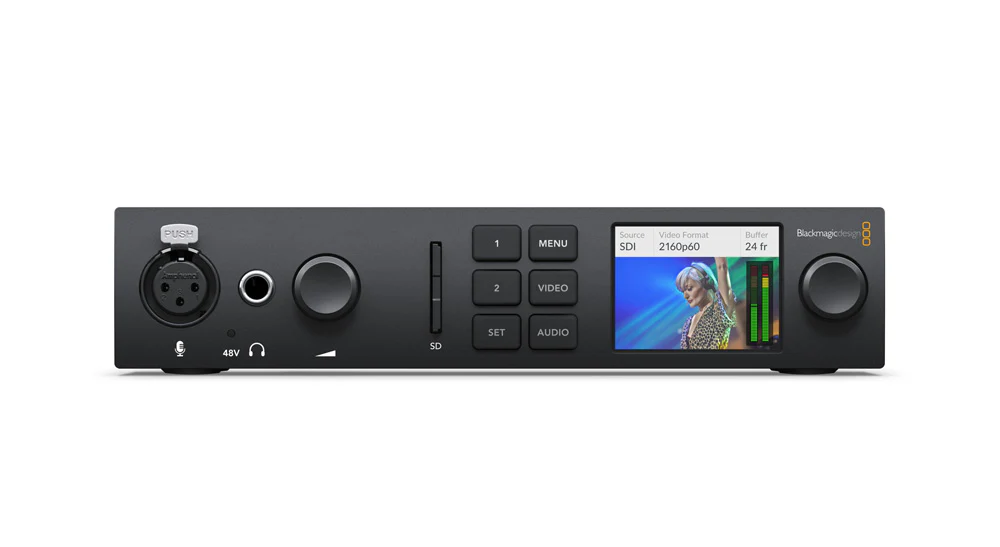

Blackmagic UltraStudio 4K Mini with Thunderbolt 3

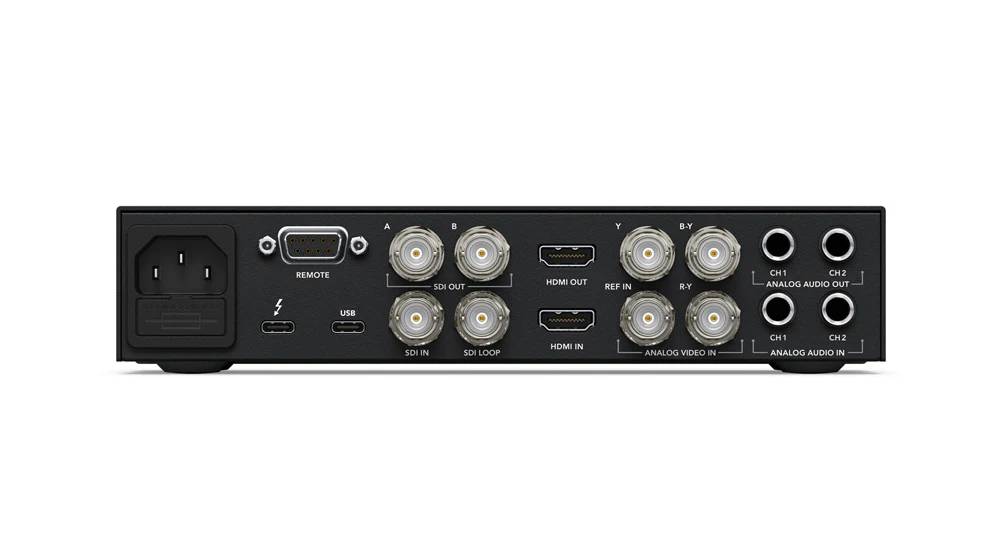

Video Input

1 x BNC. SDI

1 x HDMI Type A, HDMI 2.0b

1 x 3BNC, Component/Composite

1 x BNC, Reference

Video Output

2 x BNC, SDI Program Out

1 x BNC, SDI Loop Out

1 x HDMI Type A, HDMI 2.0b

SDI Rate

12G, 6G, 3G, 1.5G, 270 Mb

Supported Video Resolutions

SDI Input/Output:

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2KPsF: 30/29.97/25/24/23.98

UHD 2K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

525i: 59.94

625i: 50

3D SDI Playback:

DCI 4K: 30/29.97/25/24/23.98

DCI 2K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2KPsF: 30/29.97/25/24/23.98

UHD 2K: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

SDI Video Sampling

4:2:2, 4:4:4

SDI Color Precision

8-, 10-, 12-Bit RGB 4:4:4 in 2D Modes up to 4Kp30 DCI

8-, 10-Bit YUV 4:2:2 in All 2D Modes

8-, 10-, 12-Bit RGB 4:4:4 in 3D Modes up to 2Kp60 DCI

8-, 10-Bit YUV 4:2:2 in All 3D Modes

SDI Color Space

Rec. 601, Rec. 709, Rec. 2020

SDI Compliance

SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B

SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10, SMPTE ST2108-1

SDI Metadata Support

RP 188/SMPTE 12M-2 and Closed Captioning

Supported Video Resolutions

HDMI Input/Output:

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 2K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

525i: 59.94

625i: 50

3D HDMI Playback:

DCI 4K: 30/29.97/25/24/23.98

UHD 2K: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

HDMI Video Sampling

4:4:4, 4:2:2, 4:2:0

HDMI Color Precision

8-, 10-, 12-Bit

Sync Input

1 x BNC, Tri-Sync/Black Burst

Thunderbolt

1 x Thunderbolt 3 Connector

Host Charging: 45 W

USB

1 x USB Type-C, USB 3.1 Gen 1 (Up to 5 Gb/s)

Remote

1 x D-Sub 9, RS-422 (Sony Compatible)

Audio Input

2 x 1/4" RCA. Analog Audio

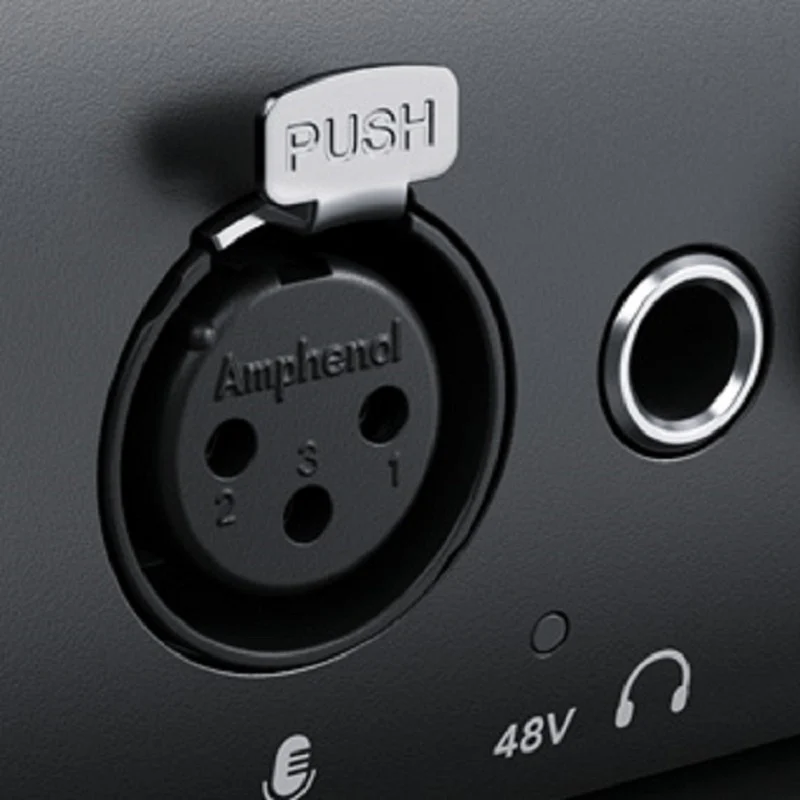

1 x 3-Pin XLR, Mic In (48 V Phantom Power Switchable via Software)

Audio Output

2 x BNC, 3G/HD/SD-SDI

1 x HDMI Type A

Embedded Audio

Input/Output:

SDI: 16-Ch

HDMI: 8-Ch

Audio Sampling

24-Bit, 48 kHz

Card Reader Slot

1 x SD Card (UHS-I & UHS-II)

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR

DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX

HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD

Apple ProRes 4444, 422 HQ, 422

Apple ProRes LT, Apple 422 Proxy

Uncompressed: 8‑Bit 4:2:2, 10‑Bit 4:2:2, 10‑Bit 4:4:4

Power Requirements, Internal

100 to 240 VAC

Maximum Power Consumption

75.3 W

Environmental

Operating Temperature: 32 to 104°F / 5 to 40°C

Storage Temperature: -4 to 113°F / -20 to 45°C

Humidity: 0 to 90%, Non-Condensing

Dimensions

8.27 x 7 x 1.8" / 21 x 17.78 x 4.57 cm

Weight

2.65 lb / 1.2 kg
