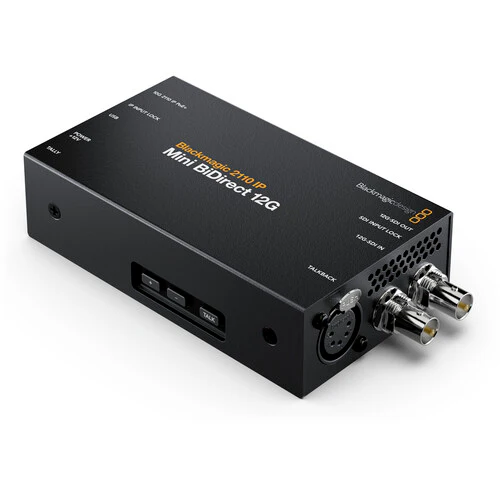

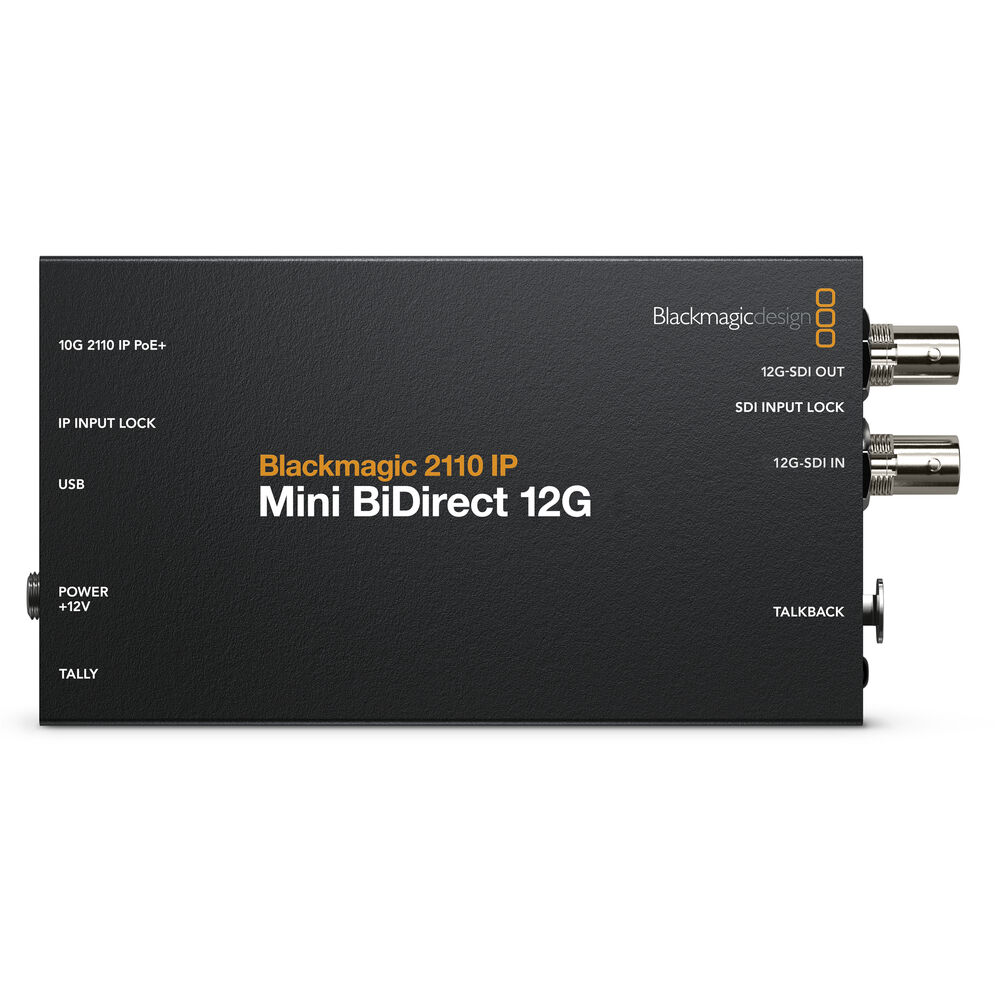

Blackmagic Design 2110 IP Mini BiDirect 12G Converter
- 12G-SDI to 2110 IP Converter
- Video Monitoring To/From Studio Camera
- Supports UHD 4K Video via SMPTE-2110 IP
- 5-Pin XLR Talkback Control
- Windows/macOS Software Utility
- PoE and 10G Ethernet Power
Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems with this 2110 IP Mini BiDirect 12G Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact that it can easily mount onto your camera rig. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.
- This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems
- Handles the SDI camera feed and SDI program return in the one converter
- 5-pin XLR talkback headset connection with volume and press to talk buttons
- Supports all SD, HD, and UHD standards up to 2160p60
- Includes a 12 VDC power supply
Technical Specifications:
|
Video I/O |
Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
|
Audio I/O |
Input 1x XLR 5-Pin Analog Female Output 1x XLR 5-Pin Analog Female |
|
Other I/O |
Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) 1x USB-C (Device) |
|
Expansion Slots |
No |
|
Video Resolution |
SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
|
Embedded Audio |
LAN (RJ45)/SDI |
|
Video Standard Compliance |
SMPTE: ST-2110 |
|
HDR Compatibility |
Yes |
|
Wireless |
No |
|
OS Compatibility |
macOS 13 or Later Windows 10 to 11 |
|
Power I/O |
1x Barrel (12 VDC) Input |
|
PoE Support |
PoE++ 802.3bt |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Storage Humidity |
0 to 90% |
In the Box:
- Blackmagic Design 2110 IP Mini BiDirect 12G Converter
- 12 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
