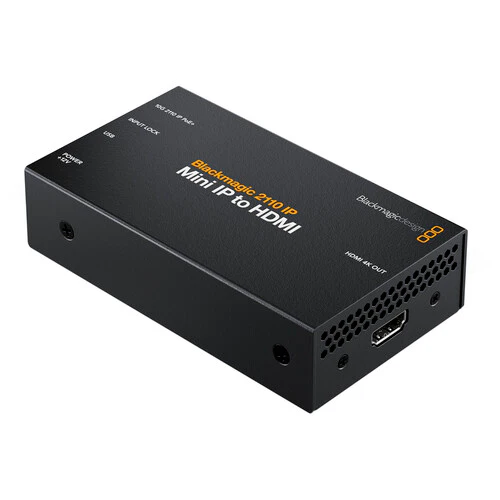

Blackmagic Design 2110 IP Mini IP to HDMI Converter
- 2110 IP to HDMI Converter
- Video Monitoring To/From Studio Cameras
- Supports UHD 4K Video via SMPTE 2110 IP
- Windows/macOS Software Utility
- PoE++ and 10G Ethernet Power
View your SMPTE 2110 IP broadcast signal to HDMI displays with this 2110 IP Mini IP to HDMI Converter from Blackmagic Design. The converter allows you to monitor SMPTE 2110 IP camera signals with up to UHD 4K resolution with audio on an HDMI display. It features a 10G Ethernet port that inputs SMPTE 2110 IP video and supports up to 16 channels of audio.
Because of its ultra-compact size, the unit can be mounted right onto your display or monitor cage. It can also be connected to a computer using USB-C for firmware updates and setup. It can be powered using the included power supply, or it supports PoE++ on a supported network.
- This model is designed for connecting a large-screen television or computer monitor to SMPTE-2110 IP systems
- The ultra-compact design means you can mount it behind the display or on a monitor cage
- The unit supports all SD, HD, and UHD 4K video standards up to 2160p60
- It has a standard 10G RJ45 Ethernet connection, so you can use regular Cat-6 Ethernet cables The converter can be powered via Ethernet (PoE), so you don't even need to connect the power
- A DC power supply is included
Technical Specifications:
|
Video I/O |
Input 1x RJ45 Female Output 1x HDMI Female |
|
Audio I/O |
No |
|
Other I/O |
Input 1x USB-C (Firmware) |
|
Expansion Slots |
No |
|
Video Resolution |
RJ45 Input (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
|
Embedded Audio |
HDMI/LAN (RJ45) |
|
Video Standard Compliance |
SMPTE: ST 2110-20/ST 2110-21 |
|
HDCP Support |
No |
|
HDR Compatibility |
Yes |
|
HDMI CEC |
No |
|
Wireless |
No |
|
OS Compatibility |
macOS 13 or Later Windows 10 to 11 |
|
Power I/O |
1x Barrel (12 to 16 VDC) Input |
|
PoE Support |
PoE++ 802.3bt |
|
Power Consumption |
Device: 12 to 16 VDC (18 W) |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Storage Humidity |
0 to 90% |
In the Box:
- Blackmagic Design 2110 IP Mini IP to HDMI Converter
- 12 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
