Blackmagic Design 2110 IP Converter 8x12G SFP
- Convert 8 x 12G-SDI Devices to SFP Fiber
- 8 x SMPTE-2110 IP SFP Fiber Ports
- UHD 4K Resolution Support
- Redundant Power
- 1 RU Rackmount Design

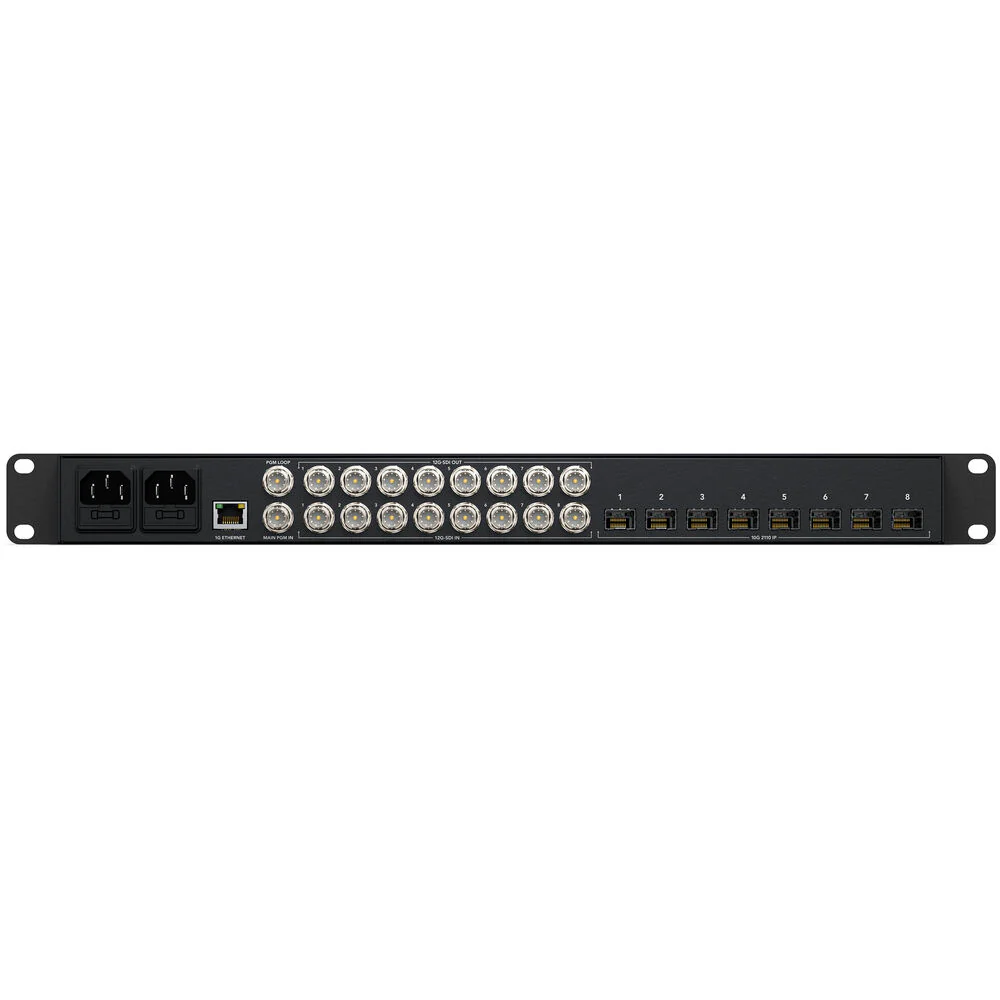

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 8x12G SFP from Blackmagic Design. The converter provides eight bidirectional 12G-SDI video conversion connections, and it features eight SMPTE-2110 SFP IP fiber ports to extend connectivity over long distances. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input.
Technical Specifications:
|
Video I/O |
Input 8x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Program) Output 8x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) |
|
Audio I/O |
Output 1x 1/4" TRS Stereo Analog Female |
|
Other I/O |
Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
|
Expansion Slots |
8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP) |
|
Video Resolution |
BNC Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
|
Embedded Audio |
LAN (RJ45)/SDI |
|
Video Standard Compliance |
SMPTE: ST-2110 |
|
HDCP Support |
No |
|
HDR Compatibility |
Yes |
|
HDMI CEC |
No |
|
Wireless |
No |
|
OS Compatibility |
macOS 13 or Later Windows 10 to 11 |
|
Display |
2.2" LCD |
|
Power I/O |
2x IEC C14 (100 to 240 VAC) Input |
|
Operating Temperature |
41 to 104°F / 5 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Storage Humidity |
0 to 90% |
In the Box:
- Blackmagic Design 2110 IP Converter 8x12G SFP
- Limited 1-Year Manufacturer Warranty
