Huepar Green - 903DG Laser Level

Huepar 903DG 12 Lines 3D Green Laser Level Specifications:

• ● Laser Beam: Green Beam
• ● Projection: 12 Green Laser Lines
• ● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• ● Laser Wavelength: Osram 520nm
• ● Horizontal / Vertical Accuracy: ±3mm/10m;±1/9 In. at 33 Ft.
• ● Leveling / Compensation Range: 4°±1°
• ● Leveling Time: ≤3s
• ● Working Distance: 40m, ≥50m with detector 132 Ft, ≥165 Ft with detector
• ● Operating Time & Power Source: 6-8 hours with built-in Li-ion battery 3.7V / 5200mAh
• ● Mount Size: 1/4"-20
• ● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
• ● Operating Temperature: Between -10℃ and +50℃
• ● Storage temperature: Between -20℃ and +70℃

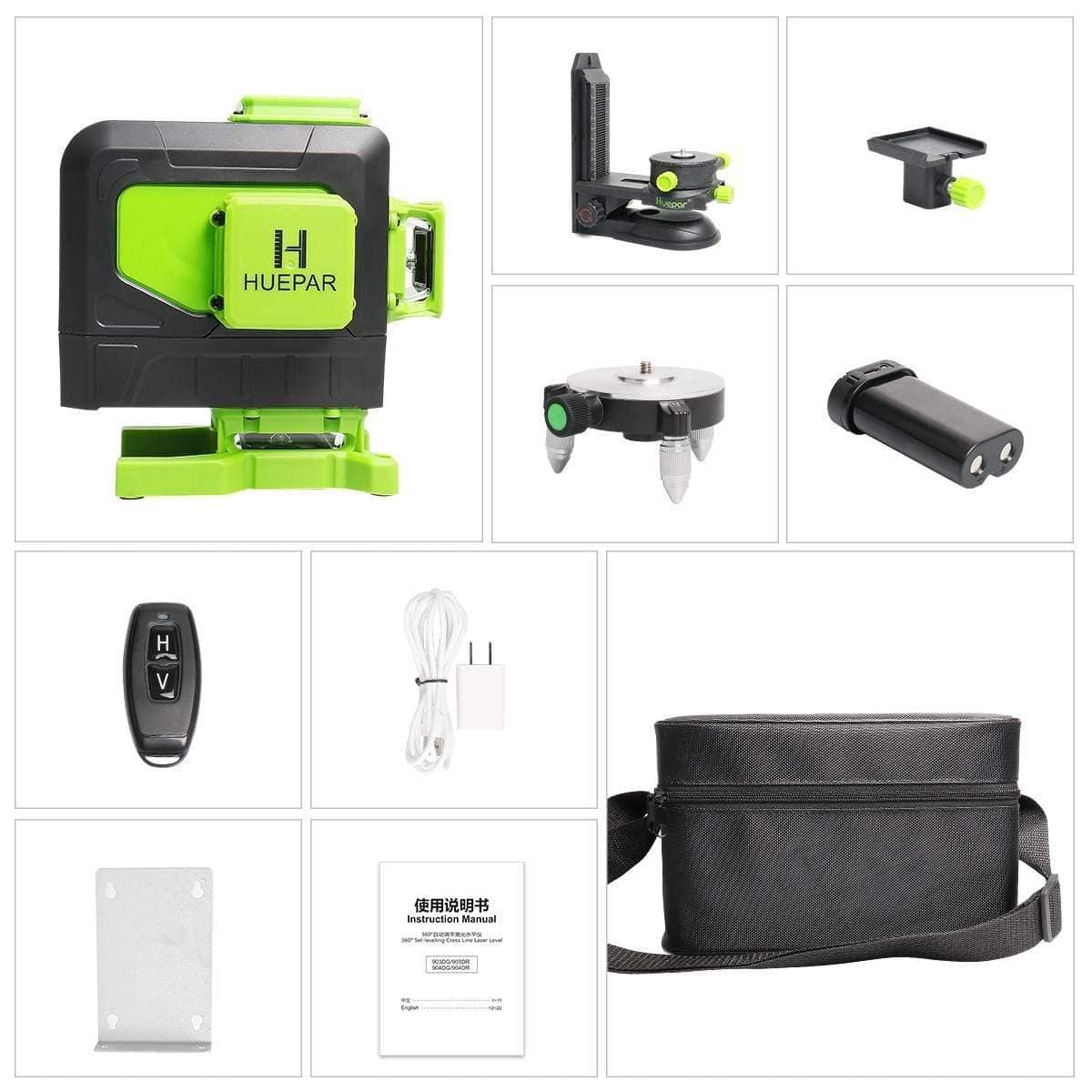

Ground Laser Level Package Contents:

• 1 x Green Floor Laser Level 903DG
• 1 x Wall Hanging Plate
• 1 x Magnetic Pivoting Base
• 1 x Remote Control
• 1 x Power Adapter
• 1 x Li-ion Battery
• 1x Rotating base
• 1x User Manual
• 1x Soft Bag

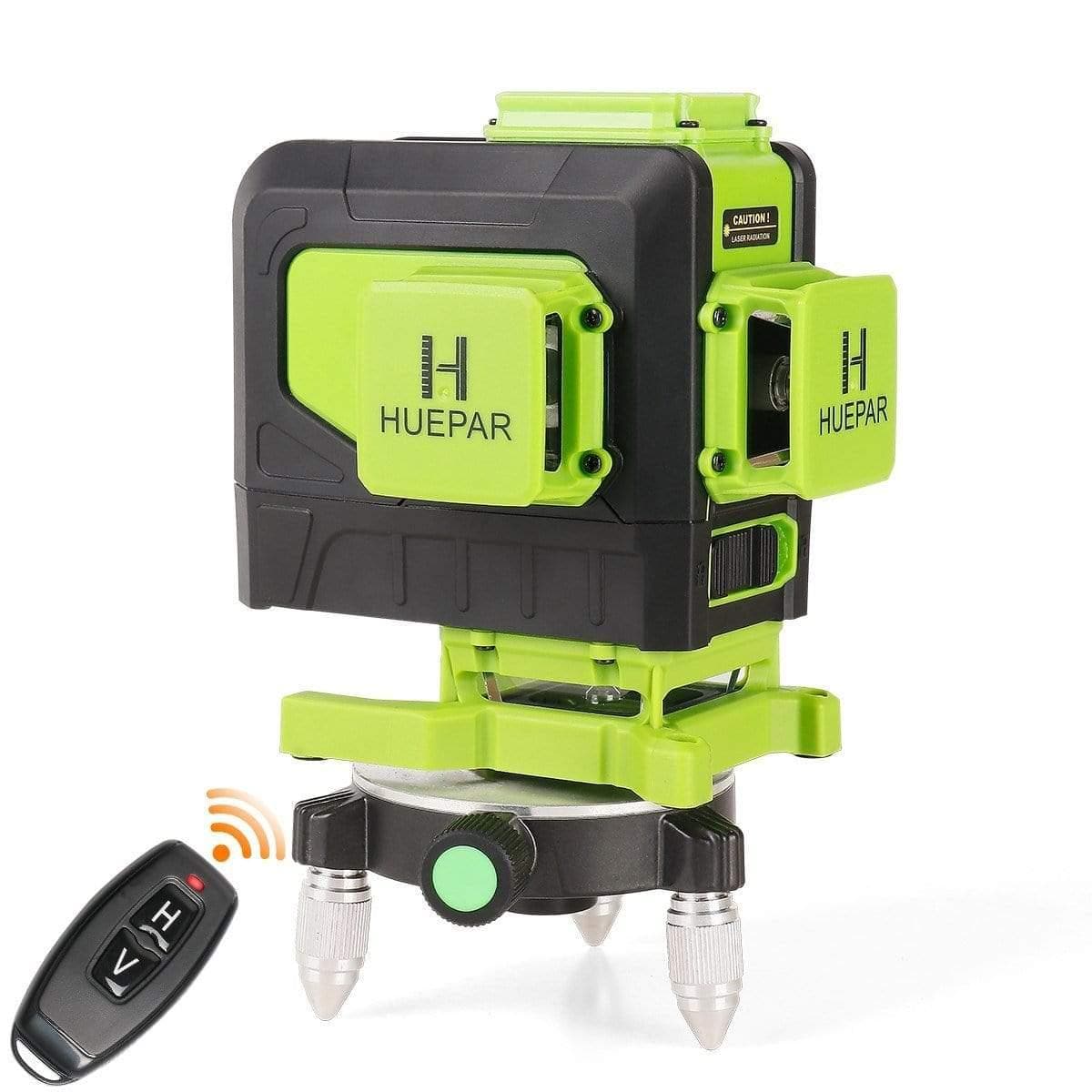

With Remote control

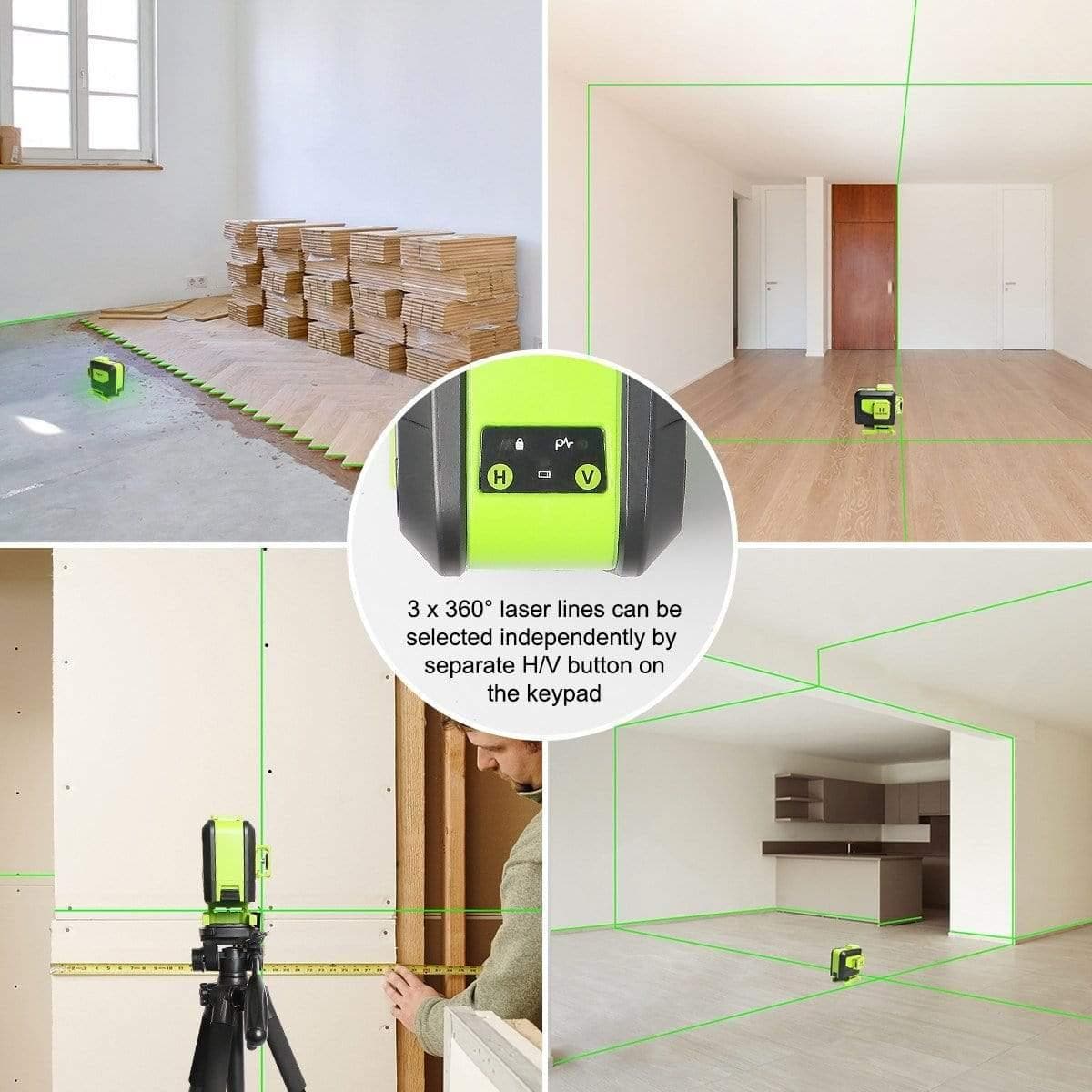

The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
The laser line(s) of ground laser level can be temporarily turned OFF by the remote control when you need to leave for a while.

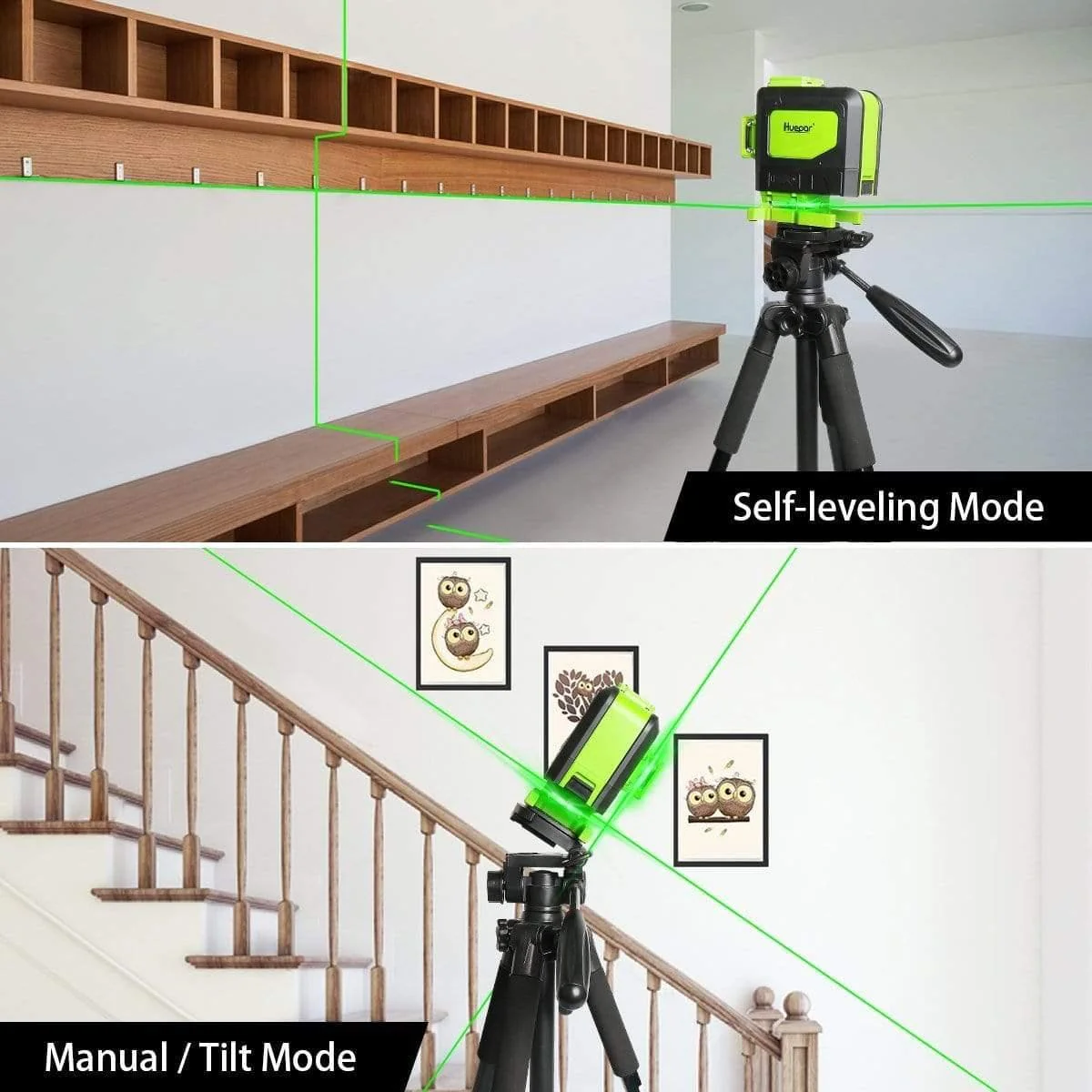

Self-leveling mode:

Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

Manual mode:

When the pendulum locked, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

Pulse Mode

Turn ON pulse mode: After power on & switch the pendulum to unlocked position, short press the V button to turn on the pulse mode. The indicator will light up in blue.

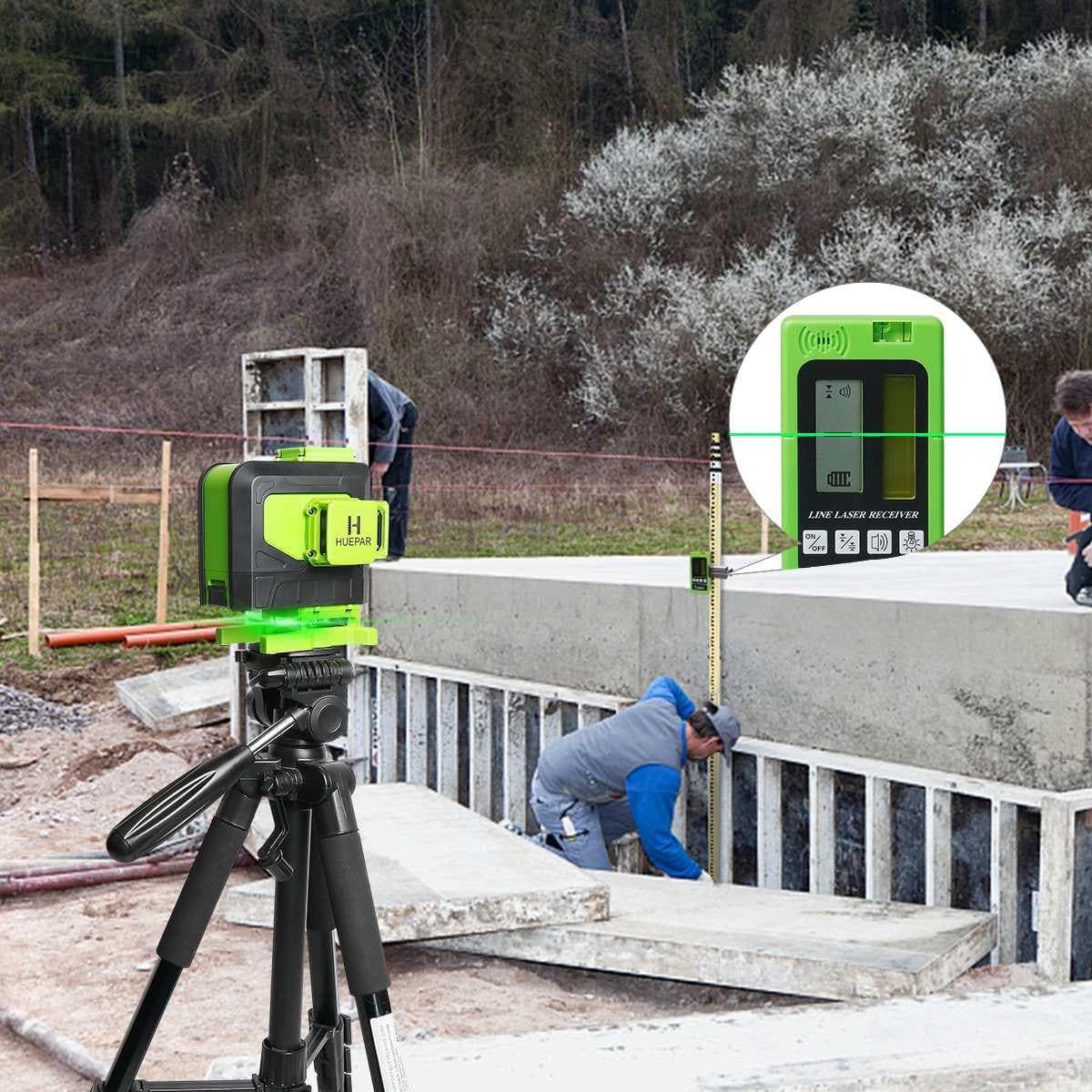

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.

Keep the pulse mode on when using with a receiver.

It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.

Diverse Power Supply

Large-capacity li-ion battery: 6-8 hours of extra-long working & Can be charged with type-c port.

Bare battery charging: with type-c port.

Direct input charging: This floor laser level can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.

Easy to Use

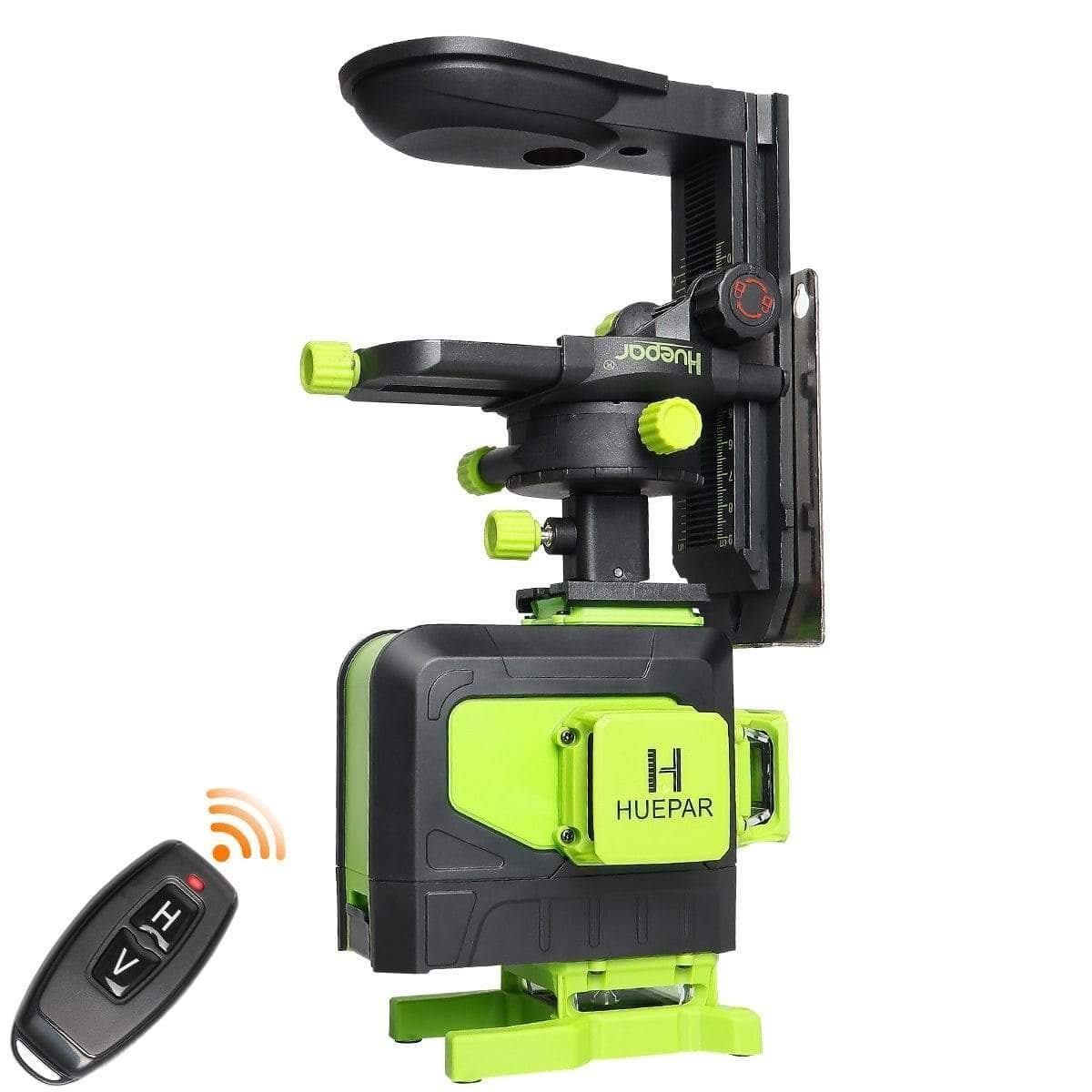

1. 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel，supporting you to turn the laser level around at 360 degree, projecting lines at any angle.

2. Mount Size: 1/4"-20 mounting threads for temporarily fastening in place or being fixed on tripod.
