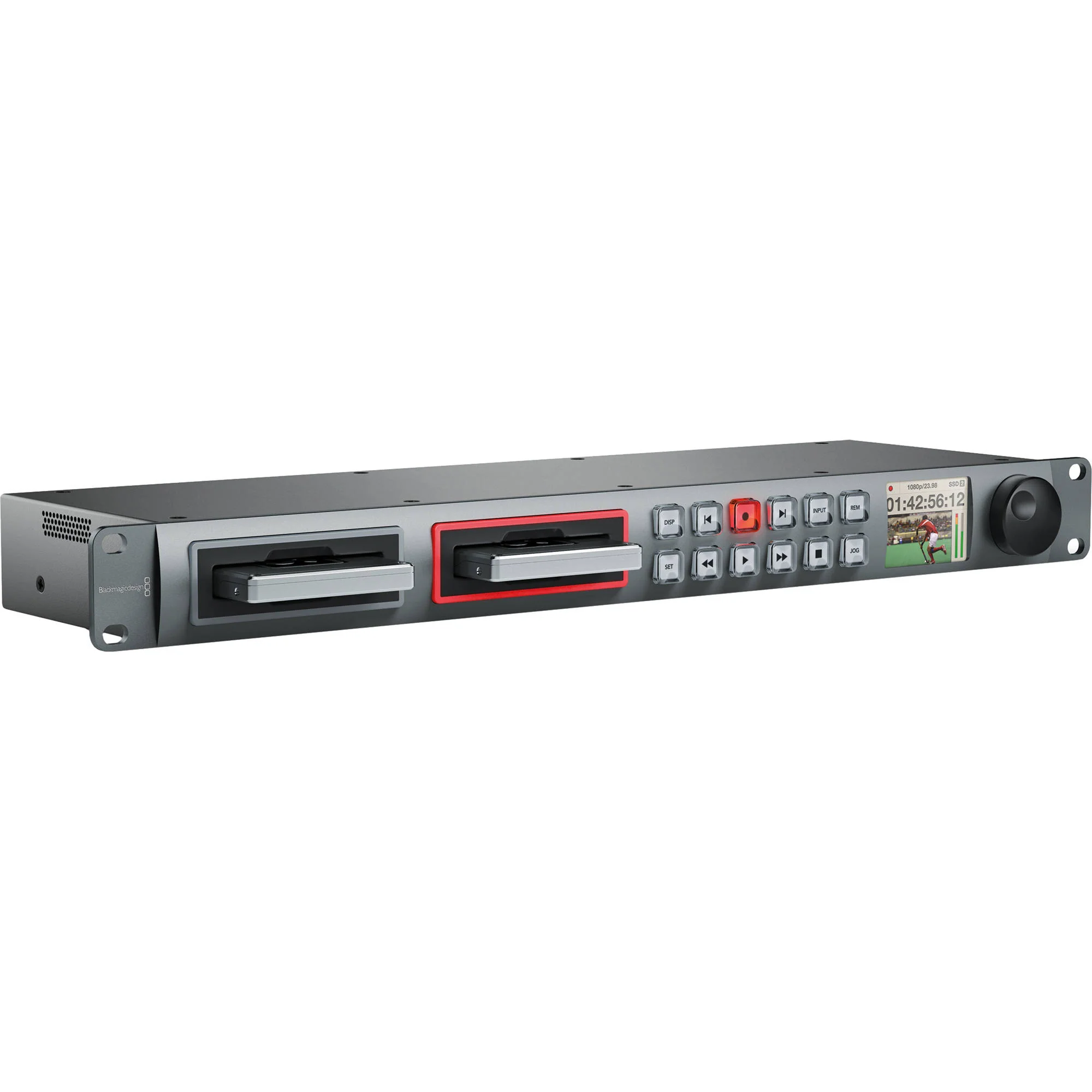

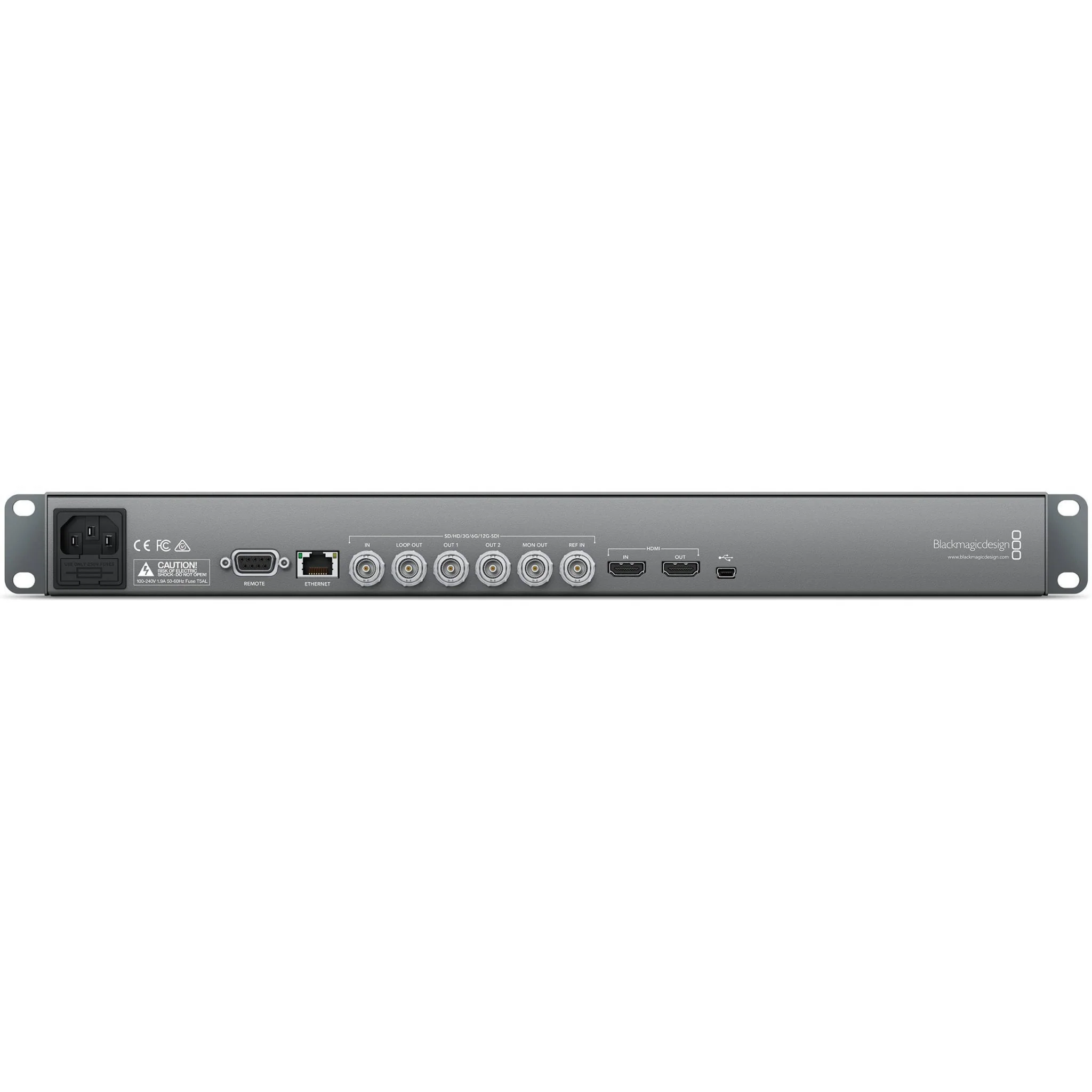

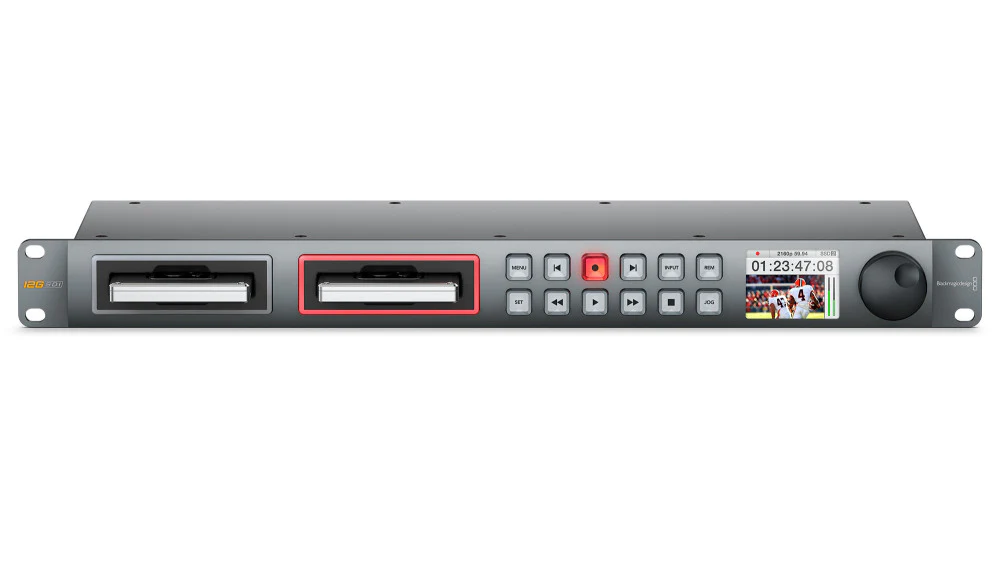

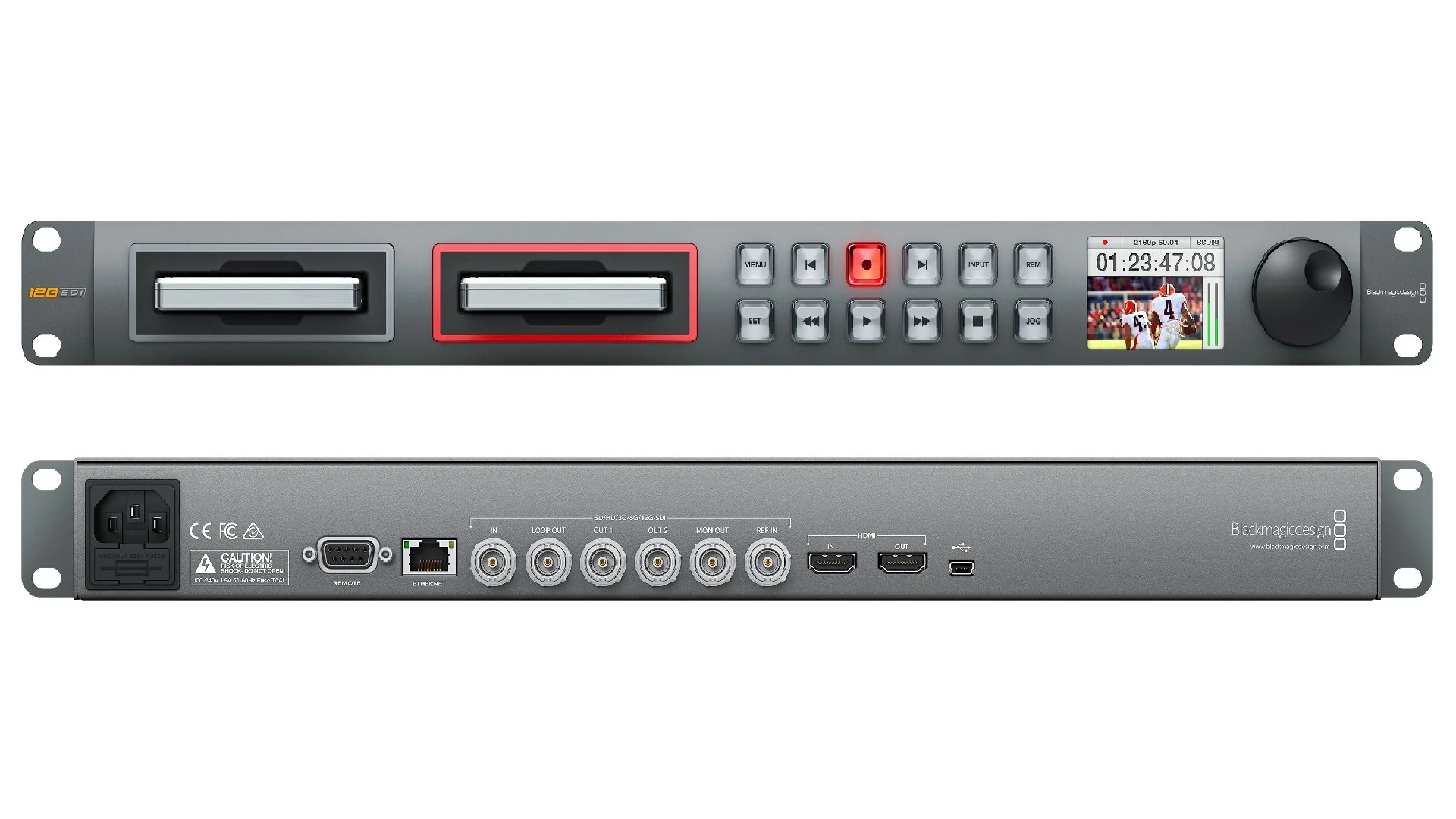

Blackmagic HyperDeck Studio 12G

Video Input

1 x 12G-SDI (SD/HD/3G/6G/12G switchable; supports single link 4:2:2, 10-bit)

1 x HDMI 2.0 (type A connector; supports up to UHD 4K at 60p; 10-bit, 4:2:2)

Video Output

2 x 12G-SDI (SD/HD/3G/6G/12G switchable; supports 10-bit)

1 x 12G-SDI loop-through (SD/HD/3G/6G/12G switchable; supports 10-bit)

1 x 12G-SDI monitor output (SD/HD/3G/6G/12G switchable; supports 10-bit)

1 x HDMI 2.0 (type A connector; supports up to UHD 4K at 60p; 10-bit, 4:2:2)

Audio Input

SDI:

16 channels embedded in SD, HD, and UHD in QuickTime files

2 channels embedded in HD in Avid DNxHD MXF files

HDMI

8 channels embedded in SD, HD, and UHD in QuickTime files

2 channels embedded in HD in Avid DNxHD MXF files

Audio Output

SDI:

16 channels embedded in SD, HD, and UHD in QuickTime files

2 channels embedded in HD in Avid DNxHD MXF files

HDMI

8 channels embedded in SD, HD, and UHD in QuickTime files

2 channels embedded in HD in Avid DNxHD MXF files

Sync Input

1 x Blackburst or tri-level sync (BNC)

Device Control

1 x RS-422 deck control port on DB9 female (Sony protocol)

Ethernet

1 x RJ-45 for remote operation

Computer Interface

1 x mini-USB 2.0 for software updates and HyperDeck Utility software control

SSD Interface

2 x 2.5" SATA 6 Gb/s

Supported Resolutions

SD

625/25 PAL and 525/29.97 NTSC

480p60 and 576p50 (via HDMI only)

HD

1280 x 720p: 50, 59.94, 60, 1920 x 1080i: 50, 59.94, 60

1920 x 1080PsF: 23.98, 24

1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

4K

3840 x 2160p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

SDI Metadata Support

HD RP188 and closed captioning (CEA-708)

Video Sampling

4:2:2

Color Depth

10-bit

Color Space

REC 601, REC 709

Audio Sampling

Television standard 24-bit, 48 kHz

Multiple Rate Support

SDI and HDMI switchable between SD, HD, and Ultra HD

SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI, 6G-SDI, and 12G-SDI

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources

Supported Codecs

Uncompressed QuickTime

Apple ProRes 422 QuickTime

Apple ProRes 422 (LT)

Apple ProRes 422 (Proxy)

Avid DNxHD QuickTime (up to 1080i60)

Avid DNxHD MXF up to (up to 1080i60)

Operating System

OS X 10.9 (Mavericks), 10.10 (Yosemite), or later

Windows: 7 or 8

Display

Built-in LCD for video, audio, and timecode monitoring and menu settings

User Interface

12 buttons and jog wheel for local control

Rack Height

1RU

Power Supply

1 x built-in international AC power supply with IEC C14 inlet

110 to 240 VAC, 50 to 60 Hz

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity

0 to 90% non-condensing

Dimensions

19 x 1.75 x 6.7" / 48.3 x 4.4 x 17 cm

Weight

Not specified by manufacturer
