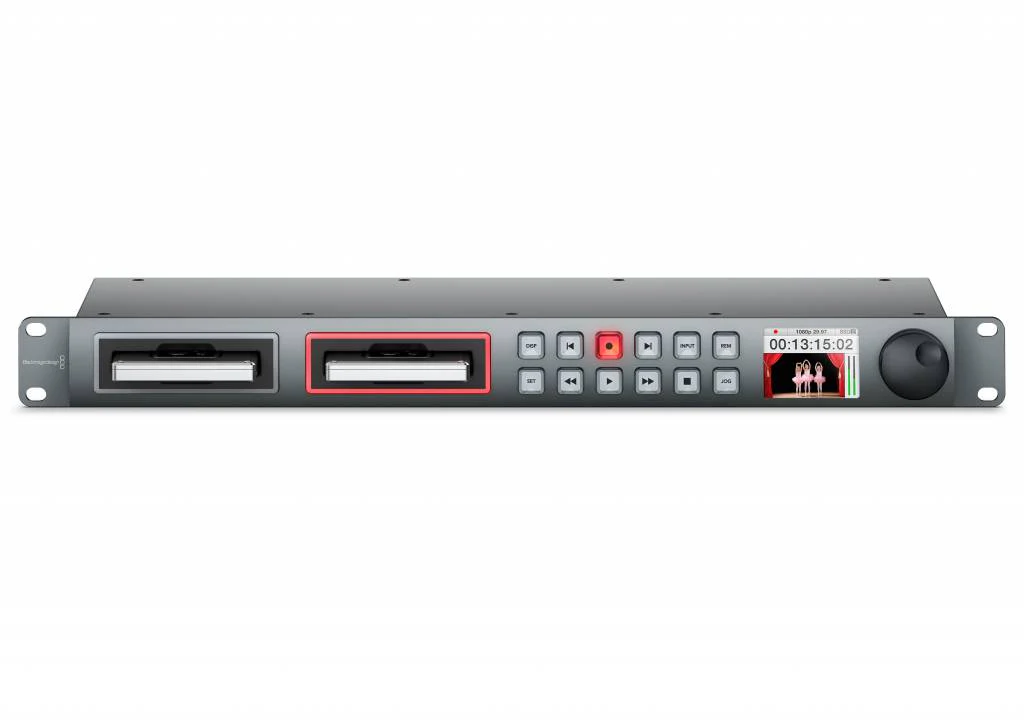

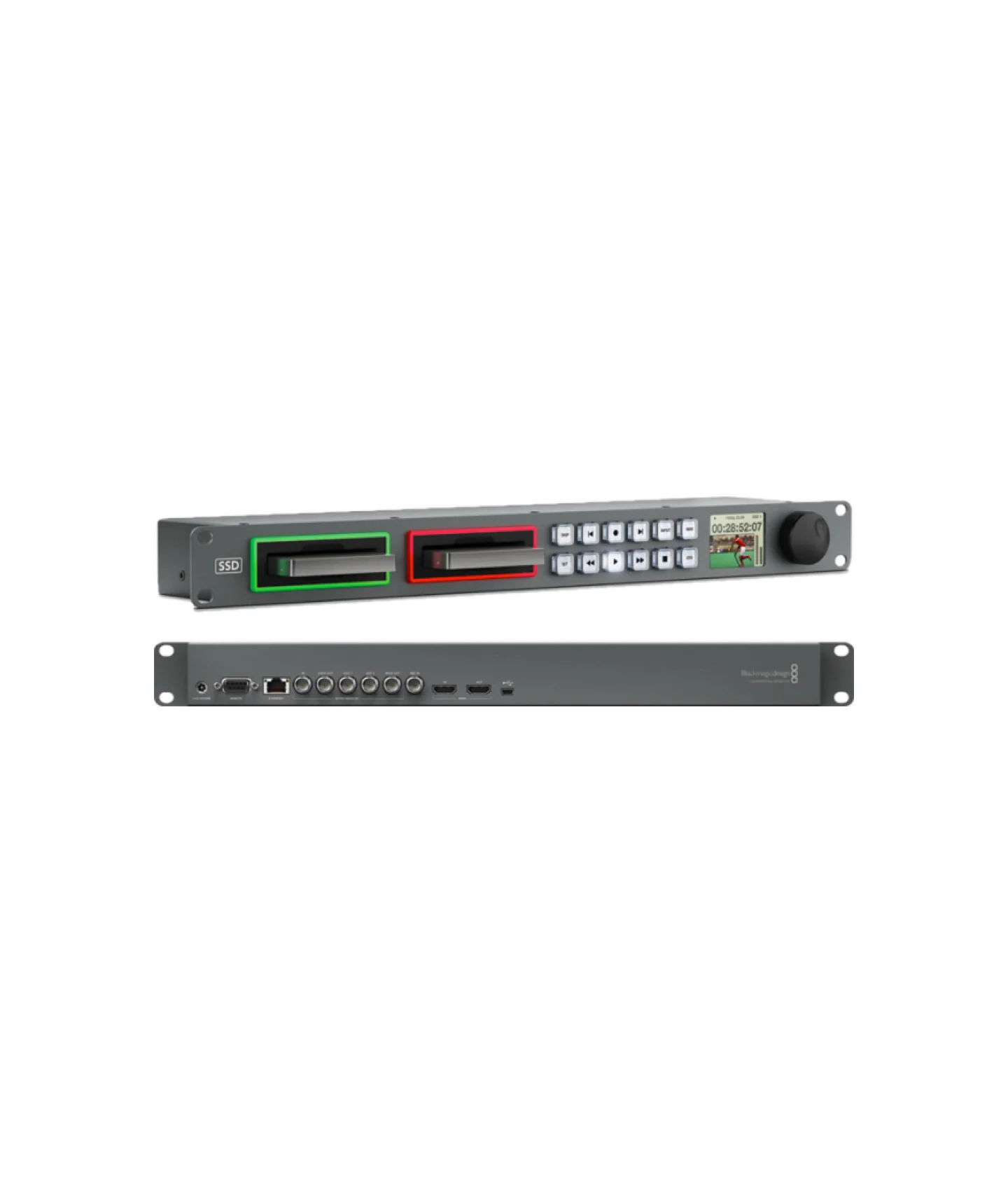

Blackmagic HyperDeck Studio 2

Video Input

Digital Video

1 x SDI (10-bit SD/HD/3G switchable)

1 x HDMI 1.4 type A

Video Output

Digital Video

1 x SDI Loop Through(10-bit SD/HD/3G switchable)

2 x SDI (10-bit SD/HD/3G switchable)

1 x SDI Monitor Output (10-bit SD/HD/3G switchable)

1 x HDMI 1.4 type A

Audio Input

Digital

SDI

16 x channels embedded in SD and HD in QuickTime files.

2 x channels in Avid DNxHD MXF files.

HDMI

8 x channels embedded in SD and HD in QuickTime files.

2 x channels in Avid DNxHD MXF files.

Audio Output

SDI

16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files.

HDMI

8 x channels embedded in SD and HD in QuickTime files.

2 x channels in Avid DNxHD MXF files.

Computer Interface

1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control

SSD Interface

2 x 2.5" SATA 3Gb/s

Sync Input

Blackburst or Tri-Sync

Device Control

Sony compatible RS-422 deck control port

Recorder

Recorder control:

12 buttons and jog wheel for local control /

or use either RJ45 Ethernet or USB 2.0 high speed interface

Recorder configuration:

use USB 2.0 high speed interface

Format Support

SD

NTSC/PAL

525 29.97 / 625 25 (525 59.94i / 625 50i)

480p60 and 576p50 via HDMI only

HD

720p 50/59.94/60

1080i 50/59.94/60

1080PsF 23.98/24/25/29.97/30

1080p 23.98/24/25/29.97/p30

SDI Compliance

SMPTE 259M, SMPTE 292M

SDI Metadata Support

HD RP188 and closed captioning

Sampling

Video: 4:2:2 Audio: 48kHz/24-bit

Color Precision

10-bit

Color Space

REC 601

REC 709

Multiple Rate Support

SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Codecs Supported

Uncompressed QuickTime

Apple ProRes 422 (HQ) QuickTime

Apple ProRes 422 (LT) QuickTime

Apple ProRes 422 (Proxy) QuickTime

Avid DNxHD QuickTime

Avid DNxHD MXF

Display

Built-in LCD for video, audio and timecode monitoring

Rack Size

1RU / less than 7" deep (approx. less than 18 cm)

Power Supply

Built-in international AC power supply with IEC C14 inlet

110-240V, 50-60Hz

Note: AC power cord is not included
